Physics 9702/34 — October/November 2024
Cambridge AS Level · Advanced Practical Skills · worked solutions for every part, with the mark scheme
Topics Manipulation, Measurement and Observation · Presentation of Data and Observations · Analysis, Conclusions and Evaluation
In this experiment, you will investigate the flow of water through a nozzle.
● Remove the plunger from the syringe body.

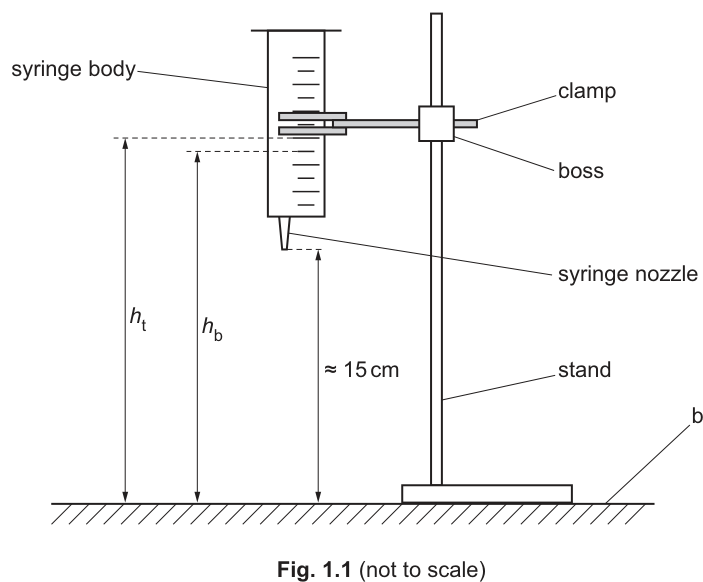

● Assemble the apparatus as shown in Fig. 1.1 with the bottom of the syringe nozzle approximately above the bench.
● Measure and record the height of the graduation above the bench, as shown in Fig. 1.1.
= ______
● Measure and record the height of the graduation above the bench, as shown in Fig. 1.1.
= ______
● Calculate the mean of the two values and .
= ______
Working
Measure heights from the bench (example readings to nearest ):
Answer
Example: h_t = 32.6 cm, h_b = 31.0 cm, h_m = 31.8 cm
Background Concept
A height measurement in a practical is a measurement of a vertical distance from a clearly defined reference level (here, the bench). To gain credit you must:
- measure the correct points (bench to the graduation mark),
- use an appropriate instrument (a ruler/metre rule),
- record to a sensible precision (typically , i.e. ),
- include units.
The mean height is used because the water level changes between the two graduations; averaging gives a representative head during the timing interval.
Understanding the Question
You set up the syringe as shown, then you must record:
- : height of the upper graduation (30 cm) above the bench,
- : height of the lower graduation (25 cm) above the bench,
- : the mean of these two heights.
These values are specific to your apparatus position, so your numerical answers are student-dependent; what matters is correct method, precision and units.
Approach
- Place the ruler vertically with its zero at bench level (or measure from bench up to each mark consistently).
- Read and at eye level to reduce parallax.
- Calculate the mean using .
Step-by-Step Reasoning
- Identify the 30 cm and 25 cm graduation lines on the syringe.
- For each graduation, measure the vertical distance from the bench to that graduation.
- Record each measurement with a consistent precision (e.g. both to ).
- Average them:
and round consistently with the input measurements.
Key Takeaways
- Always quote units and consistent precision for ruler measurements.
- The mean is used to represent a quantity that changes during the measurement interval.
Common Mistakes
- Measuring from the bench to the nozzle rather than to the graduation line.
- Not measuring vertically (measuring along the syringe or at an angle).
- Parallax error: reading the ruler from above/below eye level.
- Omitting units or recording inconsistent decimal places.
- Calculating incorrectly (e.g. subtracting instead of averaging).
Things to Be Careful About
- Keep the reference level consistent: both heights must be measured from the same bench level.
- Record to the resolution of the instrument (typically for a ruler read to ).
- When averaging, do not overstate precision: the mean should not have more decimal places than the original measurements.
● Place the empty beaker below the syringe nozzle.
● Pour water from the other beaker into the syringe body so that the water level is near the top, then watch the water level fall.
● Start the stop-watch as the water level passes the graduation, then stop the stop-watch as the water level passes the graduation.
● Record the stop-watch reading .
= ______
Answer
Start timing as the water level passes the mark and stop as it passes the mark.
Example reading:
Example: T = 12.4 s
Background Concept
A stopwatch measures time intervals, but the uncertainty is often dominated by human reaction time. To reduce this, you must:
- use clear start/stop events,
- keep your eye level with the graduation marks,
- repeat timings (in later parts) or time longer intervals where possible.
Here the event is the water meniscus crossing specific syringe graduations.
Understanding the Question
You fill the syringe, then as water flows out the level falls. You must measure the time taken for the level to fall from the 30 cm mark to the 25 cm mark (a fixed volume change of ).
Your value of depends on the nozzle and how high the water is, so it is student-dependent; the mark is for correct timing method and a sensible recorded value with units.
Approach
- Watch the meniscus closely as it approaches the 30 cm mark.
- Start the stopwatch at the instant it passes that mark.
- Stop the stopwatch at the instant it passes the 25 cm mark.
- Record to the stopwatch resolution (often or ).
Step-by-Step Reasoning
- Ensure the beaker is in place to catch water so the flow is uninterrupted.
- Fill near the top so the water level definitely passes the required graduations.
- Use the same viewing position for start and stop to minimise parallax.
- Record the stopwatch reading with unit, e.g. .
Key Takeaways
- Timing between two well-defined level crossings gives a reproducible interval.
- Good timing technique (clear criteria, correct precision) earns the marks.
Common Mistakes
- Starting/stopping when the meniscus is near the mark rather than exactly passing it.
- Using different criteria at start and stop (e.g. bottom of meniscus then top of meniscus).
- Forgetting the unit or using inconsistent precision.
Things to Be Careful About
- Always use the same part of the meniscus (usually the bottom) for both start and stop.
- If the flow is very fast, reaction time becomes a larger fraction of ; later you reduce this by collecting multiple data sets and using a graph.
- Make sure the syringe remains vertical; tilting changes the effective reading of the graduation crossing.
Choose two different graduations that are apart and measure , and .
Repeat until you have six sets of values of , and .
Record your results in a table. Include values of and in your table.
Answer
Record six sets of , and for pairs of graduations apart, then calculate
and
Example of a correctly headed table (values are illustrative):
| run | |||||
|---|---|---|---|---|---|
| 1 | 35.3 | 33.7 | 34.5 | 11.4 | 0.0877 |
| 2 | 32.6 | 31.0 | 31.8 | 12.4 | 0.0806 |
| 3 | 29.9 | 28.3 | 29.1 | 13.5 | 0.0741 |
| 4 | 27.2 | 25.6 | 26.4 | 15.0 | 0.0667 |
| 5 | 24.4 | 22.8 | 23.6 | 17.2 | 0.0581 |
| 6 | 21.7 | 20.1 | 20.9 | 20.0 | 0.0500 |
See working / student-dependent table (must include h_t, h_b, h_m, T and 1/T with units).
Background Concept
In Paper 3, a large fraction of marks often come from how you record and present data.
A good results table must:
- contain all raw measurements and required calculated quantities,
- have clear column headings with quantity and unit (e.g. ),
- use consistent decimal places within each column (raw ruler readings often to ; times to or depending on the stopwatch),
- include an appropriate range and number of readings (here, six sets).
Calculated quantities should be rounded sensibly based on the precision of the raw data.
Understanding the Question
You must choose six different pairs of graduations that are apart, and for each pair measure:
- (upper graduation height),
- (lower graduation height),
- (time for water to fall between those two graduations).
Then you must compute and include in the table:
- , the mean of and ,
- .
Approach
- Pick six different 5 cm intervals (e.g. 35–30, 30–25, 25–20, ...).
- For each interval, measure and from the bench.
- Time the fall of the meniscus between the two marks to obtain .
- Calculate and for each run.
- Present all values in one table with correct headings and consistent precision.
Step-by-Step Reasoning
- Choosing intervals: Use different parts of the syringe so that changes across a wide range; this helps the graph show a clear trend.
- Recording raw data: Put , , and in separate columns with units.
- Mean height: For each run,
If and are to , then should typically be to .
- Reciprocal time: For each run,
Use consistent significant figures (often 3 s.f.) across that column.
Key Takeaways
- A single clear table with correct headings/units and consistent precision is essential.
- Include both raw and calculated quantities exactly as instructed.
Common Mistakes
- Missing units in headings (e.g. writing only rather than ).
- Mixing decimal places within one column (e.g. some values to and some to ).
- Forgetting to include or .
- Using fewer than six sets of readings.
- Calculating but rounding inconsistently (e.g. sometimes 2 s.f., sometimes 4 s.f.).
Things to Be Careful About
- The two chosen graduations for each run must be exactly apart.
- Keep the same measurement technique for all readings (same reference, same ruler position).
- Avoid very small values where reaction time dominates; choose intervals that give times long enough to measure reliably.
Answer
Plot on the -axis (unit: ) and on the -axis (unit: ).
Use a sensible scale occupying at least half the grid on each axis and plot all six points accurately.
Graph of (1/T) against h_m (student-dependent).
Background Concept
A graph is used to reveal a relationship between variables and to allow constants to be found from a straight-line fit. For full credit you typically need:
- correctly chosen axes (dependent on , independent on ),
- axes labelled with quantity and unit,
- scales that are easy to use and that occupy a large fraction of the grid,
- accurate plotting.
Understanding the Question
You are told exactly what to plot: (from your table) against . This sets up a test of a linear relation of the form .
Approach
- Decide axis ranges based on your smallest and largest values of and .
- Mark a scale with simple steps (e.g. 1, 2, 5 multiples).
- Label axes as and .
- Plot each point using a sharp pencil and small crosses.
Step-by-Step Reasoning
- Find the range of values in your table; choose an -axis scale that fits them comfortably and uses most of the graph width.
- Do the same for on the -axis.
- Plot each pair carefully (use a ruler to help align if needed).
- Ensure every plotted point corresponds to one row of your table.
Key Takeaways
- Correct axis choice and labelling are essential and often carry marks.
- A good scale makes gradient determination more accurate.
Common Mistakes
- Swapping axes (plotting on instead of ).
- Missing units on axes.
- Using awkward scales (e.g. 3 units per big square) or scales that use only a small part of the grid.
- Plotting instead of .
Things to Be Careful About
- has unit .
- Plotting accuracy: points should be within about half a small square of their correct position.
- Don’t force the graph through the origin unless your plotted trend and theory require it (that is checked later with the best-fit line).
Answer
Draw one straight line of best fit using a ruler so that the points are reasonably balanced above and below the line.
Straight line of best fit drawn.
Background Concept
A best-fit line represents the overall trend of the data, not a join-the-dots line. For experimental scatter, the line should pass through the middle of the data so that deviations are balanced.
Understanding the Question
After plotting against , you must add a straight line that best represents the relationship.
Approach
- Use a ruler.
- Consider the overall spread: aim for roughly equal numbers of points above and below the line.
- Do not bend the line to hit every point.
Step-by-Step Reasoning
- Visually judge the trend.
- Place the ruler so the line goes centrally through the cluster.
- Draw a single thin straight line.
Key Takeaways
- Best-fit is about balance and trend, not passing through all points.
Common Mistakes
- Drawing a thick band instead of a single line.
- Joining consecutive points.
- Forcing the line through the origin without justification.
Things to Be Careful About
- If one point is an outlier, do not rotate the whole line to pass through it; keep the line representative of the main cluster.
Determine the gradient and -intercept of this line.
gradient = ______
-intercept = ______
Working
Use a large triangle on the best-fit line:
Example (from a suitable large triangle):
Read the intercept where the line crosses the -axis:
Answer
gradient
-intercept
Example: gradient = 2.8×10^-3 s^-1 cm^-1, y-intercept = −8.0×10^-3 s^-1
Background Concept
For a straight-line graph, the gradient (slope) tells you how much changes per unit change in :
The -intercept is the value of when (where the line crosses the -axis). Units come from the axis units:
- here, has unit ,
- has unit ,
so gradient has unit .
Understanding the Question
You have drawn a best-fit line on a graph of (vertical) against (horizontal). You must now obtain two numbers from that line:
- its gradient,
- its -intercept.
These depend on your plotted line, so your exact values are student-dependent, but the method must be correct.
Approach
- Pick two well-separated points on the best-fit line (not necessarily data points).
- Read their coordinates accurately.
- Compute the gradient using .
- Read the -intercept where the best-fit line crosses the -axis.
Step-by-Step Reasoning
- Large triangle: Using two far-apart points reduces percentage reading error.
- Suppose the two chosen points on the line are and . Then:
- Units: Carry units through the calculation to get .
- Intercept: Extend the best-fit line (if needed) to the -axis and read the crossing value; unit is .
Key Takeaways
- Always use the best-fit line (not point-to-point) for gradient.
- Use a large triangle and quote gradient and intercept with correct units.
Common Mistakes
- Calculating by accident.
- Using two adjacent points giving a small triangle (large uncertainty).
- Using raw data points rather than points on the best-fit line.
- Missing units for gradient or intercept.
Things to Be Careful About
- Read coordinates carefully and consistently with the axis scales.
- If the intercept is negative, include the sign.
- Do not over-round: typically 2–3 significant figures is appropriate for graph-derived quantities.
It is suggested that the quantities and are related by the equation
where and are constants.
Using your answers in (c)(iii), determine the values of and .
Give appropriate units.
= ______
= ______
Working
Given
Comparing with for a graph of against :
Using (c)(iii) (example values):
Answer
Example: p = 2.8×10^-3 s^-1 cm^-1, q = −8.0×10^-3 s^-1
Background Concept
A linear relationship has the form
where:
- is the gradient (slope),
- is the -intercept.
If you plot the correct variables on the axes, you can identify physical constants directly from and .
Understanding the Question
You are told that
and you have already plotted (as ) against (as ). You must use your gradient and intercept from (c)(iii) to state and , including units.
Approach
- Match to .
- Therefore, corresponds to the gradient and corresponds to the intercept.
- Units come from the axes: has units of and has units of .
Step-by-Step Reasoning
From the graph:
- has unit ,
- has unit .
So:
and
Numerically:
using your values obtained in (c)(iii).
Key Takeaways
- Correct plotting makes constants easy to obtain: gradient and intercept map directly onto constants in the linear equation.
- Units must be consistent with the axis quantities.
Common Mistakes
- Swapping and .
- Giving the same units as (forgetting that gradient includes division by ).
- Using or instead of .
Things to Be Careful About
- If your intercept is negative, include the minus sign.
- If your graph uses in different units (e.g. metres), then units change accordingly; always base units on your actual axis labels.
In this experiment, you will investigate the conservation of momentum.

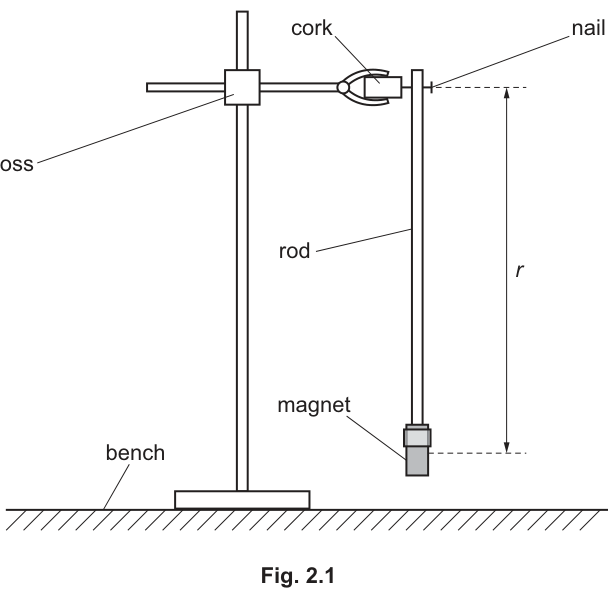

The apparatus has been partly set up as shown in Fig. 2.1.
● Check that the rod can swing freely on the nail.
● The distance between the nail and the centre of the magnet is .
Measure and record .
= ______
● Record the mass of the magnet written on the card.
= ______
Answer
(Example readings)
r = 25.0 cm, M = 50.0 g (example)
Background Concept
In Paper 3 practical work, marks for measurements are mainly awarded for:
- using the correct instrument and reading it correctly,
- recording to appropriate precision (matching the instrument resolution),
- including units.
Here is a length (distance from the pivot point at the nail to the centre of the magnet). is the magnet’s mass as provided on the card.
Understanding the Question
You are told that the rod must swing freely about the nail, and you must:
- measure and record the distance (nail to magnet centre), and
- record the mass written on the card.
The question is checking that you can take and record basic measurements correctly.
Approach
- Identify the two points that define (nail position and centre of magnet).
- Use a ruler/metre rule to measure the straight-line distance .
- Record to the nearest mm (i.e. ) if using a standard ruler.
- Copy exactly from the card, including the unit.
Step-by-Step Reasoning
- Ensure the rod can swing freely: this reduces systematic effects from friction or obstruction (even though this check is not a numerical mark, it underpins the quality of subsequent readings).
- Measure :
- Place the ruler alongside the rod.
- Read the position of the nail and the position of the magnet’s centre.
- Subtract to obtain and record it.
- Record :
- The value is provided; you simply copy it with unit .
(Representative example values were given in the answer; your actual values depend on your apparatus.)
Key Takeaways
- Record lengths to the instrument’s resolution (often ).
- Record given masses exactly as stated and include units.
Common Mistakes
- Measuring to the edge of the magnet instead of its centre.
- Omitting units ( or ).
- Giving with too many decimal places (implies unjustified precision).
Things to Be Careful About
- Parallax when reading the ruler: keep your eye directly above the scale mark.
- Defining the magnet centre consistently (use its midpoint, not a corner or edge).
● Use small pieces of adhesive putty to fix the ruler to the bench with the zero of its scale directly below the centre of the magnet, as shown in Fig. 2.2.

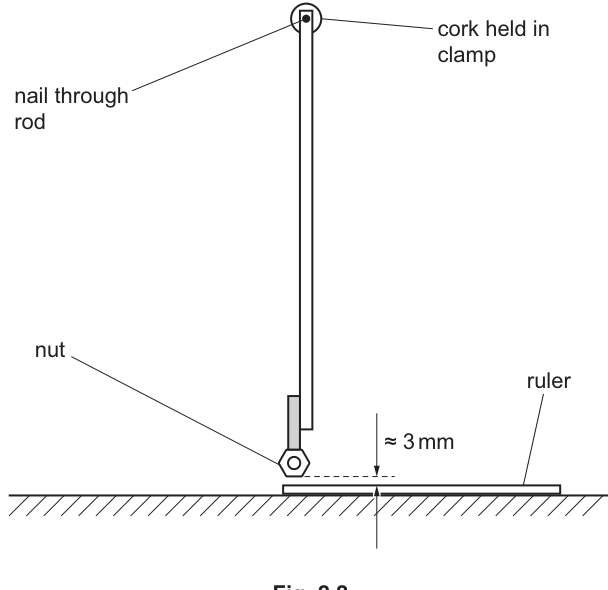

● Attach nut A to the bottom of the magnet. Adjust the position of the boss on the stand until the bottom of the nut is approximately above the ruler, as shown in Fig. 2.2.
● Record the mass of nut A written on the card.
= ______
● Detach the nut from the magnet.

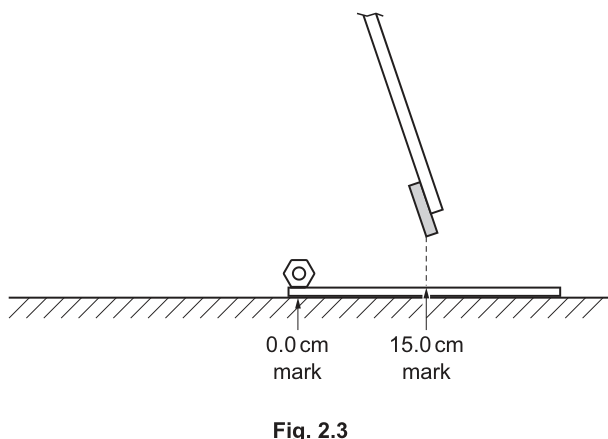

● Move the rod and hold it so that the bottom of the magnet is directly above the mark on the ruler scale.
● Place the nut on the ruler so that its centre is above the zero on the ruler scale, as shown in Fig. 2.3.

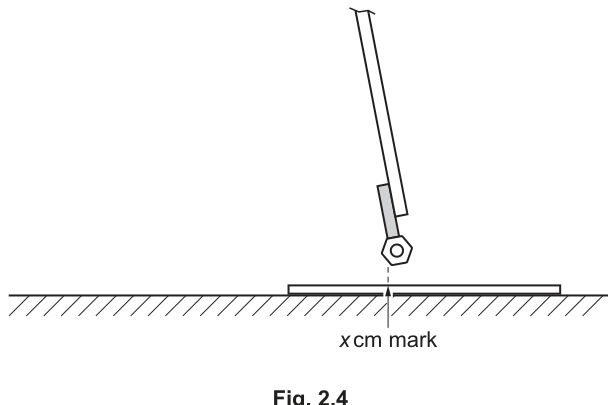

● Release the rod so that the magnet picks up the nut as it passes and then swings back to a position on the ruler scale, as shown in Fig. 2.4.
● Read and record .
= ______
Answer
(Example readings)
m = 5.0 g, x = 11.0 cm (example)
Background Concept
In this experiment the ruler acts as a position scale to measure the horizontal displacement of the swinging magnet+nutt system. The key practical skills being assessed are:
- placing the ruler so that is directly below the magnet’s centre (a defined reference),
- releasing the pendulum consistently from a known starting position,
- reading the final position (the turning point after pickup) from the scale.
Understanding the Question
You must:
- Fix the ruler on the bench so is directly below the magnet’s centre.
- Use nut A, record its mass from the card.
- Start with the magnet above , nut centred above .
- Release the rod, allow pickup, and record the turning point position .
Approach
- Do the alignment first (this affects all values).
- Use the card values for masses.
- For , wait until the system reaches its maximum displacement on the return swing and read the scale at the centre line directly under the magnet/nut.
Step-by-Step Reasoning
- Fix the ruler: ensure it cannot move during the run; otherwise you introduce a systematic error in .
- Align zero: the instruction “zero directly below the centre of the magnet” is crucial; it defines the origin for .
- Set the gap (~) as instructed so the nut does not scrape the ruler (reduces frictional energy loss and prevents the nut being pushed along).
- Record from the card.
- Place magnet above and nut at as shown.
- Release without pushing (avoid adding extra kinetic energy).
- Read at the turning point after pickup; record to the nearest if using a mm-scale ruler.
(Representative example values were provided; your measured depends on your apparatus and release.)
Key Takeaways
- Correct alignment of the scale is part of the measurement.
- A turning-point reading is often the most uncertain because the system may still be oscillating.
Common Mistakes
- Setting the ruler’s zero somewhere other than directly under the magnet centre.
- Reading while the magnet is still moving (not at the maximum displacement).
- Measuring to the wrong reference point (edge of nut/magnet rather than the centre line directly above the scale).
Things to Be Careful About
- Ensure the nut is centred above zero before release.
- Keep your eye normal to the ruler to reduce parallax.
- If the pickup sometimes fails, repeat until you get a clean pickup before recording .
Estimate the percentage uncertainty in your value of . Show your working.
percentage uncertainty = ______
Working
Take uncertainty in as .
Answer
0.9 %
Background Concept
For a direct reading from a ruler with 1 mm divisions:
- a typical reading uncertainty is about half the smallest division, i.e. .
In practice, for a moving turning point, it can be reasonable to take a larger uncertainty such as because it is difficult to judge the exact maximum position.
Percentage uncertainty is:
Understanding the Question
You must estimate the percentage uncertainty in your measured and show working.
- You need an absolute uncertainty for .
- Then convert it into a percentage.
Approach
- Decide a sensible absolute uncertainty in (based on ruler resolution and the fact that is read at a turning point).
- Use the percentage uncertainty formula.
- Round appropriately.
Step-by-Step Reasoning
Using the example value :
- Choose absolute uncertainty: (1 mm) is reasonable for a turning-point estimate.
- Calculate:
- Quote as (typically 1 s.f. in an uncertainty is acceptable unless asked otherwise).
Key Takeaways

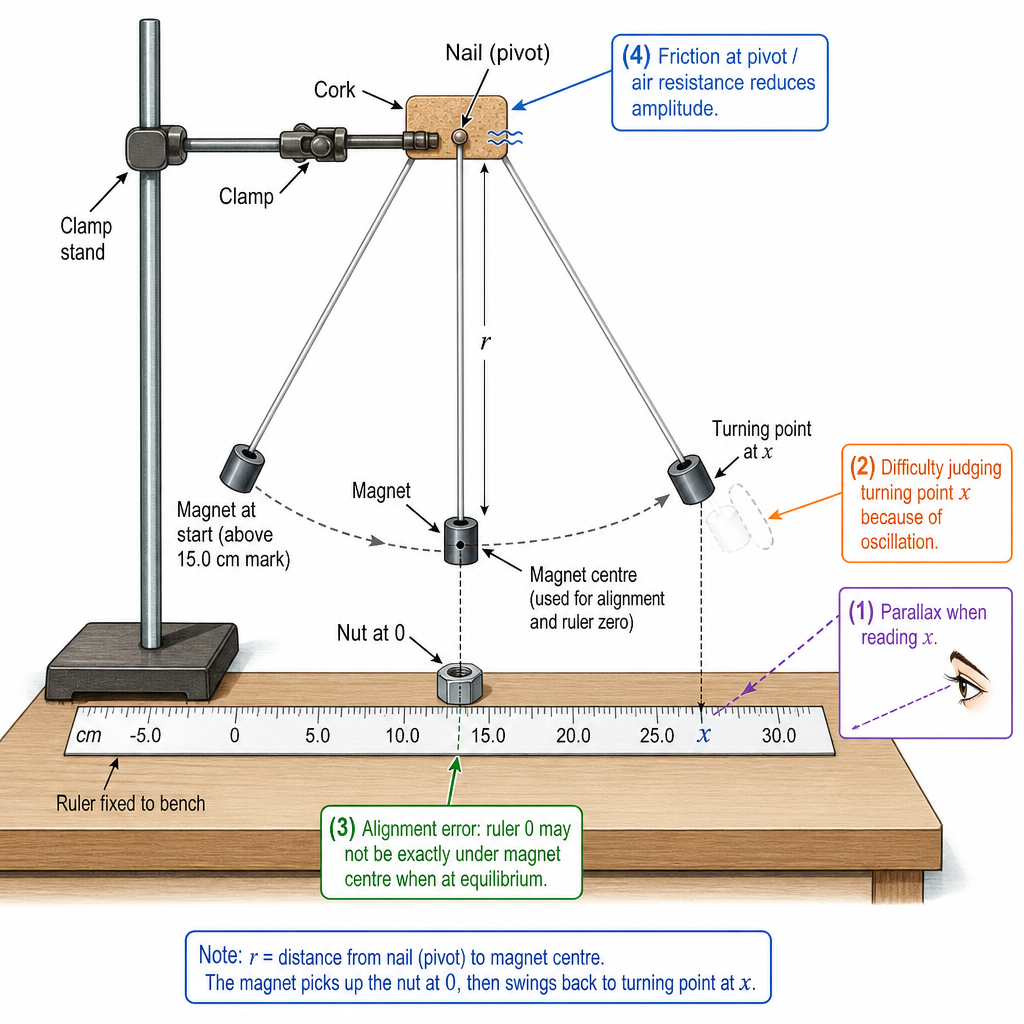

- Uncertainty is not just instrument resolution; the nature of the measurement (turning point, movement) matters.
- Always show the fraction then multiply by 100.
Common Mistakes
- Using for a mm-scale ruler (too small).
- Forgetting to multiply by 100.
- Writing an uncertainty with excessive significant figures (e.g. ).
Things to Be Careful About
- Use the same units for and before dividing.
- If you used a different , your percentage will change; the method is what is assessed.
Working
Answer
2.6 cm
Background Concept
The formula
comes from pendulum geometry.
- is the distance from the pivot to the magnet’s centre (the pendulum length).
- is the horizontal displacement of the magnet’s centre from directly below the pivot.
- When the pendulum rises, its vertical drop from the pivot changes. The vertical distance from pivot to bob at a given displacement is the adjacent side of a right triangle: . The rise in height above the lowest position is therefore .
Understanding the Question
You are told exactly what to do: calculate from your measured and using the given equation, then record in cm.
Approach
- Use consistent units (both and are in cm, so will be in cm).
- Compute first, then take the square root, then subtract from .
Step-by-Step Reasoning
Using the example measurements and :
- Square values:
- Subtract:
- Square root:
- Subtract from :
- Quote to sensible precision (often 2 s.f. or to 0.1 cm, consistent with measured inputs): .
Key Takeaways
- Keep units consistent throughout a calculation.
- Do the arithmetic in a stable order: squares → difference → square root → subtraction.
Common Mistakes
- Calculating (wrong order).
- Using (missing the final subtraction from ).
- Mixing units (e.g. in cm but in m).
Things to Be Careful About
- Ensure ; otherwise would be negative (indicates a measurement/alignment error).
- Rounding too early can change noticeably; keep extra digits until the final line.
Answer
(Example readings for nut B)
m = 10.0 g, x = 10.1 cm, h = 2.1 cm (example)
Background Concept
Repeating measurements with a second nut changes the total mass after the collision/pickup. In practical terms, you are being assessed on whether you can:
- follow the same method consistently,
- obtain a second set of measurements ( and ),
- calculate using the same relationship.
Consistency is crucial: if your method changes between nut A and nut B, differences in results may come from technique rather than physics.
Understanding the Question
You must repeat part (a)(ii) (measuring and ) and part (a)(iv) (calculating ) for nut B, then record , , and .
Approach
- Keep the setup unchanged (same ruler alignment, same , same release point at , same nut placement at ).
- Record the mass from the card.
- Measure the same way as before.
- Substitute into the same formula for .
Step-by-Step Reasoning
- Record nut B mass from the card.
- Repeat the swing-and-pickup procedure and read at the turning point.
- Calculate using:
with the same as previously measured.
4) Quote with sensible precision consistent with and .
The numerical values shown in the answer are representative examples; your experiment will produce your own values.
Key Takeaways
- Repeatability depends on identical starting conditions.
- Derived quantities () must be calculated using your measured and .
Common Mistakes
- Forgetting to detach nut B between trials or changing the position of the ruler.
- Changing the release point (not starting at ).
- Using a different value of for nut B without re-measuring/without justification.
Things to Be Careful About
- Do not round intermediate steps too early; it can noticeably affect .
- Ensure the nut is picked up cleanly; if it slips or is dragged, discard and repeat.
It is suggested that the relationship between , and is
where is a constant.
Using your data, calculate two values of .
first value of = ______
second value of = ______
Working
From
Nut A:
Nut B:
Answer
first value of
second value of
k \approx 7.7×10^3, 7.7×10^3
Background Concept
When an experiment suggests a relationship like
is a constant that should (ideally) be the same for all trials.
To find from one set of measurements, rearrange:
If the model is correct and uncertainties are small, values of from different nuts should agree within experimental uncertainty.
Understanding the Question
You have measured (or been given) values for:
- : mass of magnet,
- : mass of nut (A then B),
- : calculated height rise.
You must use each dataset to calculate twice (one for nut A and one for nut B).
Approach
- Rearrange the equation to make the subject.
- Substitute , , and for nut A to get .
- Substitute , , and for nut B to get .
- Quote both values appropriately.
Step-by-Step Reasoning
- Rearrangement:
- Nut A calculation:
- Add masses to get total moving mass .
- Square it.
- Multiply by .
- Nut B calculation:
- Repeat exactly the same steps with nut B’s and .
In the example working:
- and (in units consistent with how and masses were used).
They are very close, suggesting good consistency.
Key Takeaways
- Always rearrange before substituting to avoid algebra mistakes.
- A constant calculated from different trials is how you test whether data fits a model.
Common Mistakes
- Using (inverting incorrectly).
- Forgetting to add before squaring.
- Mixing units (e.g. using in g and in kg without conversion).
Things to Be Careful About
- Keep extra digits during calculation and round at the end.
- Use the same unit system for both trials; otherwise your two values are not comparable.
Answer
is calculated from measured values of , and , where (from ruler readings of and ) has the largest uncertainty.
Therefore should be quoted to about 2 significant figures (e.g. ).
Quote k to about 2 s.f., limited by uncertainty in h (from r and x).
Background Concept
Significant figures in a calculated quantity should reflect the precision of the input data.
- If a measurement has an uncertainty of several percent, quoting a result to 4 or 5 significant figures is unjustified.
- In practical work, it is common to quote uncertainties to 1 s.f. (sometimes 2), and quote the final value to a matching precision.
Here,
Even if and are written clearly on a card, is calculated from and , and is often the least certain because it is read at a turning point.
Understanding the Question
You must explain why you chose the number of significant figures for your two values.
The examiner wants to see that you have linked your rounding to measurement precision (especially of and therefore ).
Approach
- Identify which measured quantity has the greatest percentage uncertainty.
- State that this limits the precision of .
- Conclude an appropriate number of significant figures (often 2 s.f. for data with ~10% uncertainty).
Step-by-Step Reasoning
- depends on directly and on .
- comes from
so any uncertainty in and propagates into .
3) In this experiment, is typically the most uncertain reading because:
- it is a turning point,
- the system may still oscillate,
- parallax is possible.
- Therefore (and hence ) will not be known to very high precision. Quoting to about 2 significant figures is reasonable and consistent with practical uncertainty levels.
Key Takeaways
- Significant figures should reflect measurement uncertainty, not calculator output.
- Identify the limiting measurement (often a moving pointer / turning point reading).
Common Mistakes
- Saying “because my calculator gives this many digits”.
- Quoting to 4 s.f. when was only measured to and is a turning point.
- Not referring to any measured quantity in the justification.
Things to Be Careful About
- If you calculated using rounded values of , your final should not be more precise than .
- If the paper states a typical percentage uncertainty (here later they suggest ), that strongly supports quoting results to 2 s.f.
It is suggested that the percentage uncertainty in the values of is .
Using this uncertainty, explain whether your results support the relationship in (c).
Working
Percentage difference between values:
Answer
, so the two values agree within the uncertainty and the results support the relationship.
Yes — k values agree within 15%, so relationship is supported.
Background Concept
To test whether results support a proposed relationship, you look for consistency within uncertainties.
- If two measured/derived values are supposed to be the same (here, both are estimates of the constant ), then they should agree within the experimental uncertainty.
- A common method is to compare their percentage difference to the stated percentage uncertainty.
Percentage difference (one acceptable definition) is:
If this is less than the stated uncertainty (here ), then the results are consistent.
Understanding the Question
You are told to assume the percentage uncertainty in is . Using that, you must say whether your two calculated values of support the relationship.
So you need:
- a comparison of the two values (difference), and
- a clear conclusion based on the threshold.
Approach
- Compute how far apart the two values are (as a percentage).
- Compare with .
- Conclude “supports” if the difference is smaller than (or “does not support” if larger).
Step-by-Step Reasoning
Using the example values and :
- Find absolute difference:
- Find mean:
- Percentage difference:
- Compare to :
Therefore the results support the relationship (within the assumed uncertainty).
Key Takeaways
- “Support” in practical physics usually means “consistent within uncertainty”, not “exactly equal”.
- Always link your conclusion to a numerical comparison.
Common Mistakes
- Saying “they are close” without using the figure.
- Comparing raw difference rather than percentage difference.
- Concluding “does not support” even when the values differ by less than the stated uncertainty.
Things to Be Careful About
- Use your unrounded values for the comparison if possible.
- Be explicit: state both the computed percentage difference and the comparison with .
Describe four sources of uncertainty or limitations of the procedure for this experiment.
For any uncertainties in measurement that you describe, you should state the quantity being measured and a reason for the uncertainty.
Answer
- : difficult to judge the maximum position because the magnet+nutt system is moving/oscillating; also parallax when reading the ruler.
- : ruler zero may not be exactly vertically below the magnet centre (alignment error gives systematic error in ).
- : uncertainty in locating the exact centre of the magnet and the nail position when measuring .
- Procedure limitation: energy losses (friction at the nail pivot and air resistance) mean the swing height is reduced and may vary between runs.
Four sources: x reading (turning point/parallax), zero alignment, r centre/pivot definition, friction/air resistance energy losses.
Background Concept
In practical experiments, uncertainties arise from:
- instrument resolution (smallest scale division),
- observer effects (parallax, reaction time, judging a turning point),
- alignment and geometry (where “zero” or “centre” actually is),
- physical limitations (friction, air resistance, inconsistent collisions).
A good answer names the quantity and explains the reason.
Understanding the Question
You must give four sources of uncertainty or limitations in this specific procedure. For any measurement uncertainty, you must:
- state what you are measuring (e.g. , , masses), and
- give a reason why it is uncertain.
Approach
Look at every measured/controlled part of the method and ask:
- What could vary from run to run (random uncertainty)?
- What could bias all readings in the same direction (systematic error)?
- What parts of the setup are hard to align or define?
Step-by-Step Reasoning
Four strong, creditworthy examples are:
- Uncertainty in (turning point):
- The magnet+nutt system may not stop exactly at one point; it can oscillate slightly.
- This makes the maximum displacement hard to judge.
- Also, reading a ruler from above at an angle causes parallax.
- Systematic alignment error in :
- If the ruler’s mark is not directly below the magnet’s centre in the equilibrium position, every value is shifted.
- This is systematic: it affects all trials similarly.
- Uncertainty in :
- The nail position is small and hard to define exactly.
- The “centre of the magnet” may be difficult to locate precisely, especially if the magnet is not symmetric or the centre is not marked.
- Energy-loss limitation:
- Friction at the pivot and air resistance reduce mechanical energy.
- If friction varies (e.g. rod rubbing the nail differently each run), the turning point changes, increasing scatter in and hence .
Other acceptable limitations (if needed) could include inconsistent pickup (nut may not be grabbed at exactly the same point/time) or the nut sliding/bouncing on the ruler before pickup.
Key Takeaways
- Always connect an uncertainty to a specific measured quantity.
- Include both measurement uncertainties (reading scales) and physical limitations (friction, air resistance, inconsistent interaction).
Common Mistakes
- Writing vague statements like “human error” without specifying or and why.
- Repeating the same idea four times (e.g. four versions of parallax).
- Giving an “improvement” instead of a “limitation” (improvements belong in part (ii)).
Things to Be Careful About
- Make sure you have four distinct points.
- At least some should reference the specific measurements used later ( and are especially important because they determine and then ).
Describe four improvements that could be made to this experiment. You may suggest the use of other apparatus or different procedures.
Answer
- Take repeat readings of for each nut and calculate a mean (and ignore anomalous values).
- Attach a thin pointer to the magnet (or use a fiducial marker) and read against a fixed vertical scale to reduce parallax and improve definition of .
- Use video recording (or a motion sensor) to identify the maximum displacement/turning point more accurately.
- Reduce pivot friction by using a low-friction pivot (e.g. knife-edge/bearing) and ensure the rod does not rub on the support.
Improvements: repeats & mean, pointer/fiducial to reduce parallax, video/motion sensor for turning point, reduce pivot friction.
Background Concept
Improvements should:
- target a specific limitation,
- reduce random scatter (increase repeatability) or reduce systematic bias,
- be practical with realistic school-lab apparatus.
Since depends strongly on and hence on , improving the measurement of usually gives the biggest benefit.
Understanding the Question
You must propose four improvements to the experiment. These can involve:
- better apparatus,
- better measurement methods,
- different procedures.
The best answers clearly reduce the uncertainties/limitations you identified in part (i).
Approach
For each major weakness in the method, propose a matching fix:
- Turning point hard to read use video/data logging/pointer.
- Parallax/alignment add fiducial markers and alignment aids.
- Random variation repeat and average.
- Energy losses reduce friction and unwanted contact.
Step-by-Step Reasoning
Four strong improvements are:
- Repeat and average :
- Do several trials for each nut.
- Use the mean ; this reduces random uncertainty.
- Use a pointer/fiducial marker:
- Attach a narrow pointer to the moving magnet/nut so you read a single line rather than an extended object.
- Read against a fixed scale to reduce parallax and ambiguity.
- Use video or a sensor to capture the turning point:
- Record the motion and pause at maximum displacement to read .
- This is especially effective because the turning point is brief and easy to miss by eye.
- Improve the pivot:
- Replace the nail contact with a lower-friction pivot (knife-edge or small bearing) and ensure the rod swings without rubbing.
- This improves repeatability and reduces variable energy loss.
Other acceptable improvements could include using a set square/plumb line to align ruler zero under the magnet centre, or using a shaped holder to keep the nut exactly centred at zero each time.
Key Takeaways
- Improvements must be specific and should clearly reduce a named uncertainty.
- Repeats reduce random uncertainty; better alignment reduces systematic error.
Common Mistakes
- Giving vague improvements like “be more careful”.
- Suggesting changes that alter the physics being tested without justification.
- Listing improvements that do not correspond to any real limitation in the method.
Things to Be Careful About
- Ensure your improvements are feasible with typical lab equipment.
- Make sure each of the four points is different (e.g. don’t give four versions of “use a better ruler”).
