In this experiment, you will investigate an electrical circuit.

(a)

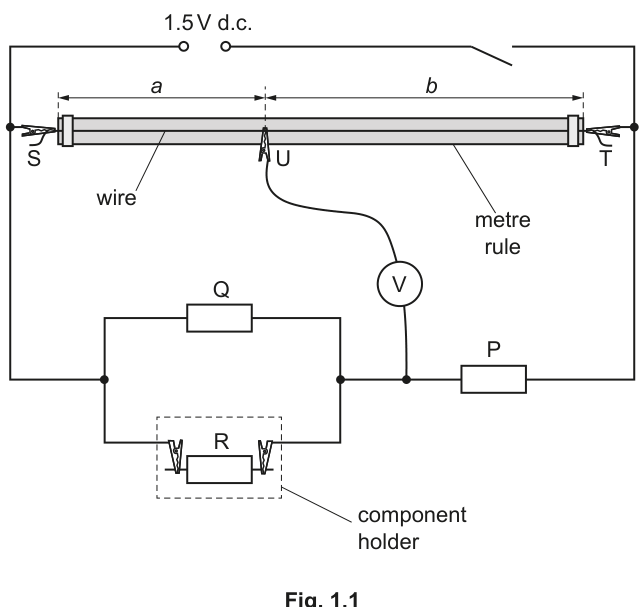

Connect the circuit shown in Fig. 1.1.

Fig. 1.1

● S, T and U are crocodile clips.

Connect one of the resistors labelled with its resistance in the component holder as resistor $R$ , and record its resistance $R$ .

$R$ = ______

● Close the switch.

● Place U on the wire and adjust its position so that the voltmeter indicates as near to zero as possible.

● The distance between S and U is $a$ and the distance between U and T is $b$ , as shown in Fig. 1.1.

Measure and record $a$ and $b$ .

$a$ = ______
$b$ = ______

● Open the switch.

(b)

Change $R$ and determine $a$ and $b$ . Repeat until you have six sets of values of $R$ , $a$ and $b$ .

Record your results in a table. Include values of $\frac{1}{R}$ and $\frac{b}{a}$ in your table.

10M

(c)

(i)

Plot a graph of $\frac{b}{a}$ on the $y$ -axis against $\frac{1}{R}$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
y-intercept = ______

(d)

It is suggested that the quantities $b$ , $a$ and $R$ are related by the equation

\frac{b}{a} = \frac{M}{R} + N

where $M$ and $N$ are constants.

Using your answers in (c)(iii), determine the values of $M$ and $N$ . Give appropriate units.

$M$ = ______
$N$ = ______
