Physics 9702/22 — October/November 2023

Cambridge AS Level · AS Level Structured Questions · worked solutions for every part, with the mark scheme

questions

marks

minutes

Topics Dynamics · Physical Quantities and Units · Kinematics · Forces, Density and Pressure · Deformation of Solids · Work, Energy and Power · +5 more

Q1Physical Quantities and UnitsKinematicsFree sample

(a)

In the following list, underline all quantities that are SI base quantities.

charge electric current force time

(b)

Under certain conditions, the distance $s$ moved in a straight line by an object in time $t$ is given by

s = \frac{1}{2}at^2

where $a$ is the acceleration of the object.

State two conditions under which the above expression applies to the motion of the object.

1 ................................................................................................................................................

2 ................................................................................................................................................

(c)

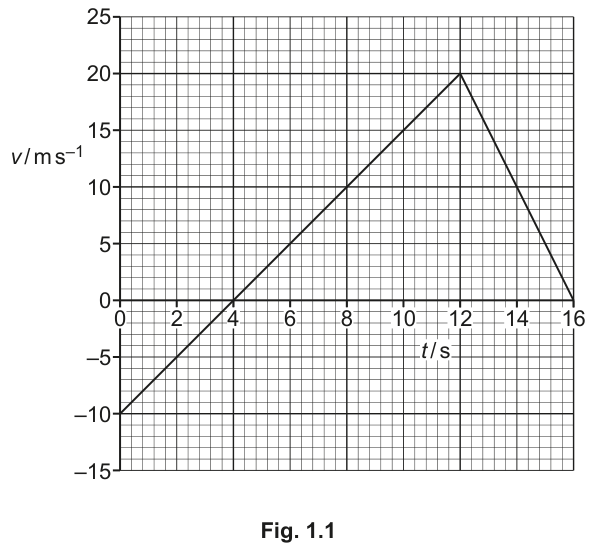

The variation with time $t$ of the velocity $v$ of a car that is moving in a straight line is shown in Fig. 1.1.

Fig. 1.1

(i)

Compare, qualitatively, the acceleration of the car at time $t = 8.0\ \text{s}$ and at time $t = 14.0\ \text{s}$ in terms of:

● magnitude

...........................................................................................................................................

● direction.

...........................................................................................................................................

(ii)

Determine the magnitude of the acceleration of the car at time $t = 4.0\ \text{s}$ .

acceleration = ______ $\text{m s}^{-2}$

(iii)

The car is at point X at time $t = 0$ .

Determine the magnitude of the displacement of the car from X at time $t = 12.0\ \text{s}$ .

displacement = ______ $\text{m}$
