In this experiment, you will investigate the stability of a cylinder.

(a)

(i)

● Use some of the sheets of paper to make a pile of approximate thickness 3 mm.
● Using the calipers, measure and record the thickness $T$ of the pile.

$T$ = ______

(ii)

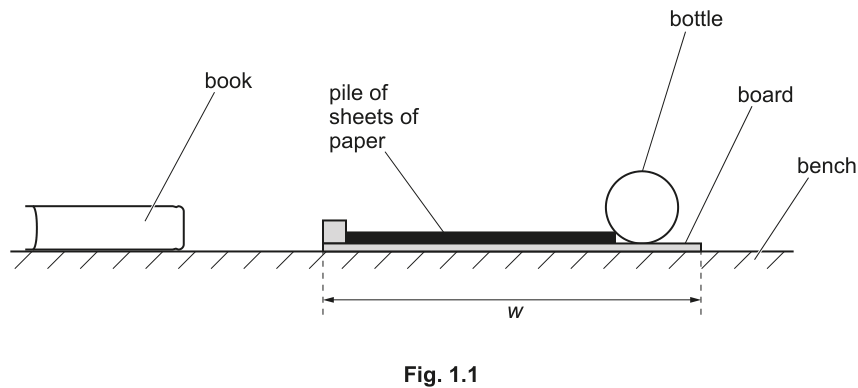

● Position the apparatus on the bench as shown in Fig. 1.1.

Fig. 1.1

● Measure and record the width $w$ of the board, as shown in Fig. 1.1.

$w$ = ______

(b)

● Use the stand and clamp to hold the rule vertically on the bench.

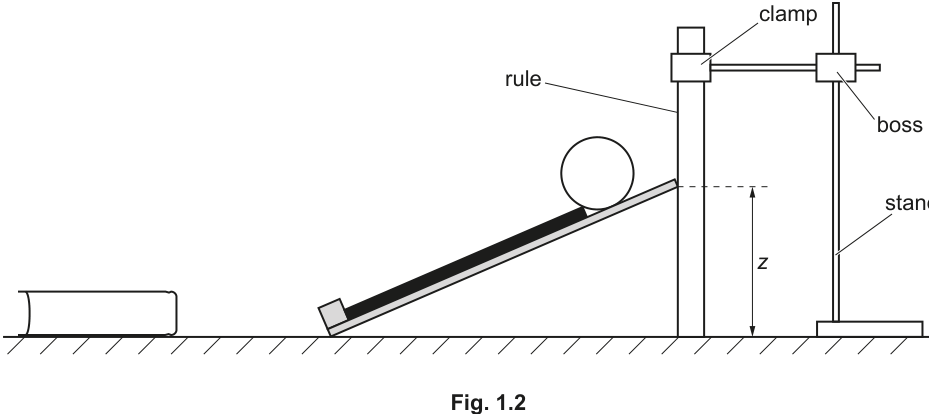

● Slowly raise the end of the board, as shown in Fig. 1.2.

Fig. 1.2

● Measure and record the height $z$ of the raised end of the board when the bottle rolls over the pile of paper.

$z$ = ______

● Calculate $\theta$ using

\theta = \sin^{-1}\left(\frac{z}{w}\right)

$\theta$ = ______

(c)

Change the number of sheets of paper in the pile. Measure $T$ and $z$ . Repeat until you have six sets of values of $T$ and $z$ .

Record your results in a table. Include values of $\theta$ and $\cos \theta$ in your table.
Give your values of $\cos \theta$ to three significant figures.

(d)

(i)

Plot a graph of $\cos \theta$ on the $y$ -axis against $T$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
$y$ -intercept = ______

(e)

It is suggested that the quantities $\theta$ and $T$ are related by the equation

\cos \theta = a - bT

where $a$ and $b$ are constants.

Using your answers in (d)(iii), determine the values of $a$ and $b$ .
Give appropriate units.

$a$ = ______
$b$ = ______
