In this experiment, you will investigate an electrical circuit.

(a)

(i)

You have been provided with a stand with two clamps attached.
Do not change the positions of the clamps during the experiment.

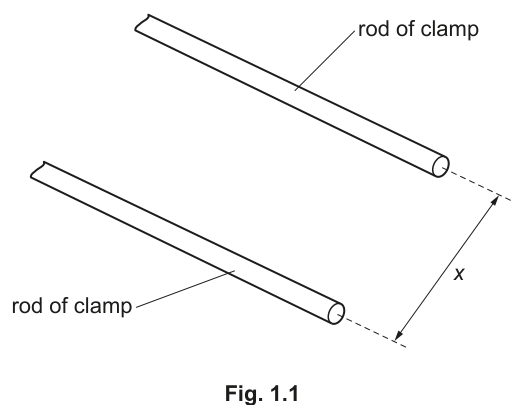

Measure the distance $x$ between the centres of the rods of the two clamps, as shown in Fig. 1.1.

Fig. 1.1

$x$ = ______ $\text{cm}$

(ii)

You have been provided with a length of resistance wire with crocodile clips attached to its ends.

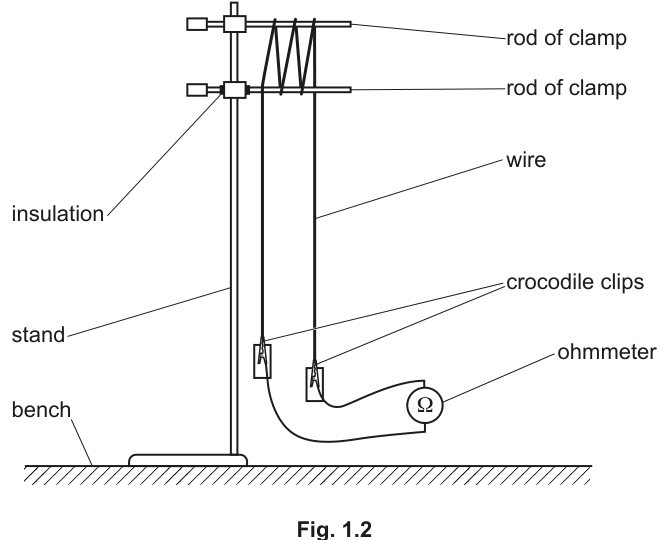

● Wrap the wire around the rods of the clamps, as shown in Fig. 1.2.

Fig. 1.2

● Connect the ohmmeter to the crocodile clips, as shown in Fig. 1.2.
● Record the resistance $R$ shown by the ohmmeter.

$R$ = ______

(b)

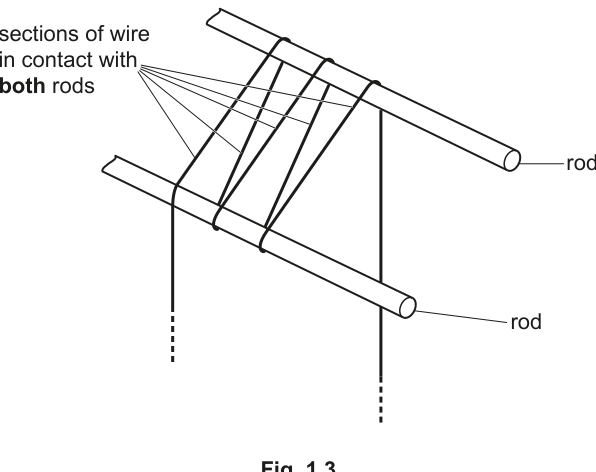

● Five sections of wire are in contact with both rods, as shown in Fig. 1.3.

Fig. 1.3

● Record the number $n$ of sections of wire that are in contact with both rods.

$n$ = ______

Change $n$ by wrapping the wire around the rods a different number of times. Measure $R$ and count $n$ . Continue until you have five sets of values of $R$ and $n$ .

Record your results in a table. Include values of $(n - \frac{1}{n})$ to three significant figures in your table.

10M

(c)

(i)

Plot a graph of $R$ on the $y$ -axis against $(n - \frac{1}{n})$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
$y$ -intercept = ______

(d)

It is suggested that the quantities $R$ and $n$ are related by the equation

R = a(n - \frac{1}{n}) + b

where $a$ and $b$ are constants.

Use your answers in (c)(iii) to determine the values of $a$ and $b$ . Give appropriate units.

$a$ = ______
$b$ = ______

(e)

The resistance per unit length $r$ of the wire can be found using

a = -xr

Calculate $r$ . Give an appropriate unit.

$r$ = ______
