In this experiment, you will investigate the equilibrium of a wooden rod supported by a spring.

(a)

(i)

Before assembling the apparatus, measure and record the length $C_o$ of the coiled section of the spring, as shown in Fig. 1.1.

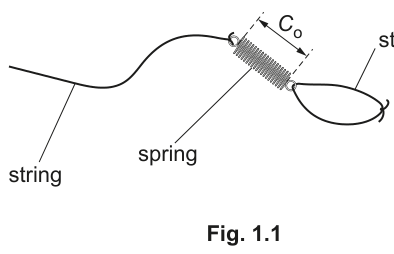

Fig. 1.1

$C_o$ = ______ $\text{cm}$

(ii)

Assemble the apparatus as shown in Fig. 1.2 with each nail held securely in a boss.

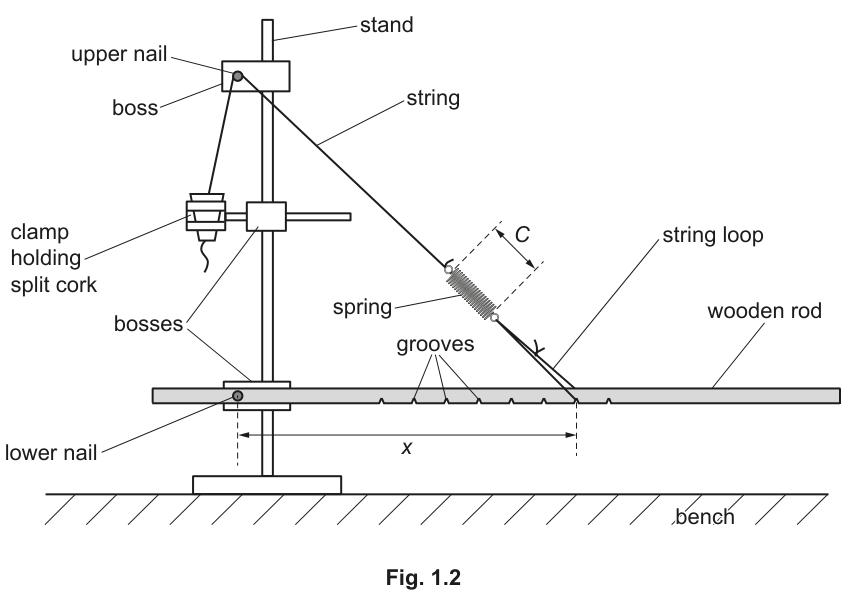

Fig. 1.2

Adjust the bosses until the upper nail is approximately $35\text{ cm}$ above the bench and the lower nail is approximately $10\text{ cm}$ above the bench.
Position the string loop in one of the grooves near the middle of the rod.
Adjust the free end of the string so that the rod is parallel to the bench and then secure it in the split cork.
Measure and record the length $C$ of the coiled section of the spring, as shown in Fig. 1.2.

$C$ = ______ $\text{cm}$

Calculate $E$ , where $E = C - C_o$ .

$E$ = ______ $\text{cm}$

(iii)

The distance from the centre of the lower nail to the groove with the string loop in it is $x$ . Measure and record $x$ .

$x$ = ______ $\text{cm}$

(b)

Move the string loop into another groove and adjust the apparatus so that the rod is parallel to the bench.
Measure $C$ and $x$ .

Repeat until you have at least six sets of values of $C$ and $x$ .
Record your results in a table. Include values of $E$ and $\frac{1}{E^4}$ in your table.

(c)

(i)

Plot a graph of $\frac{1}{E^4}$ on the $y$ -axis against $x$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
$y$ -intercept = ______

(d)

It is suggested that the quantities $E$ and $x$ are related by the equation

\frac{1}{E^4} = ax + b

where $a$ and $b$ are constants.

Use your answers in (c)(iii) to determine the values of $a$ and $b$ .
Give appropriate units.

$a$ = ______
$b$ = ______
