Answer all the questions in the spaces provided. (a) Complete Table 1.1 by stating whether each of the quantities is a vector or a scalar. Table 1.1 quantity vector or scalar --- --- acceleration power work (b) The variation with time $t$ of the velocity $v$ of an object is shown in Fig. 1.1. (i) Determine the acceleration of the object from time $t = 0$ to time $t = 4.0\ \text{s}$. acceleration = \_\_\_\_\_\_ $\text{m s}^{-2}$ (ii) Determine the distance moved by the object…

Physics 9702/22 — February/March 2021

Cambridge AS Level · AS Level Structured Questions · worked solutions for every part, with the mark scheme

questions

marks

minutes

Topics Kinematics · Dynamics · Waves · Physical Quantities and Units · Work, Energy and Power · Deformation of Solids · +5 more

Q1Physical Quantities and UnitsKinematicsDynamicsFree sample

Answer all the questions in the spaces provided.

(a)

Complete Table 1.1 by stating whether each of the quantities is a vector or a scalar.

Table 1.1

(b)

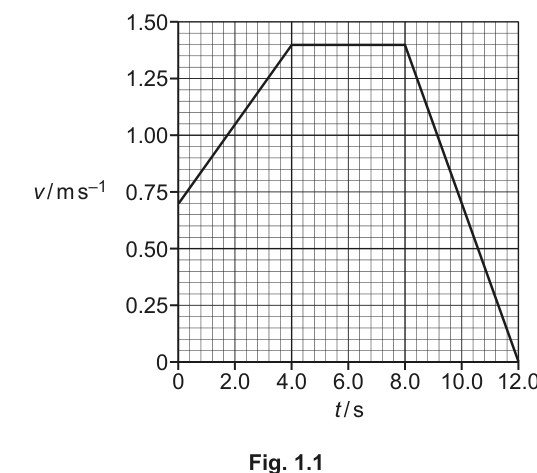

The variation with time $t$ of the velocity $v$ of an object is shown in Fig. 1.1.

Fig. 1.1

(i)

Determine the acceleration of the object from time $t = 0$ to time $t = 4.0\ \text{s}$ .

acceleration = ______ $\text{m s}^{-2}$

(ii)

Determine the distance moved by the object from time $t = 0$ to time $t = 4.0\ \text{s}$ .

distance = ______ $\text{m}$

(c)

(i)

Define force.

(ii)

The motion represented in Fig. 1.1 is caused by a resultant force $F$ acting on the object.

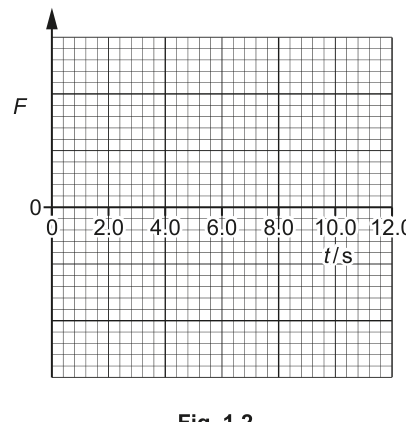

On Fig. 1.2, sketch the variation of $F$ with time $t$ from $t = 0$ to $t = 12.0\ \text{s}$ .
Numerical values of $F$ are not required.

Fig. 1.2

6 more questions

Loading the full paper…
