In this experiment, you will investigate combinations of resistors in an electrical circuit.

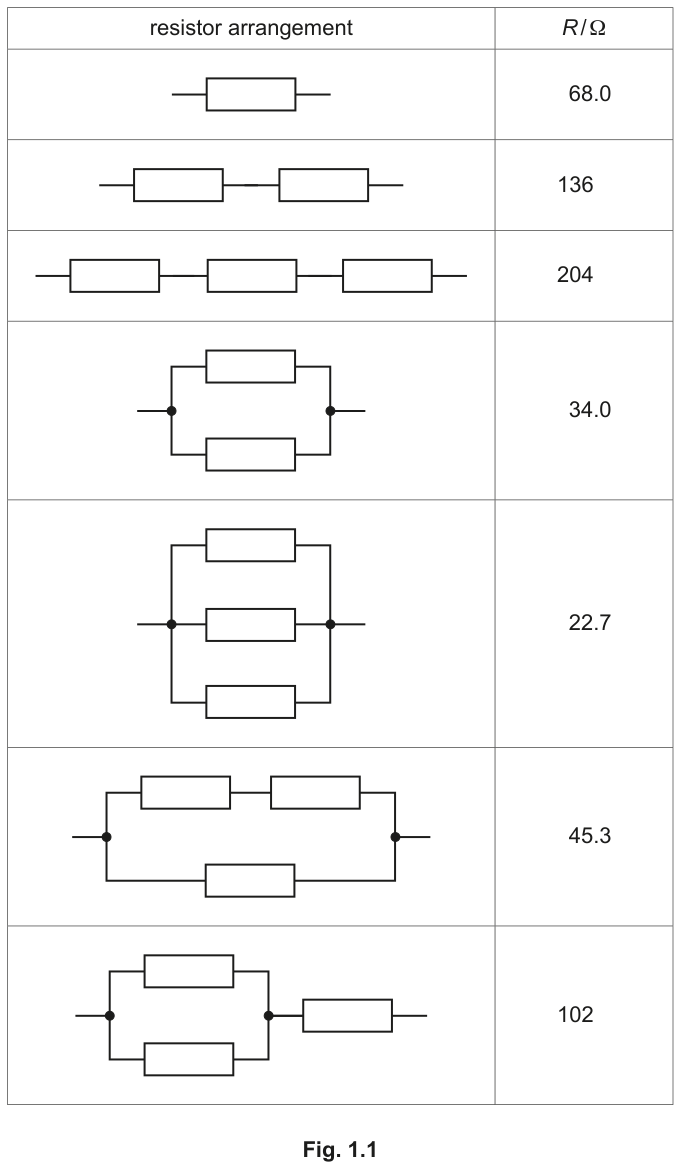

Fig. 1.1 shows how resistors of resistance $68.0\ \Omega$ can be arranged to give different values of total resistance $R$ .

Fig. 1.1

(a)

● Set up the circuit as shown in Fig. 1.2 with a resistor of resistance $68.0\ \Omega$ between F and G.

Fig. 1.2

● Record the total resistance $R$ between F and G.

$R$ = ______ $\Omega$

● Close the switch.

● Record the ammeter reading $I$ .

$I$ = ______

● Open the switch.

(b)

Use six different arrangements of the $68.0\ \Omega$ resistors to provide six different total resistances between F and G.

For each arrangement, record $R$ and $I$ in a table. Include values of $\frac{1}{I}$ in your table.

10M

(c)

(i)

Plot a graph of $\frac{1}{I}$ on the $y$ -axis against $R$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______

$y$ -intercept = ______

(d)

It is suggested that the quantities $I$ and $R$ are related by the equation

\frac{1}{I} = \frac{R}{E} + \frac{X}{E}

where $E$ is the electromotive force (e.m.f.) of the power supply and $X$ is the resistance of resistor X.

Using your answers to (c)(iii), determine values for $E$ and $X$ .
Give appropriate units.

$E$ = ______

$X$ = ______
