In this experiment, you will investigate the equilibrium of a metre rule with a chain attached.

(a)

● Attach the boss to the stand at a height of approximately $60\text{ cm}$ above the bench.
● Assemble the apparatus as shown in Fig. 1.1 with the nail held securely in the boss.
● Attach one end of the chain of paper clips to the string loop and allow the other end of the chain to rest on the bench.
● Attach the piece of adhesive putty to the metre rule approximately $40\text{ cm}$ from the nail.

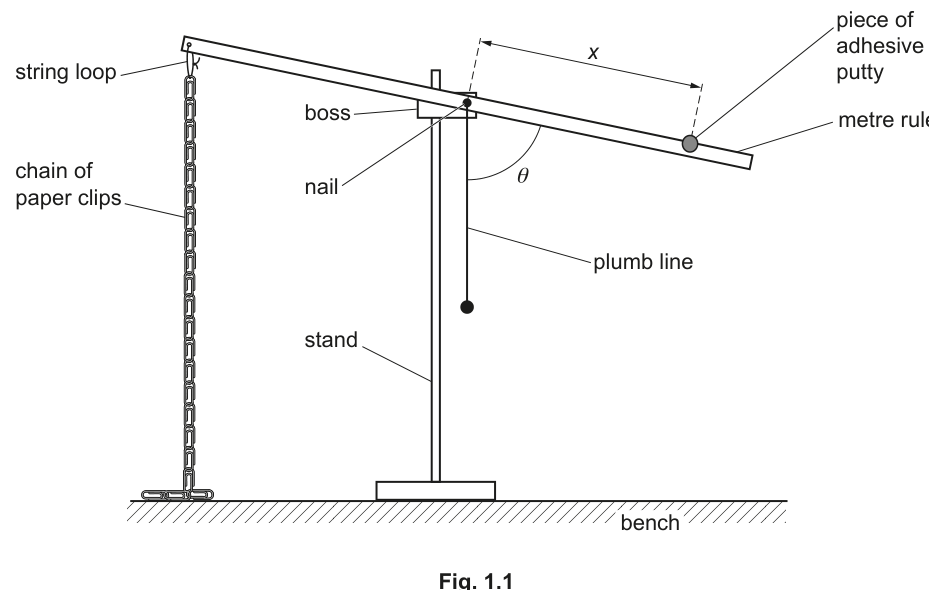

Fig. 1.1

● Measure and record the distance $x$ between the nail and the centre of the piece of adhesive putty, as shown in Fig. 1.1.

$x$ = ______ $\text{cm}$

(b)

Measure and record the angle $\theta$ between the metre rule and the plumb line, as shown in Fig. 1.1.

$\theta$ = ______ $^{\circ}$

(c)

Vary $x$ and measure $\theta$ until you have six sets of values of $x$ and $\theta$ .
Do not use values of $x$ less than $15\text{ cm}$ .

Record your results in a table. Include values of $\cos \theta$ in your table.

10M

(d)

(i)

Plot a graph of $\cos \theta$ on the $y$ -axis against $x$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
$y$ -intercept = ______

(e)

It is suggested that the quantities $\theta$ and $x$ are related by the equation

\cos \theta = ax + b

where $a$ and $b$ are constants.

Use your answers in (d)(iii) to determine the values of $a$ and $b$ . Give appropriate units.

$a$ = ______
$b$ = ______
