You may not need to use all of the materials provided.

In this experiment, you will investigate the motion of a wooden strip balanced on a curved surface.

(a)

• Assemble the apparatus as shown in Fig. 1.1.
• Use pieces of modelling clay to ensure that the beaker is secure and that its axis is horizontal.
• The centre of each mass should be the same distance $x$ from the line at the midpoint of the wooden strip, where $x$ is approximately $15\text{ cm}$ .

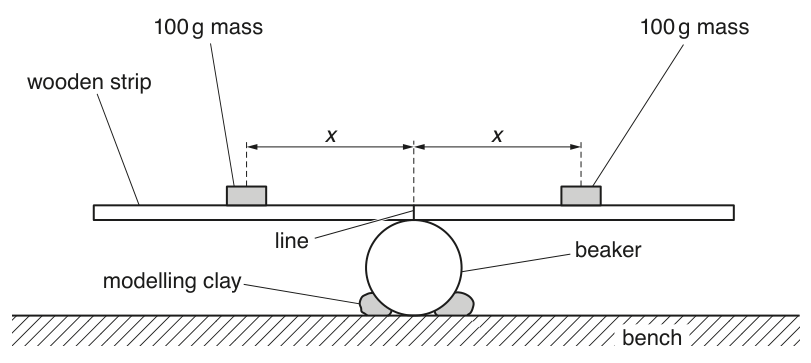

Fig. 1.1

• Measure and record $x$ .

$x$ = ______ $\text{cm}$

(b)

• Push one end of the strip down by approximately $2\text{ cm}$ and release it so that it oscillates.
• Take measurements to find the period $T$ of the oscillations.

$T$ = ______ $\text{s}$

(c)

Change $x$ and measure $T$ . Repeat until you have six sets of values of $x$ and $T$ .

Record your results in a table. Include values of $x^2$ and $T^2$ in your table.

(d)

(i)

Plot a graph of $T^2$ on the $y$ -axis against $x^2$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______

$y$ -intercept = ______

(e)

It is suggested that the quantities $T$ and $x$ are related by the equation

T^2 = ax^2 + b

where $a$ and $b$ are constants.

Use your answers in (d)(iii) to determine the values of $a$ and $b$ .
Give appropriate units.

$a$ = ______

$b$ = ______

(f)

• Take measurements to find the radius $R$ of the beaker.

$R$ = ______

• An approximate value for the acceleration of free fall $g$ is given by

g = \frac{4\pi^2}{Ra}

Calculate $g$ .

$g$ = ______
