Physics 9702/22 — February/March 2018

Cambridge AS Level · AS Level Structured Questions · worked solutions for every part, with the mark scheme

questions

marks

minutes

Topics Physical Quantities and Units · Dynamics · Measurement Techniques · Electricity · Kinematics · Work, Energy and Power · +6 more

Q1Physical Quantities and UnitsKinematicsDynamicsFree sample

Answer all the questions in the spaces provided.

(a)

Complete Fig.1.1 to indicate whether each of the quantities is a vector or a scalar.

Fig.1.1

(b)

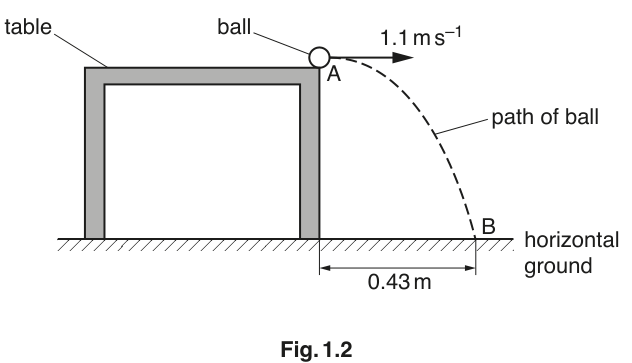

A ball is projected with a horizontal velocity of $1.1\ \text{m s}^{-1}$ from point A at the edge of a table, as shown in Fig.1.2.

Fig. 1.2

The ball lands on horizontal ground at point B which is a distance of $0.43\ \text{m}$ from the base of the table. Air resistance is negligible.

(i)

Calculate the time taken for the ball to fall from A to B.

time = ______ $\text{s}$

(ii)

Use your answer in (b)(i) to determine the height of the table.

height = ______ $\text{m}$

(iii)

The ball leaves the table at time $t = 0$ .

For the motion of the ball between A and B, sketch graphs on Fig.1.3 to show the variation with time $t$ of

Numerical values are not required.

Fig. 1.3

(c)

A ball of greater mass is projected from the table with the same velocity as the ball in (b). Air resistance is still negligible.

State and explain the effect, if any, of the increased mass on the time taken for the ball to fall to the ground.

The rest of this paper

5 more questions

Q2Work, Energy and Power · Dynamics13M
Q3Deformation of Solids · Measurement Techniques11M
Q4Superposition · Waves · Measurement Techniques · Forces, Density and Pressure · Physical Quantities and Units12M
Q5D.C. Circuits · Electricity10M
Q6Particle Physics · Electricity6M
