In this experiment, you will investigate an electrical circuit.

(a)

(i)

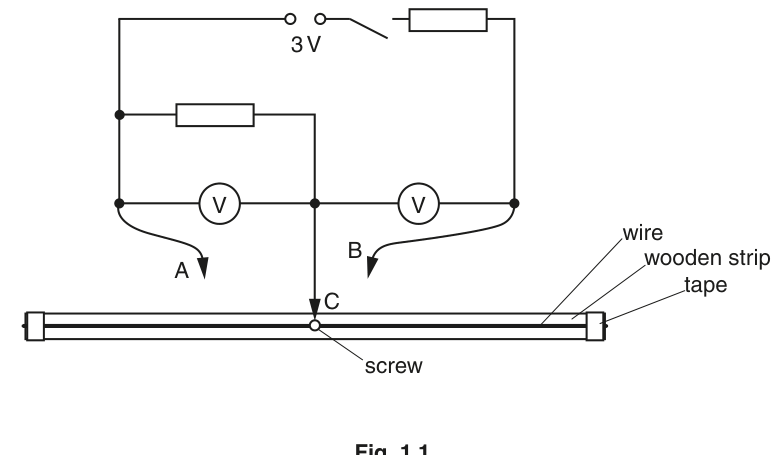

Assemble the circuit shown in Fig. 1.1.

Fig. 1.1

The two resistors are identical.
A, B and C are crocodile clips. Connect C to the screw.

(ii)

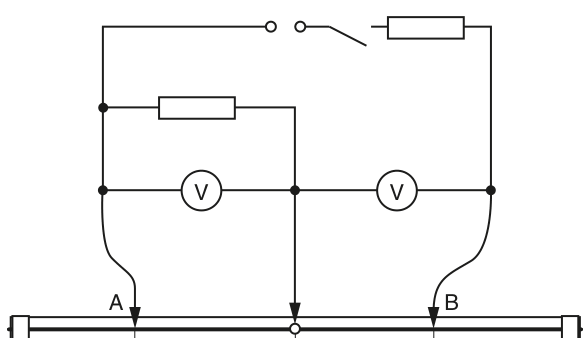

Connect A to the wire at a distance $p$ of approximately $25\text{ cm}$ from the screw, as shown in Fig. 1.2.

(iii)

Close the switch.

(iv)

Position B on the other side of the screw so that the two voltmeter readings have the same value $V$ .

The distance between the screw and B is $q$ , as shown in Fig. 1.2.

Fig. 1.2

(v)

Measure and record the distances $p$ and $q$ . Record $V$ .

$p$ = ______
$q$ = ______
$V$ = ______

(vi)

Open the switch.

(b)

Change $p$ and repeat (a)(iii), (a)(iv), (a)(v) and (a)(vi) until you have six sets of values of $p$ , $q$ and $V$ .
Record your results in a table.
Include values of $\frac{1}{p}$ and $\frac{1}{q}$ in your table.

10M

(c)

(i)

Plot a graph of $\frac{1}{q}$ on the $y$ -axis against $\frac{1}{p}$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
y-intercept = ______

(d)

It is suggested that the quantities $q$ and $p$ are related by the equation

\frac{1}{q} = \frac{a}{p} + b

where $a$ and $b$ are constants.

Use your answers in (c)(iii) to determine the values of $a$ and $b$ .
Give appropriate units.

$a$ = ______
$b$ = ______
