In this experiment, you will investigate an electrical circuit.

(a)

(i)

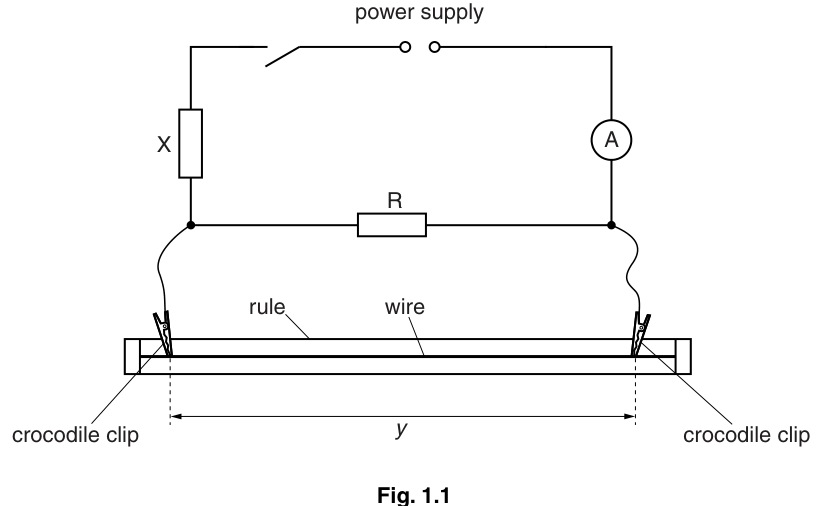

Set up the circuit shown in Fig. 1.1.

Fig. 1.1

The distance $y$ between the crocodile clips should be approximately 80 cm.
The resistor in the component holder labelled R should have a resistance $R$ of $10\ \Omega$ .

(ii)

Record the value of $R$ .

$R$ = ______ $\Omega$

(iii)

Measure and record $y$ .

$y$ = ______

(iv)

Close the switch.

(v)

Record the ammeter reading $I$ .

$I$ = ______

(vi)

Open the switch.

(b)

(i)

Remove the resistor in the component holder labelled R.
Select a different resistor labelled with a numerical value and connect it in the component holder labelled R.
Record the value of resistance $R$ .

$R$ = ______ $\Omega$

(ii)

Close the switch.

(iii)

Adjust the position of the crocodile clips on the wire until the ammeter reading $I$ has the same value as in (a)(v).

(iv)

Measure and record $y$ .

$y$ = ______

(v)

Open the switch.

(c)

Repeat (b) until you have six sets of readings of $R$ and $y$ .

Include values of $\frac{1}{y}$ and $\frac{1}{R}$ in your table.

10M

(d)

(i)

Plot a graph of $\frac{1}{y}$ on the $y$ -axis against $\frac{1}{R}$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
$y$ -intercept = ______

(e)

The quantities $y$ and $R$ are related by the equation

\frac{1}{y} = -\frac{P}{R} + Q

where $P$ and $Q$ are constants.

Using your answers in (d)(iii), determine values for $P$ and $Q$ .
Give appropriate units.

$P$ = ______
$Q$ = ______

(f)

(i)

The e.m.f. $E$ of the d.c. power supply is given on the card.
Record $E$ .

$E$ = ______ $\text{V}$

(ii)

Theory suggests that

Q = \frac{PI}{E - XI}

where $X$ is the resistance of resistor X.

Use values in (a)(v), (e) and (f)(i) to determine the value of $X$ .

$X$ = ______ $\Omega$
