In this experiment, you will investigate the upthrust on an object partly immersed in water.

(a)

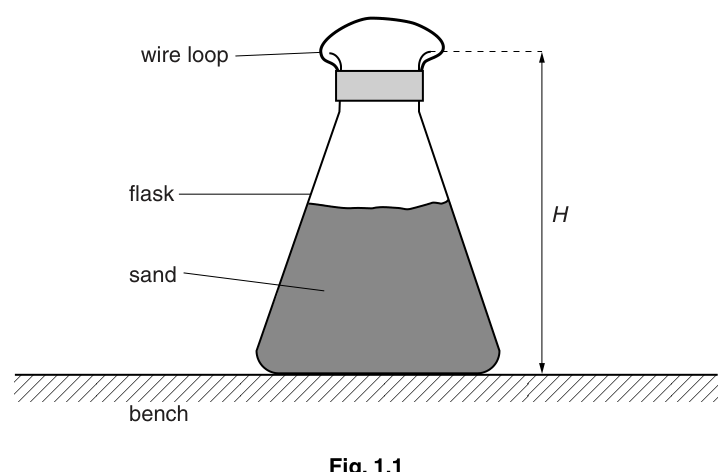

Measure and record the height $H$ of the flask, as shown in Fig. 1.1.

Fig. 1.1

$H$ = ______ $\text{cm}$

(b)

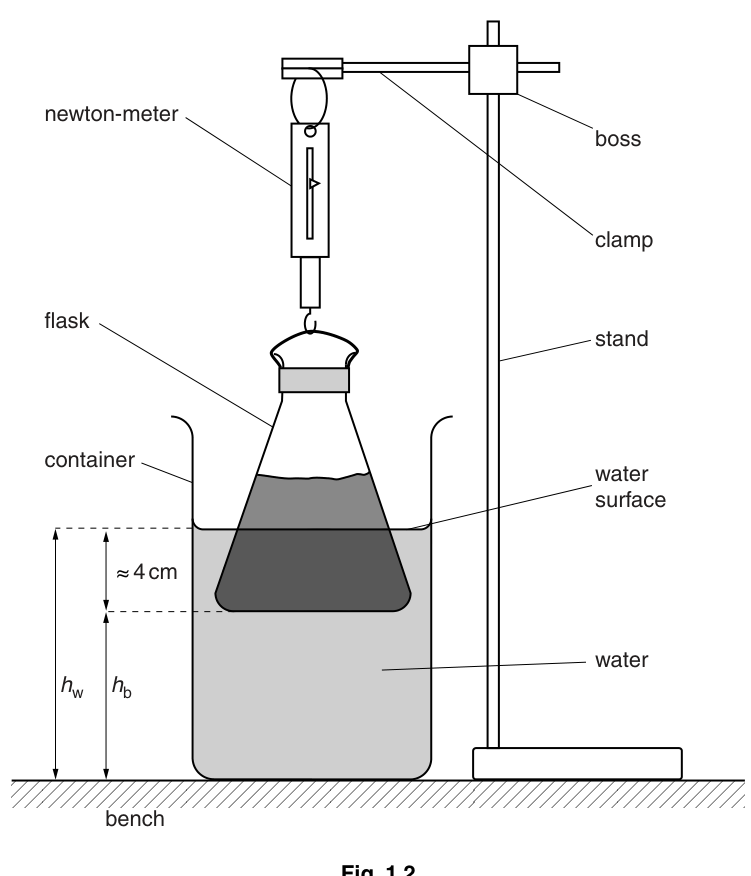

Assemble the apparatus as shown in Fig. 1.2, with the bottom of the flask approximately 4 cm below the water surface.

Fig. 1.2

(c)

(i)

Measure and record the height $h_w$ of the water surface above the bench, as shown in Fig. 1.2.

$h_w$ = ______ $\text{cm}$

(ii)

Measure and record the height $h_b$ of the bottom of the flask above the bench, as shown in Fig. 1.2.

$h_b$ = ______ $\text{cm}$

(iii)

Record the newton-meter reading $F$ .

$F$ = ______ $\text{N}$

(iv)

Calculate $x$ , using $x = h_w - h_b$ .

$x$ = ______ $\text{cm}$

(d)

Adjust the height of the boss and repeat (c) until you have six sets of values of $h_w$ , $h_b$ and $F$ .

For all values of $h_b$ , the water surface should be in contact with the sloping sides of the flask.

Include values of $x$ and $(H - x)^3$ in your table.

(e)

(i)

Plot a graph of $F$ on the $y$ -axis against $(H - x)^3$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
$y$ -intercept = ______

(f)

The quantities $F$ , $H$ and $x$ are related by the equation

F = a(H - x)^3 + b

where $a$ and $b$ are constants.

Using your answers in (e)(iii), determine the values of $a$ and $b$ . Give appropriate units.

$a$ = ______
$b$ = ______
