In this experiment, you will investigate how the potential difference across a resistor changes as the resistance of the circuit is changed.

(a)

(i)

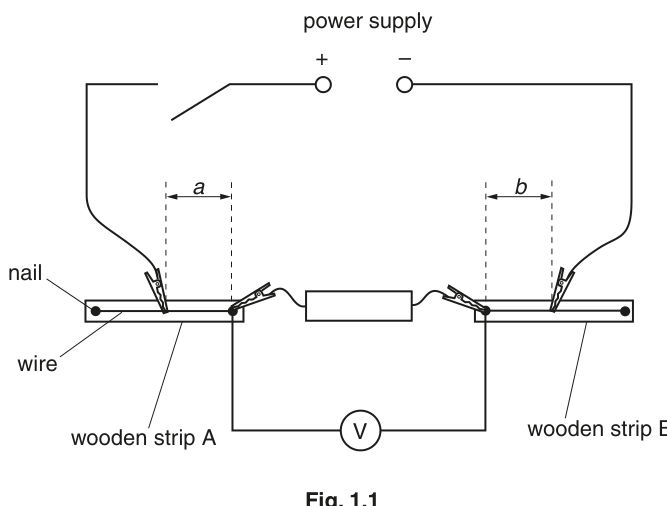

Set up the circuit shown in Fig. 1.1.

Fig. 1.1

The two crocodile clips attached to the wires on the wooden strips should be approximately half-way along each of the wires.

(ii)

Measure and record the lengths $a$ and $b$ .

$a$ = ______
$b$ = ______

(iii)

Calculate the value of $C$ where $C = a + b$ .

$C$ = ______

(iv)

Close the switch.

(v)

Record the voltmeter reading $V$ .

$V$ = ______

(vi)

Open the switch.

(b)

(i)

Change the value of $a$ . Measure and record this value of $a$ .

$a$ = ______

(ii)

Calculate the new value of $b$ using $b = C - a$ .

$b$ = ______

(iii)

Change $b$ to the value shown in (b)(ii).

(iv)

Close the switch.

(v)

Record the voltmeter reading $V$ .

$V$ = ______

(vi)

Open the switch.

(c)

Repeat (b) until you have six sets of readings of $a$ , $b$ and $V$ .

Include values of $\frac{1}{V}$ in your table.

10M

(d)

(i)

Plot a graph of $\frac{1}{V}$ on the $y$ -axis against $b$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
y-intercept = ______

(e)

The quantities $V$ and $b$ are related by the equation

\frac{1}{V} = Pb + Q

where $P$ and $Q$ are constants.

Using your answers in (d)(iii), determine values for $P$ and $Q$ .
Give appropriate units.

$P$ = ______
$Q$ = ______
