You may not need to use all of the materials provided.

In this experiment, you will investigate the variation of current in a circuit for different contact positions on a wire loop.

(a)

(i)

Assemble the circuit of Fig. 1.1.

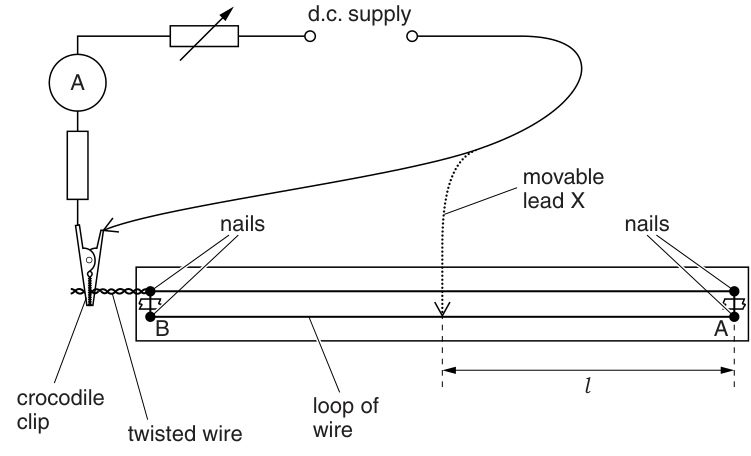

Fig. 1.1

(ii)

With lead X pressed on to the crocodile clip as shown in Fig. 1.1, adjust the rheostat until the ammeter reading is in the range $160\text{--}190\ \text{mA}$ .

(iii)

Record the ammeter reading $I_0$ when the lead X is pressed on to the crocodile clip.

$I_0$ = ______

(b)

Move lead X and press it on to the wire approximately half way between A and B. Record its distance $l$ from A and record the ammeter reading $I$ .

$l$ = ______
$I$ = ______

(c)

Repeat (b) with the lead X at different distances from A until you have six sets of values of $l$ and $I$ .
Include values of $\frac{1}{I}$ and $l^2$ in your table.

10M

(d)

(i)

Plot a graph of $\frac{1}{I}$ on the $y$ -axis against $l^2$ on the $x$ -axis.

(ii)

Draw the straight line of best fit.

(iii)

Determine the gradient and $y$ -intercept of this line.

gradient = ______
$y$ -intercept = ______

(e)

The quantities $I$ and $l$ are related by the equation

\frac{1}{I} = al^2 + b

where $a$ and $b$ are constants.

Using your answers from (d)(iii), determine the values of $a$ and $b$ .
Give appropriate units.

$a$ = ______
$b$ = ______
