Chemistry 9701/11 — October/November 2016
Cambridge AS Level · Multiple Choice (AS Level) · answer key with instant marking and worked solutions
Topics Atoms, Molecules and Stoichiometry · Introduction to Organic Chemistry · Carboxylic Acids and Derivatives · States of Matter · Atomic Structure · Chemical Bonding · +15 more
Tap an option under each question to check it — your score builds as you go.

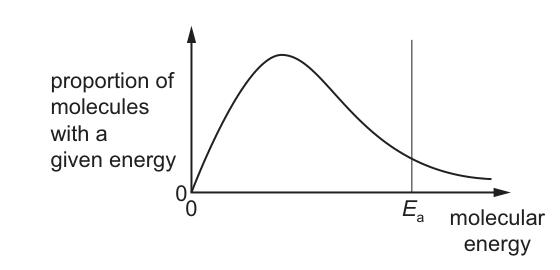

The diagram represents, for a given temperature, the Boltzmann distribution of the kinetic energies of the molecules in a mixture of two gases that react together. The activation energy for the reaction, , is marked.

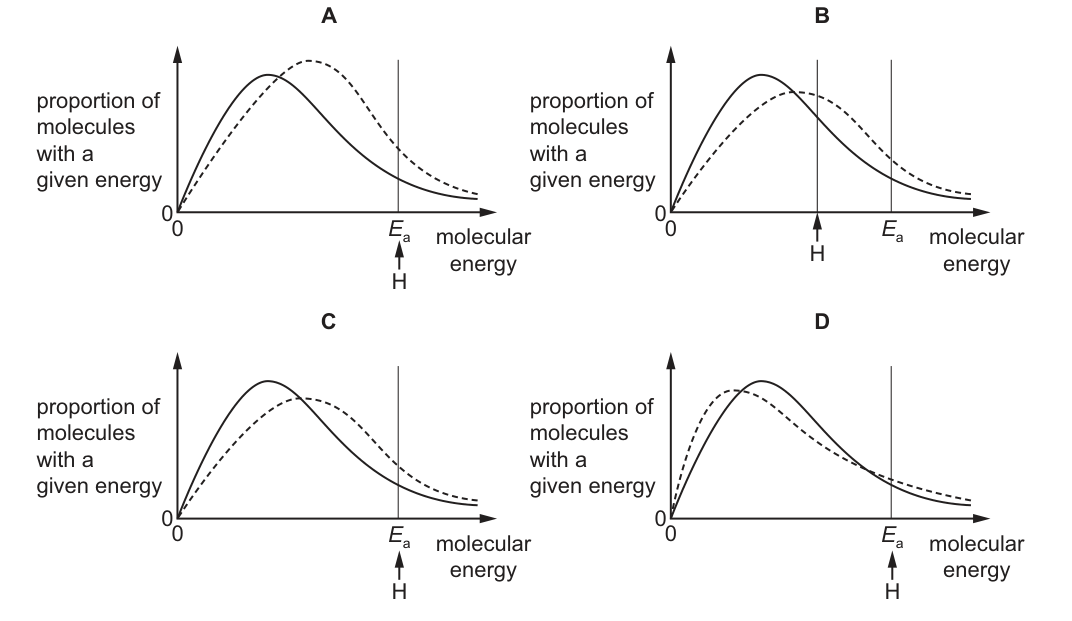

The dotted curves below show the Boltzmann distribution for the same reaction at a higher temperature. On these diagrams, H represents the activation energy at the higher temperature.
Which diagram is correct?
Options
