Biology 9700/22 — May/June 2023
Cambridge AS Level · AS Level Structured Questions · worked solutions for every part, with the mark scheme
Topics Cell Structure · Enzymes · Transport in Mammals · Biological Molecules · Cell Membranes and Transport · Immunity · +4 more
The sinoatrial node (SAN) and the atrioventricular node (AVN) have an important role in the control of the cardiac cycle. The timing of atrial and ventricular systole and diastole must be controlled so that blood passes through the heart efficiently.

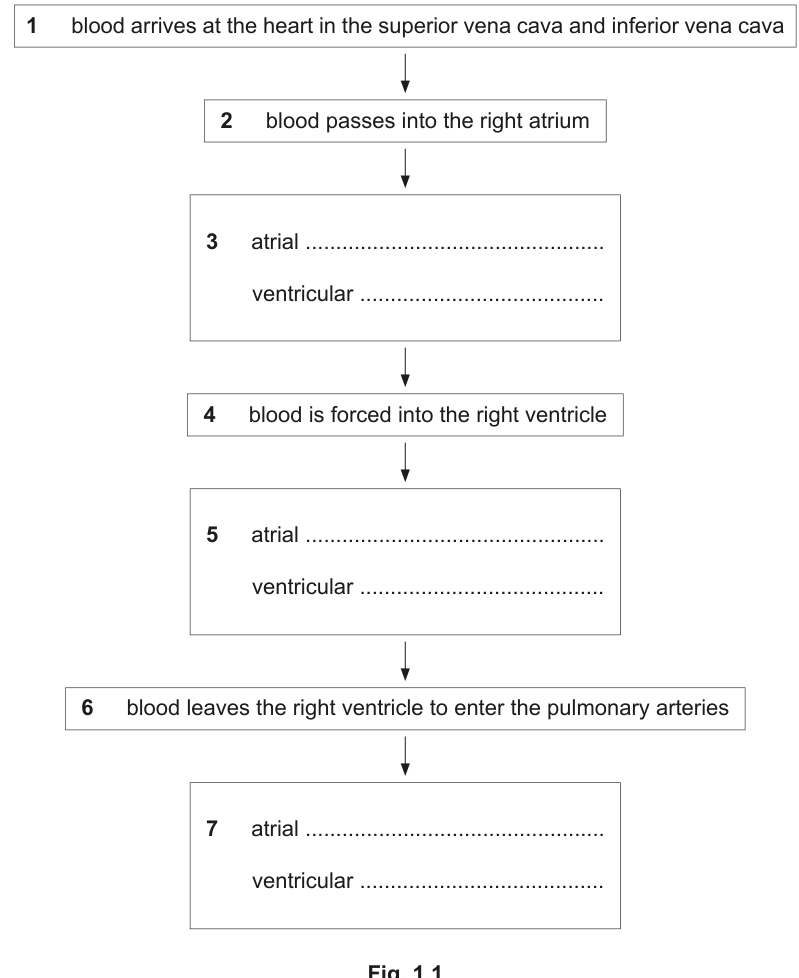

Fig. 1.1 is a summary of blood flow through the right side of the heart during one cardiac cycle. Three boxes in Fig. 1.1 are not complete.
Complete boxes 3, 5 and 7 in Fig. 1.1 using only the terms systole and diastole.
Impulses sent out by the SAN pass to the AVN, where there is a short delay.
With reference to Fig. 1.1, explain why it is important for the control of the cardiac cycle that there is a short delay at the AVN after impulses have been sent out by the SAN.
Changes in blood pressure occur in the heart during the cardiac cycle. These changes cause the opening and closing of the bicuspid and tricuspid (atrioventricular) valves and the aortic and pulmonary (semilunar) valves.
Explain how blood pressure changes:
- cause the opening of the tricuspid valve
- cause the opening of the pulmonary valve
- help the flow of blood through the heart.
The rest of this paper
5 more questions- Q2Cell Structure · Biological Molecules · Enzymes · Cell Membranes and Transport14M
- Q3Immunity · The Mitotic Cell Cycle10M
- Q4Cell Structure · Infectious Diseases11M
- Q5Nucleic Acids and Protein Synthesis · Enzymes11M
- Q6Gas Exchange7M
