Biology 9700/33 — May/June 2019

Cambridge AS Level · Advanced Practical Skills · worked solutions for every part, with the mark scheme

questions

marks

120

minutes

Topics Presentation of Data and Observations · Manipulation, Measurement and Observation · Analysis, Conclusions and Evaluation · Use of the Light Microscope

Q1Manipulation, Measurement and ObservationPresentation of Data and ObservationsAnalysis, Conclusions and EvaluationFree sample

Milk protein concentrates (MPCs) are used for manufacturing food products such as cheese and ice cream.

Different types of milk contain different concentrations of protein. It is important for the food industry to know the concentration of protein in the milk used in the production of MPCs.

The concentration of protein in milk can be measured using potassium hydroxide solution and copper sulfate solution.

You will need to:

prepare a serial dilution of the proteins in the milk, M
carry out the test for protein on each concentration of milk.

You are provided with the materials shown in Table 1.1.

Table 1.1

labelled	contents	hazard	volume / $\text{cm}^3$
M	100% milk	none	25
W	distilled water	none	100
P	5% potassium hydroxide solution	harmful irritant	25
C	0.15% copper sulfate solution	none	25

If any solution comes into contact with your skin, wash off immediately under cold water.

It is recommended that you wear suitable eye protection.

You will need to make a serial dilution of 100% milk, M.
The concentration of the milk should decrease by a factor of ten between each successive dilution.

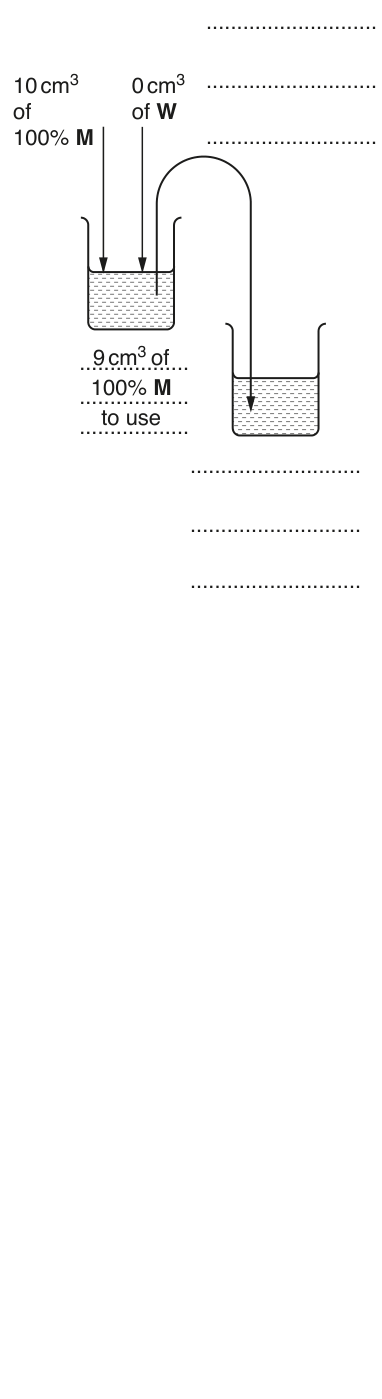

Fig. 1.1 shows the first two beakers you will use to make your serial dilution.

(a)

(i)

Complete Fig. 1.1 by drawing as many extra beakers as you need for your serial dilution.

For each beaker:

state, under the beaker, the volume and concentration of M available for use in the investigation
use one arrow with a label, above the beaker, to show the volume and concentration of M added to prepare the concentration
use another arrow with a label, above the beaker, to show the volume of W added to prepare the concentration.

Fig. 1.1

(ii)

Carry out the test for protein on different concentrations of milk using step 1 to step 9.

The syringe labelled M must be used only for the 100% M.

Prepare the concentrations of milk as decided in (a)(i) and as shown in Fig. 1.1.
Use a glass rod to mix the milk solution and water.
Label the test-tubes with the concentrations of milk as prepared in step 1.
Put $1\ \text{cm}^3$ of each concentration into the appropriately labelled test-tube.
Label another test-tube 0.0% and put $1\ \text{cm}^3$ of W into this test-tube.
Put $1\ \text{cm}^3$ of P into each test-tube. Shake gently to mix.
Put $1\ \text{cm}^3$ of C into each test-tube. Shake gently to mix.
Leave the test-tubes for at least 2 minutes. Shake gently to mix.

Fig. 1.2 shows the key you need to use to record your results.

A blue colour indicates that the concentration of protein is too low to be detected.

Key

colour	symbol
pink/purple	++++++
dark purple	+++++
purple	++++
pale purple	+++
blue	++
pale blue	+

Fig. 1.2

After step 7 observe the test-tubes.
It may help to observe the colour with a piece of white card behind the test-tube.
You may observe the same colour for more than one test-tube.
Record your results in (a)(ii) using the symbols shown in the key in Fig. 1.2.

Record your results in an appropriate table for the known concentrations of milk.

(iii)

You are provided with a different type of milk, X. The concentration of protein in X is unknown.

You now need to:

carry out the test for protein on X using step 10 to step 12
use your results in (a)(ii) to estimate the concentration of protein in X.

Label a test-tube with the letter X.
Put $1\ \text{cm}^3$ of X into the test-tube labelled X.
Repeat step 5 to step 7, with X.

After step 12, record your result for X using one of the symbols shown in the key in Fig. 1.2.

result for X = ______

(iv)

The 100% M contains $12\ \text{g}$ of protein in $100\ \text{cm}^3$ .

Using your results in (a)(ii) and (a)(iii), estimate the concentration of protein in X.

Space for working

concentration of protein in X = ______ $\text{g per } 100\ \text{cm}^3$

(v)

Identify one significant source of error in the investigation described in step 1 to step 12.

Explain why this is a source of error.

source of error = ______

explanation = ______

(vi)

Suggest three improvements to this investigation (step 1 to step 12) so that a more accurate estimate of the concentration of protein in X can be obtained.

(b)

A student carried out some research into the percentage mass of protein in the milk from different mammals.

The results are shown in Table 1.2.

Table 1.2

type of mammal	percentage mass of protein
buffalo (B)	4.05
camel (C)	2.35
horse (H)	0.80
goat (G)	3.60
sheep (S)	3.25

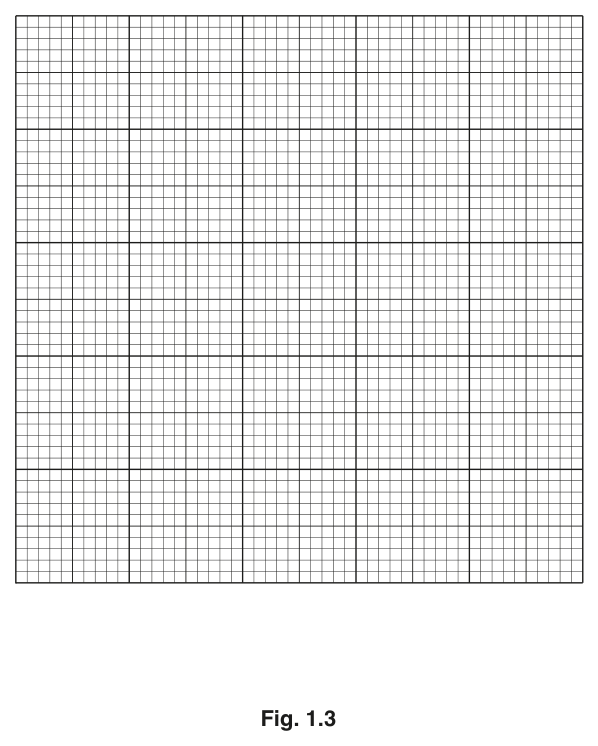

Plot a bar chart of the data in Table 1.2 on the grid in Fig. 1.3.

Use a sharp pencil for drawing graphs.

Fig. 1.3

(c)

Pepsin is an enzyme that breaks down proteins.

A student investigated the effect of changing pH on the activity of pepsin.

After mixing the milk, buffer and pepsin, the activity of pepsin was measured by recording the mass of protein remaining, in arbitrary units.

All other variables were standardised.

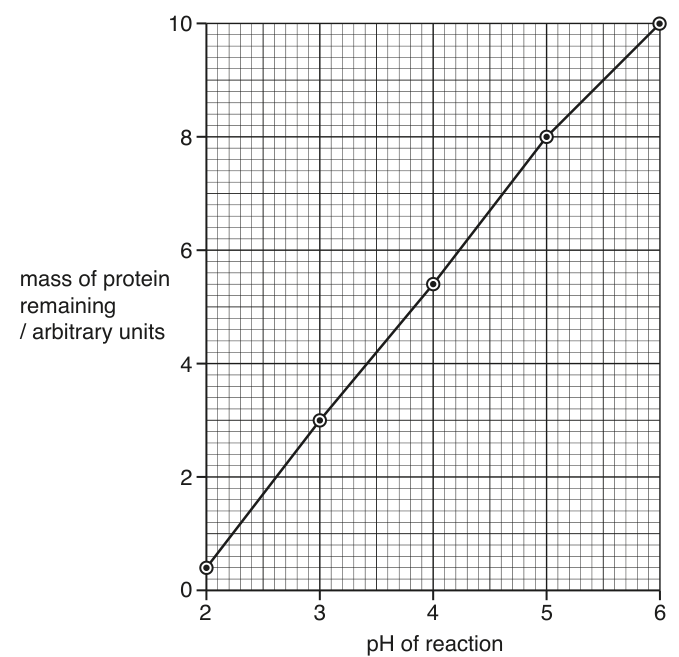

The student plotted a graph of the results, shown in Fig. 1.4.

Fig. 1.4

(i)

Describe the trend shown in Fig. 1.4.

(ii)

Suggest an explanation for the results between pH 2 and pH 6.

The rest of this paper

1 more questions

Q2Use of the Light Microscope · Presentation of Data and Observations19M
