Computer Science 9618/22 — October/November 2025

Background Concept

This question is about recognising the main programming constructs used in pseudocode.

• Selection means choosing between alternatives depending on a condition. Common signs are IF ... THEN, ELSE, OTHERWISE, and CASE OF branches.
• Iteration means repetition. Common signs are FOR ... NEXT, WHILE ... ENDWHILE, and REPEAT ... UNTIL.
• Subroutines are reusable named blocks of code. In pseudocode, these appear as procedures and functions. A procedure is often called using CALL, while a function is usually written as a name followed by brackets and returns a value.

A single piece of pseudocode can contain more than one of these features at the same time.

Understanding the Question

You are given four separate pseudocode examples and must decide which categories apply to each one.

The important clue is that the question says each example may relate to one or more of the listed features. So you must not stop after finding one tick. You need to inspect each row for:

• any selection structure
• any repetition structure
• any procedure or function use

Approach

Read each example from left to right and look for key words:

1. Look for IF, OTHERWISE, or a CASE branch label such as 30 : to identify selection.
2. Look for FOR or WHILE to identify iteration.
3. Look for CALL SomeName(...) or a function call such as AllDone() to identify a subroutine.

Then tick every category that appears in that row.

Step-by-Step Reasoning

Row 1

IF Status = FALSE THEN
FOR Count ← 1 TO 20
CALL Reset(Count)
NEXT Count
ENDIF

This row contains:

• IF ... THEN and ENDIF so it uses selection.
• FOR Count ← 1 TO 20 and NEXT Count so it uses iteration.
• CALL Reset(Count) so it uses a subroutine.

So this row gets all three ticks.

Row 2

OTHERWISE : Status ← TRUE

OTHERWISE belongs to a selection structure such as CASE OF, so this is selection.

There is no loop and no procedure/function call.

So this row gets selection only.

Row 3

WHILE AllDone() = TRUE

• WHILE starts a loop, so this is iteration.
• AllDone() is written like a function call because it has brackets and returns a value that is being tested, so it is also a subroutine.

There is no IF or CASE choice here, so it is not selection.

So this row gets iteration and subroutine.

Row 4

30 : NextChar ← 'X'

The 30 : format is a typical branch label inside a CASE OF statement. That means it is part of selection.

There is no repetition and no subroutine call.

So this row gets selection only.

Key Takeaways

• Learn to spot programming constructs from their key words.
• One row of pseudocode can show more than one feature at once.
• A function call such as AllDone() counts as a subroutine even when it appears inside a condition.
• A CASE OF branch label such as 30 : is still part of a selection structure.

Common Mistakes

• Ticking only one box in the first row: the first row clearly contains selection, iteration, and a subroutine call.
• Missing the function in AllDone(): brackets usually indicate a function call, so it is a subroutine.
• Thinking 30 : is just a number: in pseudocode this style is commonly a CASE option label, so it belongs to selection.
• Treating OTHERWISE as something separate from selection: it is part of a selection structure.

Things to Be Careful About

• Read the whole row before deciding; do not tick the first feature you notice and move on.
• In Paper 2 pseudocode, CALL strongly signals a procedure, but a subroutine can also be a function used inside an expression or condition.
• Distinguish between a loop condition and a selection condition: WHILE is repetition, IF is choice.
• Remember that CASE OF and OTHERWISE are also selection, even without the full CASE statement shown.

Background Concept

A data type tells us what kind of value a variable stores and what operations are valid for it.

Common pseudocode data types include:

• INTEGER: whole numbers only
• REAL: numbers with a fractional part
• STRING: a sequence of characters
• CHAR: a single character
• BOOLEAN: TRUE or FALSE
• DATE: a calendar date value

Recognising the example value usually tells you the data type immediately.

Understanding the Question

You are given a variable name and one example value for each variable. You must identify the most suitable data type for that value.

The task is not asking what the variable name suggests. It is asking what data type matches the actual example value shown.

Approach

For each row:

1. Decide whether the value is numeric, text, or a date.
2. If it is numeric, decide whether it is whole (INTEGER) or includes a decimal part (REAL).
3. If it is text, decide whether it is one character (CHAR) or several characters (STRING).
4. If it is written as a calendar date, use DATE.

Step-by-Step Reasoning

Result = 5.42

This value has a decimal point, so it is not an integer. It is a REAL value.

MonthLetter = "JFMAMJJASOND"

This is a sequence of many characters inside quotation marks. That makes it a STRING.

Birthday = 15/11/2009

This is written as a day, month, and year. It represents a DATE.

Key Takeaways

• Decimal numbers are usually REAL.
• Text inside quotation marks is usually STRING, unless it is exactly one character and the question expects CHAR.
• Calendar values such as 15/11/2009 are DATE.

Common Mistakes

• Writing INTEGER for 5.42: the decimal part means it must be REAL.
• Writing CHAR for "JFMAMJJASOND": this is many characters, not one.
• Treating the date as a string: although it is written with symbols, it represents a date value and functions such as MONTH(...) work on dates.

Things to Be Careful About

• Do not choose the type from the variable name alone; use the example value.
• A one-character value and a multi-character value are different types if the pseudocode distinguishes CHAR and STRING.
• In this syllabus, date functions such as MONTH(...) are a strong clue that the stored value is DATE.

Background Concept

This question tests how pseudocode expressions are evaluated using stored values and built-in functions.

Important functions here are:

• INT(x): returns the integer part of a real number by removing the fractional part.
• LENGTH(s): returns the number of characters in a string.
• NUM_TO_STR(x): converts a numeric value into a string.
• MONTH(date): returns the month number from a date.
• MID(s, start, count): returns a substring from string s, beginning at position start, for count characters.

It also tests type compatibility. In pseudocode, you cannot add a number and a string directly. That produces an error.

Understanding the Question

You must evaluate each expression using the values from part (b):

• Result = 5.42
• MonthLetter = "JFMAMJJASOND"
• Birthday = 15/11/2009

If an expression cannot be evaluated correctly because of a type problem, you must write ERROR.

Approach

For each row:

1. Substitute the known variable values.
2. Apply any functions from the inside outward.
3. Check whether the types are valid at each stage.
4. Write the final result, or ERROR if the expression is invalid.

The most important habits here are:

• do the function calls in order
• keep track of whether the result is a number, string, or boolean
• remember that MID uses positions in the string

Step-by-Step Reasoning

1. INT(Result) + 1 > 6

Substitute Result = 5.42.

INT(5.42) gives 5.

Then:

Now compare 6 > 6.

That is false, because 6 is not greater than 6.

So the result is FALSE.

2. NUM_TO_STR(LENGTH(MonthLetter))

Substitute MonthLetter = "JFMAMJJASOND".

Count the characters:

• J(1)
• F(2)
• M(3)
• A(4)
• M(5)
• J(6)
• J(7)
• A(8)
• S(9)
• O(10)
• N(11)
• D(12)

So LENGTH(MonthLetter) is 12.

Then NUM_TO_STR(12) converts the number 12 into the string "12".

So the result is "12".

3. NUM_TO_STR(Result + "3.2")

Substitute Result = 5.42.

This becomes:

NUM_TO_STR(5.42 + "3.2")

The problem happens before NUM_TO_STR can be applied. The + operator is trying to add:

• 5.42, which is a number
• "3.2", which is a string

That is a type mismatch, so the expression is invalid.

Therefore the answer is ERROR.

4. MID(MonthLetter, MONTH(Birthday) - 2, 1)

Substitute the given values.

MONTH(Birthday) with Birthday = 15/11/2009 gives 11 because the month is November.

Then:

So the expression becomes:

MID(MonthLetter, 9, 1)

Now use MonthLetter = "JFMAMJJASOND".

Using 1-based positions:

1. J
2. F
3. M
4. A
5. M
6. J
7. J
8. A
9. S
10. O
11. N
12. D

Starting at position 9 and taking 1 character gives "S".

So the result is "S".

Key Takeaways

• Evaluate pseudocode expressions one stage at a time.
• Built-in functions may change both the value and the data type.
• NUM_TO_STR converts numbers to strings, but it cannot fix an earlier invalid operation.
• MID depends on the correct character position, so indexing matters.
• Comparison expressions such as 6 > 6 return boolean values like TRUE or FALSE.

Common Mistakes

• Writing TRUE for the first row: 6 > 6 is false because the values are equal, not greater.
• Forgetting that NUM_TO_STR returns a string: the second result should be treated as text, not as a number.
• Trying to add 5.42 and "3.2": mixed numeric and string addition is an error here.
• Using the wrong position in MID: after calculating 11 - 2, you must use position 9, not 11.
• Using 0-based indexing for the string: Cambridge pseudocode string functions are normally treated as 1-based in this context.

Things to Be Careful About

• Keep the values from part (b) in mind throughout; this part depends entirely on them.
• Apply nested functions in the right order: for example, do MONTH(Birthday) before subtracting 2.
• Check types before performing an operation. An outer conversion function does not make an invalid inner expression acceptable.
• Use uppercase boolean values exactly as pseudocode expects: TRUE and FALSE.
• Distinguish between a numeric result such as 12 and a string result such as "12" when conversion functions are involved.

Background Concept

This is a text-file processing problem. In a text file, data is stored as lines of characters. A common task is to read data from one file, transform its format, and write the transformed data to another file.

Here, each member record in OldFile.txt is stored across three separate lines:

• ID
• name
• email address

The new design stores one complete member record on a single line, so the algorithm must:

1. open the original file for reading
2. open the new file for writing
3. read three related lines at a time
4. join them into one string with separators
5. write that string to the new file
6. repeat until the end of the old file is reached

The key programming ideas are text file handling, sequence of steps, and iteration controlled by end-of-file.

Understanding the Question

You are not being asked to write full pseudocode here. Instead, you must complete the missing words in a sequence of numbered steps.

The stem tells you that each member has exactly three pieces of data, each on a separate line in OldFile.txt. It also tells you that:

• LineX, LineY and LineZ store those three lines
• NewString is a temporary string
• the old file exists and contains valid data

So each pass through the algorithm must read exactly three lines from OldFile.txt, combine them using the \ separator, and write the result to NewFile.txt.

The final step before closing the files must loop back to the first read step, and the loop must stop at end of file.

Approach

The clean way to think about this is as a repeated record conversion:

• one old record = 3 lines
• one new record = 1 line

So the approach is:

• open the input file in READ mode
• open the output file in WRITE mode
• read the three lines for one member into the three string variables
• concatenate them with \ between them
• write the combined result
• repeat from the first read step until EOF(OldFile.txt)

Because the data is valid and arranged in groups of three lines, the loop can process one complete member on each repetition.

Step-by-Step Reasoning

Step 1 must name the source file and the correct mode:

• OldFile.txt is the file we are reading from
• so it must be opened in READ mode

Step 2 must name the destination file and the correct mode:

• NewFile.txt is where the transformed data is being written
• so it must be opened in WRITE mode

Steps 3, 4 and 5 read the three lines for one member:

• first line into LineX
• second line into LineY
• third line into LineZ

All three reads come from the same file: OldFile.txt.

Step 6 builds the new one-line record. The separator required by the question is the backslash character, so the string must be formed as:

• ID
• then \
• then name
• then \
• then email

That is why the construction is:
LineX + '\\' + LineY + '\\' + LineZ

Step 7 writes the completed NewString to the output file, which is NewFile.txt.

Step 8 is the loop control. The algorithm has already processed one member, so it must go back to the first read step, which is step 3. The stopping condition is end of file on OldFile.txt, written as EOF(OldFile.txt).

Step 9 closes both files. This is good file-handling practice and is normally expected in exam answers.

Key Takeaways

• When transforming a file, identify the input file, the output file, and the record structure in each.
• Use READ for the source file and WRITE for the destination file.
• Group related lines correctly when one logical record spans multiple lines.
• Use an EOF-controlled loop for reading text files.
• Concatenate fields with separators when converting to a single-line record format.

Common Mistakes

• Opening OldFile.txt in WRITE mode or NewFile.txt in READ mode. This reverses the purpose of the files.
• Reading from NewFile.txt instead of OldFile.txt. All input must come from the old file.
• Writing to OldFile.txt instead of NewFile.txt. That would overwrite the original data.
• Repeating from the wrong step, such as step 6 or step 7. The next member must begin by reading the next three lines, so the loop goes back to step 3.
• Forgetting the separator characters when building NewString.
• Using only one separator instead of two. Three fields need two separators between them.

Things to Be Careful About

• The separator is a single backslash character \, not a forward slash /.
• EOF(OldFile.txt) must refer to the input file, not the output file.
• The order of the fields must stay the same: ID, then name, then email.
• Each member uses exactly three reads because each record in the original design occupies three lines.
• Even though this is written as steps rather than full pseudocode, the logic still has to be complete and precise.

Background Concept

When several data items are stored in one line of a text file, a separator character is often used between them. This separator is also called a delimiter.

A good delimiter must be a character that does not appear inside the data itself. If the delimiter can also occur as part of a name, ID or other field, then when the line is read back it becomes ambiguous where one field ends and the next begins.

So the basic rule is:

• delimiter must be distinct from the valid contents of the fields
• then the file can be split reliably into separate items

Understanding the Question

The question asks why the backslash character \ is a suitable separator for the current three fields:

• member ID
• member name
• member email address

This is only worth one mark, so the answer should be short and focused. The important idea is not that backslash looks unusual, but that it allows the data to be separated unambiguously.

Approach

To answer, identify what makes any separator suitable:

• it should not appear inside the real data
• therefore every occurrence of that character can be treated as a boundary between fields

That is exactly the point the examiner is looking for.

Step-by-Step Reasoning

If a line is stored like this:
AB1234\Freddie Jones\FreddieJ909@Cambridge.org

then the program can read from left to right and treat each \ as a boundary.

This works only if \ is not part of the actual stored values. If it does not occur in the data items, then:

• the first \ separates ID from name
• the second \ separates name from email

That makes the file easy to parse correctly.

So the suitable-character explanation is:

• it does not occur in the data
• therefore it can be used to separate the data items clearly

Key Takeaways

• A delimiter is only safe if it cannot be confused with real data.
• Good file design makes later extraction simple and reliable.
• For a one-mark explanation, state the core principle directly.

Common Mistakes

• Saying only that \ is "easy to see" or "easy to type". That is not the real reason.
• Saying it is suitable because it is "rare". Rare is not enough; the key point is that it must not occur in the stored data.
• Giving a long explanation when one short precise point is enough.

Things to Be Careful About

• The question asks why the character is suitable, not how to write the algorithm.
• The strongest wording is that the separator does not occur in the data, so splitting is unambiguous.
• Avoid vague phrases like "works well" unless you explain why.

Background Concept

A delimiter-based file design works well only when the delimiter character cannot appear inside a field. If a field can contain absolutely any character, then no ordinary separator is safe, because the program cannot tell whether that character is:

• a real separator, or
• just part of the data

That is why unrestricted text or encrypted text is often stored using a length-based format instead of a pure delimiter-based format.

In a length-based design, the file stores:

• either the size of the field before the field data, or
• a fixed field width

Here, fixed width is not a good choice because the encrypted data can contain any character, so padding would be awkward and waste space. Since the maximum length is 99, a very neat solution is to store a 2-digit length before each encrypted item.

Understanding the Question

The original one-line format used \ between fields. That works for ID, name and email. But now two extra encrypted items are added, and each of them:

• can contain any character
• can even contain \
• can have any length from 0 to 99 characters

So the problem is that \ can no longer safely separate those encrypted items. The question asks what extra file design changes are needed so that:

• all items stay on one line
• each item can still be extracted after reading the line

The clue is the maximum length of 99. That strongly suggests storing each encrypted field length as two digits.

Approach

Use a mixed design:

• keep \ separators where they are still safe
• switch to length-based storage for the encrypted items

A sensible structure is:

• ID
• \
• name
• \
• email
• \
• 2-digit length of encrypted item 1
• encrypted item 1
• 2-digit length of encrypted item 2
• encrypted item 2

Once the line is read:

1. find the first three fields using \
2. read the next 2 characters as the length of encrypted item 1
3. extract exactly that many characters
4. read the next 2 characters as the length of encrypted item 2
5. extract exactly that many characters

Because the ends of the encrypted fields are determined by length, embedded \ characters do not matter.

Step-by-Step Reasoning

First, ask why the old design fails.

If we tried to store everything using \ separators only, a line might look something like this:
AB1234\Freddie Jones\FreddieJ909@Cambridge.org\En/98&*(|?\\/D7iP\23\CoboL

Now there is a problem: when the program reads a \, it cannot know whether that backslash is:

• a separator between fields, or
• part of the encrypted data itself

So a pure separator-based design is no longer reliable.

The improved design is to prefix each encrypted item with its length.

Because the maximum length is 99, two digits are enough:

• 00 means empty string
• 08 means 8 characters
• 15 means 15 characters
• 99 means maximum length

For the example data, one possible stored line could be described as:

• AB1234
• \
• Freddie Jones
• \
• FreddieJ909@Cambridge.org
• \
• 15
• En/98&*(|?\/D7iP
• 08
• 23\CoboL

The exact content of the encrypted data does not matter, because the program does not search for a separator inside those encrypted fields. Instead it does this:

1. Read the whole line.
2. Extract ID up to the first \.
3. Extract name up to the next \.
4. Extract email up to the next \.
5. Read the next 2 characters and convert them to a number: that is length 1.
6. Take exactly that many characters: that is encrypted item 1.
7. Read the next 2 characters and convert them to a number: that is length 2.
8. Take exactly that many characters: that is encrypted item 2.

This is why the design still allows all information to be stored on one line and later extracted correctly.

Key Takeaways

• Delimiters fail when the delimiter can appear in the data.
• Length-prefixed fields are a standard way to store variable-length data safely.
• A maximum size of 99 naturally suggests a fixed 2-digit length field.
• Mixed file designs are acceptable when some fields are safe for delimiters and others are not.

Common Mistakes

• Saying to keep using \ for the encrypted fields. That does not work because \ may appear inside the encrypted data.
• Suggesting a different separator character. The question says the encrypted data can contain any character, so no separator is guaranteed safe.
• Forgetting to explain how the data would be extracted after the line is read.
• Giving only "store the lengths" without saying that the lengths must be read first and then used to take that many characters.
• Not noticing that the maximum length is 99, which is why 2 digits are sufficient.

Things to Be Careful About

• The question says \ is not used in any email address, so using \ up to the email field is still safe.
• The stored length should be fixed width, for example 2 digits, otherwise you create a new ambiguity about where the length ends.
• Do not rely on spaces as padding or separators, because the encrypted text can contain any character.
• The explanation must cover both storage and later extraction, not just one of them.

Background Concept

A 1D array stores a sequence of elements of the same data type, each accessed by an index. Here, the array is of type BOOLEAN, so each element can store only TRUE or FALSE.

When a question says that each index represents a possible score, the array bounds must cover the full range of scores. In this quiz, the smallest possible score is 0 and the largest possible score is found from all easy and hard questions being correct:

• five easy questions at 3 points each gives 15
• four hard questions at 5 points each gives 20
• maximum total score is 35

So the array needs indices from 0 to 35 inclusive.

Initialisation means setting every element to a known starting value before any other processing happens. A common pattern is to use a count-controlled loop to visit every index and assign the same value.

Understanding the Question

The question asks for two things:

1. declare the array CheckTotal
2. set every element in it to FALSE

It also states that all variables used must be declared, so the loop variable must be declared as well.

Because the array index represents a possible score, the declaration must use the correct range. Because all elements must start as FALSE, the answer needs a loop that goes through every index from the lowest to the highest.

Approach

First determine the valid index range. Since totals can go from 0 to 35, declare the array with those bounds.

Then declare an integer loop variable, because the loop must count through each index.

Finally, use a FOR loop from 0 to 35 and assign FALSE to each array element in turn.

Step-by-Step Reasoning

DECLARE CheckTotal : ARRAY[0:35] OF BOOLEAN

• This creates a one-dimensional array called CheckTotal.
• BOOLEAN is correct because each position must store either TRUE or FALSE.
• 0:35 is correct because 0 is a possible total score and 35 is the maximum possible total score.

DECLARE Index : INTEGER

• The loop control variable must be declared.
• An integer is needed because array indices are whole numbers.

FOR Index ← 0 TO 35

• The loop starts at 0 because index 0 represents score 0.
• The loop ends at 35 because that is the highest possible score.
• No STEP is needed because the default is 1, which is exactly what is wanted here.

CheckTotal[Index] ← FALSE

• This sets the current array element to FALSE.
• As the loop runs, every position from CheckTotal[0] to CheckTotal[35] is set.

NEXT Index

• This completes the count-controlled loop.

After the loop finishes, every element has been initialised to FALSE, ready for the later algorithm to change only the valid totals to TRUE.

Key Takeaways

• Choose array bounds from the full possible range of values being represented.
• For initialising every element in an array, a FOR loop is the standard method.
• Always declare the loop variable when the question requires all variables to be declared.
• Use BOOLEAN when each array position stores only TRUE or FALSE.

Common Mistakes

• Using the wrong upper bound, such as 34 or 36, which makes the array size incorrect.
• Starting the loop at 1 instead of 0, which would leave CheckTotal[0] uninitialised.
• Forgetting to declare the loop variable.
• Declaring the array with the wrong data type, such as INTEGER instead of BOOLEAN.
• Using = instead of the assignment arrow ← in pseudocode.

Things to Be Careful About

• The bounds are inclusive, so ARRAY[0:35] includes both 0 and 35.
• FOR Index ← 0 TO 35 also includes both ends.
• Keep the identifier name exactly as given: CheckTotal.
• This is Paper 2 pseudocode, so the answer should be in CIE pseudocode form, not a real programming language.

Background Concept

This question is about generating all possible totals by combining two independent sets of values.

• Easy questions contribute scores in multiples of 3.
• Hard questions contribute scores in multiples of 5.

Because there are five easy questions, the easy contribution can be:
0, 3, 6, 9, 12, 15

Because there are four hard questions, the hard contribution can be:
0, 5, 10, 15, 20

Any valid total score must be the sum of one value from the easy list and one value from the hard list. A nested loop is the standard way to generate every combination of two sets of values.

Understanding the Question

The array already exists and has been set to FALSE. Now the task is to complete the algorithm so that every valid total score is marked TRUE.

The given pseudocode structure already tells you the intended method:

• an outer loop for easy-question totals
• an inner loop for hard-question totals
• one array assignment using the sum of the two totals

So the missing values are the start, stop and step values for each loop, and the expression used as the array index.

Approach

Work out the separate ranges first.

For easy questions:

• minimum score from easy questions is 0
• maximum is $5 \times 3 = 15$
• values increase by 3 each time

For hard questions:

• minimum score from hard questions is 0
• maximum is $4 \times 5 = 20$
• values increase by 5 each time

Then, for each easy total and each hard total, add them together. That sum is a valid overall score, so set CheckTotal[sum] to TRUE.

Step-by-Step Reasoning

DECLARE EasyQ, HardQ : INTEGER

• These variables hold running totals for the easy and hard parts.
• They are integers because scores are whole numbers.

FOR EasyQ ← 0 TO 15 STEP 3

• 0 is included because a candidate might get no easy questions correct.
• 15 is the highest easy score possible.
• STEP 3 is used because each easy question adds 3 points.
• So this loop visits 0, 3, 6, 9, 12, 15.

FOR HardQ ← 0 TO 20 STEP 5

• 0 is included because a candidate might get no hard questions correct.
• 20 is the highest hard score possible.
• STEP 5 is used because each hard question adds 5 points.
• So this loop visits 0, 5, 10, 15, 20.

CheckTotal[EasyQ + HardQ] ← TRUE

• For each pair of values, add the two partial totals.
• That sum is a total score that can actually occur in the quiz.
• So the corresponding array element is marked TRUE.

For example:

• if EasyQ = 6 and HardQ = 0, then CheckTotal[6] ← TRUE
• if EasyQ = 3 and HardQ = 5, then CheckTotal[8] ← TRUE
• if EasyQ = 15 and HardQ = 20, then CheckTotal[35] ← TRUE

The nested loop ensures every easy-total/hard-total combination is covered.

NEXT HardQ and NEXT EasyQ

• These complete the inner and outer loops.
• Once finished, every reachable total score has been marked.

Note that some totals may be reached in more than one way. That does not matter: assigning TRUE again causes no problem.

Key Takeaways

• Use nested loops to generate every combination of two independent value sets.
• The STEP value should match the increment pattern in the data.
• When an array index represents a value directly, computed totals can be used as the index.
• Initialising all entries to FALSE first makes it easy to mark only the valid ones as TRUE.

Common Mistakes

• Starting the loops at 3 or 5 instead of 0, which would miss valid totals where no questions of that type are correct.
• Using the wrong maximum values, such as 12 or 15 for the hard total.
• Using STEP 1 instead of STEP 3 or STEP 5, which would generate impossible subtotals.
• Writing CheckTotal[EasyQ, HardQ] as if it were a 2D array.
• Using only one of the variables as the index instead of adding them.

Things to Be Careful About

• EasyQ and HardQ here represent score totals, not question counts.
• The loop bounds are inclusive, so 15 and 20 must both be included.
• The index expression must be EasyQ + HardQ exactly, because the total score is the sum of the easy and hard contributions.
• This works correctly because the array has already been declared with bounds up to 35.

Background Concept

A function module is used when a task must return a value. Here, ValidateScore() returns a Boolean result:

• TRUE if the total score is valid
• FALSE if the total score is invalid

A lookup table is a very efficient way to validate data. Instead of recalculating whether a score is possible every time, the program stores the answers in an array. Then validation becomes a direct access operation: use the score as the index and read the Boolean value stored there.

However, when using a value as an array index, the value must first be checked to make sure it is within the array bounds. Otherwise, the program could try to access an element that does not exist.

Understanding the Question

The question says the array elements have already been assigned correctly. So ValidateScore() does not need to build the array or compute valid totals itself.

Its only job is to take a score and say whether that score is valid.

The phrase "will take an integer value representing a total score as a parameter" tells you that the score is an input to the module. The phrase "It will return TRUE if the total score is valid, or FALSE if it is not valid" tells you this should behave like a function returning a Boolean result.

The instruction "Do not use pseudocode" means the answer must be written as plain-language steps, not code.

Approach

Use the array as a lookup table.

The algorithm should:

1. receive the score
2. make sure it is a possible index value for the array
3. if it is in range, read the corresponding array element
4. return that Boolean value

Including the bounds check is important because the array only covers 0 to 35.

Step-by-Step Reasoning

Step 1: Receive the score parameter.

• The function needs a value to test, so first it accepts the total score passed into ValidateScore().
• This is the number whose validity is being checked.

Step 2: Check the range.

• The array only has valid indices from 0 to 35.
• If the score is less than 0 or greater than 35, it cannot be a valid total for this quiz.
• Also, using such a value directly as an index would be unsafe.
• So in this case the function should return FALSE immediately.

Step 3: Look up the array element.

• If the score is within range, it can safely be used as an index.
• The algorithm accesses CheckTotal[score].
• That element already stores whether the score is valid.

Step 4: Return the Boolean value found.

• If the element is TRUE, the score is valid.
• If the element is FALSE, the score is invalid.
• The function simply returns that value.

This is an efficient design because array access is direct: the answer is found immediately without testing many possible score combinations each time.

Key Takeaways

• A function is appropriate when a module must return a result.
• Arrays can act as lookup tables for fast validation.
• Always check bounds before using a value as an array index.
• Plain-language algorithm descriptions should still be precise and logically ordered.

Common Mistakes

• Recalculating all possible totals inside ValidateScore() instead of using the completed array.
• Forgetting to check whether the score is between 0 and 35 before indexing the array.
• Saying the module should print the result instead of return it.
• Writing pseudocode even though the question explicitly says not to.
• Describing only three steps, or combining multiple key actions into one vague step.

Things to Be Careful About

• ValidateScore() returns a Boolean value; it does not change the array.
• The valid index range comes from the maximum quiz total, which is 35.
• A negative score or a score above 35 should be treated as invalid.
• Since the question asks for description, keep the answer in clear English rather than using symbols or code syntax.

Background Concept

A program development life cycle breaks software creation into stages so that the work is organised and controlled. Typical stages include analysis, design, coding or implementation, testing, and maintenance.

• Analysis is where the problem is investigated and the customer's requirements are identified.
• Design is where the solution is planned. This may include structure charts, algorithms, pseudocode and data structures.
• Coding is where the programmer writes the actual program.
• Testing checks that the program works correctly.
• Maintenance happens after release, when the program is changed to fix faults or adapt to new conditions such as changed hardware.

A structure chart belongs to planning the solution, so it is part of design. An IDE feature such as auto-complete helps when writing code, so it belongs to coding.

Understanding the Question

The question gives four different development activities and asks for the correct life cycle stage for each one.

You are not being asked to describe the stages in detail. You only need to recognise what kind of work each activity represents:

• planning the program structure
• changing a completed program later
• finding out what the customer wants
• writing code with programming tools

Each activity is a clue to one stage of the life cycle.

Approach

For each row, ask: At what point in software development would this happen?

• If it is about finding out the problem and requirements, it is analysis.
• If it is about planning the solution, it is design.
• If it is about writing the program, it is coding.
• If it is about changing the program after delivery, it is maintenance.

Then match each activity to the best stage.

Step-by-Step Reasoning

1. "a structure chart is produced"

   • A structure chart shows how a solution is divided into modules.
   • That is part of planning how the program will be built.
   • So the correct stage is Design.

2. "a program is modified to allow it to run on new hardware"

   • The program already exists and is being changed afterwards.
   • This is not analysis, design or initial coding.
   • It is work done after release to keep the system usable.
   • So the correct stage is Maintenance.

3. "the programmer identifies the customer’s requirements"

   • This means finding out what the user needs the system to do.
   • That is the main purpose of the Analysis stage.
   • So the correct stage is Analysis.

4. "an Integrated Development Environment (IDE) provides context-sensitive help such as auto-complete"

   • Auto-complete is a tool used while writing program statements.
   • That happens when the programmer is creating the code.
   • So the correct stage is Coding.

That gives the four answers: Design, Maintenance, Analysis, Coding.

Key Takeaways

• Analysis is about identifying requirements.
• Design is about planning the solution structure.
• Coding is about writing the program.
• Maintenance is about changing the program after it has been developed.
• Clue words in a question often point directly to the stage: requirements, structure chart, IDE, modify.

Common Mistakes

• Writing testing for the structure chart row. A structure chart is created before testing; it is part of design.
• Writing implementation for the hardware-change row. In life cycle terms, changing software later to suit new hardware is maintenance.
• Confusing analysis with design. Analysis asks what is needed; design decides how it will be built.
• Choosing testing for the IDE row. Auto-complete helps when writing code, not when testing it.

Things to Be Careful About

• Use the life cycle stage name, not a description.
• Read the activity carefully: the wording "modified" suggests the program already exists, which points to maintenance.
• Do not overthink the IDE row: the key clue is that auto-complete helps the programmer write source code.
• Where different schools use slightly different labels, make sure your answer still matches the standard stage meaning expected in the syllabus.

Background Concept

Software testing can involve different people at different stages.

• Alpha testing is usually done before release in a controlled environment.
• Beta testing is done by selected external users using a near-final version.
• Acceptance testing is the final stage where the customer checks whether the system meets their requirements and is acceptable for use.

The important idea is that acceptance testing focuses on whether the completed system satisfies the customer's needs.

Understanding the Question

The question says alpha and beta testing have already been completed. It then says the final testing stage is carried out by the customer.

So you need the name of the testing stage done by the customer at the end of development.

Approach

Look for the clue words:

• final testing stage
• carried out by the customer

That combination points to acceptance testing.

Step-by-Step Reasoning

• Alpha testing is not correct because that has already happened.
• Beta testing is not correct because that has also already happened.
• The customer performs the final check to decide whether the software is acceptable.
• Therefore the correct answer is Acceptance testing.

Key Takeaways

• Acceptance testing is the customer's final check of the system.
• It is about confirming that the software meets the agreed requirements.
• When a question mentions testing by the customer, acceptance testing is usually the required term.

Common Mistakes

• Writing beta testing because users are involved. Beta testing and acceptance testing are different stages.
• Writing user testing instead of the correct formal term expected by the syllabus.
• Confusing acceptance testing with general testing done by programmers.

Things to Be Careful About

• Use the exact term acceptance testing.
• Do not add unnecessary extra stages if the question asks for one name only.
• Pay attention to who carries out the testing: that is often the key clue in these questions.

Background Concept

A structure chart shows the modular design of a program: which modules call other modules, and what information passes between them.

One of the standard symbols in a structure chart is the curved arrow drawn across a set of module calls. This indicates iteration. In other words, the module or group of modules under that curved line is not performed just once; it is repeated.

This is the design-stage equivalent of using a loop in pseudocode, such as a WHILE, REPEAT ... UNTIL, or FOR loop. The chart does not usually show the exact loop condition in detail, but it does show that repetition is intended.

Understanding the Question

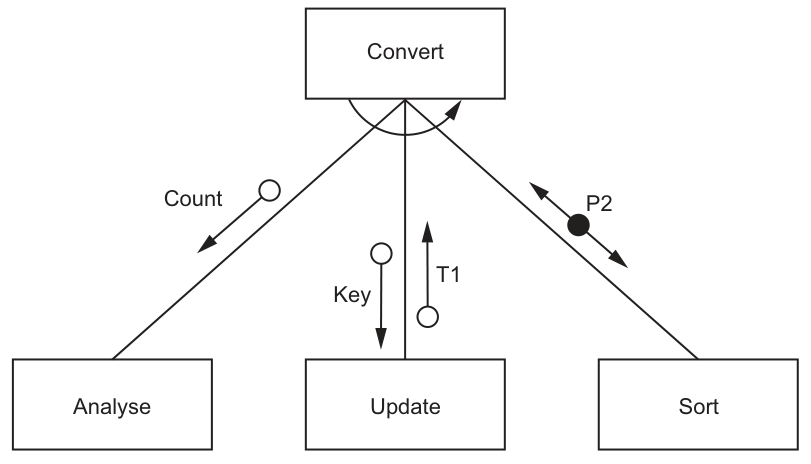

The question asks for the meaning of the curved arrow in Fig. 7.1.

In the diagram, the curved arrow spans the calls from Convert to Analyse, Update, and Sort. So the question is not asking about data being passed, or about which module calls which. It is specifically asking what that curved symbol means in a structure chart.

The key idea you need is that this symbol represents repetition of the modules involved.

Approach

To answer this, identify the standard notation first:

1. Recognise the curved arrow as the iteration symbol.
2. State what iteration means in program-design terms.
3. Link it to this chart by saying the relevant modules are repeated.

For 2 marks, one point is usually for naming the symbol correctly, and one point is for explaining what happens because of it.

Step-by-Step Reasoning

The curved line is drawn beneath Convert and across the three lower module connections.

That tells us the calls to those lower modules are part of a repeated sequence.

So:

• Convert does not just call these modules once.
• It repeats that set of actions.
• The repetition continues until whatever stopping condition the algorithm uses has been satisfied.

A good exam answer therefore includes both of these ideas:

• the name: iteration / repetition
• the meaning: the modules under the curved arrow are repeated in a loop

Key Takeaways

• In a structure chart, a curved arrow indicates iteration.
• Iteration means repeating one module or a group of modules.
• A structure chart shows design intent, not the full loop condition or loop code.

Common Mistakes

• Saying it means sequence only. Sequence just means one thing after another; the curved arrow specifically means repetition.
• Confusing it with selection. A control decision is different from iteration.
• Describing data transfer instead of repetition. The curved arrow is not about parameters; it is about looping.

Things to Be Careful About

• Use the word iteration, repetition, or loop clearly.
• Make sure you refer to the modules under the curved arrow, not the whole chart in general.
• Do not confuse the curved arrow with the open-circle and filled-circle couples, which show data and control information.

Background Concept

A structure chart can be used to derive pseudocode module headers.

When turning a structure chart into module headers, you look at:

• which module is called by which other module
• what data is passed into the module
• what data comes back out of the module
• whether the module should be a PROCEDURE or a FUNCTION

A FUNCTION is appropriate when the module returns a single value. A PROCEDURE is appropriate when the module performs an action and does not return a single value directly.

In CIE pseudocode, a function header is written like:

FUNCTION Name(ParameterList) RETURNS DataType

A procedure header is written like:

PROCEDURE Name(ParameterList)

If a parameter is being supplied to the module as input, it is commonly written as BYVAL. The question also gives type information, so those types must appear in the header where relevant.

Understanding the Question

You are given a structure chart with three sub-modules under Convert:

• Analyse
• Update
• Sort

You are also told:

• Count is the number of elements in an array
• T1 is the number of elements modified
• Key is of type STRING

From the chart:

• Analyse sends Count back to Convert
• Update receives Key from Convert and sends T1 back to Convert
• Sort is linked by a control couple P2, not by a returned data value

So the task is to turn that design information into suitable pseudocode headers.

Approach

Use this method for each module:

1. Check whether data goes into the module.
2. Check whether one value comes back out.
3. If one value comes back, use a FUNCTION with the return type.
4. If no returned data value is shown, use a PROCEDURE.
5. Add any parameter names and types that the question provides.

That gives:

• Analyse returns Count, so it is best written as a function returning INTEGER.
• Update takes in Key : STRING and returns T1, so it is best written as a function returning INTEGER.
• Sort does not return a data value, so it is best written as a procedure.

Step-by-Step Reasoning

1. Analyse

The chart shows an open-circle data couple labelled Count going from Analyse up to Convert.

That means Analyse produces a single data value for the calling module.

The note says Count is the number of elements in an array, so its type is INTEGER.

No input data couple is shown going into Analyse, so no parameter is needed in the header.

Therefore the cleanest header is:

FUNCTION Analyse() RETURNS INTEGER

2. Update

The chart shows:

• Key passed from Convert down to Update
• T1 passed back from Update up to Convert

So Update has one input and one returned value.

The question explicitly states that Key is of type STRING, so the parameter must be:

BYVAL Key : STRING

T1 is the number of modified elements, so it is an INTEGER return value.

Therefore the header is:

FUNCTION Update(BYVAL Key : STRING) RETURNS INTEGER

3. Sort

The chart shows a control couple P2 from Convert to Sort, but no data value coming back from Sort.

So Sort is acting as an action module rather than a module that returns a single value.

That makes PROCEDURE the appropriate choice.

Hence:

PROCEDURE Sort()

This is the safest header because the question does not provide a type for P2, and the important distinction here is that Sort is not shown returning data.

Key Takeaways

• Use the direction of data couples to work out inputs and outputs.
• A single value returned to the caller is often best represented as a function return value.
• Input items passed into a module should appear as parameters with the correct type.
• If a module performs an action and does not return a value, use a procedure.

Common Mistakes

• Writing all three modules as procedures. That ignores the fact that Analyse and Update each send a value back.
• Omitting the type of Key. The question explicitly tells you it is STRING.
• Making Sort a function. There is no returned data couple from Sort to justify that.
• Treating Count or T1 as input parameters to the child modules. The arrows show those values going back to Convert, not into the modules.

Things to Be Careful About

• Read arrow direction carefully. In structure charts, direction matters.
• Distinguish between a data couple and a control couple.
• Match CIE pseudocode style: FUNCTION ... RETURNS ... and PROCEDURE ....
• Keep the identifier names exactly as given: Analyse, Update, Sort, Key.
• Do not invent types that the question does not support. Here, the clearest supported header for Sort is simply a procedure with no returned value.

Background Concept

This question is about processing an array of records. A record stores several related fields together, here StudentID, BookID and OnLoan. An array stores many records of the same type, so Loan contains up to 7000 loan records.

When you need to count how many records match some condition, the normal pattern is:

1. declare and initialise one or more counters
2. loop through every relevant array element
3. test whether the record matches the search condition
4. if it matches, update the correct counter
5. output the totals at the end

Because the array may contain unused elements anywhere, you cannot stop early when you see an empty StudentID. You must still check all 7000 positions.

A procedure is suitable here because the task says to output the counts, not return one single value.

Understanding the Question

The module CountLoans() is given a StudentID. It must examine the global array Loan and work out two separate totals for that one student:

• how many books are still on loan now
• how many books have already been returned

The key clue is the meaning of OnLoan:

• TRUE means the book has not been returned yet
• FALSE means it has been returned

So the module needs two counters, not one. It is not being asked to count all loans in the system, only those where the record's StudentID matches the parameter passed into the procedure.

Approach

The simplest correct method is a full scan of the array from element 1 to element 7000.

For each element:

• first check whether that record belongs to the required student
• if it does, inspect OnLoan
• if OnLoan is TRUE, increase the current-loan counter
• otherwise, increase the returned-loan counter

At the end, output both counts with suitable labels.

A FOR loop is appropriate because the array size is fixed and known.

Step-by-Step Reasoning

Start by declaring:

• Index to control the loop
• CurrentCount to count books still on loan
• ReturnedCount to count books already returned

Both counters must start at 0. If you forget this, the totals will be incorrect.

The loop goes from 1 to 7000 because the question states the global array stores 7000 loan records. In CIE pseudocode, this is naturally written as a count-controlled FOR loop.

Inside the loop, the first condition is:

Loan[Index].StudentID = WantedStudentID

This ensures only records for the specified student are considered. If the record belongs to a different student, it is ignored.

If the StudentID matches, a second test is needed on Loan[Index].OnLoan:

• if TRUE, the book is still out, so increment CurrentCount
• else, the book has been returned, so increment ReturnedCount

After the loop has checked every record, output both counters with clear messages.

Notice that unused elements do not need any special code. Their StudentID is an empty string, so they simply fail the match test unless the searched-for StudentID were also empty, which would not be a valid real student ID in this context.

Key Takeaways

• Use a full array traversal when unused elements can appear anywhere.
• Use record-field access like Loan[Index].StudentID and Loan[Index].OnLoan.
• Separate the search condition from the counting condition.
• Initialise counters before the loop and output results after the loop.

Common Mistakes

• Using only one counter instead of two, which misses part of the requirement.
• Counting OnLoan = FALSE as still on loan. The question explicitly says TRUE means not returned.
• Stopping at the first empty StudentID. That is wrong because unused elements may occur anywhere in the array.
• Forgetting to test the StudentID before changing counters, which would count other students' books.
• Writing a function returning one value instead of a procedure that outputs both results.

Things to Be Careful About

• Keep the array bounds correct: 1 TO 7000.
• Use = for comparison and ← for assignment.
• Match the exact field names and identifier casing from the question.
• Make sure the ELSE belongs to the OnLoan test, not the StudentID test.
• Output both totals, because the question asks for both counts together with a suitable message.

Background Concept

This question is about adding a new item into an array-based structure that contains used and unused records. The question tells us how to recognise an unused record: its StudentID is an empty string.

When a module must return TRUE or FALSE, it should normally be written as a function returning BOOLEAN. The typical pattern is:

• search for a suitable position
• if found, perform the update and return TRUE
• if the search finishes without success, return FALSE

Because the task says to write efficient pseudocode, the search should stop as soon as an unused record is found. There is no need to continue scanning the array once insertion has succeeded.

Understanding the Question

NewLoan() is called with two strings:

• a student ID
• a book ID

It must:

1. search the Loan array for an unused record
2. if one is found, store the new values in that record
3. set OnLoan so the new loan is marked as active
4. return TRUE
5. if no unused record exists, return FALSE

The phrase "write efficient pseudocode" is important. It means the solution should avoid unnecessary work. Once an empty slot has been found and updated, the function should finish immediately.

Approach

Use a loop to scan from the start of the array to the end.

For each record:

• check whether StudentID = ""
• if yes, this is an unused record
• store the incoming StudentID and BookID
• set OnLoan ← TRUE
• return TRUE immediately

If the loop completes without finding any unused record, return FALSE.

This is more efficient than using a full scan with a flag and then continuing after a match, because the function stops at the first available slot.

Step-by-Step Reasoning

The module needs to return a Boolean value, so FUNCTION ... RETURNS BOOLEAN is appropriate.

A loop variable such as Index is declared. The search examines each record in turn.

The test for an unused record is:

Loan[Index].StudentID = ""

That comes directly from the stem. There is no need to test BookID or OnLoan because the question defines emptiness using StudentID.

When an unused record is found, three fields must be updated:

• Loan[Index].StudentID ← NewStudentID
• Loan[Index].BookID ← NewBookID
• Loan[Index].OnLoan ← TRUE

That final assignment matters because a brand-new loan means the book has not yet been returned.

After updating the record, RETURN TRUE is used straight away. This is the efficient part: the search ends as soon as success is achieved.

If the loop reaches the end of the array, then every element was already in use. In that case the function returns FALSE.

An alternative correct style would be to use a WHILE loop with a Boolean flag, but an immediate RETURN is shorter and still fully valid.

Key Takeaways

• Use a Boolean function when the module must report success or failure.
• Recognise unused records using the condition given in the stem.
• Update all required fields when inserting a new record.
• For efficiency, stop searching as soon as the first suitable position is found.

Common Mistakes

• Writing a procedure instead of a Boolean function.
• Forgetting to set OnLoan ← TRUE for the new record.
• Searching for BookID = "" instead of StudentID = "", which does not match the specification.
• Continuing to scan the array after finding an unused record, which is less efficient.
• Returning TRUE without actually storing the new data.

Things to Be Careful About

• Use the exact empty-string test: "".
• Keep the return values in the correct places: TRUE when inserted, FALSE only if no slot exists.
• The array size is fixed at 7000, so the loop bounds must cover all elements.
• Make sure assignments use ←, not =.
• Use the parameter values to fill the record fields, not literal text or the wrong identifiers.

Background Concept

When data in an array is going to be deleted or marked unused, it will be lost from that working structure. If the information is still needed later, it should be copied to permanent storage first.

A common method is file handling. An archive file stores old records that are no longer active but may still be needed for reporting, checking history, or auditing. In simple Paper 2 terms, this is often described as writing the record to a text file before removing it from the main array.

Understanding the Question

When a book is returned, its loan record has OnLoan set to FALSE. Later, Archive() will mark such records as unused so those array positions can be reused.

The question asks how to save those records for future reference before this happens. So the essential idea is:

• do not just clear the record
• first copy it somewhere permanent

Approach

The straightforward answer is to store returned-loan records in a separate archive file.

As Archive() finds records with OnLoan = FALSE, it would:

1. write the record's details to the archive file
2. then clear or mark the array element unused

That preserves the history while freeing space in the active Loan array.

Step-by-Step Reasoning

The main array is for active working data. Once a record is marked unused, its details are effectively removed from that active store.

To keep the history, a second storage location is needed. A file is appropriate because it is persistent and can hold many old records.

Appending is a sensible approach because each returned loan can be added to the end of the archive without overwriting previous history.

After saving the record externally, the program can safely set the element back to the unused state, for example by making StudentID an empty string again.

Key Takeaways

• Archiving means moving old but still valuable data to permanent storage.
• Save data before clearing or reusing its array position.
• A text file is a standard Paper 2 answer for future reference storage.

Common Mistakes

• Saying only "delete the record". That loses the historical information.
• Suggesting the record stays only in the main array. That does not free the element for reuse.
• Forgetting that saving must happen before marking the record unused.

Things to Be Careful About

• The archive must be separate from the active array.
• The saved data should include the loan details, not just a flag.
• Use wording that shows the order clearly: save first, then clear the record.

Background Concept

To automate an action such as sending reminders, a program must store all the data needed to decide when to act and who to contact.

Here there are two separate information needs:

• timing data: when is the book due back?
• contact data: where should the reminder be sent?

In data design terms, this means extending the existing stored data. A record structure can be modified by adding extra fields, or some information can be stored in a related record elsewhere and linked using a key such as StudentID.

Understanding the Question

The new module Reminder() must send an email three days before the return date.

That means the current data is not sufficient, because the existing loan record only stores:

• StudentID
• BookID
• OnLoan

There is no due date and no email address. The question asks for two things:

• what extra data needs to be stored
• how that extra data would be used to generate the email

Approach

Add the missing fields needed for the decision and the message:

• a due date for each loan
• an email address for the student, either directly in the loan record or found from a student file/table using StudentID

Then the reminder process would examine active loans and identify those whose due date is three days away. For those records, the program can prepare and send an email.

Step-by-Step Reasoning

First, think about the timing requirement. "Three days before the book is due" means the program must know the due date. So a date field must be stored for each loan.

Second, think about sending an email. To do that, the program must know the student's email address. This could be:

• stored directly in each loan record, or
• stored once in a separate student record and looked up using StudentID

When Reminder() runs, it would process loans where OnLoan = TRUE, because returned books do not need reminders.

For each active loan, it compares today's date with the due date. If the due date is three days away, that loan qualifies for a reminder.

The program then uses the student's email address plus details such as the book ID and due date to generate the content of the email.

Key Takeaways

• Automated tasks need the right stored data as well as the right algorithm.
• A due date supports date-based decisions.
• An email address supports communication with the correct student.
• Existing keys such as StudentID can be used to link related data.

Common Mistakes

• Mentioning only a due date but not where the email should be sent.
• Mentioning only an email address but not how the program knows when to send the reminder.
• Forgetting to limit reminders to loans still marked as active.
• Saying the email is sent on the due date rather than three days before.

Things to Be Careful About

• Make clear that the new data must be stored, not just entered temporarily.
• If using a separate student record, state that StudentID is used to find the email address.
• The comparison should be with the due date and the current date, not with BookID or another unrelated field.
• Only active loans should be checked for reminders.
