Computer Science 9618/11 — October/November 2025

Background Concept

An entity-relationship (E-R) diagram shows the main entities in a relational database and the relationships between them. The important idea here is cardinality: how many instances of one entity can be related to how many instances of another.

A one-to-many relationship means one record in the first entity can be linked to many records in the second entity. In a crow's foot diagram, the crow's foot is placed on the many side.

In this database, PLACEMENT acts as the table that records each work-experience placement. It links a student to a company for a particular period.

Understanding the Question

You are given three entities: STUDENT, PLACEMENT and COMPANY. You must complete the E-R diagram by adding the correct relationship lines and cardinalities.

The wording gives the clues:

• "Students can complete multiple work experience placements" means one student can be linked to many placement records.
• "Students can only complete one placement at a time" does not change the cardinality shown in the E-R diagram; it is a business rule about timing.
• "Students can complete more than one placement at the same company" means a company can also be linked to many placement records.

So PLACEMENT is the many side in both relationships.

Approach

Start from the meaning of each table:

• STUDENT stores one record per student.
• COMPANY stores one record per company.
• PLACEMENT stores one record per placement.

Then ask:

• How many placements can one student have? Many.
• How many placements can one company have? Many.

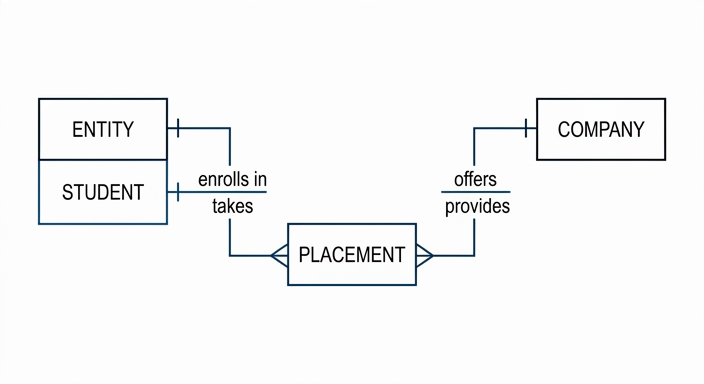

So draw:

• STUDENT to PLACEMENT as 1:M
• COMPANY to PLACEMENT as 1:M

There is no need for a direct relationship line between STUDENT and COMPANY because that relationship is represented through PLACEMENT.

Step-by-Step Reasoning

From the statement "Students can complete multiple work experience placements":

• one STUDENT can relate to many PLACEMENT records
• each PLACEMENT record belongs to one student
• therefore the crow's foot goes at PLACEMENT, and the one side is at STUDENT

From the fact that each placement happens at a company, and students can complete more than one placement at the same company:

• one COMPANY can relate to many PLACEMENT records
• each PLACEMENT record belongs to one company
• therefore the crow's foot again goes at PLACEMENT, and the one side is at COMPANY

That gives two one-to-many relationships, both pointing into PLACEMENT as the many side.

Key Takeaways

• Read the business rules carefully to determine relationship cardinality.
• A crow's foot is always placed on the many side of a relationship.
• A linking table such as PLACEMENT often sits between two main entities and records repeated events or transactions.

Common Mistakes

• Drawing a many-to-many relationship directly between STUDENT and COMPANY. The PLACEMENT table already resolves that relationship.
• Putting the crow's foot at STUDENT or COMPANY instead of at PLACEMENT.
• Adding a direct line between STUDENT and COMPANY when the placement record is the actual relationship.

Things to Be Careful About

• Use the wording of the scenario, not just the table names.
• "One placement at a time" is a timing constraint, not a different cardinality for this diagram.
• Make sure both relationships are shown as one-to-many, with PLACEMENT on the many side in each case.

Background Concept

Third Normal Form (3NF) is a stage of database normalisation used to reduce redundancy and avoid update anomalies.

A table is in:

• 1NF if fields contain atomic values and there are no repeating groups
• 2NF if it is already in 1NF and every non-key attribute depends on the whole key
• 3NF if it is already in 2NF and there are no transitive dependencies, meaning non-key attributes do not depend on other non-key attributes

In simple terms, in 3NF each non-key item should depend on the key, the whole key, and nothing but the key.

Understanding the Question

You are asked to explain why the database structure shown is in 3NF. That means you must refer to the normal-form rules and connect them to these tables:

• STUDENT(StudentID, FirstName, TelephoneNumber, UniversityName)
• PLACEMENT(PlacementID, StudentID, CompanyID, StartDate, EndDate, Complete)
• COMPANY(CompanyID, CompanyName, MaxStudentsPerPlacement)

The question is not asking you to redesign the tables, only to justify why the design meets 3NF.

Approach

A clear way to answer is:

1. note that each table has a single-field primary key
2. note that the attributes are atomic
3. explain that with single-field keys there are no partial dependencies
4. explain that non-key attributes depend only on the primary key, not on other non-key attributes

That directly covers the conditions for 3NF.

Step-by-Step Reasoning

First, each table has a clear primary key:

• StudentID in STUDENT
• PlacementID in PLACEMENT
• CompanyID in COMPANY

Because these are single-field keys, partial dependency cannot occur. Partial dependency is only an issue when a table has a composite primary key and an attribute depends on only part of it.

Next, the attributes are atomic. For example:

• FirstName stores one value
• TelephoneNumber stores one value
• StartDate stores one value
• Complete stores one value

So the tables satisfy 1NF.

Then consider whether non-key attributes depend only on the key:

• in STUDENT, FirstName, TelephoneNumber and UniversityName depend on StudentID
• in COMPANY, CompanyName and MaxStudentsPerPlacement depend on CompanyID
• in PLACEMENT, StudentID, CompanyID, StartDate, EndDate and Complete are properties of that placement record identified by PlacementID

Finally, there is no transitive dependency shown. For example, CompanyName is not stored inside PLACEMENT; it is correctly stored in COMPANY. That avoids non-key data depending on another non-key item through a foreign key.

So the database can be justified as being in 3NF.

Key Takeaways

• 3NF means no repeating groups, no partial dependency and no transitive dependency.
• Single-field primary keys make the 2NF check easier because partial dependency cannot occur.
• Descriptive data should stay in the correct table instead of being duplicated elsewhere.

Common Mistakes

• Saying only "it has a primary key". That is not enough to explain 3NF.
• Forgetting to mention that non-key attributes must depend only on the primary key.
• Confusing foreign keys with transitive dependency. A foreign key is not automatically a problem.

Things to Be Careful About

• 3NF explanation should build on 1NF and 2NF ideas.
• Use the exact table structure given, not assumptions about extra attributes.
• Do not claim a table is not in 3NF just because it contains foreign keys; foreign keys are normal in relational design.

Background Concept

Referential integrity is a rule used in relational databases to keep links between tables valid. It applies when one table contains a foreign key that refers to the primary key of another table.

The rule means that a foreign key value in the child table must either:

• match an existing primary key value in the parent table, or
• be null, if nulls are allowed

This prevents orphan records, where a child record points to a parent record that does not exist.

Understanding the Question

You are asked to explain both:

• what referential integrity means in general
• how it applies to the specific tables shown

The key table here is PLACEMENT, because it contains:

• StudentID
• CompanyID

These are foreign keys linking each placement to a student and a company.

Approach

A strong answer should do three things:

1. define referential integrity clearly
2. identify the foreign-key relationships in this schema
3. explain the practical effect, such as preventing invalid inserts or deletions

Step-by-Step Reasoning

Look at the tables:

• STUDENT(StudentID, FirstName, TelephoneNumber, UniversityName)
• PLACEMENT(PlacementID, StudentID, CompanyID, StartDate, EndDate, Complete)
• COMPANY(CompanyID, CompanyName, MaxStudentsPerPlacement)

StudentID is the primary key of STUDENT.

CompanyID is the primary key of COMPANY.

Inside PLACEMENT, the fields StudentID and CompanyID are used to refer to those tables, so they act as foreign keys.

Referential integrity therefore requires:

• every PLACEMENT.StudentID to match a real STUDENT.StudentID
• every PLACEMENT.CompanyID to match a real COMPANY.CompanyID

This means you cannot have a placement record for a student who is not in STUDENT, or for a company that is not in COMPANY.

It also means the database should stop actions that would break those links. For example, if a student still has placement records, deleting that student could leave invalid references unless the DBMS prevents the deletion or handles it with a defined action such as cascading.

Key Takeaways

• Referential integrity keeps relationships between tables valid.
• It is enforced through primary key and foreign key links.
• It prevents orphan records and inconsistent data.

Common Mistakes

• Defining referential integrity only as "keeping data correct" without mentioning primary keys and foreign keys.
• Naming the wrong fields as the foreign keys.
• Forgetting to apply the idea to both links in this database: student and company.

Things to Be Careful About

• PLACEMENT is the child table here because it stores the foreign keys.
• STUDENT and COMPANY are parent tables for those links.
• The question asks for both the general meaning and the application to this schema, so both parts should be included.

Background Concept

A logic circuit is a hardware representation of a Boolean expression. Each operator in the expression becomes a gate:

• NOT becomes a NOT gate
• AND becomes an AND gate
• OR becomes an OR gate
• NAND means AND followed by NOT
• XOR outputs 1 only when its two inputs are different

When an expression is nested, the circuit must follow the same structure as the brackets. Inner bracketed parts are built first, then their outputs are used as inputs to later gates. This is exactly like following the order of operations in arithmetic.

For this expression,

there are three main stages inside the final NOT:

1. build A NAND B
2. build NOT A OR NOT C
3. XOR those two results

Then the whole XOR result is inverted by the final NOT gate.

Understanding the Question

The question gives the full logic expression and asks for the corresponding circuit. The input lines A, B and C are already provided in the figure, and the required output is X.

The important clue is that the expression already shows the gate structure through its brackets. So the task is not to simplify the expression, but to draw the gates in the correct order and join them correctly.

Approach

The safest method is to break the expression into smaller sub-expressions:

• first sub-expression: A NAND B
• second sub-expression: NOT A OR NOT C
• combine those two using XOR
• apply a final NOT to produce X

This avoids wiring mistakes. A common way to think about it is to give each sub-expression a temporary name:

• let P = A NAND B
• let Q = NOT A OR NOT C
• then X = NOT (P XOR Q)

Once split up like this, the circuit becomes much easier to draw.

Step-by-Step Reasoning

Start with the first sub-expression:

• Inputs A and B go into a NAND gate.
• The output of that gate is the value of A NAND B.

Now build the second sub-expression:

• Input A must be inverted, so A goes through a NOT gate to produce NOT A.
• Input C must also be inverted, so C goes through a NOT gate to produce NOT C.
• These two outputs go into an OR gate.
• The OR gate output is (NOT A OR NOT C).

Now combine the two larger parts:

• The output from the NAND gate and the output from the OR gate both go into an XOR gate.
• This gives ((A NAND B) XOR (NOT A OR NOT C)).

Finally:

• the output of the XOR gate goes through one more NOT gate
• that final output is labelled X

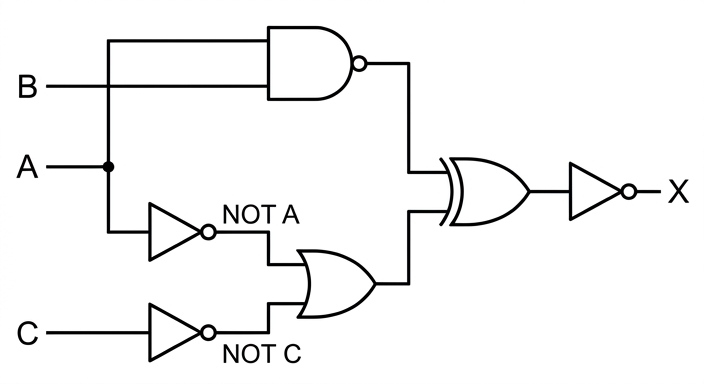

So the finished circuit must contain:

• one NAND gate using A and B
• two NOT gates, one on A and one on C
• one OR gate combining those two inverted signals
• one XOR gate combining the NAND result and the OR result
• one final NOT gate producing X

Key Takeaways

• Follow the brackets in the expression when drawing a logic circuit.
• Build inner sub-expressions first, then combine them.
• NAND is not a separate algebraic step in writing; in a circuit it is a single gate.
• A final outer NOT means the whole preceding result must be inverted at the end.

Common Mistakes

• Drawing an AND gate instead of a NAND gate for A NAND B.
• Forgetting that both A and C must be inverted before the OR gate.
• Applying the final NOT to only one branch instead of to the XOR output.
• Ignoring the brackets and connecting gates in the wrong order.
• Using an OR or AND gate instead of XOR for the middle combination.

Things to Be Careful About

• Make sure the line from A branches correctly: one branch goes to the NAND gate with B, and another branch goes to the NOT gate for NOT A.
• The final NOT is on the output of the XOR gate, not on one of its inputs.
• NOT A OR NOT C means two separate NOT operations feeding an OR gate; it is not the same as NOT (A OR C) unless specifically transformed by De Morgan's law.
• The output line should be clearly labelled X.

Background Concept

To write a logic expression from a truth table, the standard method is to look for every row where the output is 1. For each such row, write a product term (an AND term):

• if an input is 1 in that row, write the input normally
• if an input is 0 in that row, write NOT of that input

Then join all those product terms using OR.

This is called a sum-of-products form. It works because each product term is true for exactly the row it represents.

Understanding the Question

The table has three inputs, R, S and T, and one output, Q. You are asked to write a logic expression that produces exactly the same output pattern.

From the table, Q = 1 only in these two cases:

• R = 0, S = 0, T = 1
• R = 1, S = 1, T = 0

All other rows have output 0, so they do not appear directly in the sum-of-products expression.

Approach

Use the true rows only.

For each row where Q = 1:

1. convert the row into an AND term
2. use NOT on any variable that is 0
3. join the resulting terms with OR

Because there are only two rows where Q = 1, the final expression will have two AND terms joined by one OR.

Step-by-Step Reasoning

First true row:

• R = 0 so write NOT R
• S = 0 so write NOT S
• T = 1 so write T

This gives:

Second true row:

• R = 1 so write R
• S = 1 so write S
• T = 0 so write NOT T

This gives:

Now combine the two true cases with OR:

That matches the truth table because Q becomes 1 in exactly those two rows and 0 everywhere else.

An equivalent simplified form may also exist, but the direct sum-of-products form is the safest exam answer from a truth table.

Key Takeaways

• To form an expression from a truth table, focus on the rows where the output is 1.
• A 0 in a true row becomes NOT of that variable.
• A 1 in a true row stays as the variable itself.
• Join the row expressions using OR.

Common Mistakes

• Using rows where Q = 0 instead of rows where Q = 1.
• Forgetting to negate variables that are 0 in a true row.
• Joining the two row terms with AND instead of OR.
• Writing only one of the true rows and missing the other.
• Mixing the variable order or copying a row incorrectly.

Things to Be Careful About

• Check each true row carefully before writing the term.
• NOT R AND NOT S AND T is one complete term; it should stay grouped before being ORed with the second term.
• Equivalent notation such as $\overline{R} \cdot \overline{S} \cdot T + R \cdot S \cdot \overline{T}$ means the same thing, but keep the notation consistent.
• Do not simplify unless you are certain; the canonical expression directly from the table is usually the most reliable exam answer.

Background Concept

A logical shift moves every bit left or right by a specified number of places.

• LSL #n shifts bits left by n places.
• LSR #n shifts bits right by n places.
• In a logical shift, any new spaces are filled with 0.
• Bits shifted out of the end are lost.

For an 8-bit ACC, shifting left by 1 moves each bit one column to the left and puts 0 into the rightmost position.

Understanding the Question

The ACC currently contains 00011110, and the question wants a single bit manipulation instruction that changes it to 01111000.

The key clue is that it says to use a binary shift, so the correct answer must be either LSL or LSR with the correct number of places.

Approach

Compare the starting pattern with the required pattern and see whether the bits have moved left or right.

If the bits have moved left, use LSL. Then count how many places they moved.

Step-by-Step Reasoning

Start with:

00011110

Shift left by 1:

00111100

Shift left by 2:

01111000

That matches the required result exactly, so the instruction is:

LSL #2

A right shift would move the 1 bits the wrong way, so LSR cannot be correct.

Key Takeaways

• A logical left shift moves all bits left and inserts 0 on the right.
• To find the instruction, compare the original and target bit patterns.
• Always count exactly how many places the bits moved.

Common Mistakes

• Using LSR instead of LSL; this moves the bits in the wrong direction.
• Giving the wrong shift amount, such as #1 or #3.
• Forgetting that zeros are inserted after a logical shift.

Things to Be Careful About

• The operand for the shift instruction is denary, so write #2, not binary B10.
• Make sure the final 8-bit pattern matches exactly.
• Do not treat this as a rotate; bits shifted out are discarded.

Background Concept

XOR is a bitwise logical operation. It compares corresponding bits in two binary values.

The XOR rules are:

• 0 XOR 0 = 0
• 0 XOR 1 = 1
• 1 XOR 0 = 1
• 1 XOR 1 = 0

So XOR gives 1 when the two bits are different, and 0 when they are the same.

The operand &12 is hexadecimal. Each hex digit corresponds to 4 binary bits:

• 1 = 0001
• 2 = 0010

So &12 becomes 00010010.

Understanding the Question

The ACC contains 11100011, and the instruction is XOR &12.

That means:

1. Convert &12 into binary.
2. XOR it bit by bit with the ACC contents.
3. Write the new ACC contents.

Because the ACC is shown as 8 bits, the hexadecimal value must also be written as 8 bits.

Approach

First convert the hexadecimal operand to binary. Then place the two 8-bit values underneath each other and apply XOR column by column.

This is the safest method because it avoids mistakes with bit positions.

Step-by-Step Reasoning

ACC:

11100011

Operand:

&12

Convert &12 to binary:

• 1 becomes 0001
• 2 becomes 0010

So:

&12 = 00010010

Now XOR bit by bit:

• 1 XOR 0 = 1
• 1 XOR 0 = 1
• 1 XOR 0 = 1
• 0 XOR 1 = 1
• 0 XOR 0 = 0
• 0 XOR 0 = 0
• 1 XOR 1 = 0
• 1 XOR 0 = 1

Result:

11110001

So the new contents of the ACC are 11110001.

Key Takeaways

• Convert hexadecimal to binary before doing bitwise operations.
• XOR outputs 1 only when the bits differ.
• Keep values aligned as 8-bit patterns.

Common Mistakes

• Converting &12 incorrectly, for example as denary 12 instead of hexadecimal 12.
• Forgetting leading zeros and writing only 10010 instead of 00010010.
• Confusing XOR with OR or AND.

Things to Be Careful About

• & means hexadecimal in this instruction set.
• The answer should remain 8 bits long.
• Work from left to right or right to left consistently so the bit positions stay matched.

Background Concept

AND is a bitwise logical operation. It compares corresponding bits in two binary values.

The AND rules are:

• 0 AND 0 = 0
• 0 AND 1 = 0
• 1 AND 0 = 0
• 1 AND 1 = 1

So AND only produces 1 when both bits are 1.

The operand #63 is denary because of the # symbol. Denary 63 written as 8-bit binary is 00111111.

Understanding the Question

The ACC contains 11100011 and the instruction is AND #63.

So the task is:

1. Convert denary 63 into binary.
2. Perform a bitwise AND with the ACC contents.
3. Write the 8-bit result.

Approach

Translate the denary operand first, then compare the two 8-bit values one bit at a time using the AND rule.

A useful way to think about AND is that it can be used as a mask: it keeps some bits and forces others to 0.

Step-by-Step Reasoning

ACC:

11100011

Operand:

#63

Convert 63 to binary:

63 = 32 + 16 + 8 + 4 + 2 + 1

So in 8 bits:

00111111

Now perform AND:

11100011

00111111

Compare each bit:

• 1 AND 0 = 0
• 1 AND 0 = 0
• 1 AND 1 = 1
• 0 AND 1 = 0
• 0 AND 1 = 0
• 0 AND 1 = 0
• 1 AND 1 = 1
• 1 AND 1 = 1

Result:

00100011

So the ACC becomes 00100011.

Key Takeaways

• # means the operand is denary and must be converted first.
• AND only keeps a 1 where both bits are 1.
• An AND mask can clear selected bits to 0.

Common Mistakes

• Treating #63 as already binary.
• Writing 111111 instead of the full 8-bit 00111111.
• Mixing up AND and OR, which give different results.

Things to Be Careful About

• Keep the binary operand padded to 8 bits.
• Do not drop leading zeros in the final ACC value.
• Make sure you use the denary value 63, not hex 63.

Background Concept

When an instruction uses an address as its operand, the processor does not use the address number itself in the logic operation. It uses the data stored at that address.

OR is a bitwise logical operation with these rules:

• 0 OR 0 = 0
• 0 OR 1 = 1
• 1 OR 0 = 1
• 1 OR 1 = 1

So OR produces 1 if either bit is 1.

Understanding the Question

The ACC contains 11100011. The instruction is OR 100.

The memory table shows that address 100 contains 00110011.

So the operation is not:

11100011 OR 100

It is:

11100011 OR 00110011

The task is to use the contents of memory location 100 and find the new ACC value.

Approach

Look up the data stored at address 100, then write that 8-bit value underneath the ACC contents and apply OR bit by bit.

This is a common check in assembly-style questions: first identify the addressing mode correctly, then carry out the operation.

Step-by-Step Reasoning

ACC:

11100011

From the memory table:

• address 100 contains 00110011

Now perform OR:

11100011

00110011

Bit by bit:

• 1 OR 0 = 1
• 1 OR 0 = 1
• 1 OR 1 = 1
• 0 OR 1 = 1
• 0 OR 0 = 0
• 0 OR 0 = 0
• 1 OR 1 = 1
• 1 OR 1 = 1

Result:

11110011

So the contents of the ACC after OR 100 are 11110011.

Key Takeaways

• An address operand means use the contents stored at that address.
• OR gives 1 whenever at least one of the two bits is 1.
• Always look up the correct memory location before doing the operation.

Common Mistakes

• Using the address 100 itself as the operand instead of the contents at address 100.
• Looking up the wrong row in the memory table, such as 99 or 101.
• Confusing OR with XOR or AND.

Things to Be Careful About

• OR 100 means direct addressing using memory location 100.
• Copy the data from the table exactly: 00110011.
• Keep the final answer as an 8-bit value, including any leading 1 or 0 bits.

Background Concept

An Integrated Development Environment (IDE) provides tools to help programmers write, test and present code. IDE features are often grouped into coding features, debugging features and presentation features. Presentation features improve the readability and visual organisation of source code so that programmers can understand it more easily.

Understanding the Question

This question asks for two presentation features found in a typical IDE. Because it says "identify", short feature names are enough. You do not need to explain how they work unless the question asks for description.

Approach

Think about features that change how code looks on screen rather than how it runs. Common examples are:

• syntax highlighting
• automatic indentation
• pretty printing
• line numbering
  n
  Any two valid presentation features would score.

Step-by-Step Reasoning

Syntax highlighting is a presentation feature because the IDE displays keywords, strings, comments and other language elements in different colours or styles. This makes code easier to read.

Automatic indentation / pretty printing is also a presentation feature because it formats code neatly, aligning blocks and showing structure clearly.

These are both typical and widely accepted examples.

Key Takeaways

• Presentation features improve readability of code.
• Syntax highlighting and indentation are classic IDE presentation tools.
• "Identify" questions usually just need the feature names.

Common Mistakes

• Giving debugging features such as breakpoints or single stepping.
• Giving coding features such as auto-completion if the question specifically wants presentation.
• Naming hardware or operating system features instead of IDE features.

Things to Be Careful About

• Make sure the two features are distinct.
• Stay within the IDE topic, not general programming tools.
• If unsure, choose common textbook examples such as syntax highlighting and pretty printing.

Background Concept

A register is a very small, very fast storage location inside the CPU. Registers hold values that the processor needs immediately during the fetch-execute cycle. Because they are inside the processor, they are much faster to access than main memory.

Two important registers here are:

• ACC (Accumulator): used to hold data being worked on, especially the result of arithmetic or logic operations carried out by the ALU.
• CIR (Current Instruction Register): used to hold the instruction that has just been fetched from memory, so it can be decoded and executed.

Understanding the Question

The question gives two register names, ACC and CIR, and asks for the role of each one. This means you do not need a long explanation of the whole CPU — just the specific job of each register.

A good answer must clearly separate:

• a register that stores data/results (ACC)
• a register that stores the current instruction (CIR)

Approach

Recall what each register is used for in processor operation:

1. Identify what kind of thing the register stores.
2. State when or why it stores it.
3. Keep the answer short and precise.

For ACC, mention data or calculation results.
For CIR, mention the current fetched instruction being decoded or executed.

Step-by-Step Reasoning

• The Accumulator is linked to the ALU. When arithmetic or logic is performed, the value being worked on, or the result produced, is typically held in the ACC.

• So the role of the ACC is to store data currently being processed and/or the result of processing.

• The Current Instruction Register is part of the instruction-handling process.

• After an instruction is fetched from memory, it is placed in the CIR.

• The control unit then decodes that instruction and controls its execution.

• So the role of the CIR is to store the current instruction while it is being decoded/executed.

Key Takeaways

• Registers are fast storage locations inside the CPU.
• ACC is mainly for data/results.
• CIR is for the current instruction.
• In register questions, always say what is stored and why.

Common Mistakes

• Saying the ACC stores the current instruction — that is the job of the CIR, not the accumulator.
• Saying the CIR stores data — it stores an instruction, not general working data.
• Being too vague, such as writing only "stores information". The mark usually depends on naming the type of information correctly.

Things to Be Careful About

• Do not confuse CIR with registers such as the MAR, MDR, or PC.
• For ACC, mention results of calculations/logic operations or data being processed.
• For CIR, mention current instruction and ideally that it has been fetched and is being decoded/executed.

Background Concept

A processor core is an independent processing unit inside the CPU. A multicore processor has several cores, allowing more than one task, thread, or process to run at the same time.

In principle, more cores can improve performance, especially when:

• the operating system can schedule work efficiently across them
• the software is designed for parallel processing
• there are several tasks to run at once

However, adding cores does not guarantee a proportional speed increase.

Understanding the Question

The question asks for drawbacks of increasing the number of cores. So this is not asking for advantages such as better multitasking. It wants reasons why adding more cores can be a disadvantage or may fail to improve performance enough.

With 2 marks, two developed points are usually enough.

Approach

Think about two categories of drawback:

1. Software limitation: more cores only help if programs can use them.
2. Hardware/resource cost: more cores need more power, produce more heat, and cost more.

Either of these can be described clearly for full credit.

Step-by-Step Reasoning

• A multicore processor can run multiple threads or processes in parallel.
• But many programs are still single-threaded or only partly parallelised.
• If software uses only one core, the other cores bring little benefit for that program.
• So one drawback is that extra cores may be underused, meaning limited performance gain.

Another drawback comes from the physical hardware:

• More cores mean more circuitry on the chip.
• This usually increases manufacturing cost.
• It often increases power consumption.
• More power leads to more heat generation.
• More heat may require better cooling, which adds further cost and complexity.

A further valid idea, though not necessary here, is that managing work across multiple cores adds overhead, so performance gains are not always linear.

Key Takeaways

• More cores help only when work can be split across them.
• Software design is a major limit on the usefulness of multicore CPUs.
• Hardware improvements often involve trade-offs such as cost, heat, and power.

Common Mistakes

• Giving advantages instead of drawbacks, such as "better multitasking".
• Writing only "more cores are faster" which does not answer the question.
• Saying all programs automatically run faster on more cores — this is not true unless software can use parallel execution.
• Repeating the same idea twice, for example "more expensive" and "costs more" as separate differences.

Things to Be Careful About

• The question says describe, so each point should include a brief consequence, not just a label.
• Avoid absolute statements like "extra cores are useless". They are useful in many cases, just not always.
• If you mention software, make it clear that the issue is not all programs are designed to take advantage of multiple cores.

Background Concept

Both DRAM and SRAM are types of RAM (Random Access Memory). RAM is volatile memory, meaning its contents are lost when power is switched off.

The two types differ in how they store bits:

• DRAM (Dynamic RAM) stores each bit using a capacitor.
• SRAM (Static RAM) stores each bit using a flip-flop circuit.

This difference in design leads to differences in speed, cost, density, and whether refreshing is required.

Understanding the Question

The question asks for three differences between DRAM and SRAM. That means you should give three paired contrasts, not just three facts about one of them.

A strong structure is:

1. state the DRAM property
2. state the matching SRAM contrast

This makes the difference explicit and easy to mark.

Approach

Choose three standard textbook differences that are widely accepted:

• refresh requirement
• speed
• cost/density/capacity

These are the clearest and safest differences for exam answers.

Step-by-Step Reasoning

1. Refreshing

• In DRAM, each bit is held in a capacitor.
• Capacitors gradually lose charge.
• Therefore DRAM must be refreshed regularly to keep its data.
• In SRAM, the data is stored in flip-flops, which keep their state while power remains on.
• Therefore SRAM does not need refreshing.

2. Speed

• Because DRAM needs refreshing and uses a different storage method, it is generally slower.
• SRAM can be accessed more quickly, so it is generally faster.
• This is why SRAM is often used for cache memory.

3. Cost and density

• A DRAM cell is simpler, so more memory cells can fit into the same chip area.
• This gives higher density and usually larger capacity at lower cost.
• SRAM cells are more complex and take more space.
• This gives lower density and makes SRAM more expensive per bit.

Any three clear contrasts like these would gain credit.

Key Takeaways

• DRAM: refresh needed, slower, cheaper, higher density.
• SRAM: no refresh, faster, more expensive, lower density.
• Storage method affects practical properties.
• SRAM is commonly used where speed matters most; DRAM is commonly used for main memory where large capacity is needed.

Common Mistakes

• Giving unpaired facts, such as only writing "DRAM is cheaper" without stating the SRAM contrast.
• Saying SRAM is non-volatile — it is still volatile RAM.
• Confusing DRAM/SRAM with ROM types such as PROM or EEPROM.
• Repeating the same idea twice, for example "SRAM is faster" and "DRAM is slower" as if they were two separate differences.

Things to Be Careful About

• The question asks for differences, so present each one as a direct comparison.
• If using cost/capacity, keep the pairing accurate: DRAM cheaper and higher density, SRAM more expensive and lower density.
• Do not mix up refreshing with losing data when power is off. Both are volatile, so both lose contents without power.

Background Concept

An IP address is a numerical address used to identify a device on a network so data can be sent to the correct destination. Questions about IP addresses often ask about different types of address rather than about IPv4/IPv6 structure.

A static IP address is one that stays the same. It is usually configured manually or reserved so the device always keeps that address. This is useful for servers, printers and devices that must be found reliably.

A public IP address is the address seen on the Internet. It is globally unique and can be used to identify a network or device from outside the local network. Public addresses are different from private addresses, which are used only inside local networks.

Understanding the Question

This part gives two address types, Static and Public, and asks for a description of each. It is not asking for advantages, disadvantages, or examples. A short, accurate definition for each term is enough.

Approach

Answer by giving the key defining feature of each term:

• for static, focus on whether it changes
• for public, focus on whether it is accessible/visible on the Internet

Because the question is only worth 2 marks, one correct point for each type is enough.

Step-by-Step Reasoning

For Static:

• The important idea is permanence.
• A static address remains the same rather than being changed automatically each time a device connects.
• So a correct description is that it is a fixed IP address that does not change.

For Public:

• The important idea is external visibility.
• A public address is the address used outside the local network.
• It is the address that can be routed across the Internet.
• So a correct description is that it is visible or routable on the Internet and uniquely identifies the device/network externally.

Key Takeaways

• Static means fixed.
• Public means externally visible on the Internet.
• In definition questions, give the core meaning, not a long discussion.

Common Mistakes

• Saying static means "more secure". That is not its definition.
• Saying public means "free to use". Here, public means Internet-routable, not available to everyone without restriction.
• Confusing public with private IP addresses.

Things to Be Careful About

• Keep the answer as a definition, because the question says "describe the following types of IP address".
• Do not drift into DHCP or NAT unless it directly supports the definition.
• For public, mention the Internet/external network clearly.

Background Concept

To classify an IP address, you need to know the expected format.

An IPv4 address:

• has four sections separated by full stops
• each section is called an octet
• each octet is a denary value from 0 to 255

Example: 192.168.1.10

An IPv6 address:

• is written as groups separated by colons
• each group uses hexadecimal digits (0-9 and A-F)
• has a completely different layout from IPv4

Example: 2001:0db8:85a3:0000:0000:8a2e:0370:7334

If a given address does not fit either valid format, it is invalid.

Understanding the Question

The address given is 256.0.0.A. You must decide whether it is IPv4, IPv6 or invalid, and then justify the decision.

The important clues are:

• it uses dots, so it looks more like IPv4 than IPv6
• one part is 256
• one part is A

That means you should test it against the IPv4 rules carefully.

Approach

Use a simple checklist:

1. Does it match IPv4 structure?
2. Are all four parts valid decimal values in the range 0 to 255?
3. If not, does it match IPv6 structure?
4. If neither works, it is invalid.

Step-by-Step Reasoning

Check against IPv4:

• There are four sections separated by dots, which matches the basic IPv4 shape.
• But each IPv4 section must be a decimal number between 0 and 255.
• The first section is 256, which is too large.
• The last section is A, which is not a decimal number at all.

So it is not a valid IPv4 address.

Check against IPv6:

• IPv6 uses colons, not dots.
• IPv6 has hexadecimal groups, not four dot-separated octets.

So it is not IPv6 either.

Therefore the correct classification is invalid.

Key Takeaways

• IPv4 uses four dot-separated decimal octets.
• Each IPv4 octet must be in the range 0 to 255.
• IPv6 uses colon-separated hexadecimal groups.
• If a value breaks the format rules, the address is invalid.

Common Mistakes

• Choosing IPv4 just because the address contains dots, without checking the values.
• Ignoring the fact that 256 is out of range.
• Thinking A is acceptable in IPv4 because letters appear in IPv6.
• Choosing IPv6 because of the A, even though the separators are wrong.

Things to Be Careful About

• You need both the classification and the reason.
• A dotted format alone is not enough for valid IPv4.
• Mentioning either 256 being out of range or A not being a decimal octet helps, but the strongest justification includes both.

Background Concept

A URL (Uniform Resource Locator) is the address of a resource on the Web. It normally contains several useful parts, such as:

• the protocol (http or https)
• the domain name (for example www.example.com)
• the path to the specific page or file

Humans usually type domain names, not IP addresses. Computers, however, send network traffic using IP addresses. That is why the DNS (Domain Name System) is needed: it converts a domain name into the IP address of the web server.

Once the IP address is known, the browser can contact the server, request the required resource, and then display the returned content.

Understanding the Question

The question asks how the browser uses a URL to access a web page. So this is not just "what a URL is". It wants the sequence of actions from typed URL to displayed page.

The key stages are:

• interpret the URL
• find the IP address
• contact the server
• request the page
• receive and display it

Because this part is worth 4 marks, it usually expects a clear chain of events rather than one short statement.

Approach

Follow the browser's journey step by step:

1. Read the URL.
2. Extract the domain name and protocol.
3. Use DNS to obtain the server's IP address.
4. Connect to that server.
5. Request the specific page or resource.
6. Receive the response and render it.

This matches the normal browser process and covers the most likely marking points.

Step-by-Step Reasoning

First, the browser examines the URL.

• From this, it can tell which protocol to use, such as HTTP or HTTPS.
• It can also identify the domain name, such as www.something.com.
• If the URL includes a path, it also knows which page or file is being requested.

Next, the browser needs the IP address.

• A domain name is convenient for people, but the network needs an IP address.
• So the browser, or the operating system on its behalf, performs a DNS lookup.
• DNS returns the IP address associated with that domain name.

Then the browser makes the connection.

• Using the returned IP address, it contacts the correct web server.
• It uses the protocol from the URL, such as HTTP or HTTPS.

After that, the browser sends a request.

• The request asks for the page or other resource named by the URL path.
• This might be an HTML page, an image, a stylesheet, or another web resource.

Finally, the server responds.

• The server sends back the requested page data.
• The browser receives it, interprets it, and displays the web page to the user.

Key Takeaways

• A URL gives the browser the protocol, domain name, and often the path.
• DNS converts the domain name into an IP address.
• The browser connects to the server using that IP address.
• The browser requests the resource and displays the response.

Common Mistakes

• Saying the browser uses the URL directly as the IP address. It usually must use DNS first.
• Describing only what a URL stands for, without explaining the access process.
• Forgetting to mention the request sent to the server.
• Forgetting that the browser must finally display/render the returned page.

Things to Be Careful About

• Keep the sequence in the correct order: URL read, DNS lookup, connection, request, response, display.
• Do not confuse the Internet with the World Wide Web. The Web uses Internet services.
• If you mention HTTPS, remember it is the protocol used to communicate securely; DNS is still the name-to-address lookup mechanism.

Background Concept

A virus is a type of malware. Malware is malicious software designed to harm a computer system, disrupt its operation, or gain unauthorised access to data. A virus normally attaches itself to another file or program and then spreads when that file or program is run. A key feature is self-replication.

Pharming is also a security threat, but it works differently. Instead of infecting a file in the same way as a virus, pharming redirects a user who tries to visit a legitimate website to a fake copy. The aim is usually to trick the user into entering usernames, passwords or banking details.

So the two terms are both security threats, but one is about malicious code spreading inside systems, while the other is about deceiving users into visiting a fraudulent site.

Understanding the Question

This part asks for what is meant by a virus and pharming. That means the answer needs short, accurate definitions rather than examples.

The important clues are:

• both are named as examples of malware/security threats
• one mark is likely available for each term
• the answer should state the essential feature of each

For a virus, the essential feature is that it infects other files/programs and replicates. For pharming, the essential feature is redirecting a user to a fake website to steal information.

Approach

The best approach is to give one precise sentence for each term:

1. identify what the threat is
2. explain how it works
3. include its harmful effect or purpose

That gives a complete exam definition without wasting time.

Step-by-Step Reasoning

For virus:

• Start with the general category: it is malware.
• Add the defining behaviour: it can copy itself or replicate.
• Explain how: it infects other files or programs.
• Add the effect: it may corrupt, alter or delete data, or otherwise damage the system.

A concise full-mark definition is therefore: malware that copies itself by infecting other files or programs and may damage data.

For pharming:

• State the action: the user is redirected.
• State from where to where: from a genuine website to a fake website.
• State the purpose: to steal personal or login details.

A concise full-mark definition is therefore: redirecting a user from a genuine website to a fake one so information can be stolen.

Key Takeaways

• A virus is malicious code that infects and replicates.
• Pharming is a redirection attack to a fake website.
• In security definitions, include both how it works and what the effect is.

Common Mistakes

• Defining a virus only as "something harmful" without mentioning that it infects other files/programs or replicates.
• Confusing pharming with phishing. Phishing usually involves sending fraudulent emails/messages to lure users in, while pharming redirects users to a fake site.
• Saying pharming is just "hacking a website". That is too vague and misses the key idea of redirection.

Things to Be Careful About

• Use the exact security term correctly: virus is not the same as all malware.
• For pharming, include the idea of a genuine-looking fake website.
• Keep the answer as a definition, not a long description or example.

Background Concept

An ethical consideration is something a person should think about in order to behave responsibly and fairly, even if a technical action might be possible. In computing, ethics often involves:

• respecting other people's privacy
• not causing harm or disruption
• not accessing data without permission
• respecting ownership and copyright
• using shared systems fairly

When someone connects a personal device to a school network, they are using a shared environment. That means their actions can affect not just their own machine, but other students, teachers, files and services.

Understanding the Question

The question already gives one ethical issue: spreading malware. It then asks for three other ethical considerations. So the answer must avoid repeating malware and instead give three different responsible-use issues.

Because the context is a school network, strong answers are ones connected to:

• privacy of school data
• unauthorised access
• legal and ethical software use

Each numbered line is likely worth one mark, so three clear and distinct points are needed.

Approach

A good strategy is to think: "What duties does a student have when using a shared school network from their own computer?"

That usually leads to three strong categories:

1. permission and unauthorised access
2. privacy/confidentiality
3. copyright/licensing

These are clearly different from one another, so they are less likely to overlap and lose marks.

Step-by-Step Reasoning

Point 1: Do not access or alter other users' files/accounts without permission.

• A school network contains shared and personal data.
• Even if a student can technically see or reach a file, it is unethical to open, edit or delete it without authorisation.
• This is about respecting ownership and permission.

Point 2: Respect privacy and confidentiality of data.

• School networks may store personal details, assessment records and staff/student information.
• A student should not copy, share or misuse this information.
• This is different from the first point: the first is about access without permission, while this one focuses on protecting private information.

Point 3: Do not use pirated/unlicensed software or download copyrighted material illegally.

• A personal device might have software installed that is not properly licensed.
• Using illegal copies of software or downloading copyrighted files through the school network is unethical and may also be illegal.
• This links to ownership and copyright rather than privacy.

Other answers might also be acceptable in an exam if they are ethical and relevant, such as not using the network for bullying, offensive content, or wasting shared resources. But the three above are clear syllabus-linked examples.

Key Takeaways

• Ethical questions are about responsible behaviour, not just technical ability.
• On a shared network, important themes are permission, privacy and ownership.
• Distinct points score better than repeating the same idea in different words.

Common Mistakes

• Repeating the example already given in the question, such as malware, instead of giving other considerations.
• Giving three versions of the same idea, for example three privacy points that overlap heavily.
• Writing vague answers like "be responsible" without saying what responsible behaviour actually is.
• Giving purely technical measures, such as "install antivirus", when the question asks for ethical considerations.

Things to Be Careful About

• Make sure each point is different.
• Keep the answer linked to the context of a personal computer connected to a school network.
• If using copyright as a point, mention pirated/unlicensed software or illegal downloads clearly.
• If using privacy as a point, focus on confidential data and not just general "be careful online" wording.

Background Concept

Artificial Intelligence (AI) systems can generate text, solve problems, explain ideas and suggest answers. In education, this can have both positive and negative effects. When a question asks for social impacts, it is asking about the effect on people, behaviour, relationships, fairness, trust, learning habits and society, rather than cost or technical performance.

Typical social impacts of AI in homework include:

• changes in how students learn
• effects on fairness and honesty
• changes in teacher-student trust
• changes in interaction and communication
• improved support and accessibility for some learners

A strong exam answer does more than name an impact; it describes it by showing who is affected and how.

Understanding the Question

The question asks for two social impacts of students using AI to complete homework. The key words are:

• Describe: give the impact and explain it
• Social impacts: focus on people and behaviour
• students using AI to complete their homework: the answer must stay in the education/homework context

Since the part is worth 4 marks, it is likely expecting two developed points, not just a list of words like "cheating" and "dependency".

Approach

Choose two clear social impacts and develop each one in one or two sentences.

A safe structure is:

1. state the impact
2. explain the consequence for students, teachers or school life

Two of the strongest, easiest-to-explain impacts are:

• dependence leading to weaker independent learning
• unfairness/cheating leading to reduced trust in assessment

Step-by-Step Reasoning

Impact 1: Dependence on AI may reduce independent learning.

• If students ask AI to produce answers for them, they may skip the thinking process.
• Homework is meant to help practise skills such as research, writing, evaluation and problem-solving.
• If AI does too much of the work, students may not build those skills properly.
• This is a social impact because it changes learning behaviour and long-term habits.

That is why the answer says students may become dependent on AI and do less independent thinking and practice.

Impact 2: AI can make homework less fair and encourage cheating.

• Some students may submit AI-generated work as if they wrote it themselves.
• That gives an unfair advantage over students who complete the work honestly.
• Teachers may then find it harder to judge a student's real ability.
• This can damage trust between teachers and students and reduce confidence in assessment.

That is why the answer says AI-generated homework can create unfairness and cheating.

Other valid social impacts could include positive ones, for example AI giving extra support to students who need help outside school hours, or helping learners with language difficulties. But whichever impacts are chosen, they must be described, not just named.

Key Takeaways

• Social impact means the effect on people, behaviour, fairness and relationships.
• In AI questions, strong points often involve learning quality, honesty, trust and access.
• For "describe" questions, always include the consequence, not just the label.

Common Mistakes

• Giving economic impacts instead, such as cost savings, when the question asks for social impacts.
• Writing only one-word answers like "cheating" or "dependency" without explanation.
• Repeating the same impact twice in slightly different words, for example "less learning" and "worse understanding".
• Describing AI in general rather than linking it specifically to homework.

Things to Be Careful About

• Make each impact distinct.
• Keep the explanation focused on students, teachers and school assessment.
• If you choose a positive impact, still explain exactly how it benefits students socially or educationally.
• Avoid drifting into technical details about how AI works; this question is about its impact on people.

Background Concept

A 3D printer is an output device that produces a physical object from a digital model. Unlike a normal printer, which places ink on paper in two dimensions, a 3D printer uses additive manufacturing. This means it builds the object by adding material bit by bit instead of cutting material away.

The usual process is:

• create a 3D model using CAD software
• convert that model into many thin horizontal layers
• print each layer in turn
• join or harden the layers so the object keeps its shape

Common materials include melted plastic filament, resin or powdered material, depending on the printer type.

Understanding the Question

The question asks how an architect's building model will be printed using a 3D printer. So the answer needs the printing process, not just a definition of a 3D printer.

The key ideas the examiner is looking for are:

• the model exists first as a computer design
• the design is broken into layers
• the printer builds the object layer by layer
• the material is set, hardened or fused to form the final solid object

Because this is a 3-mark explain question, a sequence of three clear steps is enough.

Approach

Use the standard 3D-printing process in order:

1. Start with the digital 3D model.
2. State that it is sliced into thin layers.
3. Explain that the printer deposits material one layer at a time.
4. Add that each layer is hardened or fused, and the process repeats until the full model is complete.

That gives a complete process description without unnecessary detail.

Step-by-Step Reasoning

First, the architect designs the building as a 3D model on a computer. The printer cannot directly print a whole solid object in one go, so the software converts the design into a set of very thin layers.

Next, the printer reads this layer data and produces the first layer. It places material only where that layer should exist. For example, it may extrude melted plastic through a nozzle.

After one layer is placed, that layer must become stable. Depending on the printer, the material may cool, harden, or be fused.

Then the printer moves on to the next layer and places material on top of the previous one. This continues repeatedly.

Eventually, after all layers have been printed and joined together, the complete physical model of the building is produced.

So the important idea is that the object is not printed all at once; it is built up gradually from many 2D layers.

Key Takeaways

• A 3D printer is an output device that creates a physical object.
• It uses additive manufacturing, meaning material is added rather than removed.
• The model is sliced into layers, and each layer is printed in sequence.
• A strong exam answer should describe the process in order.

Common Mistakes

• Saying only that it prints "a model from a computer" without explaining layers. That is too vague for full marks.
• Confusing 3D printing with ordinary 2D printing. A 3D printer builds depth by stacking layers.
• Describing cutting or carving from a block of material. That is subtractive manufacture, not normal 3D printing.
• Missing the idea that the material is hardened, fused or set before the next layers are added.

Things to Be Careful About

• Use the phrase layer by layer or an equivalent clear description.
• Make sure the answer is about the process, not just the uses of 3D printers.
• Do not get distracted by naming specific materials unless they help the explanation.
• Keep the sequence logical: model, slicing, layer printing, hardening, repetition.

Background Concept

A buffer is a temporary memory area used when two devices operate at different speeds. It allows data to be stored briefly while it waits to be processed.

Printers are much slower than the computer that sends the print data. Without a buffer, the printer might not receive data smoothly enough, or the faster device would have to keep stopping and waiting.

Understanding the Question

This part asks for one reason a 3D printer needs a buffer. Since it is only 1 mark, the expected answer is short and direct.

The key idea is speed difference:

• the computer can generate and send data quickly
• the 3D printer prints much more slowly

So the buffer is needed to hold data temporarily.

Approach

Give one precise sentence linking the purpose of the buffer to the speed mismatch between the computer and the printer.

A good pattern is:

• what the buffer does: temporary storage
• why it is needed: printer is slower than the data source

Step-by-Step Reasoning

When a model is sent to a 3D printer, the computer can pass the instructions very quickly. However, the printer cannot physically create layers at that same speed.

Because of this, incoming data needs somewhere to wait. The buffer stores the print data temporarily until the printer is ready to use it.

This prevents problems caused by the sender and receiver working at different rates.

Key Takeaways

• A buffer is temporary storage.
• Buffers are used when one device is faster than another.
• In printing, the computer is faster than the printer.

Common Mistakes

• Saying just "to store data" without mentioning that the storage is temporary or due to speed difference.
• Confusing a buffer with permanent storage such as a hard drive or SSD.
• Saying the printer uses a buffer to make the print higher quality. That is not the main purpose being tested here.

Things to Be Careful About

• For full precision, mention both temporary storage and different operating speeds.
• Do not overcomplicate a 1-mark answer.
• Make sure the answer is about the printer buffer, not a buffer in image design software.
