Background Concept

An XOR gate is an exclusive OR gate. It compares two inputs and gives a true output only when exactly one input is true.

For a 2-input XOR gate:

• 0 XOR 0 = 0
• 0 XOR 1 = 1
• 1 XOR 0 = 1
• 1 XOR 1 = 0

So its key idea is difference, not simply “at least one is 1”.

Understanding the Question

The question asks for the operation of a 2-input XOR gate. That means you are not being asked to draw it or write a truth table in full, just to describe what makes its output become 1.

Because it is only 1 mark, the expected answer is a short, precise statement.

Approach

Recall the defining rule of XOR:

• output 1 when the inputs are different
• output 0 when the inputs are the same

For a 1-mark description, the shortest correct wording is enough.

Step-by-Step Reasoning

A normal OR gate outputs 1 if one or both inputs are 1.

An XOR gate is more restrictive:

• if both inputs are 0, output is 0
• if one input is 0 and the other is 1, output is 1
• if one input is 1 and the other is 0, output is 1
• if both inputs are 1, output is 0

So the correct description is that the output is 1 only when the two inputs are different, or equivalently when exactly one input is 1.

Key Takeaways

• XOR means exclusive OR.
• A 2-input XOR gate outputs 1 for different inputs.
• “Exactly one input is 1” is equivalent wording.

Common Mistakes

• Saying “output is 1 if one or both inputs are 1” — that describes an OR gate, not XOR.
• Saying “output is 1 when both inputs are 1” — that describes an AND gate.
• Missing the word “only” or “exactly” — XOR must exclude the case where both inputs are 1.

Things to Be Careful About

• Keep XOR separate from OR; they are not the same.
• In a 1-mark question, give one exact rule rather than a long explanation.
• Accepted phrasing is usually either “inputs are different” or “exactly one input is 1”.

Background Concept

To write a logic expression from a circuit, you work from left to right and replace each gate with its Boolean operation.

Useful gate meanings here are:

• OR: output is 1 if at least one input is 1
• AND: output is 1 only if both inputs are 1
• NOR: NOT (input1 OR input2)
• NAND: NOT (input1 AND input2)

A multi-stage circuit is built from intermediate results. Instead of jumping straight to the final expression, it is much safer to name the output of each gate one at a time.

Understanding the Question

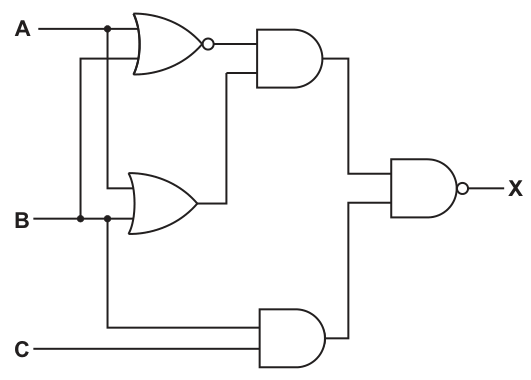

You are given a completed logic circuit and must write the Boolean expression for output X.

The important job is to follow the actual wiring in the diagram. The top gate takes A and B into a NOR gate. The middle gate takes A and B into an OR gate. The lower gate takes B and C into an AND gate. Those intermediate outputs are then combined by more gates until the final output X is produced.

So this is a circuit-reading question, not a simplification question.

Approach

Use a layer-by-layer method:

1. Find the output of each first-level gate.
2. Use those results as the inputs to the next gates.
3. Keep brackets so the structure stays clear.
4. Stop when you reach X.

This prevents mistakes such as losing track of which signal goes into which gate.

Step-by-Step Reasoning

Start with the leftmost gates.

1. The top gate is a NOR gate with inputs A and B.

   • OR of A and B is A OR B
   • NOR means negate that result
   • so the output is NOT (A OR B)

2. The middle gate is an OR gate with inputs A and B.

   • output is A OR B

3. These two outputs go into the upper AND gate.

   • output becomes NOT (A OR B) AND (A OR B)

4. The lower gate is an AND gate with inputs B and C.

   • output is B AND C

5. The final gate is a NAND gate taking:

   • the upper AND output, and
   • the lower AND output

So:

• first input to final NAND = NOT (A OR B) AND (A OR B)
• second input to final NAND = B AND C

Therefore:
X = ((NOT (A OR B)) AND (A OR B)) NAND (B AND C)

You may notice that NOT (A OR B) AND (A OR B) can never be 1, because an expression cannot be both true and false at the same time. So the whole circuit would simplify logically. However, the question asks for the expression from the circuit, so writing the unsimplified structural expression is the safest exam answer.

Key Takeaways

• Read logic circuits from inputs to output, stage by stage.
• Write the output of each gate before combining them.
• Use brackets carefully in Boolean expressions.
• For “write the expression” questions, the circuit structure matters more than simplification.

Common Mistakes

• Using the wrong inputs for a gate by misreading the branches.
• Forgetting that NOR means OR followed by NOT.
• Forgetting that NAND means AND followed by NOT.
• Writing a simplified answer such as a constant output when the question wants the circuit expression.
• Missing brackets, which changes the meaning of the expression.

Things to Be Careful About

• Follow the diagram itself, not just what you assume the pattern should be.
• Keep intermediate expressions grouped in brackets before passing them to the next gate.
• Do not swap AND and OR.
• Do not write NOT A OR B when you mean NOT (A OR B); the brackets matter.

Background Concept

To draw a logic circuit from an expression, break the expression into smaller parts and draw one gate for each operation.

For the expression
X = ((NOT A AND (B AND C)) OR (B NAND C)) AND NOT A

the operations involved are:

• NOT A → NOT gate
• B AND C → AND gate
• B NAND C → NAND gate
• (NOT A AND (B AND C)) → another AND gate
• (... OR ...) → OR gate
• final ... AND NOT A → final AND gate

A key point is that one signal can branch to several places. If the same value is needed more than once, the wire splits.

Understanding the Question

You are given a Boolean expression and asked to draw the matching circuit.

The expression has three inputs: A, B, and C, and one output: X.

The important clue is the bracket structure. The brackets tell you which operations happen first and which outputs then feed into later gates. Also, NOT A appears twice in the expression, so the output from the NOT gate must be used in two places.

Approach

Work from the innermost parts outward:

1. Draw the gates for the smallest sub-expressions first.
2. Reuse signals by branching wires where needed.
3. Combine the intermediate outputs in the order shown by the brackets.
4. End with the final gate that produces X.

This is much more reliable than trying to draw the whole circuit in one step.

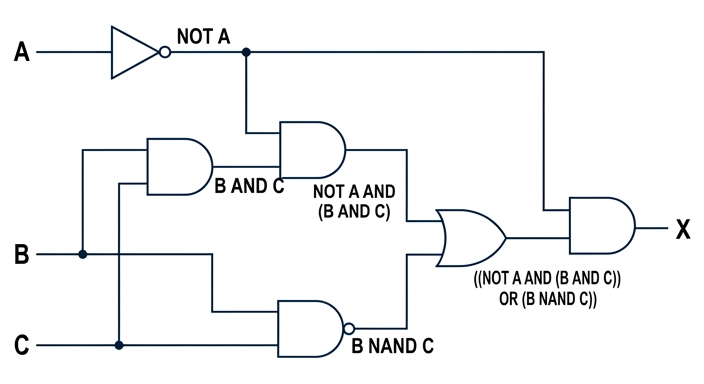

Step-by-Step Reasoning

Start by identifying the sub-expressions.

1. NOT A

   • Draw a NOT gate on input A.
   • Its output is NOT A.
   • This output must split into two branches because it is used twice.

2. B AND C

   • Draw an AND gate with inputs B and C.
   • Its output is B AND C.

3. NOT A AND (B AND C)

   • Feed the NOT A signal and the output of the B AND C gate into another AND gate.
   • That output is NOT A AND (B AND C).

4. B NAND C

   • Draw a NAND gate with inputs B and C.
   • Its output is B NAND C.

5. ((NOT A AND (B AND C)) OR (B NAND C))

   • Feed the outputs from step 3 and step 4 into an OR gate.
   • That output is the whole bracketed OR section.

6. Final AND NOT A

   • Feed the OR output from step 5 and the second branch of NOT A into a final AND gate.
   • The output of this gate is X.

That gives the full circuit.

This layout matches the expression exactly because each gate corresponds to one operation in the Boolean statement.

Key Takeaways

• Use brackets to decide the order of gates.
• Draw inner sub-expressions first, then build outward.
• If a value is reused, split the wire rather than creating a separate new value.
• NOT, AND, OR, NAND each map directly to a specific gate symbol.

Common Mistakes

• Forgetting that NOT A is needed twice, so its output must branch.
• Drawing B NAND C as NOT B AND C or as a normal AND gate.
• Combining gates in the wrong order because brackets were ignored.
• Putting the final AND gate before the OR gate.
• Applying the NOT to the wrong part of the expression.

Things to Be Careful About

• B NAND C means the entire B AND C result is negated.
• NOT A AND (B AND C) needs an AND gate after the NOT gate, not before.
• The final output is (... OR ...) AND NOT A, so the last gate must be an AND gate.
• Make sure every input line is clearly connected and branches are shown properly.

Background Concept

SRAM and DRAM are both types of volatile main memory, which means they lose their contents when power is removed. The difference is in how each memory cell stores data.

DRAM stores each bit as charge in a capacitor. Because charge leaks away, the contents must be refreshed repeatedly. That is why it is called dynamic RAM.

SRAM stores each bit using a flip-flop circuit. As long as power remains on, the circuit keeps its state without needing refresh. That is why it is called static RAM.

These design differences affect performance and cost:

• DRAM is simpler per bit, so it is cheaper and can pack more memory into a chip.
• SRAM is faster to access, but it uses more circuitry per bit, so it is more expensive and lower density.

Understanding the Question

The question asks for two differences between DRAM and SRAM. Since it says identify, not explain in detail, the expected answer is short paired contrasts.

A good answer gives two direct comparisons such as:

• refresh needed versus not needed
• slower versus faster
• cheaper/higher density versus more expensive/lower density

Approach

Choose two well-known textbook differences and write each one as a direct comparison between the two memory types.

The safest approach is:

1. give the refresh difference
2. give one performance or cost/density difference

This matches what examiners usually reward for this type of item.

Step-by-Step Reasoning

First difference:

• DRAM uses capacitors.
• Capacitors lose charge over time.
• Therefore DRAM has to be refreshed regularly.
• SRAM uses flip-flops, so it does not need refresh while powered.

Second difference:

• Because DRAM cells are simpler, more of them fit onto a chip.
• That makes DRAM cheaper per bit and higher density.
• However, DRAM access is slower.
• SRAM is faster, but because each cell uses more components, it is more expensive and lower density.

Any two valid contrasts are enough, but each difference must genuinely compare DRAM with SRAM.

Key Takeaways

• DRAM stores bits using capacitors and needs refreshing.
• SRAM stores bits using flip-flops and does not need refreshing.
• DRAM is typically cheaper and denser but slower.
• SRAM is typically faster but more expensive.

Common Mistakes

• Saying only one side of the comparison, for example "DRAM needs refresh" without stating the SRAM contrast.
• Confusing SRAM with secondary storage or ROM.
• Saying DRAM is non-volatile; it is still volatile.
• Repeating the same idea twice, such as giving two speed statements that mean the same thing.

Things to Be Careful About

• The question asks for differences, so write contrasting points, not isolated facts.
• Do not mix up volatility with refreshing: both SRAM and DRAM are volatile.
• If you use cost, density or speed, make sure the direction is correct: DRAM is cheaper and denser; SRAM is faster and more expensive.

Background Concept

A buffer is a temporary storage area used during data transfer between two devices or parts of a system that operate at different speeds. In this question, the buffer uses DRAM, so it is a temporary area in main memory.

A magnetic hard disk drive is much slower than the CPU and main memory. The processor and memory can produce data quickly, but the disk writes data mechanically, using moving platters and read/write heads, so it cannot always accept data immediately.

Buffering solves this mismatch. Instead of forcing the fast part of the system to wait for the slow part at every moment, data is placed into the buffer first and then written out when the slower device is ready.

Understanding the Question

The question is specifically about transferring data to a magnetic hard disk drive, not reading from it and not using cache memory. It wants the role of the memory buffer during that transfer.

The key ideas hidden in the wording are:

• data is going from the computer to the hard disk
• the buffer is temporary storage
• the purpose is to handle a speed difference
• the benefit is smoother transfer, less waiting, and reduced risk of losing data

Approach

To answer clearly, describe the transfer in order:

1. where the data goes first
2. why it has to wait there
3. how it then reaches the disk
4. what advantage this gives

This produces a full explanation rather than a vague definition of a buffer.

Step-by-Step Reasoning

When the computer wants to save data onto the hard disk, the data is not always written directly to the disk surface immediately.

Step 1: Data is copied into the buffer.

• The buffer is an area of DRAM.
• It temporarily stores the data that is about to be written.

Step 2: The buffer holds the data while the disk is not ready.

• A magnetic hard disk may need time for the platter to rotate to the correct sector or for the controller to prepare the write.
• During that short delay, the data remains safely in the buffer.

Step 3: The disk controller writes data from the buffer to the disk.

• The controller takes the buffered data and sends it to the hard disk.
• This happens at the rate the hard disk can manage, which is slower than CPU or RAM speed.

Step 4: The buffer smooths out the speed mismatch.

• The processor or the rest of the system does not need to match the exact mechanical speed of the hard disk.
• This reduces idle waiting.
• It also helps prevent data being lost if data arrives faster than the disk can accept it at that instant.

So the overall role of the buffer is temporary holding during transfer, allowing a fast system and a slower storage device to work together efficiently.

Key Takeaways

• A buffer is temporary storage used during transfer.
• Buffers are especially useful when one device is faster than another.
• In disk output, data is placed in DRAM first, then written to the magnetic disk when the disk is ready.
• Buffering improves efficiency and helps avoid data loss or unnecessary waiting.

Common Mistakes

• Describing a buffer as permanent storage. It is temporary.
• Saying the buffer speeds up the hard disk itself. It does not; it manages the transfer between fast and slow components.
• Talking about CPU cache instead of an I/O buffer.
• Explaining data transfer from disk to memory instead of to the disk, which is the direction asked here.

Things to Be Careful About

• Keep the direction correct: this is writing to the hard disk drive.
• Mention temporary storage, not long-term storage.
• Make the speed difference explicit, because that is the main reason a buffer is needed.
• If you mention waiting for the disk, that can include waiting for the correct sector or for the drive/controller to be ready; both fit the idea of delayed writing.

Background Concept

A foreign key is a field in one table that refers to the primary key of another table. It is used to link related tables together.

A primary key uniquely identifies each record in a table. A foreign key does not have to be unique, because many records in one table can refer to the same record in another table.

In a relational database, foreign keys help maintain referential integrity. This means a record should not contain a reference to something that does not exist.

Understanding the Question

You are given three tables:

• BATCH(BatchID, Type, Flavour, Size, SellingPrice, EndDate)
• CUSTOMER(CustomerID, CompanyName, EmailAddress, TelephoneNumber)
• SALE(SaleID, BatchID, CustomerID, Quantity, Date)

The question asks for two foreign keys in SALE and the table each one references.

So the task is to look at the fields in SALE and decide which ones are being used to link to the other tables.

Approach

Look for fields in SALE whose names match the primary key fields of the other tables.

• BatchID appears in BATCH
• CustomerID appears in CUSTOMER

These are the linking fields, so they are the foreign keys in SALE.

Step-by-Step Reasoning

The SALE table contains:

• SaleID
• BatchID
• CustomerID
• Quantity
• Date

Now check which of these fields come from other tables:

1. BatchID is the identifier for a batch in the BATCH table.

   • Therefore SALE.BatchID references BATCH.
   • So BatchID is a foreign key.

2. CustomerID is the identifier for a customer in the CUSTOMER table.

   • Therefore SALE.CustomerID references CUSTOMER.
   • So CustomerID is a foreign key.

SaleID is not a foreign key here. It is the identifier for the sale record itself, so it would normally be the primary key of SALE.

Key Takeaways

• A foreign key links one table to another.
• The foreign key is usually a field that matches the primary key of the referenced table.
• In transaction tables such as SALE, foreign keys are often used to connect to master tables like CUSTOMER or BATCH.

Common Mistakes

• Saying SaleID is a foreign key. It identifies the sale itself, so it is not linking to another table.
• Giving the referenced field name instead of the referenced table name.
• Mixing up BatchID and CustomerID with the wrong tables.

Things to Be Careful About

• The question asks for both the foreign key and the table it references.
• Use the exact table names given: BATCH and CUSTOMER.
• Do not invent extra foreign keys that are not shown in the schema.

Background Concept

SQL is used to query data stored in a relational database.

When a question asks for a total, the usual SQL aggregate function is SUM(). Aggregate functions combine values from multiple rows into one result.

The WHERE clause is used to select only the rows that match certain conditions. If more than one condition must be true, they are joined with AND.

Understanding the Question

You need to return the total quantity of ice cream sold:

• to the customer whose ID is 0034E
• during the year 2023

The data needed is already in the SALE table because that table contains:

• CustomerID
• Quantity
• Date

So you do not need to join to another table. You just need to total the correct Quantity values.

Approach

Use this pattern:

1. SELECT SUM(Quantity) to total the quantities.
2. FROM SALE because the sales data is stored there.
3. WHERE CustomerID = '0034E' to keep only that customer's sales.
4. Add a second condition to keep only rows from 2023.

Step-by-Step Reasoning

The required total is not a count of rows and not a list of sales. It is the sum of the Quantity field.

So the first line is:

• SELECT SUM(Quantity)

The source table is:

• FROM SALE

Now apply the customer condition:

• CustomerID = '0034E'

Then apply the year condition:

• YEAR(Date) = 2023

Putting both conditions together with AND gives a query that returns one total value.

Key Takeaways

• Use SUM(field) when the question asks for a total.
• Read the question carefully to see whether filtering is needed.
• If all required fields are in one table, a join is unnecessary.

Common Mistakes

• Using SELECT Quantity instead of SELECT SUM(Quantity).
• Forgetting the condition for the year 2023.
• Filtering by the wrong field, such as BatchID instead of CustomerID.
• Writing the customer ID without quotes even though it is alphanumeric.

Things to Be Careful About

• 0034E is a text value, so it should be quoted.
• The field name is exactly Quantity, not SellingPrice or Size.
• Make sure both conditions are in the WHERE clause and joined with AND.
• Different SQL systems handle dates differently, but the key idea is that only rows from 2023 must be included.

Background Concept

In database design, it is important to separate the thing you are storing data about from the pieces of information that describe it.

An entity is the real-world thing of interest. Examples include a customer, an order, a product or a batch.

An attribute is a fact that describes that entity. For example, a customer might have attributes such as customer ID, company name and email address.

These terms are used heavily in relational design and E-R modelling.

Understanding the Question

The table asks for definitions of two terms:

• Entity
• Attribute

You are not being asked for examples only. You need the actual definitions.

Approach

Give short, standard textbook-style definitions:

• define what an entity is
• define what an attribute is

Keep them clearly different.

Step-by-Step Reasoning

For Entity:

• This is the thing the data is about.
• In database language, it is usually described as a person, place, object or event.
• So a correct definition is that it is something about which data is stored.

For Attribute:

• This is one item of data describing the entity.
• It is a property or characteristic of that entity.

Using the ice cream database as context:

• CUSTOMER is an entity type.
• EmailAddress is an attribute of that entity.

Key Takeaways

• Entity = the thing.
• Attribute = a property of the thing.
• Clear terminology helps with both E-R diagrams and table design.

Common Mistakes

• Defining an entity as a table only. A table may represent an entity, but the entity is the real-world object or concept.
• Defining an attribute as a record. A record is a whole row; an attribute is a single field/property.
• Giving only examples without a definition.

Things to Be Careful About

• Keep the two definitions separate.
• Use database wording, not vague everyday language.
• A concise, accurate definition is better than a long imprecise one.

Background Concept

Data integrity means that data remains accurate, valid and consistent.

A DBMS, Database Management System, helps maintain data integrity by controlling how data is defined, entered, related and updated.

Integrity is not just about keeping data secret. That would be security. Integrity is about making sure the data itself is correct and stays consistent over time.

Understanding the Question

The question asks how a DBMS supports data integrity.

So the answer should focus on mechanisms provided by the DBMS that help stop bad data from being stored or stop the database becoming inconsistent.

This is an explanation question, so you should give clear points that link a DBMS feature to the integrity benefit it provides.

Approach

A strong answer can be built from three standard DBMS mechanisms:

1. validation and field constraints
2. key and relationship enforcement
3. transaction handling

Each point should say both what the DBMS does and how that helps integrity.

Step-by-Step Reasoning

First, a DBMS can enforce field rules.

• Each field has a data type, such as integer, text or date.
• The DBMS can also apply validation or CHECK constraints.
• This means invalid values can be rejected before they are stored.
• For example, a negative quantity or an incorrectly formatted date can be blocked.

Second, a DBMS can enforce key constraints.

• A primary key must be unique and not null.
• This prevents duplicate records representing the same thing.
• Foreign keys must refer to existing records in related tables.
• This protects referential integrity, so you do not get a sale linked to a batch or customer that does not exist.

Third, a DBMS can control updates through transactions.

• A transaction is treated as a complete unit of work.
• If part of the update fails, the DBMS can roll back the whole transaction.
• That stops the database being left half-updated and inconsistent.

These are all direct ways a DBMS supports integrity.

Key Takeaways

• Data integrity is about correctness and consistency.
• A DBMS supports integrity through constraints, relationships and controlled updates.
• Good answers explain both the feature and its effect on the data.

Common Mistakes

• Talking only about security, such as passwords or encryption, without linking it to integrity.
• Saying a DBMS stores data efficiently but not explaining how it keeps the data accurate.
• Listing features without explaining why they help maintain integrity.

Things to Be Careful About

• The question asks how the DBMS supports integrity, so every point should mention a DBMS mechanism.
• Keep the focus on validity and consistency, not just privacy.
• Use correct terminology such as primary key, foreign key, validation and transaction.

Background Concept

A software licence is the legal set of rules that tells the user what they are allowed to do with a program. Different licences control things such as whether the software must be paid for, whether the source code can be seen, whether the user may change the program, and whether there is a trial period.

Common licence types at this level are:

• Proprietary / commercial: usually paid-for software; source code is not available to users.
• Shareware: users can try the software before buying it; the trial may be time-limited or feature-limited.
• Open source: source code is available; users can inspect and modify it, usually under stated licence conditions.

Understanding the Question

The question gives three descriptions of software distribution and asks you to name the licence type that matches each one.

The clues are in the wording:

• "fee is charged" and "source code cannot be accessed" point to closed-source paid software
• "try the software before buying it" points to a trial model
• "access the source code and alter the program" points to open source

So this is not asking for definitions in full. It is a matching exercise.

Approach

Take each row separately and look for the key identifying feature:

1. Is the software paid for and closed source?
2. Is it offered as a trial before purchase?
3. Is the source code available and can it be changed?

Then match each feature set to the standard licence term.

Step-by-Step Reasoning

First row

• A fee is charged.
• The source code cannot be accessed.
• There is no free trial.

That means it is normal paid closed-source software. The correct licence description is commercial or proprietary.

Second row

• Users can try the software before buying it.
• Some features may be unavailable during the trial.

That is the classic description of shareware.

Third row

• Software is usually free of charge.
• Users can access the source code.
• Users can alter the program to suit their needs.

That is open source software.

Key Takeaways

• Paid and closed-source software is typically commercial/proprietary.
• Trial-before-purchase software is shareware.
• Source-code access and permission to modify indicate open source.
• In licensing questions, the quickest method is to spot the defining feature in each description.

Common Mistakes

• Writing freeware for the third row. Freeware may be free to use, but its source code is usually not available for modification.
• Confusing shareware with freeware. Shareware is specifically software offered as a trial before purchase.
• Thinking commercial and open source cannot overlap in real life. In exam questions like this, use the description given; here the first row clearly expects proprietary/commercial and the third clearly expects open source.

Things to Be Careful About

• Read every feature in the row, not just one word such as "free" or "paid".
• The strongest clue for open source is access to and modification of source code.
• The strongest clue for shareware is a trial before buying.
• If two terms seem similar, choose the one that matches the exact wording of the description.

Background Concept

A professional ethical body is an organisation such as the BCS or IEEE that sets standards for members working in computing and related fields. These organisations do more than just offer membership status. They usually provide:

• a code of conduct or code of ethics
• guidance on legal and professional responsibilities
• continuing professional development opportunities
• support, resources and professional networking
• disciplinary procedures if members behave unethically

In computing, this matters because programmers can affect privacy, safety, security, fairness and reliability. A professional body helps ensure that technical work is done responsibly.

Understanding the Question

The question asks for reasons why it is important for a computer programmer to join a professional ethical body. So the answer must go beyond naming a body like BCS. It needs reasons explaining the value of membership.

Because it is a 3-mark question, three clear explained points are usually enough. Strong answers focus on standards, support, and trust/accountability.

Approach

A good structure is:

1. Explain how the body helps the programmer behave ethically.
2. Explain how it helps the programmer stay professionally competent.
3. Explain how membership benefits reputation, trust or accountability.

This directly covers why joining matters both to the programmer and to the people affected by the programmer's work.

Step-by-Step Reasoning

Point 1: Code of conduct and ethical guidance

Professional bodies publish a code of conduct. This gives the programmer clear rules or principles about how to behave professionally, for example protecting user data, acting honestly, avoiding harm, and respecting intellectual property. That matters because programmers often make decisions with ethical consequences.

Point 2: Training and keeping up to date

Technology, laws and risks change quickly. A professional body often provides training, publications, events and updates. This helps the programmer maintain professional standards and remain aware of current issues such as cybersecurity, privacy law, or responsible use of AI.

Point 3: Credibility, trust and accountability

Membership shows commitment to recognised professional standards. Employers and clients may have more confidence in a programmer who belongs to a respected body. Also, members are accountable to that body's standards, which encourages responsible behaviour.

These three reasons together explain why membership is important: it improves ethical behaviour, professional competence and public confidence.

Key Takeaways

• Professional ethical bodies help programmers follow recognised standards.
• They support continuing professional development.
• Membership can improve trust, reputation and accountability.
• In exam answers, explain the benefit, not just the feature.

Common Mistakes

• Naming a body such as BCS or IEEE without explaining why joining it is important.
• Giving vague statements like "it helps the programmer" without saying how.
• Writing only about technical skills and ignoring ethics or professional conduct.
• Confusing a professional body with a trade union or a software company.

Things to Be Careful About

• The question asks for reasons, so each point should include a consequence or benefit.
• Keep the answer focused on the programmer, but you can mention employers, clients and the public where relevant.
• Do not drift into unrelated topics such as software licences or copyright unless they support the ethical-body point.
• Three distinct points are better than repeating the same idea in different words.

Background Concept

A character set is a standard list of characters together with the binary codes used to store them in a computer. Computers do not store letters such as A or symbols such as ? directly; they store bit patterns that stand for those characters.

Common examples include:

• ASCII: a 7-bit character set with 128 possible codes
• Extended ASCII: an 8-bit version with 256 possible codes
• Unicode: a much larger system designed to represent characters from many languages and symbol sets

The key idea is that each character is assigned a unique code.

Understanding the Question

The question asks for one example of a character set and a description of it. This means you need two things:

• the name of a valid character set
• a short description of how it represents characters

You only need one example, not a comparison of several.

Approach

Pick a well-known character set such as ASCII, then give one clear fact about it that shows you know what it is. The safest description is usually its bit length and the number of characters it can represent.

Step-by-Step Reasoning

If we choose ASCII:

• ASCII is the name of the character set.
• It uses 7 bits for each character.
• With 7 bits, the number of possible codes is $2^7 = 128$.
• Therefore ASCII can represent 128 different characters.
• Each letter, digit or symbol has its own unique binary code.

That is enough for full credit because it both identifies and describes the character set.

Key Takeaways

• A character set maps characters to binary codes.
• ASCII is a standard 7-bit character set.
• A good description usually includes the number of bits used and the number or type of characters represented.

Common Mistakes

• Naming a coding method that is not a character set.
• Saying only the name, with no description.
• Confusing ASCII with Unicode and giving the wrong bit size.
• Saying “stores text as binary” without explaining the unique code for each character.

Things to Be Careful About

• The question asks for one character set, so one valid named example is enough.
• Make sure the description actually matches the character set you chose.
• If you use ASCII, remember standard ASCII is 7-bit, not 8-bit.

Background Concept

Assembly-language tracing means following each instruction in order and updating the register contents exactly as the processor would. The key idea in this question is addressing mode:

• Immediate addressing: the value written in the instruction is used directly, for example #4 means the number 4.
• Direct addressing: the operand is a memory address, so you go to that address and use the data stored there.
• Indirect addressing: the given address does not hold the final data; it holds another address. You must follow that second address to get the actual data.

The Accumulator (ACC) is the register being changed here. Each instruction changes ACC according to its meaning:

• LDM #n loads the number n directly into ACC.
• LDD address loads the contents of that address into ACC.
• LDI address follows one extra level of addressing before loading into ACC.
• ADD and SUB change the current ACC value.
• DEC ACC subtracts 1 from ACC.

Understanding the Question

You are given:

• a memory table showing what data is stored at addresses 50 to 56
• the current contents of ACC and IX
• three short programs

You must work out the final content of ACC after each program finishes.

A very important point is that these are three separate table entries. You do not carry the result from program 1 into program 2, or from program 2 into program 3. Each one is traced from the stated current machine state.

Also notice that although IX is given, none of these programs uses LDX, so IX is irrelevant for this part.

Approach

For each program:

1. Start with the given machine state.
2. Read the first instruction carefully.
3. Decide which addressing mode is being used.
4. If an address is involved, look up the correct value in the memory table.
5. Update ACC one instruction at a time.
6. Record only the final ACC value.

The main source of error is confusing an address with the contents at that address, especially for LDI.

Step-by-Step Reasoning

Program 1

Instructions:

• LDD 50
• ADD #4
• ADD 54

First instruction: LDD 50

• LDD means direct addressing.
• So we go to memory address 50.
• The table shows address 50 contains 54.
• Therefore ACC = 54.

Second instruction: ADD #4

• #4 is immediate addressing, so add 4 directly.
• 54 + 4 = 58
• Therefore ACC = 58.

Third instruction: ADD 54

• No #, so this is direct addressing.
• Go to memory address 54.
• Address 54 contains 100.
• Add 100 to the current ACC.
• 58 + 100 = 158

Final answer for program 1: 158

Program 2

Instructions:

• LDI 53
• DEC ACC
• ADD 56

First instruction: LDI 53

• LDI means indirect addressing.
• First go to address 53.
• Address 53 contains 52.
• That 52 is the address we must now use.
• Go to address 52.
• Address 52 contains 50.
• Therefore ACC = 50.

Second instruction: DEC ACC

• Decrease ACC by 1.
• 50 - 1 = 49
• Therefore ACC = 49.

Third instruction: ADD 56

• Direct addressing: go to address 56.
• Address 56 contains 50.
• Add that to the current ACC.
• 49 + 50 = 99

Final answer for program 2: 99

Program 3

Instructions:

• LDM #55
• SUB #5

First instruction: LDM #55

• LDM with #55 means load the immediate value 55.
• Therefore ACC = 55.

Second instruction: SUB #5

• Immediate subtraction of 5.
• 55 - 5 = 50

Final answer for program 3: 50

Key Takeaways

• Always identify the addressing mode before calculating.
• Direct addressing means use the contents of the named memory location.
• Indirect addressing means follow an address to another address first.
• Trace register contents one instruction at a time, not all at once.
• In a question with separate program lines, do not accidentally chain one program's result into the next.

Common Mistakes

• Treating LDD 50 as loading 50 instead of loading the contents of address 50.
• Treating LDI 53 the same as LDD 53. Indirect addressing needs two lookups, not one.
• Using the previous program's final ACC as the starting value for the next program.
• Adding the address number itself, for example adding 54 instead of adding the contents of address 54.
• Trying to use IX even though no indexed instruction appears in these sequences.

Things to Be Careful About

• Read the symbols carefully: # means immediate value, no # here means memory address.
• DEC ACC changes the current ACC; it does not look in memory.
• In LDI, the first address gives you the second address, and only then do you fetch the data.
• The question asks for the content of ACC after each program has run, so only the final value matters in the answer table.

Background Concept

Bit manipulation means operating directly on individual bits in a binary value. Common bitwise operations are:

• AND
• OR
• XOR

These are applied bit by bit across the whole register.

For this question, the important rule is the truth of AND:

• 0 AND 0 = 0
• 0 AND 1 = 0
• 1 AND 0 = 0
• 1 AND 1 = 1

That means if one input bit to an AND operation is 0, the result is always 0. This is why AND is often used with a mask. A mask is a bit pattern chosen to force, preserve, or test particular bits.

To clear a register means to set all its bits to 0.

Understanding the Question

The question asks how to clear the data in an 8-bit register using bit manipulation, and then asks for the instruction.

So you need two things:

1. a short explanation of why the operation works
2. the actual assembly-style instruction

Because the instruction set provided includes AND, XOR, and OR, you must choose the one that guarantees every bit becomes 0.

Approach

Think about which operation can force every bit in the register to 0 regardless of whether the original bit is 0 or 1.

• OR with 0 does not clear bits; it leaves 1s unchanged.
• XOR with 0 does not clear bits; it leaves bits unchanged.
• AND with 0 always gives 0.

So the correct method is to AND the register with an 8-bit value of all zeros.

Step-by-Step Reasoning

Suppose the current 8-bit contents of ACC are anything at all, for example:

10110110

If we use:

AND B00000000

then the processor compares each bit position in ACC with the corresponding bit in 00000000.

Bit by bit:

• 1 AND 0 = 0
• 0 AND 0 = 0
• 1 AND 0 = 0
• 1 AND 0 = 0
• 0 AND 0 = 0
• 1 AND 0 = 0
• 1 AND 0 = 0
• 0 AND 0 = 0

So the result is:

00000000

This works for any original register value, because every bit is being ANDed with 0.

Therefore:

• the explanation is that AND with zero clears every bit
• the instruction is AND B00000000

Equivalent values such as AND #0 or AND &00 represent the same zero value, but the binary version makes the 8-bit clearing idea most explicit.

Key Takeaways

• Clearing a register means setting all bits to 0.
• A mask is a bit pattern used in a bitwise operation.
• AND with 0 forces a bit to 0.
• OR with 1 forces a bit to 1, but OR with 0 does not clear bits.
• XOR toggles bits where the mask has 1s; it is not the standard choice for clearing a register with a zero mask.

Common Mistakes

• Writing OR B00000000. This does not clear the register; it leaves the bits unchanged.
• Writing XOR B00000000. This also leaves the bits unchanged.
• Saying "set the register to zero" without explaining why the bitwise operation achieves it.
• Forgetting that the register is 8-bit and not showing an 8-bit mask.

Things to Be Careful About

• The question asks for a bit manipulation instruction, so give one of the bitwise operations from the table.
• Use the operand format shown in the instruction set, for example binary with B00000000.
• Make sure your explanation refers to the rule bit AND 0 = 0.
• Do not confuse clearing a register with toggling or inverting its bits.

Background Concept

Hexadecimal is base 16, so each digit represents a power of 16. The place values from right to left are $16^0$, $16^1$, $16^2$, $16^3$, and so on. The hexadecimal digits A to F stand for denary values 10 to 15.

To convert a hexadecimal number to denary:

1. Replace any letter digits with their denary values.
2. Multiply each digit by its place value.
3. Add the results.

Understanding the Question

The number given is 1FAB, which is a hexadecimal value. The task is to convert it into denary. That means working out what each digit is worth according to its position, then adding them together.

Approach

Use place-value expansion:

• 1 is in the $16^3$ column
• F is in the $16^2$ column
• A is in the $16^1$ column
• B is in the $16^0$ column

Then evaluate each part and total them.

Step-by-Step Reasoning

First convert the letter digits:

• F = 15
• A = 10
• B = 11

Now apply the place values:

Add them:

So the denary value is 8107.

Key Takeaways

• Hexadecimal uses place values based on powers of 16.
• A to F represent 10 to 15.
• Converting to denary means multiplying each digit by its place value and adding.

Common Mistakes

• Forgetting that A, B, C, D, E, F are 10 to 15.
• Using powers of 10 or powers of 2 instead of powers of 16.
• Mixing up the order of the place values from left to right.
• Forgetting that the rightmost digit is multiplied by $16^0$, not $16^1$.

Things to Be Careful About

• Write the powers in the correct order: for a 4-digit hexadecimal number they are $16^3$, $16^2$, $16^1$, $16^0$.
• Check arithmetic carefully, especially the larger multiplication such as $15 \times 256$.
• Do not stop after partial working; the question wants the final denary value as well.

Background Concept

Two's complement is the standard way of representing signed integers in binary. In an 8-bit two's complement number:

• if the most significant bit is 0, the number is positive
• if the most significant bit is 1, the number is negative

To convert a negative two's complement number to denary, a common method is:

1. Check that the leftmost bit is 1.
2. Invert all the bits.
3. Add 1.
4. Convert that result to denary.
5. Put the negative sign back on the answer.

This works because two's complement stores a negative number by inverting the positive version and then adding 1.

Understanding the Question

The question gives the 8-bit two's complement value 10011111. It asks for two things:

• an explanation of how to convert it
• the final denary value

Because the first bit is 1, this is a negative number, so we must use the two's complement method rather than reading it as an ordinary unsigned binary number.

Approach

Use the standard negative two's complement conversion:

• detect that it is negative from the leading 1
• invert the bits
• add 1
• convert the resulting positive binary value to denary
• attach the minus sign

Step-by-Step Reasoning

Start with:

10011111

The most significant bit is 1, so the number is negative.

Invert every bit:

• 1 becomes 0
• 0 becomes 1

So:

10011111 becomes 01100000

Now add 1:

01100000 + 1 = 01100001

Convert 01100001 to denary using place values:

• $0 \times 128 = 0$
• $1 \times 64 = 64$
• $1 \times 32 = 32$
• $0 \times 16 = 0$
• $0 \times 8 = 0$
• $0 \times 4 = 0$
• $0 \times 2 = 0$
• $1 \times 1 = 1$

Add them:

Because the original binary number was negative, the final denary value is -97.

Another valid way is to use signed place values directly:

But the invert-and-add-1 method is usually the clearest when the question explicitly mentions two's complement.

Key Takeaways

• In two's complement, a leading 1 means the value is negative.
• For a negative number, invert the bits and add 1 to get the magnitude.
• After finding the magnitude in denary, apply the negative sign.

Common Mistakes

• Treating the number as an ordinary unsigned binary value.
• Inverting the bits but forgetting to add 1.
• Adding the 1 incorrectly after inversion.
• Finding 97 correctly but forgetting the final answer must be negative.
• Using the wrong bit length; this question is specifically an 8-bit value.

Things to Be Careful About

• Always check the most significant bit first.
• Make sure every bit is inverted correctly.
• When converting the result to denary, use the correct binary place values: 128, 64, 32, 16, 8, 4, 2, 1.
• The final sign comes from the original number, not from the inverted result.

Background Concept

A binary shift moves all bits in a value left or right. When shifting right, the bit on the far right is lost, and a new bit must be inserted on the left.

There are two common kinds of right shift:

• logical right shift: inserts 0 on the left
• arithmetic right shift: inserts the old most significant bit on the left

The difference matters when numbers are signed. In two's complement, the most significant bit is the sign bit, so arithmetic shift helps preserve whether the number stays positive or negative.

Understanding the Question

The question asks for the difference between two operations, not just a definition of one of them. So the answer must clearly compare what happens during each shift, especially the new bit inserted at the left.

Approach

State the rule for each shift type:

1. What happens to the bits overall.
2. What new bit goes into the leftmost position.
3. Why arithmetic shift is different for signed values.

That gives the contrast the examiner is looking for.

Step-by-Step Reasoning

In both cases, every bit moves one place to the right.

For a right logical shift:

• the rightmost bit is discarded
• 0 is inserted into the leftmost position
• this is suitable for unsigned values or general bit manipulation

For a right arithmetic shift:

• the rightmost bit is discarded
• the original leftmost bit is copied into the new leftmost position
• if the original sign bit was 1, it stays 1
• if the original sign bit was 0, it stays 0
• this preserves the sign of a signed two's complement number

For example, if a signed value begins with 1, a right arithmetic shift keeps a 1 at the left, so the result still represents a negative number. A logical shift would insert 0, which can change the meaning completely.

Key Takeaways

• Both right shifts move bits right and lose the rightmost bit.
• Logical right shift always inserts 0 on the left.
• Arithmetic right shift copies the sign bit on the left.
• Arithmetic shift is used when signed two's complement values must keep their sign.

Common Mistakes

• Saying both shifts insert 0 on the left.
• Forgetting to mention the sign bit for arithmetic shift.
• Describing a left shift instead of a right shift.
• Giving only one definition without making the difference clear.

Things to Be Careful About

• The key contrast is the new leftmost bit.
• Use the word sign bit accurately: it is the most significant bit in signed binary.
• Do not say arithmetic shift always divides by 2 without qualification; the question is about the difference in bit behaviour, not the numerical effect.

Background Concept

A Wide Area Network (WAN) is a network that operates over a much larger area than a Local Area Network (LAN). A LAN usually covers a small site such as one room, one office or one building. A WAN is used when networks need to be connected across towns, countries or even worldwide.

A key characteristic of a WAN is that it often links together multiple LANs. Another important feature is that it commonly uses communication services provided by external organisations, for example leased lines, telephone networks or the internet, rather than being entirely owned and managed within one small site.

Understanding the Question

The question gives the context that a computer is on a LAN which connects to a WAN. It asks for the characteristics of a WAN, so it wants general features that define this type of network.

For 2 marks, the safest approach is to give two distinct characteristics, not examples of devices and not a comparison that only talks about a LAN.

Approach

Use the standard definition points:

1. describe the scale of a WAN
2. describe what it connects or how it is set up

The strongest answers are usually:

• large geographical area
• connects LANs / uses third-party telecommunications infrastructure

Step-by-Step Reasoning

The first marking point is the network's size or range. A WAN is not limited to one building or campus. It is designed for long-distance communication, so saying that it covers a large geographical area is a valid characteristic.

The second marking point is how it is used. A WAN commonly links together separate LANs. For example, a company may have one LAN in each office and a WAN connecting those offices.

Another accepted way to express this is to say that a WAN often uses public or leased communication lines supplied by another organisation. That shows the difference between a local network owned on one site and a wider network connection across distance.

So the two concise points are:

• wide geographical coverage
• connects LANs using external communication infrastructure

Key Takeaways

• A WAN is used for long-distance networking.
• A WAN commonly connects separate LANs together.
• WAN connections often rely on third-party telecommunications services.

Common Mistakes

• Saying only "it is a big network" without explaining what that means. The better wording is that it covers a large geographical area.
• Describing a LAN instead, such as "used in one building".
• Naming hardware like "router" without giving a WAN characteristic.
• Saying "WAN means internet". The internet is an example of a WAN, but a WAN is not defined only as the internet.

Things to Be Careful About

• The question asks for characteristics, so give properties, not just the words "Wide Area Network" expanded.
• Make sure your two points are different. "Large area" and "covers long distances" are really the same idea, so you still need another distinct characteristic.
• If you compare WAN and LAN, keep the answer focused on the WAN itself.

Background Concept

Transmission media are the paths used to carry data from one device to another. In this syllabus, the main categories are copper cable, fibre-optic cable and wireless transmission.

• Copper cable carries electrical signals.
• Fibre-optic cable carries light pulses through very thin strands of glass or plastic.
• Wireless transmission carries data through the air using electromagnetic waves such as radio or microwaves.

For WANs, fibre-optic and wireless media are both important because WAN links often need to cover long distances.

Understanding the Question

The table already mentions copper cable, so the task is to give two other transmission media and describe them. That means each row needs:

1. the name of a valid medium
2. a short description of how it transfers data or a defining feature of it

The easiest correct pair is fibre-optic and wireless.

Approach

Pick two clear syllabus media that are definitely different from copper. Then describe each one in a way that would earn the mark:

• explain the signal type used
• add a useful property if appropriate

That makes the description more than just a name.

Step-by-Step Reasoning

The first valid choice is fibre-optic cable.

Why it is correct:

• it is a recognised transmission medium
• it is widely used in networking, including long-distance links

How to describe it:

• data is sent as pulses of light
• the light travels through strands of glass or plastic
• it supports high data rates and is not affected by electromagnetic interference

The second valid choice is wireless.

Why it is correct:

• it is another recognised transmission medium
• it can be used where laying cable is difficult or over long links using radio, microwave or satellite communication

How to describe it:

• data is sent through the air
• it uses electromagnetic waves rather than a physical cable

These descriptions are strong because they explain the method of transmission, not just the name.

Key Takeaways

• Fibre-optic uses light.
• Wireless uses electromagnetic waves through the air.
• A good description explains how the medium carries the signal, not just one advantage word such as "fast".

Common Mistakes

• Repeating copper cable even though the question asks for two other media.
• Giving devices such as router or switch instead of transmission media.
• Naming "satellite" on its own without making clear that this is wireless transmission.
• Writing only advantages like "very fast" or "cheap" with no explanation of the medium itself.

Things to Be Careful About

• The question wants transmission media, not network topologies and not hardware.
• Make sure the two rows are different media.
• For the description, include how data is carried: electrical signal, light pulse, or electromagnetic wave.
• Fibre-optic is spelled with a hyphen in many exam resources; keep the meaning clear even if spelling varies slightly.

Background Concept

Bit streaming means sending media data continuously so that it can be used while it is still arriving. Instead of waiting for a complete file to download, the receiving device begins playback after a small amount of data has arrived.

There are two common forms:

• on-demand streaming, where a stored media file is streamed to the user
• real-time streaming, where live media is captured and sent immediately

A real-time video conference uses real-time streaming because the conversation is happening live. Low delay is important, so the system uses only a small buffer. If the network cannot deliver data quickly enough, quality may drop because the conversation cannot simply pause for a full download.

Understanding the Question

The scenario is a video conference with people communicating live over the internet using video and audio. The question asks how bit streaming is used in that situation.

So the answer must focus on:

• live transmission
• immediate playback as data arrives
• no full download first
• what happens if data is late or missing

Approach

Follow the journey of the media:

1. sound and video are captured live
2. they are sent continuously across the network
3. the receiving device buffers a small amount
4. it plays the media immediately
5. if the stream is disrupted, quality is affected because real-time delivery is the priority

That sequence gives a complete explanation.

Step-by-Step Reasoning

During a video conference, the camera and microphone capture video and audio continuously. This data is encoded and sent out over the network as a live stream.

Because it is streaming, the receiver does not wait until the whole session has finished. Instead, the device stores only a small amount of arriving data in a buffer. This buffer smooths out tiny timing differences in arrival.

Once enough data has arrived, playback begins immediately. That is why the other participant can see and hear the speaker almost at once.

This is different from downloading a file. In a download-first system, the user waits for the full file or a large chunk of it. In a live conference, that would defeat the purpose because conversation must happen in real time.

If some data arrives too late or is lost, the system may skip a frame, freeze briefly, distort sound or lower quality. The reason is that in real-time streaming, staying live is more important than perfectly reproducing every bit.

So the important ideas are continuous delivery, small buffering, immediate playback and sensitivity to delay.

Key Takeaways

• Real-time streaming sends media while it is being created.
• Playback begins before the whole data set exists or is received.
• A small buffer is used to support smooth delivery.
• Delays or loss reduce quality because the stream must stay live.

Common Mistakes

• Describing a normal file download instead of streaming.
• Saying the whole video conference is downloaded before it is watched.
• Confusing real-time streaming with on-demand streaming from a stored file.
• Ignoring buffering completely, or saying buffering must be very large in a live conference.

Things to Be Careful About

• Use the phrase "continuous stream" or equivalent wording.
• Make clear that playback starts as data arrives, not after complete transfer.
• In a real-time context, mention the effect of delay or packet loss, because that is one of the key differences from non-live media.
• Do not overfocus on storage; the important idea is transmission and immediate use of data.
