Background Concept

A truth table lists every possible combination of inputs and shows the corresponding output of a logic expression. With three inputs, A, B and C, there are 2^3 = 8 possible rows.

The key gates in this question are:

• XOR: outputs 1 when the two inputs are different, and 0 when they are the same.
• AND: outputs 1 only when both inputs are 1.
• NAND: this is the opposite of AND. It outputs 0 only when the AND result would have been 1; otherwise it outputs 1.

So for X = (A XOR B) NAND (A AND (B XOR C)), the best way is to evaluate the smaller parts first, then combine them.

Understanding the Question

You are given a logic expression and a partly blank truth table. You must fill in the output X for each row of A, B and C.

There is also a single "Working space" column. Since the final operation is a NAND, a sensible use of that column is the value going into the NAND before inversion:

(A XOR B) AND (A AND (B XOR C))

Once that value is known:

• if the working-space value is 1, then X = 0
• if the working-space value is 0, then X = 1

Approach

Work row by row.

1. Find A XOR B.
2. Find B XOR C.
3. Find A AND (B XOR C).
4. AND that with A XOR B to get the value before the final NAND.
5. Invert that result to get X.

This systematic approach avoids mistakes with nested expressions.

Step-by-Step Reasoning

We evaluate the expression for each row.

Row 1: A=0, B=0, C=0

• A XOR B = 0 XOR 0 = 0
• B XOR C = 0 XOR 0 = 0
• A AND (B XOR C) = 0 AND 0 = 0
• Working space = 0 AND 0 = 0
• X = NAND(0,0) = 1

Row 2: A=0, B=0, C=1

• A XOR B = 0
• B XOR C = 1
• A AND (B XOR C) = 0 AND 1 = 0
• Working space = 0 AND 0 = 0
• X = 1

Row 3: A=0, B=1, C=0

• A XOR B = 1
• B XOR C = 1
• A AND (B XOR C) = 0 AND 1 = 0
• Working space = 1 AND 0 = 0
• X = 1

Row 4: A=0, B=1, C=1

• A XOR B = 1
• B XOR C = 0
• A AND (B XOR C) = 0 AND 0 = 0
• Working space = 1 AND 0 = 0
• X = 1

Row 5: A=1, B=0, C=0

• A XOR B = 1
• B XOR C = 0
• A AND (B XOR C) = 1 AND 0 = 0
• Working space = 1 AND 0 = 0
• X = 1

Row 6: A=1, B=0, C=1

• A XOR B = 1
• B XOR C = 1
• A AND (B XOR C) = 1 AND 1 = 1
• Working space = 1 AND 1 = 1
• X = 0

This is the only row where the AND result before the NAND is 1, so it is the only row where the NAND output becomes 0.

Row 7: A=1, B=1, C=0

• A XOR B = 0
• B XOR C = 1
• A AND (B XOR C) = 1 AND 1 = 1
• Working space = 0 AND 1 = 0
• X = 1

Row 8: A=1, B=1, C=1

• A XOR B = 0
• B XOR C = 0
• A AND (B XOR C) = 1 AND 0 = 0
• Working space = 0 AND 0 = 0
• X = 1

So the completed output column is:

1, 1, 1, 1, 1, 0, 1, 1

Key Takeaways

• Always break a logic expression into smaller subexpressions.
• XOR is 1 when inputs differ.
• NAND is just the inverse of AND.
• For three inputs, expect 8 rows in the truth table.
• A working column is most useful when it stores the intermediate result just before the final gate.

Common Mistakes

• Treating XOR like OR. XOR is not true when both inputs are 1.
• Forgetting that NAND inverts the result of AND.
• Evaluating the expression in the wrong order and ignoring brackets.
• Filling only the X column without using the working space logically, which can lead to errors.
• Missing the row A=1, B=0, C=1, which is the only row producing X=0.

Things to Be Careful About

• Follow the brackets exactly: B XOR C must be done before A AND (...).
• Do not confuse A XOR B with B XOR C; they are separate subexpressions.
• In a NAND, the output is 1 in every case except when both inputs to the NAND are 1.
• Keep the input rows in the same order as given in the table; do not reorder them while working.

Background Concept

Drawing a logic circuit from a Boolean expression means turning each operator into its matching gate and then connecting the gates in the same order as the expression.

Useful reminders:

• NOT R means invert R first using a NOT gate.
• Q OR NOT R means the output of the NOT gate joins Q at an OR gate.
• P XOR Q means P and Q feed an XOR gate.
• (... ) XOR (... ) means the two sub-results feed another XOR gate.
• P NAND (...) means P and the previous result feed a NAND gate.

A NAND gate is an AND gate with inversion at the output. In circuit diagrams this is shown as an AND-shaped gate with a small bubble on its output.

Understanding the Question

You are not being asked to simplify the expression. You must draw the circuit that matches the expression exactly:

W = P NAND ((Q OR NOT R) XOR (P XOR Q))

The brackets tell you how the gates must be grouped. The important point is that some inputs are used more than once:

• P is used in P XOR Q and also again in the final NAND
• Q is used in Q OR NOT R and also in P XOR Q
• R is first inverted before being used

So the final drawing must include branches from P and Q.

Approach

Build the circuit from the inside out.

1. Create NOT R.
2. Combine Q with NOT R using an OR gate.
3. Combine P with Q using an XOR gate.
4. Feed those two results into a second XOR gate.
5. Feed that XOR output and the original P into a final NAND gate.
6. Label the final output W.

This is safer than trying to sketch the whole circuit at once.

Step-by-Step Reasoning

Start with the three inputs on the left: P, Q and R.

• Take R into a NOT gate. This gives NOT R.
• Take Q and NOT R into an OR gate. This gives (Q OR NOT R).
• Separately, take P and Q into an XOR gate. This gives (P XOR Q).
• Now take the outputs of those two gates into another XOR gate. This gives ((Q OR NOT R) XOR (P XOR Q)).
• Finally, take the original P again, branch it upward or directly across, and connect it with the output of the second XOR to a NAND gate.
• The output of that NAND gate is W.

A correct circuit therefore needs:

• one NOT gate
• one OR gate
• two XOR gates
• one NAND gate
• a branch from P
• a branch from Q

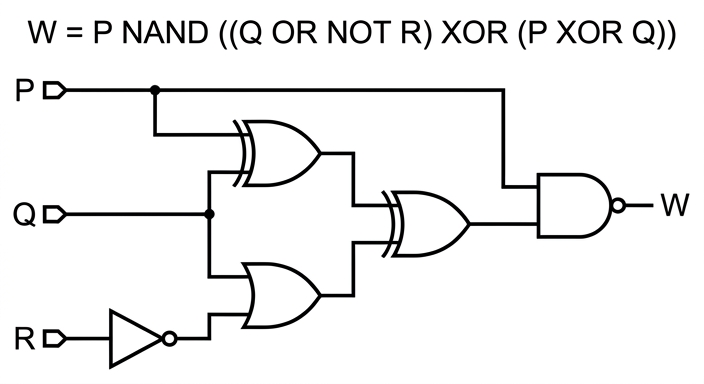

The diagram shows the exact structure required by the expression.

Key Takeaways

• Use brackets to decide the order of gates.
• Build subexpressions first, then combine them.
• Inputs may need to branch if they are used in more than one place.
• A NAND is not just an AND gate; it must have inverted output.

Common Mistakes

• Using an AND instead of a NAND for the final gate.
• Forgetting to invert R before the OR gate.
• Feeding P and Q straight into the final XOR without first forming the two bracketed subexpressions.
• Missing the second use of P in the final NAND.
• Missing the second use of Q in both the OR and the first XOR.

Things to Be Careful About

• Do not simplify the expression unless the question asks you to; draw the circuit that matches the given expression.
• Make sure the final gate is specifically NAND, shown with the inversion bubble on the output.
• Keep the signal flow clear from left to right so the gate groupings are obvious.
• Show proper branching points where one input wire splits to feed two different gates.

Background Concept

An embedded system is a computer system built into a larger device to control, monitor or manage that device. Unlike a general-purpose computer, it is normally designed to carry out one dedicated job, or a very small set of closely related jobs.

Typical examples include a washing machine controller, a car braking controller, a microwave oven timer and a printer control board. Because the system has a specific purpose, it is often small, efficient and reliable. However, those same design choices create drawbacks.

Common drawbacks come from three main ideas:

• Limited purpose: it is not meant to run a wide range of applications.
• Limited resources: it may have less RAM, storage and processing power than a general-purpose system.
• Difficult maintenance: because it is built into another product, changing it is often harder.

Understanding the Question

The question asks for the drawbacks of embedded systems. That means you should not talk about benefits such as low cost, small size or efficiency. You need disadvantages.

Since it is worth 3 marks, the safest approach is to give three separate drawbacks, each clearly described in one bullet point or sentence.

Approach

Think about what makes embedded systems different from ordinary computers:

1. They are built for one job.
2. They often use limited hardware resources.
3. They are inside another product, so they are harder to alter.

Turning each of those into a disadvantage gives strong exam answers.

Step-by-Step Reasoning

First, an embedded system is usually task-specific. That means it is made to do one job very well, but this also means it cannot easily be adapted for something else. So one drawback is lack of flexibility.

Second, embedded systems are often designed to be cheap, compact or power-efficient. Because of that, they may use a lower-specification processor and smaller memory. That gives another drawback: limited performance or storage compared with a full computer.

Third, because the system is physically built into a device, it can be harder to access. If software or hardware needs changing, the user often cannot do this easily. It may need specialist tools, specialist knowledge, or even replacement of the whole unit. That gives a third drawback: repair, upgrade or modification is difficult.

These three points match the kind of drawbacks examiners usually reward:

• not general purpose
• limited capacity/performance
• hard to upgrade/maintain/repair

Key Takeaways

• Embedded systems are dedicated-purpose systems built into larger devices.
• Their disadvantages usually come from being specialised, resource-limited and hard to change.
• For short theory questions, separate your points clearly so each one can earn a mark.

Common Mistakes

• Giving benefits instead of drawbacks: for example saying they are small, cheap or efficient does not answer this question.
• Repeating the same idea twice: for example "not flexible" and "only does one task" are very similar, so they may not earn two distinct marks unless clearly developed differently.
• Being too vague: saying "they are bad" or "they have problems" is not enough; state what the problem actually is.

Things to Be Careful About

• Make sure each point is a different drawback.
• Use wording linked to embedded systems specifically, not computers in general.
• A brief explanation after each drawback makes the answer stronger, for example not just "limited memory" but also what that causes.

Background Concept

Both DRAM and SRAM are types of RAM, so they are volatile memory: their contents are lost when power is removed.

The difference is in how they store bits:

• SRAM (Static RAM) stores data using flip-flop circuits.
• DRAM (Dynamic RAM) stores data using capacitors that must be refreshed regularly.

Because a DRAM cell is simpler, more cells can fit into the same chip area. This usually makes DRAM:

• cheaper per bit
• higher density
• suitable when larger memory capacity is needed

SRAM is faster, but more expensive.

Understanding the Question

The question asks for one benefit of using DRAM instead of SRAM in an embedded system. Since it says "identify", a single short point is enough.

You only need one correct advantage. The safest answer is cost: DRAM is cheaper per unit of storage.

Approach

Compare the two memory types and choose one clear advantage of DRAM. In exam questions like this, avoid more debatable points and use the most standard textbook difference.

Step-by-Step Reasoning

SRAM uses more complex circuitry for each bit stored. That gives high speed, but it takes more space and costs more.

DRAM uses a simpler storage cell. Because of that:

• more bits can fit on a chip
• the cost per bit is lower

So the benefit to state is that DRAM is cheaper per bit than SRAM. In an embedded system, this can reduce manufacturing cost or allow more memory for the same price.

Key Takeaways

• DRAM and SRAM are both volatile RAM types.
• DRAM is usually chosen when cost or larger capacity matters.
• SRAM is usually chosen when speed matters more.

Common Mistakes

• Saying DRAM is faster: this is incorrect; SRAM is generally faster.
• Saying DRAM is non-volatile: it is still RAM, so it is volatile.
• Giving a drawback instead of a benefit: for example mentioning refresh cycles does not answer the question.

Things to Be Careful About

• The question asks for a benefit of DRAM over SRAM, so the comparison direction matters.
• For a one-mark identify question, keep the answer direct and unambiguous.
• "Cheaper" or "higher density" are both strong answers; avoid vague wording like "better".

Background Concept

EPROM and EEPROM are both types of ROM that can be programmed and then used to store data when power is off. They are forms of non-volatile memory.

Their names tell you the key difference:

• EPROM = Erasable Programmable Read-Only Memory
• EEPROM = Electrically Erasable Programmable Read-Only Memory

The major comparison points are:

1. How they are erased
2. How conveniently they can be rewritten

EPROM is erased by exposure to ultraviolet light. EEPROM is erased using electrical signals.

Understanding the Question

The question asks for two differences between EPROM and EEPROM. That means you should give two paired comparisons, not just two facts about one of them.

The strongest two differences are:

• erase method
• whether reprogramming can happen in circuit and how much is erased at once

Approach

Use a side-by-side comparison format. Each difference should mention both EPROM and EEPROM.

A good exam technique is:

• Difference 1: how erase happens
• Difference 2: how reprogramming/erasing is carried out in practice

Step-by-Step Reasoning

First difference: erase method.

EPROM needs ultraviolet light to erase stored data. EEPROM does not need UV light; it is erased electrically.

Second difference: ease of updating.

EPROM is less convenient to update. Typically the chip must be removed from the device and erased as a whole before being programmed again.

EEPROM is more flexible. It can usually be erased and reprogrammed while still installed in the system, and erasure may happen a byte at a time or in blocks.

These are clearly distinct differences, so they are suitable for two marks.

Key Takeaways

• Both EPROM and EEPROM are non-volatile programmable ROM types.
• EPROM uses ultraviolet light for erasure.
• EEPROM uses electrical erasure and is easier to update inside a device.

Common Mistakes

• Only stating one side: for example saying "EPROM uses UV" without saying what EEPROM uses makes the comparison weaker.
• Confusing EEPROM with RAM: EEPROM is still non-volatile memory.
• Repeating the same difference twice: for example "EEPROM is electrical" and "EPROM is not electrical" are really the same difference.

Things to Be Careful About

• The question asks for differences, so make each line a true contrast between the two memories.
• Do not confuse EEPROM with EPROM just because the names are similar.
• Keep the focus on exam-standard distinctions: erase method and rewrite convenience are the most reliable ones to use.

Background Concept

In the Von Neumann model, both data and program instructions are stored in main memory, so the CPU needs registers to keep track of what to fetch, where to fetch it from, and what data is being moved.

A register is a very small, very fast storage location inside the CPU. Different registers have different jobs:

• The Program Counter (PC) tracks which instruction comes next.
• The Memory Address Register (MAR) stores a memory address.
• The Memory Data Register (MDR) stores the actual data or instruction being moved.
• The Index Register (IX) is used when the CPU needs to adjust an address, often for indexed addressing such as arrays.

These are all part of normal instruction execution, especially during the fetch-execute cycle.

Understanding the Question

The question gives four named registers and asks for the purpose of each one. That means you do not need to describe the whole fetch-execute cycle; you just need to state clearly what each register stores or does.

The important thing is to separate:

• registers that store addresses from
• registers that store data/instructions.

The register names are standard, so this is mainly a definition question.

Approach

For each register:

1. Identify whether it stores an address, data, or a modifier.
2. State its job in one precise sentence.
3. Use standard CPU wording such as "address of the next instruction" or "data being transferred to or from memory".

A good answer is brief but exact.

Step-by-Step Reasoning

• Program Counter (PC)

  • The CPU must know which instruction to fetch next.
  • The PC stores that next instruction address.
  • It is usually incremented after fetch, unless a jump or branch changes it.
  • So the purpose is: holds the address of the next instruction to be fetched.

• Memory Address Register (MAR)

  • Before memory can be read or written, the CPU must specify a location.
  • The MAR stores that location's address.
  • So the purpose is: holds the address of the memory location being accessed.

• Memory Data Register (MDR)

  • Once memory is accessed, the actual contents being read or written must be held somewhere temporarily.
  • That is the role of the MDR.
  • It may contain either data or an instruction, depending on what memory is being used for.
  • So the purpose is: holds the data or instruction being transferred to or from memory.

• Index Register (IX)

  • Some addresses are not used directly.
  • Instead, a base address may be adjusted by an index value, for example when stepping through an array.
  • The IX stores that modifying value.
  • So the purpose is: holds a value used to modify an address, such as an offset.

Key Takeaways

• The PC stores the next instruction address.
• The MAR stores a memory address.
• The MDR stores the data or instruction being moved.
• The IX stores an offset used in indexed addressing.

A common exam skill is distinguishing address registers from data registers.

Common Mistakes

• Saying the PC stores the current instruction rather than the address of the next instruction.
• Confusing MAR and MDR:
  • MAR = address
  • MDR = data/instruction
• Saying the IX stores an address without mentioning that it is used to modify or offset an address.
• Giving vague answers like "used in memory" without stating what is actually held.

Things to Be Careful About

• Use the word address for PC and MAR.
• Use the word data or instruction for MDR.
• For IX, mention offset, index, or modify an address.
• Keep the answer to the register's purpose only; do not drift into long descriptions of the whole CPU.

Background Concept

A computer port is a physical interface used to connect peripherals. Different ports support different kinds of signals and different amounts of data.

For this question, the important comparison is:

• VGA: carries analogue video only
• HDMI: carries digital video and digital audio

Because HDMI is digital, the signal is less likely to degrade between the computer and the monitor. HDMI also supports higher data rates than VGA, which makes it more suitable for high-resolution displays and multimedia devices.

Understanding the Question

The monitor has two important features:

1. a high screen resolution of 2560 × 1600
2. built-in speakers

The computer has both a VGA port and an HDMI port, and the question asks why HDMI is better in this situation.

That wording means you should not just describe HDMI generally. You should connect the benefits directly to:

• picture quality / resolution
• audio support for the speakers

Approach

The best way to answer is to compare HDMI against VGA in four clear points:

1. HDMI is digital, VGA is analogue.
2. Digital transmission gives better image quality and less signal degradation.
3. HDMI supports higher bandwidth, which suits high resolution.
4. HDMI carries audio as well as video, so no separate sound cable is needed.

Each point should be written as a benefit, not just as a feature.

Step-by-Step Reasoning

• The monitor resolution is 2560 × 1600, which is a high-resolution display.
• A high-resolution display needs a connection standard that can carry a lot of display data reliably.
• HDMI is designed for high-definition digital output and has higher bandwidth than VGA.
• VGA is an older analogue standard. Analogue signals are more vulnerable to noise and quality loss, especially compared with a digital interface.
• So, using HDMI means the displayed image will usually be sharper and more accurate.

Now consider the built-in speakers:

• VGA only carries video.
• If VGA were used, sound would need a separate audio connection.
• HDMI carries audio and video together.
• That means one cable can handle both the screen image and the speaker output.

So the mark-scoring ideas are:

• digital rather than analogue
• better image quality / less interference
• better support for high resolution
• carries audio too
• no separate audio cable needed

Key Takeaways

• HDMI is generally preferred over VGA for modern monitors.
• HDMI carries digital video and audio.
• VGA carries analogue video only.
• Higher bandwidth matters when a display has a high resolution.
• Built-in monitor speakers are a clue that audio support must be mentioned.

Common Mistakes

• Saying only "HDMI is faster" without explaining the benefit for the monitor.
• Forgetting that the monitor has built-in speakers, so missing the audio mark.
• Saying VGA also carries audio; it does not.
• Giving vague statements like "HDMI is better quality" without explaining that it is digital and less affected by interference.
• Discussing internet speed or network bandwidth, which is unrelated here.

Things to Be Careful About

• Tie the answer to the actual scenario: high resolution and built-in speakers.
• Do not say HDMI is automatically better in every possible way; focus on the credited benefits.
• Keep the comparison accurate:
  • HDMI = digital audio + video
  • VGA = analogue video only
• If mentioning resolution, phrase it as HDMI being better suited to or able to support high-resolution output.

Background Concept

Process management is one of the main tasks of an operating system. A process is a program that is currently being executed. In a multitasking system, many processes appear to run at the same time, even though the CPU may only be executing one at any instant.

The OS is responsible for controlling these processes so that the computer runs efficiently and fairly. Important process management jobs include:

• creating processes
• scheduling them
• allocating CPU time
• suspending/resuming them
• terminating them
• switching between them
• handling priorities

This is different from memory management, which focuses mainly on RAM allocation, and different from file management, which focuses on storage.

Understanding the Question

The question specifically asks for process management tasks performed by an OS. So you should give tasks related to the running and control of processes, not general OS jobs such as file handling, user interface, or disk management.

The best answers focus on what the OS does to make multitasking possible.

Approach

Think of what must happen when many programs are active:

1. the OS must start them
2. the OS must decide which one gets the CPU
3. the OS must switch between them
4. the OS must stop them when needed

Those are the core process management ideas likely to be rewarded.

Step-by-Step Reasoning

• Creates processes

  • When a user opens a program, the OS sets it up as a process.
  • This includes preparing the information the CPU needs to run it.

• Schedules processes

  • Several processes may be waiting to run.
  • The OS decides which one should be executed next.
  • This is scheduling.

• Allocates CPU time

  • In a multitasking system, one process does not keep the CPU forever.
  • The OS gives processor time to each process, often in time slices.

• Performs context switching

  • When the OS changes from one process to another, it must save the current process state and restore another process state.
  • That is how multitasking appears seamless.

• Terminates processes

  • When a process finishes or is stopped, the OS removes it from execution.

• Manages priorities

  • Some processes are more urgent than others.
  • The OS may use priority levels to decide scheduling order.

For a 4-mark answer, four well-described points are enough. The concise exam answer includes the strongest ones: creation/termination, scheduling, CPU allocation, context switching, and priorities.

Key Takeaways

• Process management is about controlling running programs.
• The OS must create, schedule, switch, and terminate processes.
• Scheduling and CPU allocation are central to multitasking.
• Context switching is the mechanism that allows many processes to share the CPU.

Common Mistakes

• Writing about memory management only, such as allocating RAM, without linking it to processes.
• Writing about file management or security instead of process management.
• Saying simply "the OS runs programs" without explaining how.
• Forgetting scheduling or CPU allocation, which are key process-management tasks.
• Confusing a program with a process; a process is a program in execution.

Things to Be Careful About

• Keep your answer within process management, not general OS functions.
• Use accurate terms such as schedule, allocate CPU time, context switch, and terminate.
• If you mention priorities, make clear that they affect which process runs first or for longer.
• Do not over-explain irrelevant details like secondary storage or device drivers unless linked directly to processes.

Background Concept

An Integrated Development Environment (IDE) is software that helps programmers write, test and debug programs in one place. Its debugging tools are designed to help find different kinds of errors:

• Syntax errors: mistakes in the rules of the language, such as a missing bracket.
• Logic errors: the program runs, but gives the wrong result.
• Run-time errors: errors that happen while the program is executing.

Typical debugging features in an IDE include:

• Breakpoints: places where execution pauses.
• Single-stepping: running one line at a time.
• Watch windows: showing the values of selected variables while the program runs.
• Error messages / syntax highlighting: identifying mistakes and often showing the line where they occur.

These tools help programmers observe what the program is actually doing instead of guessing.

Understanding the Question

The question asks how a team of programmers can use the debugging features of a typical IDE while developing a high-level language program. So this is not asking for general IDE features such as auto-completion or formatting. It specifically wants features that help detect, trace and fix errors.

For full marks, the answer needs several separate, valid debugging uses. Each point should say both what feature is used and how it helps during development.

Approach

A good way to answer is to think of the main stages of debugging:

1. Find where the problem is.
2. Pause the program at useful points.
3. Follow the execution carefully.
4. Check whether variables contain the expected values.

Each of these maps neatly to a standard IDE debugging feature.

Step-by-Step Reasoning

• Breakpoints: A breakpoint is placed on a line where the programmer wants execution to stop. When the program reaches that line, it pauses. This is useful because the programmer can stop just before or after an important calculation and inspect the program state.

• Step through code: After the program pauses, the programmer can run it one statement at a time. This makes it easier to see the exact order in which instructions happen and to identify the line where the program begins to behave incorrectly.

• Watch variables: While stepping through, the programmer can monitor variable values in a watch window. If a variable becomes wrong unexpectedly, this often reveals the faulty line or faulty condition.

• Error messages / syntax checking: Before or during execution, the IDE may highlight syntax mistakes and show messages indicating the line number or type of error. This speeds up correction because the programmer does not need to search manually through the whole program.

All four are practical debugging actions that a team can use repeatedly during development.

Key Takeaways

• IDE debugging tools help programmers find syntax, logic and run-time errors.
• Breakpoints pause execution at useful places.
• Single-stepping reveals the exact execution path.
• Variable watches help confirm whether data values are correct.
• Error messages help locate faults quickly.

Common Mistakes

• Giving general IDE features instead of debugging features: for example, mentioning code formatting or indentation alone is too vague.
• Naming a feature without saying how it is used: the question says "describe", so each point should include the purpose.
• Repeating the same idea: for example, "trace code" and "step through code" may overlap if not distinguished.
• Talking only about testing: testing finds that a problem exists, but debugging features are about locating and fixing it.

Things to Be Careful About

• Make sure each point is a separate debugging feature or clearly different use.
• Use precise terms such as breakpoint, step through, watch variable, and error message.
• Link the feature to the benefit, such as locating the faulty line or checking variable values.
• Avoid vague phrases like "the IDE helps fix errors" unless you explain how.

Background Concept

A program library is a collection of pre-written routines, procedures, functions or classes that can be used by one or more programs. Instead of rewriting common tasks every time, programmers can call code from the library.

Libraries support modular programming. This means the program is split into smaller, manageable parts, each with a clear purpose. A team can then build software faster and more consistently.

Common benefits of libraries include:

• Reuse of existing code
• Reduced development time
• Improved reliability if the code has already been tested
• Easier maintenance because updates can be made centrally

Understanding the Question

The question says the programmers created a new program library while developing the program. It asks for the benefits to the programmers of doing this.

So the answer should focus on why creating and using a library helps the development team, not on unrelated system benefits. A strong answer gives a few distinct advantages such as saving time, reducing errors and simplifying maintenance.

Approach

Think about what happens when a team has shared reusable code:

1. They write once and use many times.
2. They test the shared code thoroughly.
3. They update one copy instead of many copies.

Each of these gives a clear benefit and is suitable for a separate marking point.

Step-by-Step Reasoning

• Reuse of code: If a routine is likely to be needed more than once, placing it in a library means the team can call it whenever needed instead of rewriting it. This saves effort and development time.

• Test once, use many times: Once a library routine has been tested and debugged, programmers can trust it more than newly written code. Reusing tested code reduces the chance of introducing fresh bugs.

• Easier maintenance: If several parts of the program, or several programs, use the same library routine, changes can be made in the library rather than in every separate copy. This makes updates simpler and more consistent.

A team of three programmers especially benefits because they can share the same routines and maintain a common standard across the project.

Key Takeaways

• A program library stores reusable code.
• Reuse saves time and avoids repeated work.
• Tested library code improves reliability.
• Centralised code is easier to maintain and update.

Common Mistakes

• Saying only "it is easier" without explaining why: the mark comes from the clear benefit.
• Confusing a library with an IDE: a library is reusable code, not the software used to write code.
• Giving the same benefit twice: for example, "saves time" and "faster to program" may count as one idea unless expanded differently.
• Focusing only on the finished user experience: the question asks about benefits to the programmers during development.

Things to Be Careful About

• Keep the answer about program libraries, not general teamwork.
• Make each benefit distinct: reuse, reliability, maintenance are three separate ideas.
• If mentioning testing, connect it to reliability or fewer errors.
• If mentioning maintenance, explain that one update can affect all uses of the library code.

Background Concept

When data is sent over a network or by email, it is vulnerable while in transit. A security method used here must protect the file from being accessed by someone who is not authorised to see it.

The most suitable method for protecting confidentiality during transfer is encryption. Encryption changes readable data, called plaintext, into unreadable data, called ciphertext. Only someone with the correct key or password can decrypt it back into readable form.

This is different from:

• Authentication, which checks identity
• Access rights, which control permissions on a system
• Anti-malware, which detects malicious software
• Firewalls, which control network traffic

Those may improve security generally, but encryption directly protects the contents of a file during transfer.

Understanding the Question

The question says the final program code is being sent by email for beta testing. It asks for one security method that protects the code from unauthorised access during email transfer, and then asks how that method protects it.

The phrase during email transfer is the clue. That means the method should secure the file while it is moving across networks, not just while stored on a computer.

Approach

Choose a method that provides confidentiality in transit. Encryption is the clearest and safest choice because:

1. It protects the contents of the attached file.
2. Even if the email is intercepted, the file cannot be understood.
3. Only someone with the correct decryption key or password can access the code.

Then explain the protection in terms of unreadable ciphertext and authorised decryption.

Step-by-Step Reasoning

• The program code is in a file attached to an email.
• During transfer, someone could intercept the email or attachment.
• If the file is encrypted before sending, its contents are scrambled into ciphertext.
• Anyone intercepting the file sees only unreadable data.
• The intended recipient uses the correct decryption key or password to convert it back into readable program code.

That directly answers both parts of the question:

• Method: Encryption
• How it protects: It prevents unauthorised people from reading the file contents during transfer.

Key Takeaways

• For data being sent across a network, think about security in transit.
• Encryption is the main method for protecting confidentiality of transferred data.
• Intercepted encrypted data is useless without the correct key.

Common Mistakes

• Choosing a firewall: a firewall filters traffic, but it does not make the attached file unreadable if intercepted.
• Choosing anti-malware: this protects against malicious software, not unauthorised reading of the code during transfer.
• Choosing a digital signature alone: a signature helps verify sender and integrity, but it does not by itself keep the contents secret.
• Forgetting to mention the key/password: the explanation should make clear why unauthorised users still cannot read the file.

Things to Be Careful About

• The question asks for protection from unauthorised access, so confidentiality is the focus.
• Keep the explanation tied to email transfer, not storage on disk.
• Use the term encryption accurately: readable plaintext becomes unreadable ciphertext.
• If you mention a password, make clear it is needed to decrypt or open the encrypted file, not just to log in to email.

Background Concept

Professional ethics in computing means following moral principles when creating, using or managing computer systems. A programmer does not only write code; they also affect other people through that code. Ethical behaviour includes honesty, fairness, respect for other people's work, protection of privacy, and avoiding harm.

In Cambridge International 9618, ethics is usually considered in terms of responsibilities to different groups:

• colleagues and employers
• clients and users
• the general public

A programmer's decisions can affect teamwork inside an organisation and can also affect many external users. For example, careless handling of data may damage trust inside a team, while insecure or unsafe software may harm customers or the wider public.

Understanding the Question

The question asks for reasons why the programmer needs to act ethically towards two specific groups:

• colleagues
• the public

So the answer must not give four random ethical points. It should clearly cover both groups. The wording "explain the reasons why" means each point should say what ethical behaviour is needed and why it matters.

The strongest answers separate the response into the two groups and give relevant examples of ethical responsibility for each one.

Approach

A good method is:

1. Think about the programmer's professional relationships inside work: this leads to trust, fairness, respect for other people's work, and teamwork.
2. Then think about the effect of software on people outside the team: this leads to privacy, safety, reliability, security, and avoiding harm.
3. Write concise explained points, not just single words like "privacy" or "trust".

Step-by-Step Reasoning

For colleagues, ethical behaviour matters because programming is often done as part of a team.

• If a programmer lies about testing, hides mistakes, or interferes with another person's work, the team cannot rely on the program or on each other.
• Ethical conduct means being honest about errors, following agreed standards, and treating colleagues fairly.
• Respecting colleagues also includes not stealing their code, not deleting or sabotaging work, and not taking credit for work done by someone else.

These ideas earn marks because they explain why ethical behaviour supports trust and proper cooperation.

For the public, the key idea is that software can affect users, customers and society.

• If software is unreliable, insecure or deliberately harmful, members of the public may lose money, have their data stolen, or be placed at risk.
• Ethical programmers therefore try to make software safe, well tested and secure.
• They also respect privacy and confidentiality, so they do not misuse personal data or expose it without permission.

These points fit the public side because they focus on protecting users and preventing harm.

Key Takeaways

• Ethics in computing is about responsible behaviour, not just technical skill.
• Duties to colleagues often centre on honesty, fairness, trust and respect for work.
• Duties to the public often centre on safety, privacy, security and avoiding harm.
• In exam answers, separate the stakeholders clearly and make each point specific to that group.

Common Mistakes

• Giving points only about colleagues and forgetting the public, or vice versa.
• Writing vague one-word answers such as "trust" or "privacy" without explaining why they matter.
• Describing legal rules only, when the question is specifically about ethical behaviour.
• Repeating the same idea twice, for example saying "be honest" and "tell the truth" as separate marks.

Things to Be Careful About

• Make sure each point is linked to the correct group named in the question.
• Do not drift into software licensing or copyright; those belong to later parts.
• Keep the answer focused on ethical responsibilities, such as avoiding harm, respecting work, and protecting privacy.
• Because this is an "explain" question, each point should include a brief reason or consequence, not just a label.

Background Concept

A file-based approach stores data in separate files, often created for individual applications. This can lead to the same data being repeated in multiple places. For example, a customer's details might appear in one file for bookings and another file for invoices.

A relational database stores data in tables and connects those tables using keys. A primary key uniquely identifies each record in a table. A foreign key is a field in one table that refers to the primary key of another table. This structure reduces duplication and allows data to be combined when needed.

Relational databases are also managed by a DBMS, which provides facilities such as access control, concurrent multi-user access, validation, backup, and powerful querying.

Understanding the Question

The question asks for benefits of using a relational database instead of a file-based approach. So the answer should be comparative: what problems a file-based system has, and how a relational database improves on them.

Because it is only 3 marks, the expected answer is likely three clear advantages rather than a long discussion. Strong choices are reduced redundancy, improved consistency/integrity, and better access/query/security features.

Approach

A good way to answer this type of question is:

1. Think of the common weaknesses of file-based systems.
2. Match each weakness with the corresponding strength of relational databases.
3. Write each point clearly as a benefit.

The most standard points are:

• less duplicated data
• better consistency/integrity
• easier querying and secure multi-user access

Step-by-Step Reasoning

First, consider duplication. In a file-based system, the same customer or employee details may be stored in several different files. That wastes storage and creates maintenance problems. In a relational database, the data can be stored once in one table and linked to other tables using keys. That is why reduced redundancy is a valid benefit.

Second, consider consistency. If duplicated data exists in several files, one copy may be updated while another is not. Then the system contains conflicting values. In a relational database, because related data is linked rather than repeatedly copied, updates are made in one place and the linked records continue to use the same correct data. That improves consistency and data integrity.

Third, consider functionality. A DBMS can let multiple users access the data safely, apply permissions, and run queries across related tables. Separate files are much less efficient for complex searches and reports because the relationships between data items are not built into the structure in the same way. So better querying and secure multi-user access are valid benefits.

Key Takeaways

• Relational databases reduce repeated data by storing it once and linking tables with keys.
• Less duplication leads to better consistency and integrity.
• A DBMS gives useful features such as querying, security and multi-user access.

Common Mistakes

• Giving only one idea in different words, such as repeating "less duplication" several times.
• Describing what a database is without comparing it to a file-based approach.
• Writing vague points like "it is better" without stating why.
• Confusing security with integrity: security is about preventing unauthorised access, while integrity is about data remaining accurate and consistent.

Things to Be Careful About

• The question asks for benefits of a relational database, so make sure each point is an advantage, not just a feature.
• Keep the comparison clear: mention the problem with file-based systems or the improvement provided by the relational model.
• For short-mark explain questions, concise full statements score better than long paragraphs with repeated ideas.

Background Concept

A vector graphic does not store an image as pixels. Instead, it stores the image as a set of objects, such as lines, curves, rectangles and circles, together with information about each object.

Two important vector terms are:

• Property: an attribute of an object.
• Drawing list: the full set of objects and instructions needed to redraw the image.

For example, a circle in a vector graphic might have properties such as centre position, radius, line colour and fill colour. The software reads the stored instructions and redraws the objects when the file is opened.

Understanding the Question

The question asks for definitions of the vector graphic terms property and drawing list.

Although the scenario mentions a scanned paper drawing, which in real life usually starts as a bitmap, the exam is clearly testing your knowledge of vector graphics terminology, so that is what your answer should focus on.

Approach

Answer each term separately:

1. For property, define it as a characteristic of one graphical object.
2. For drawing list, define it as the collection of stored objects/instructions and their properties that allow the whole image to be recreated.

A short definition with an example of a property is usually enough.

Step-by-Step Reasoning

For property:

A vector image is made of objects. Each object needs attributes to describe how it should appear. These attributes are called properties.

Typical properties include:

• position
• size
• line thickness
• line colour
• fill colour

So the definition is: a property is a characteristic or attribute of a graphical object.

For drawing list:

The computer must store all vector objects in some form. It stores a list of the shapes together with the information needed to draw them. This set of stored instructions is the drawing list.

So the definition is: the list of objects and their properties/instructions used to recreate the image.

Key Takeaways

• Vector graphics are stored as objects, not pixels.
• A property describes one object.
• A drawing list stores all the objects and how to draw them.

Common Mistakes

• Defining a property too vaguely as just "data" without saying it describes a graphical object.
• Confusing a drawing list with a list of pixels. Pixels belong to bitmaps, not vector graphics.
• Giving examples of bitmap features such as resolution or colour depth instead of vector object attributes.

Things to Be Careful About

• Use vector language such as object, shape, attribute, and instruction.
• Good examples of properties are position, size, colour, and line thickness.
• Make clear that the drawing list is what allows the image to be redrawn or recreated.

Background Concept

This question is about tracing machine-code style instructions using registers and addressing modes.

The two registers given are:

• ACC (Accumulator): the main register used for arithmetic and data operations.
• IX (Index Register): used with indexed addressing to help calculate an address.

The key addressing modes here are:

• Immediate addressing: the actual value is given in the instruction, for example #19 means the value 19.
• Direct addressing: the operand is a memory address, so you look in that address and use the data stored there.
• Indirect addressing: the given address contains another address; you must follow that second address to get the data.
• Indexed addressing: add the given address to the current contents of IX, then use that total as the memory address.

Instructions such as INC and DEC change the contents of a register by 1.

Understanding the Question

You are given:

• a memory table showing the data stored at addresses 19 to 25
• the starting contents of the registers: ACC = 50, IX = 20
• four separate sets of instructions

You must complete the output table with the contents of ACC and IX after each set has run.

The important point is that each row is traced from the stated current register values unless the question says the results carry forward. Here, the table is presenting separate instruction sets, so each set is treated from the given starting state.

Approach

For each row:

1. Start from ACC = 50 and IX = 20.
2. Read the first instruction and update the correct register.
3. Read the second instruction and update again.
4. Use the memory table whenever an address must be dereferenced.
5. Write the final values of both registers.

The biggest skill is recognising whether the operand is a value itself or an address that must be looked up.

Step-by-Step Reasoning

The memory contents are:

• 19 → 25
• 20 → 23
• 21 → 2
• 22 → 4
• 23 → 15
• 24 → 50
• 25 → 22

Starting registers for each set:

• ACC = 50
• IX = 20

Set 1

Instructions:

• LDM #19
• DEC ACC

LDM #19 uses immediate addressing, so the value 19 is placed directly into ACC.

• ACC = 19
• IX = 20

DEC ACC subtracts 1 from ACC.

• ACC = 18
• IX = 20

Final answer for set 1:

• ACC = 18
• IX = 20

Set 2

Instructions:

• LDD 23
• ADD 19

LDD 23 uses direct addressing, so load the contents of address 23.

• memory at 23 is 15
• ACC = 15

ADD 19 has no #, so this is also using an address. Add the contents of address 19.

• memory at 19 is 25
• ACC = 15 + 25 = 40
• IX is unchanged at 20

Final answer for set 2:

• ACC = 40
• IX = 20

Set 3

Instructions:

• LDI 25
• INC ACC

LDI 25 uses indirect addressing.

First look at address 25:

• memory at 25 is 22

That means the real address to use is 22.
Now look at address 22:

• memory at 22 is 4

So ACC = 4.

INC ACC adds 1:

• ACC = 5
• IX = 20

Final answer for set 3:

• ACC = 5
• IX = 20

Set 4

Instructions:

• LDR #21
• LDX 2

LDR #21 loads the immediate value 21 into the index register.

• IX = 21

LDX 2 uses indexed addressing.
Compute the effective address:

• 2 + IX = 2 + 21 = 23

Now load the contents of address 23 into ACC:

• memory at 23 is 15
• ACC = 15

Final answer for set 4:

• ACC = 15
• IX = 21

Key Takeaways

• # means the operand is the value itself.
• No # here means use the operand as a memory address.
• Indirect addressing means two lookups: first to get an address, then to get the data.
• Indexed addressing means add the operand to IX first, then use that address.
• Always track which register an instruction changes: ACC, IX, or both.

Common Mistakes

• Treating ADD 19 as adding the number 19 instead of the contents of address 19.
• Forgetting that LDI 25 needs two memory accesses.
• Using the old IX value in set 4 after LDR #21 has already changed it.
• Carrying results from one row into the next when the question intends each row to start from the given register contents.
• Changing IX during instructions that only affect ACC.

Things to Be Careful About

• Read the symbol carefully: #19 and 19 do not mean the same thing.
• In indexed addressing, calculate the address first, then read memory.
• In indirect addressing, do not stop after the first lookup.
• INC and DEC affect only the named register.
• Keep the memory table and register table separate in your mind: addresses hold data, registers hold current working values.

Background Concept

A sensor is an input device that detects a physical quantity and converts it into data a computer system can process. In a system like this, the important idea is to choose a sensor that matches the thing being measured.

Here, the bridge system needs to detect two physical properties of a vehicle:

• weight
• height

A pressure sensor or load sensor can be used where force or weight must be measured. For example, if a vehicle passes over a plate or sensor in the road, the system can estimate the vehicle's weight.

A height sensor is often optical, such as an infrared or laser sensor. A beam can be positioned at the maximum allowed height; if the vehicle breaks that beam, it is too tall. Other equivalent height-measuring sensors may also be acceptable if they clearly measure vehicle height.

Understanding the Question

The question asks for two different sensors and how each is used in this bridge warning system. Because the bridge has two separate limits, the most direct answer is:

• one sensor for checking weight
• one sensor for checking height

The description of use must not just name the sensor; it must say what it measures and how that helps the warning system decide whether to display a stop warning.

Approach

The easiest approach is to match each bridge restriction to a sensible sensor:

1. Weight limit -> choose a sensor that measures load or pressure.
2. Height limit -> choose a sensor that detects height, commonly with a light beam.
3. For each one, explain that if the measured value is above the allowed limit, the warning sign is activated.

This gives two clear, different sensor-use pairs and directly answers the table.

Step-by-Step Reasoning

For the first row, we need a sensor for weight.

• The bridge has a weight limit of less than 10000 kg.
• So the system must measure the vehicle's weight before it reaches the bridge.
• A pressure sensor or load sensor is suitable because it detects the force exerted by the vehicle.
• The system compares the reading with the limit.
• If the value is too high, it turns on the warning sign.

For the second row, we need a sensor for height.

• The bridge has a height limit of less than 3 m.
• So the system must measure or detect whether the vehicle is taller than this.
• An infrared or laser height sensor is suitable.
• One common method is to place a beam at the maximum safe height.
• If the vehicle breaks the beam, it exceeds the height limit.
• The system then turns on the warning sign.

The key to getting the marks is that each row has both parts:

• the sensor name
• how the system uses it

Key Takeaways

• Choose sensors based on the physical quantity being measured.
• A load/pressure sensor is appropriate for vehicle weight.
• An infrared or laser sensor is appropriate for vehicle height detection.
• In exam questions, naming the sensor alone is usually not enough; say how the reading is used.

Common Mistakes

• Naming output devices instead of sensors, for example writing "warning sign" or "alarm" as a sensor.
• Giving two sensors that both measure the same thing without covering both limits.
• Stating a sensor name but not explaining its use in the system.
• Choosing a vague device like "scanner" without making clear what it measures.

Things to Be Careful About

• The question asks for two different sensors, so they must not be duplicates.
• Make sure each sensor matches one of the bridge limits.
• The use description should mention exceeding the limit and activating the warning.
• Equivalent answers may be accepted, but they must clearly be realistic sensors for weight and height detection.

Background Concept

A monitoring system measures conditions and reports information to a user. It uses sensors to collect data, then processes that data and produces output such as a display, warning, or alarm. The important point is that a monitoring system does not automatically change the physical situation.

A control system also uses sensors, but it goes further. It uses the sensor data to operate actuators and automatically alter what is happening. A control system usually involves feedback, where the output affects the system being controlled.

A simple distinction is:

• monitoring system = senses and informs
• control system = senses and automatically acts to change something

Understanding the Question

This question is asking you to decide which type of system the bridge warning system is. The system:

• measures vehicle weight and height
• compares them with preset limits
• shows a warning sign if necessary

The key issue is whether the system only warns, or whether it actually controls something automatically.

Approach

To answer, compare the bridge system with the definitions:

1. Does it use sensors? Yes.
2. Does it produce an output? Yes, a warning sign.
3. Does it automatically change the real-world process using an actuator, such as stopping the vehicle or lowering a barrier? No, not from the information given.

So the system fits monitoring, not control.

Step-by-Step Reasoning

Start with what the system does:

• It detects whether a vehicle is too heavy or too tall.
• It then displays a warning telling the driver to stop.

Now compare that to a monitoring system:

• A monitoring system observes conditions.
• It tells a person if something is wrong.
• The person then decides what action to take.

That matches this bridge system exactly:

• sensors collect the data
• the computer compares data with the limits
• the sign warns the driver
• the driver responds

Now compare with a control system:

• A control system would automatically do something to change events.
• For example, it might lower a barrier, close a gate, or redirect traffic without relying on the driver to decide.

The question only says the sign displays a warning telling the driver to stop. That means the system is providing information, not directly controlling the vehicle. Therefore it is a monitoring system.

Key Takeaways

• Monitoring systems collect data and alert or inform users.
• Control systems collect data and automatically make changes using actuators.
• To classify a system, look for automatic action affecting the physical world.
• A warning sign alone usually indicates monitoring rather than control.

Common Mistakes

• Calling it a control system just because it has sensors and produces an output.
• Forgetting that control systems must automatically change something, not just warn a user.
• Saying "it controls the driver"; the driver is making the decision, not the system.
• Using the word feedback without explaining what is actually being adjusted.

Things to Be Careful About

• Base your answer on the details given in the question only.
• The presence of a warning sign does not by itself make it a control system.
• If the question had said the system automatically lowered a barrier, then control system would be much stronger.
• Use the exact comparison: monitoring informs; control automatically acts.
