Computer Science 9618/32 — May/June 2025

Background Concept

A composite user-defined data type groups several related items together under one name. In this question, Departure is a record type because it contains multiple named fields: FlightNumber, Destination, FlightDate, Gate and Airline.

Once a variable has been declared using that type, each individual field is accessed using dot notation:

• Flight1.FlightNumber
• Flight1.Destination
• Flight1.FlightDate

This is how we store or read one part of the record at a time. The important idea is that Flight1 is one variable, but inside it are several separate named values.

Understanding the Question

The question gives the definition of the record type Departure and then declares:

DECLARE Flight1 : Departure

So Flight1 already exists as a variable of that record type. The task is not to declare it again. The task is to store the given flight details into its fields.

The table tells us exactly which value belongs in which field:

• FlightNumber gets SB2789
• Destination gets Dublin
• FlightDate gets 30/07/2025
• Gate gets N03
• Airline gets Cambridge Airways

Approach

The correct method is to write one assignment statement per field. For each statement:

1. Start with the record variable name Flight1
2. Use a dot followed by the field name
3. Assign the given value with the assignment arrow ←

This is a direct mapping task: every field from the table becomes one assignment line.

Step-by-Step Reasoning

The first field is FlightNumber, so we write:

Flight1.FlightNumber ← "SB2789"

This stores the string SB2789 into the FlightNumber field of the record.

Next, Destination stores the city name:

Flight1.Destination ← "Dublin"

Then the date is stored in the FlightDate field:

Flight1.FlightDate ← 30/07/2025

The Gate field is currently declared as a STRING in the original record definition, so the gate code is stored as text:

Flight1.Gate ← "N03"

Finally, the airline name goes into Airline:

Flight1.Airline ← "Cambridge Airways"

Together, these five statements fully populate the record with the required data.

Key Takeaways

• A record is a composite data type made from named fields.
• A variable declared as a record type stores all those fields together.
• Individual fields are accessed with dot notation.
• To populate a record, assign each field separately.

Common Mistakes

• Re-declaring Flight1 instead of assigning to its fields. The variable is already declared in the question.
• Writing just the values without field names. Each value must be stored in the correct field.
• Forgetting the record name and writing only FlightNumber ← ... instead of Flight1.FlightNumber ← ....
• Using = instead of ←. In CIE pseudocode, assignment uses the arrow.
• Missing some of the fields. Full marks require all the supplied details to be stored.

Things to Be Careful About

• Keep the field names exactly as given: FlightNumber, Destination, FlightDate, Gate, Airline.
• Use the correct record variable name: Flight1.
• Preserve values exactly, including spaces in Cambridge Airways.
• Do not change the type definition here; that is only done in part (b).

Background Concept

In this floating-point format, a number is stored as two parts:

• a mantissa
• an exponent

The value represented is:

For this syllabus, the mantissa is stored in two's complement with the binary point immediately after the sign bit. That means:

• a positive normalised mantissa begins 01...
• a negative normalised mantissa begins 10...

Normalisation means shifting the binary point until the value is in the correct standard form for the mantissa. With this representation, a positive normalised mantissa must have the first two bits different, so the number starts 0.1....

The exponent is also stored in two's complement, but as an ordinary signed integer.

Understanding the Question

We are given:

• 12 bits for the mantissa
• 4 bits for the exponent
• both stored in two's complement

We must convert the denary number +124.4375 into this binary floating-point format and give the final 12-bit mantissa and 4-bit exponent.

So the task is not just “convert to binary”. We must:

1. convert the denary value to binary
2. normalise it into the required mantissa form
3. fit the mantissa into 12 bits
4. write the exponent as a 4-bit two's complement value

Approach

A reliable method is:

1. Convert the integer part and fractional part separately.
2. Combine them into one binary number.
3. Shift the binary point until the mantissa is normalised as 0.1... for a positive number.
4. Count how many places the point moved; that count becomes the exponent.
5. Write the mantissa bits and exponent bits in the required field sizes.

Because the number is positive, the mantissa sign bit will be 0.

Step-by-Step Reasoning

First convert 124 to binary.

124 = 64 + 32 + 16 + 8 + 4

So:

Now convert the fractional part 0.4375.

These are:

• $0.25 = 2^{-2}$
• $0.125 = 2^{-3}$
• $0.0625 = 2^{-4}$

So:

Combine the integer and fractional parts:

Now normalise it. In this format, for a positive number the mantissa must begin 0.1..., so we shift the binary point left until there is exactly one non-sign bit before the point:

We moved the point 7 places to the left, so the exponent is +7.

Now fill the mantissa field.

The mantissa bits are the sign bit plus the fractional bits of the normalised form:

0.11111000111

Written as 12 bits, that is:

011111000111

This already fits exactly into 12 bits, so no rounding or truncation is needed.

Now write the exponent +7 in 4-bit two's complement.

Positive two's complement values are the same as ordinary binary with a leading 0, so:

So the final representation is:

• Mantissa: 011111000111
• Exponent: 0111

Key Takeaways

• In this format, the mantissa is a signed fraction with the binary point after the sign bit.
• A positive normalised mantissa begins 01....
• Always convert the denary number to binary first, then normalise.
• The number of places shifted becomes the exponent.
• The exponent is stored separately as a signed integer in two's complement.

Common Mistakes

• Using the wrong normalised form: writing something like 1.1111000111 × 2^6. That is a valid mathematical normalisation in some systems, but not the CIE mantissa format used here.
• Forgetting the sign bit in the mantissa: the 12 bits include the sign bit, so the mantissa is not just 12 fractional bits.
• Wrong exponent: counting the binary-point shifts incorrectly gives the wrong power of 2.
• Writing the exponent in unsigned binary instead of two's complement: here +7 happens to look the same, but the method still matters.
• Dropping or adding bits incorrectly: the mantissa must fit exactly into 12 bits.

Things to Be Careful About

• The binary point is after the sign bit, not at the far right of the mantissa field.
• For positive values, the mantissa should start 01 when normalised.
• Count the mantissa field size carefully: 12 bits total means 1 sign bit and 11 more bits.
• If the binary fraction were longer than the field, you would need to truncate or round according to the question's expectations, but here it fits exactly.
• Make sure the exponent width is exactly 4 bits: 0111, not 111.

Background Concept

To decode a floating-point number in this format, we treat the two fields separately:

• the mantissa is a two's complement fraction with the binary point after the sign bit
• the exponent is a two's complement integer

The overall value is:

For a negative mantissa in two's complement, a quick way to find its magnitude is:

1. invert all bits
2. add 1
3. interpret the result as a positive mantissa
4. apply the minus sign

A normalised negative mantissa usually begins 10... in this representation.

Understanding the Question

The question gives one floating-point number directly as bits:

• Mantissa: 101000101011
• Exponent: 0110

We must convert the complete floating-point value into denary.

So we need to:

1. decode the exponent
2. decode the mantissa correctly as a signed fraction
3. combine them using the floating-point rule
4. give the final denary value

Approach

The safest route is:

1. Read the exponent first, because it is straightforward.
2. Decode the mantissa carefully, because it is negative.
3. Either multiply the mantissa by $2^6$, or shift the binary point 6 places to the right.
4. Convert the final binary value to denary.

Because the mantissa begins with 1, it is negative in two's complement.

Step-by-Step Reasoning

First decode the exponent:

0110 is positive, so as a 4-bit two's complement integer it is simply:

Now decode the mantissa 101000101011.

Since the first bit is 1, the mantissa is negative.

Find its positive magnitude by inverting and adding 1.

Invert:

010111010100

Add 1:

010111010101

So the positive magnitude is:

0.10111010101₂

Therefore the original mantissa is:

Now apply the exponent +6:

Multiplying by $2^6$ shifts the binary point 6 places to the right:

Now convert 101110.10101₂ to denary.

Integer part:

Fractional part:

So:

Apply the negative sign:

So the denary value is -46.65625.

Key Takeaways

• Decode the exponent and mantissa separately.
• The exponent is a normal signed integer in two's complement.
• The mantissa is a signed fraction in two's complement.
• For a negative mantissa, invert and add 1 to get the magnitude, then apply a minus sign.
• Multiplying by $2^n$ shifts the binary point right by $n$ places.

Common Mistakes

• Treating the mantissa as unsigned: this would give a completely wrong positive value.
• Forgetting the binary point position: the mantissa is not an integer bit pattern; it is a fraction with the point after the sign bit.
• Reading the exponent incorrectly: 0110 is +6, not 0.110 or some fractional value.
• Negating the wrong quantity: the sign belongs to the mantissa, so the whole floating-point value becomes negative.
• Shifting the point the wrong way: a positive exponent moves the binary point right, not left.

Things to Be Careful About

• When using invert-and-add-1, do it on the entire mantissa bit pattern.
• After finding the magnitude, remember that the original mantissa is still negative.
• Keep the exponent and mantissa roles separate: do not mix their bit meanings.
• When converting the final binary fraction to denary, include every fractional place value carefully.
• Because this is already a normalised floating-point value, you do not need to renormalise it before decoding; just interpret it correctly.

Background Concept

The TCP/IP protocol suite is a layered model used for communication over networks and the internet. A layered model breaks communication into levels, with each level handling a particular part of the overall process. In the Cambridge syllabus, the TCP/IP suite is usually given as four layers:

• Application
• Transport
• Internet
• Network Access

Some textbooks split the lowest layer differently, but for exam purposes, these named layers are the accepted ones.

Understanding the Question

This part only asks you to identify two different layers of the TCP/IP protocol suite. It does not ask for explanations, functions, or examples of protocols. So the task is simply to name any two valid layers.

Approach

Use direct recall. Think of the standard four-layer TCP/IP model and choose any two different layer names exactly.

Step-by-Step Reasoning

A correct answer can come from the set:

• Application
• Transport
• Internet
• Network Access

Any two different ones score the mark. For example:

• Application layer
• Transport layer

Key Takeaways

• Learn the standard TCP/IP layers by name.
• For short identify questions, only give the required names.
• Do not waste time adding explanations when they are not asked for.

Common Mistakes

• Giving only one layer when the question asks for two.
• Naming OSI layers instead of TCP/IP layers without care.
• Giving a protocol such as HTTP or FTP instead of a layer name.

Things to Be Careful About

• Make sure the two layers are different.
• Use the layer names, not devices or protocols.
• Keep the answer brief because this is only a one-mark recall item.

Background Concept

The key idea here is layered communication. In a protocol stack, data does not move directly from an application on one computer to an application on another in one step. Instead, it moves through a sequence of layers.

When data is sent, each layer adds its own control information. This is called encapsulation. The added information is usually placed in a header, and sometimes a trailer may also be added depending on the model being described.

When data is received, the reverse happens. Each corresponding layer removes and interprets the control information added by the sender. This is called decapsulation.

So the important overall process is:

1. original message created
2. message passed down the stack
3. headers added layer by layer
4. data sent across the network
5. data passed up the stack at the destination
6. headers removed layer by layer
7. original message recovered

Understanding the Question

This question is not asking you to describe what each individual TCP/IP layer does. In fact, it explicitly says not to describe the function of individual layers. That means you should avoid writing things like "the transport layer ensures..." or "the internet layer routes..." because that is not what is being assessed here.

Instead, the question asks how the protocol suite is applied when a message travels from one host to another. That points to the process of using the layered structure itself:

• down the layers at the sender
• across the network
• up the layers at the receiver
• adding and removing protocol information

Approach

The best strategy is to describe the message journey in order.

Start at the sending host, then explain what happens as the data moves through the protocol stack, then mention transmission over the internet, and finally explain what happens at the receiving host.

To earn the marks, include the ideas of:

• movement through layers
• encapsulation
• transmission
• decapsulation / reconstruction

Step-by-Step Reasoning

A full answer can be built as follows.

First, the sender has an original message. That message does not go straight onto the internet unchanged. It is passed from one layer of the TCP/IP stack to the next.

As it moves downward through the stack, each layer adds its own protocol information. This added information helps the matching layer at the destination interpret the data correctly. This wrapping process is called encapsulation.

Once the data has been encapsulated, it can be transmitted across the internet from the source host to the destination host.

At the destination, the reverse process happens. The received data moves upward through the TCP/IP layers. At each stage, the information that was added by the sender's corresponding layer is removed and processed. This is decapsulation.

After all necessary protocol information has been removed, the destination host is left with the original message.

That is why a concise four-point answer usually includes:

• passed down the layers at the sender
• information added at each layer
• transmitted over the internet
• passed up the layers at the receiver with information removed

If you want to phrase it slightly differently, you may also say that corresponding layers communicate according to agreed protocols, but the main mark-bearing idea is the encapsulation and decapsulation process.

Key Takeaways

• TCP/IP is a layered protocol suite.
• Sending uses encapsulation: data goes down the stack and headers are added.
• Receiving uses decapsulation: data goes up the stack and headers are removed.
• The end result is that the original message is reconstructed at the destination.

Common Mistakes

• Describing the function of each layer instead of the overall process. The question specifically tells you not to do this.
• Naming protocols such as HTTP or IP without explaining the layered movement of data.
• Forgetting one side of the journey, for example only describing sending and not receiving.
• Omitting encapsulation or decapsulation, which are the central ideas here.

Things to Be Careful About

• Focus on the process, not layer functions.
• Use correct sequencing: sender down the stack, then transmission, then receiver up the stack.
• Make it clear that information is added at the sender and removed at the receiver.
• For a 4-mark description, give enough separate points rather than one vague sentence.

Background Concept

An operating system manages processes, which are programs in execution. A process does not stay in one condition all the time; it moves between process states depending on what it is doing and what resources are available.

The standard states commonly used in Cambridge answers are:

• Ready: the process is loaded and able to run, but it is waiting for CPU time.
• Running: the process is currently being executed by the CPU.
• Blocked (or waiting): the process cannot continue yet because it is waiting for something, such as input/output completion or another event.

Some textbooks also include states such as new and terminated, but the most common core three are ready, running and blocked.

Understanding the Question

The question asks you to identify three process states. That means no explanation is needed; you just need to name three valid states used by an operating system when managing processes.

Because the command word is identify, the answer should be brief and accurate.

Approach

Use the standard three-state process model:

1. a process waiting for CPU time,
2. a process currently using the CPU,
3. a process waiting for an event or I/O.

Translate those into the correct state names.

Step-by-Step Reasoning

The operating system scheduler keeps track of each process by state.

• If a process is prepared to run but is not currently on the CPU, that state is Ready.
• If the CPU is executing that process now, that state is Running.
• If the process has to wait, for example for a disk read or keyboard input, that state is Blocked.

Those are three valid process states, so they satisfy the question fully.

Key Takeaways

• A process state describes what stage of execution a process is in.
• The three most common states are Ready, Running and Blocked.
• For an identify question, correct names alone are enough.

Common Mistakes

• Giving fewer than three states.
• Describing the state instead of naming it.
• Writing unrelated operating system terms such as multitasking or interrupt instead of process states.
• Using informal wording like "waiting" when the accepted technical term is usually Blocked.

Things to Be Careful About

• Use actual state names, not long explanations.
• If you use an alternative accepted term such as Waiting for Blocked, make sure it is clearly a process state.
• Do not confuse Ready with Running: ready means able to run, but not currently executing.

Background Concept

A scheduling routine is the rule the operating system uses to decide which ready process should get CPU time next. Different scheduling algorithms try to improve different things, such as fairness, response time, throughput or average waiting time.

Shortest Job First (SJF) is a scheduling algorithm in which the process expected to take the least amount of CPU time is chosen before longer processes. In simple terms, the operating system gives priority to the smallest job first.

This is based on the predicted or known CPU burst time, meaning how long the process is likely to need the processor before it finishes or blocks.

Understanding the Question

This question asks for two things:

1. the function of shortest job first scheduling, so you must say what the routine actually does;
2. one benefit of using it.

So the first part is about the mechanism: how the OS chooses the next process. The second part is about why that method is useful.

Approach

To answer the function, describe the selection rule clearly:

• look at the ready processes,
• choose the one with the shortest expected run time,
• run shorter jobs before longer ones.

To answer the benefit, link that behaviour to an outcome. The standard advantage is that average waiting time is reduced, because many small jobs finish quickly instead of being stuck behind long jobs.

Step-by-Step Reasoning

The key idea behind shortest job first is the word shortest.

• The operating system has a set of processes in the ready state.
• Each ready process has an estimated amount of CPU time it needs.
• The scheduler compares these times.
• It chooses the process with the smallest execution time first.

So if one process will take 2 ms and another will take 20 ms, the 2 ms one is scheduled first.

That is the function: it orders CPU access by shortest expected job length.

Now the benefit:

• If short jobs are run first, many jobs finish quickly.
• That means, on average, processes spend less time waiting in the ready queue.
• This improves average waiting time, and often average turnaround time as well.

A concise exam answer therefore says that SJF picks the shortest job next and that this reduces average waiting time.

Key Takeaways

• Shortest Job First schedules the ready process with the smallest expected CPU burst first.
• Its main advantage is lower average waiting time.
• When asked for function plus benefit, separate what it does from why it is useful.

Common Mistakes

• Saying it chooses the process that arrived first. That describes first come, first served, not SJF.
• Saying it gives every process an equal share. That is not how SJF works.
• Giving a vague benefit like "it is faster" without explaining in what sense.
• Confusing shortest job first with shortest remaining time, which is the pre-emptive version.

Things to Be Careful About

• Use the idea of shortest execution time or smallest CPU burst; that is the core marking point.
• The benefit should follow from the function. The safest accepted benefit is reduced average waiting time.
• Do not overcomplicate the answer with implementation details unless asked.
• If you mention turnaround time or throughput, make sure it is clearly linked to short jobs completing sooner.

Background Concept

In AI, a graph is a common way to represent a problem space. A graph has two main parts:

• Vertices (also called nodes)
• Edges (also called arcs)

A node represents something important in the problem, such as a location, a state, a person, or a possible situation. An edge represents a connection between two nodes. In AI search problems, that connection often means "it is possible to move from this state to that state".

Some graphs also have extra information:

• Directed edges show a one-way connection.
• Weighted edges show a cost, distance, or time.

But the core structure is always nodes plus edges.

Understanding the Question

The question asks for the structure of a graph used in AI. That means it is not asking for a search algorithm like A* or Dijkstra's, and it is not asking for a real-life example. It wants the basic building blocks of the data structure itself.

For 2 marks, the most likely marking points are:

• mention nodes/vertices
• mention edges/arcs and what they do

Approach

To answer this kind of question, state:

1. what the graph contains
2. what each part represents

A complete answer therefore names the two structural components and links them to meaning in AI.

Step-by-Step Reasoning

A graph is not just a random collection of data. It is a structure used to show relationships.

First, identify the objects in the graph:

• These are the nodes or vertices.
• In AI, each node may stand for a state, a place, or a possible condition.

Next, explain how those objects are linked:

• The links are the edges or arcs.
• Each edge shows that two nodes are connected.
• In an AI problem, that usually means one state can lead to another, or one location can be reached from another.

That is enough for full marks here. Mentioning weighted or directed edges would be acceptable extra detail, but it is not necessary unless the question specifically asks for it.

Key Takeaways

• A graph has nodes/vertices and edges/arcs.
• Nodes represent states, items or locations.
• Edges represent relationships, links or possible transitions.
• In AI, graphs are often used to model search spaces.

Common Mistakes

• Giving an algorithm instead of the structure: describing A* or Dijkstra's does not answer what a graph is made of.
• Mentioning only nodes: you need both nodes and edges for the structure.
• Mentioning only edges: edges connect nodes, so the nodes must also be identified.
• Confusing a graph with a chart/graph from maths: this is a data structure, not a bar chart or line graph.

Things to Be Careful About

• Use accepted terminology: vertices/nodes and edges/arcs.
• If you add examples, make sure they support the definition rather than replace it.
• Do not spend time on weights or directions unless needed; the key marks are for the basic structure.

Background Concept

Machine learning is about allowing a computer system to improve its behaviour by learning from data.

Two important types are supervised learning and unsupervised learning.

Supervised learning

In supervised learning, the training data includes:

• the input data
• the correct output or label

So the system is told what the right answer should be during training. It makes a prediction, compares that prediction with the correct answer, and then adjusts itself to reduce the error.

Typical uses include:

• classification
• prediction
• recognising known categories

Unsupervised learning

In unsupervised learning, the data is not labelled. The system is not given the correct answers. Instead, it looks for:

• patterns
• clusters
• similarities
• relationships

Typical uses include:

• grouping similar items
• discovering hidden structure in data
• identifying trends

So the big difference is whether the computer is learning from known answers or trying to discover structure without known answers.

Understanding the Question

The command word is Explain, so this needs more than simple definitions. The question asks how supervised and unsupervised learning differ from each other. That means a comparison is needed.

For 4 marks, the answer should usually cover several contrast points, such as:

• labelled vs unlabelled data
• known outputs vs unknown outputs
• correction using error vs pattern discovery
• classification/prediction vs grouping/clustering

Approach

A strong answer compares the two methods side by side.

The easiest structure is:

1. say what supervised learning uses
2. say how supervised learning learns
3. say what unsupervised learning uses
4. say how unsupervised learning learns

That gives a balanced explanation and makes the differences clear.

Step-by-Step Reasoning

Start with supervised learning.

The word "supervised" suggests guidance. In machine learning, that guidance comes from the labelled training data. The system is shown examples where the correct answer is already known.

For example:

• input: image of an animal
• label: "cat"

The model makes an output. If it says "dog" instead of "cat", that output can be compared against the known correct answer. The difference is the error. The model then changes its internal parameters to reduce that error next time.

Now compare this with unsupervised learning.

Here, the system is given data but no labels. So it is not told the correct category or answer. Because there is no correct answer supplied, it cannot learn by comparing its output with an expected value in the same way as supervised learning.

Instead, it examines the data and tries to discover structure itself. For example, it may:

• place similar items into the same cluster
• detect frequent associations
• find natural groupings

So the difference is not just the presence or absence of labels. It also changes the whole learning process:

• supervised learning is guided by correct answers
• unsupervised learning is guided by patterns in the data itself

That is why supervised learning is often used when categories are already known, while unsupervised learning is often used when the aim is to discover previously unknown groupings.

Key Takeaways

• Supervised learning uses labelled data.
• It learns by comparing predictions with known correct outputs.
• Unsupervised learning uses unlabelled data.
• It learns by finding patterns, clusters or relationships without being told the correct answers.
• The central distinction is guided learning vs pattern discovery.

Common Mistakes

• Saying supervised learning means a human watches every step: the key idea is labelled training data, not constant human observation.
• Saying unsupervised learning has no learning: it does learn, but by discovering structure rather than matching known answers.
• Only stating one side: the question asks for how they differ, so both methods must be described.
• Confusing unsupervised learning with random guessing: it still uses algorithms to detect patterns and similarities.
• Using vague wording like "one is better": the question is about difference, not quality.

Things to Be Careful About

• Use the precise terms labelled and unlabelled data.
• Make it clear that supervised learning has known outputs during training.
• Make it clear that unsupervised learning does not have target outputs.
• If giving examples, keep them short and accurate so they support the comparison.
• Avoid mixing this up with reinforcement learning, which is a different learning approach again.

Background Concept

A logic circuit can be analysed by working from the inputs through each gate to the final output. Each intermediate wire can be treated as a Boolean expression or as an extra column in a truth table.

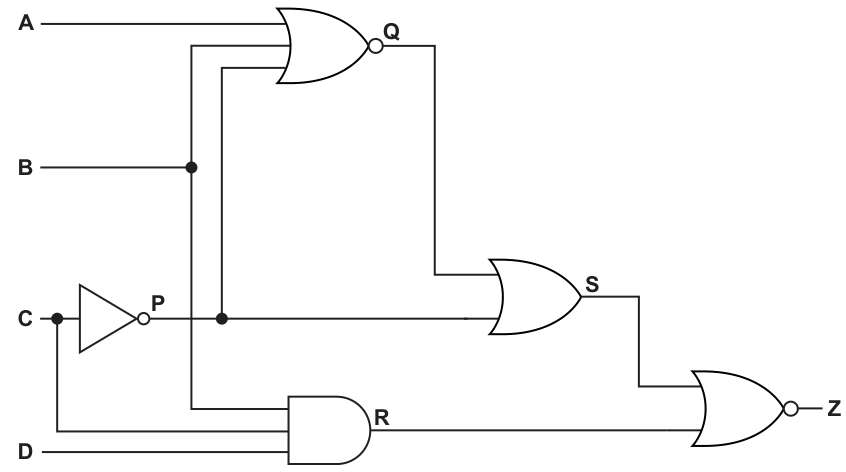

For this circuit:

• $P$ is the output of a NOT gate, so $P = \overline{C}$.
• $Q$ is the output of a 3-input NOR gate, so $Q = \overline{A + B + P}$.
• $R$ is the output of a 3-input AND gate, so $R = B \cdot P \cdot D$.
• $S$ is the output of an OR gate, so $S = Q + P$.
• $Z$ is the output of a NOR gate, so $Z = \overline{S + R}$.

A NOR gate means OR first, then invert. That is a very common source of errors, so it is important not to treat NOR as just OR.

Understanding the Question

You are given a logic circuit with four inputs $A$, $B$, $C$ and $D$, and you must complete the truth table. The table already lists all 16 possible input combinations, so your job is to calculate the missing columns $P$, $Q$, $R$, $S$ and $Z$ for each row.

The phrase "Show your working" is a clue that the examiner expects the intermediate gate outputs to be used properly, not just the final $Z$ values guessed or skipped.

Approach

The best method is:

1. Work out the expression for each labelled wire.
2. Fill the table from left to right, because later outputs depend on earlier ones.
3. Do one row at a time to avoid mixing values from different rows.

So here the safest order is:

• calculate $P$ from $C$
• calculate $Q$ from $A$, $B$, $P$
• calculate $R$ from $B$, $P$, $D$
• calculate $S$ from $Q$, $P$
• calculate $Z$ from $S$, $R$

Step-by-Step Reasoning

Start with the first intermediate output:

So whenever $C=0$, $P=1$, and whenever $C=1$, $P=0$.

Next:

A NOR output is 1 only if all its inputs are 0. Therefore $Q=1$ only when $A=0$, $B=0$ and $P=0$. Since $P=0$ means $C=1$, this happens only in the rows where $A=0$, $B=0$, $C=1$.

Then:

An AND output is 1 only if all inputs are 1. So $R=1$ only when $B=1$, $P=1$ and $D=1$. Because $P=1$ means $C=0$, this occurs only when $B=1$, $C=0$, $D=1$.

Then:

This is an OR gate, so $S=1$ whenever either $Q=1$ or $P=1$.

Finally:

So $Z$ is 1 only when both $S=0$ and $R=0$.

A few sample rows show the process clearly:

• Row $A=0, B=0, C=0, D=0$

  • $P=1$
  • $Q=\overline{0+0+1}=0$
  • $R=0\cdot1\cdot0=0$
  • $S=0+1=1$
  • $Z=\overline{1+0}=0$

• Row $A=0, B=0, C=1, D=0$

  • $P=0$
  • $Q=\overline{0+0+0}=1$
  • $R=0\cdot0\cdot0=0$
  • $S=1+0=1$
  • $Z=\overline{1+0}=0$

• Row $A=0, B=1, C=1, D=0$

  • $P=0$
  • $Q=\overline{0+1+0}=0$
  • $R=1\cdot0\cdot0=0$
  • $S=0+0=0$
  • $Z=\overline{0+0}=1$

Repeating that process for all 16 rows gives the completed table in the solution.

Key Takeaways

• Complete logic-circuit truth tables by creating columns for intermediate outputs.
• NOR means OR followed by NOT.
• An AND gate gives 1 only when every input is 1.
• A final NOR output is 1 only when all its inputs are 0.

Common Mistakes

• Treating NOR as if it were just OR. This changes every $Q$ or $Z$ value.
• Forgetting that $P$ is the inverse of $C$, so when $C=0$, $P=1$.
• Calculating $R$ from the wrong inputs. It must use $B$, $P$ and $D$.
• Filling $Z$ directly from the inputs without using the intermediate columns.

Things to Be Careful About

• Keep the rows in the exact order given in the question.
• Do not skip the intermediate columns; later columns depend on them.
• Remember that a NOR output is 1 only when every input to that NOR gate is 0.
• Check rows where $C=0$ carefully, because that makes $P=1$, which strongly affects $Q$ and $S$.

Background Concept

A sum-of-products expression is a Boolean expression written as ORed product terms. In Boolean notation:

• product means AND, for example $A \cdot C$
• sum means OR, for example $A \cdot C + B \cdot C$

So a sum-of-products answer must look like one or more AND terms joined by OR signs.

Understanding the Question

You are not being asked to redraw the circuit or to list all truth-table rows. You are being asked for the Boolean expression for the final output $Z$, specifically written in sum-of-products form.

That means the final answer should be an expression such as $A \cdot C + B \cdot C$, not a factored form such as $C(A+B)$.

Approach

There are two sensible ways to do this:

1. derive the expression from the gates and simplify it, or
2. look at the rows in the truth table where $Z=1$ and recognise the pattern.

From the completed truth table, $Z=1$ exactly when:

• $C=1$, and
• at least one of $A$ or $B$ is 1.

That is the pattern for:

To convert that to sum-of-products, distribute $C$:

Step-by-Step Reasoning

From the truth table in part (a), the rows where $Z=1$ are those with:

• $A=0, B=1, C=1$
• $A=1, B=0, C=1$
• $A=1, B=1, C=1$

The common requirement is that $C=1$ and at least one of $A$ or $B$ is 1. That gives:

But the question asks for sum-of-products, so expand it:

This is the correct sum-of-products form.

Key Takeaways

• Sum-of-products means OR of AND terms.
• A factored expression like $C(A+B)$ may be correct logically, but it is not written in sum-of-products form.
• Reading patterns from the truth table is often faster than writing every minterm.

Common Mistakes

• Writing $C(A+B)$ and stopping. That is correct logic, but not the required form.
• Writing a product-of-sums form instead of sum-of-products.
• Including $D$ in the answer even though the final output does not depend on $D$ after simplification.

Things to Be Careful About

• The question asks for the expression for $Z$, not for an intermediate output.
• Keep the expression in SOP form: AND terms joined by OR.
• Do not overcomplicate it by writing a full canonical expansion when a simpler SOP is available.

Background Concept

This question is about Boolean algebra, especially De Morgan's laws. The two key rules are:

These rules say that when you remove a bar from a bracketed Boolean expression, the operators flip:

• OR becomes AND
• AND becomes OR

You then continue simplifying using standard Boolean identities such as:

• $X \cdot X = X$
• $X + X = X$
• $X(X+Y)=X$

That last one is an absorption rule.

Understanding the Question

You are given the expression:

and asked to simplify it using Boolean algebra, including De Morgan's laws. The instruction "Show all working" means the examiner wants to see the transformation steps, not just the final simplified expression.

Approach

The natural strategy is:

1. apply De Morgan's law to each complemented bracket
2. expand any remaining complemented products
3. simplify the resulting expression using Boolean identities

The first bracket is straightforward because it is the complement of a sum. The second bracket is the complement of a sum of two products, so De Morgan must be applied carefully in two stages.

Step-by-Step Reasoning

Start with:

Apply De Morgan's law to the first bracket:

Apply De Morgan's law to the second bracket. Since it is the complement of a sum:

Now the expression becomes:

Apply De Morgan again to each complemented product:

So now we have:

Because Boolean AND is associative, we can regroup. First combine
$\overline{A} \cdot \overline{B}$ with $(\overline{A} + \overline{B})$.

Using absorption:

So the expression reduces to:

Apply absorption again:

Therefore:

So the simplified expression is:

Key Takeaways

• De Morgan's laws are essential whenever a bar covers a bracket.
• Removing a bar changes OR to AND, and AND to OR.
• After applying De Morgan, continue simplifying using identities such as absorption.
• A long Boolean expression can often collapse to a very short result.

Common Mistakes

• Writing $\overline{A+B} = \overline{A} + \overline{B}$. That is wrong because OR must change to AND.
• Writing $\overline{A \cdot B} = \overline{A} \cdot \overline{B}$. That is also wrong because AND must change to OR.
• Stopping too early at a partially simplified line such as $(\overline{A} \cdot \overline{B})((\overline{A}+\overline{B})(\overline{B}+\overline{C}))$.
• Losing brackets and changing the structure of the expression.

Things to Be Careful About

• Apply De Morgan to the whole barred bracket, not just part of it.
• Keep the operator changes correct every time a bar is removed.
• Use brackets carefully so that each transformation is logically equivalent.
• In the final answer, make sure the expression is genuinely simplified and not just rewritten.

Background Concept

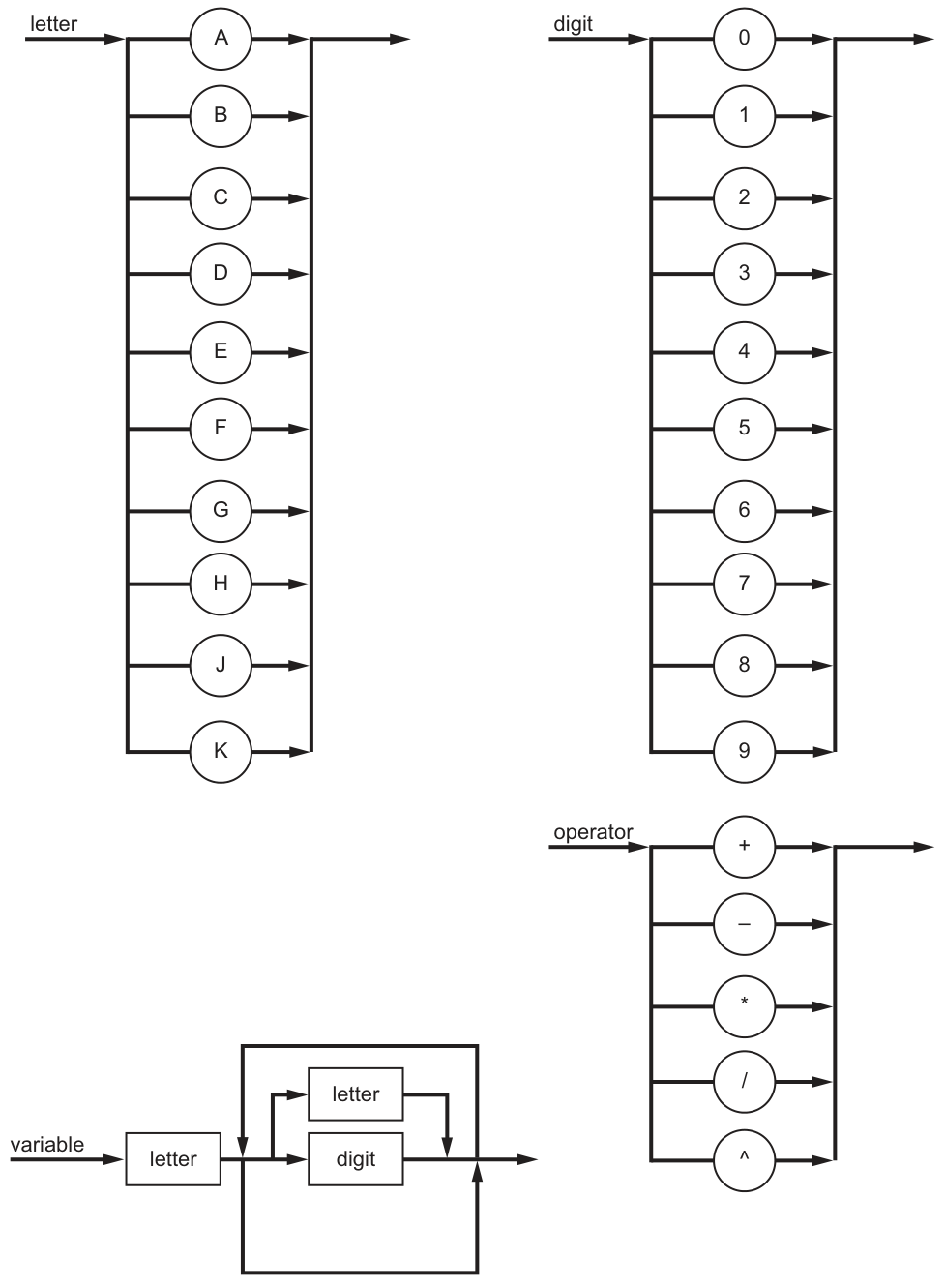

A syntax diagram shows the valid structure of a string. You follow the path from left to right, and every symbol or named box you pass through must match the characters in the string.

For the variable diagram here:

• the first character must be a letter
• after that, the loop allows more letter or digit characters

So the first character has a special rule: it cannot be a digit.

Understanding the Question

The question asks why 9K is not a valid variable using the given syntax diagrams. From Fig. 9.1, a variable must begin with a letter, and only after that can letters or digits appear.

So we only need to inspect the first character of 9K.

Approach

Check the variable syntax diagram in order:

1. Look at the first required item.
2. Compare the first character of 9K with that rule.
3. State the mismatch clearly.

Step-by-Step Reasoning

The variable diagram begins with a box labelled letter.

That means the first character of any valid variable must come from the letter diagram.

The first character of 9K is 9.

9 appears in the digit diagram, not the letter diagram.

Therefore the string fails immediately at the first character, so it is not a valid variable.

A concise exam answer is: the variable must start with a letter, but 9K starts with a digit.

Key Takeaways

• In syntax diagrams, the order matters.
• The first symbol of a variable can have a different rule from later symbols.
• A string can be rejected as soon as one required stage is not matched.

Common Mistakes

• Saying K is invalid. K is actually allowed in the letter set.
• Saying digits are never allowed in variables. Digits are allowed after the first character here.
• Giving a vague answer such as "it does not follow the diagram" without identifying the exact broken rule.

Things to Be Careful About

• Read from the start of the syntax diagram, not just the looped part.
• Separate the rule for the first character from the rule for later characters.
• Use the exact terms letter and digit if possible, because those are the names used in the diagram.

Background Concept

Backus-Naur Form (BNF) is a textual way to describe grammar rules. A rule has:

• a non-terminal on the left, written in angle brackets, such as <operator>
• ::= meaning "is defined as"
• one or more possible alternatives on the right

The symbol | means "or".

A syntax diagram with several possible single choices converts naturally into BNF by listing each choice as an alternative.

Understanding the Question

The syntax diagram for operator allows exactly one of these symbols:

• +
• -
• *
• /
• ^

The question asks for the BNF definition of <operator>, so we must write all valid choices on the right-hand side separated by |.

Approach

Take each permitted operator from the diagram and place it into one BNF rule as an alternative.

Pattern:

<name> ::= choice1 | choice2 | choice3

Apply that to the five operator symbols shown.

Step-by-Step Reasoning

From the syntax diagram, the valid operator options are:

• +
• -
• *
• /
• ^

In BNF, these become alternatives after ::=.

So the complete rule is:

<operator> ::= "+" | "-" | "*" | "/" | "^"

This means an <operator> can be any one of those five symbols.

Key Takeaways

• A set of branches in a syntax diagram usually becomes | alternatives in BNF.
• ::= introduces the definition.
• <operator> is a non-terminal; the symbols on the right are the valid terminals.

Common Mistakes

• Omitting one of the operators, especially ^.
• Using commas instead of |.
• Writing words such as plus or minus instead of the actual symbols from the diagram.
• Forgetting the angle brackets around <operator>.

Things to Be Careful About

• Copy every symbol exactly.
• Do not invent extra operators.
• Keep the BNF structure correct: left-hand side, ::=, then alternatives.

Background Concept

A syntax diagram can show both fixed order and repetition.

• A straight path shows symbols that must appear in that exact order.
• A loop shows a section that may repeat.

When a question says something like "can be repeated as many times as necessary", that is a strong clue that part of the syntax diagram must be placed inside a loop.

A key idea is to separate:

• the compulsory part that must appear at least once
• the repeated part that may appear again after that

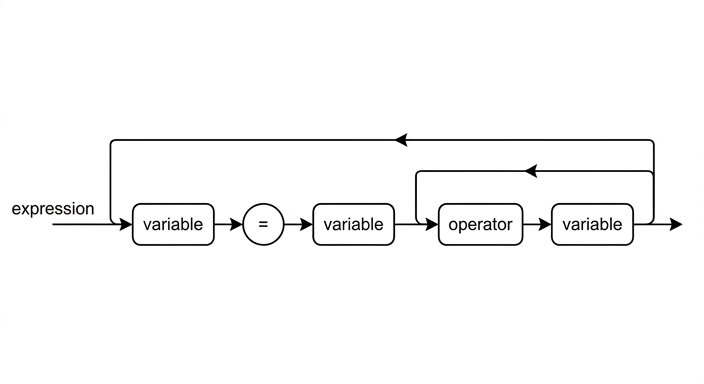

Understanding the Question

We are told that an expression is formed as follows:

• a variable is assigned to a variable followed by an operator followed by another variable
• the operator and final variable stage can be repeated

So the basic expression is not just variable = variable.
It must be:

variable = variable operator variable

Then the operator variable part may repeat more times.

That means the fixed starting path must already include one operator and one variable, and only that pair should be looped.

Approach

Build the diagram in two stages:

1. Write the compulsory sequence from left to right.
2. Identify the repeatable section and make it a loop.

The compulsory sequence is:

• variable
• =
• variable
• operator
• variable

The repeatable section is only:

• operator
• variable

So the loop must return to the point just before operator.

Step-by-Step Reasoning

Start with the incomplete diagram already given:

• variable
• =

Now apply the rule from the question.

After the =, there must be a variable.

Then there must be an operator.

Then there must be another variable.

At this point, the minimum valid expression has been completed:

variable = variable operator variable

Next, the question says the "operator and final variable stage" can be repeated. That means the repeated pair is:

• operator
• variable

So after the last variable, draw a loop back to the point before the operator. That lets the expression continue with another operator-variable pair, for example:

• A=B+C
• A=B+C-D
• A=B+C-D*E

The first right-hand-side variable is not inside the loop, because it must appear once before any repetition can happen.

Key Takeaways

• Translate the wording into a pattern before drawing.
• "Repeated" usually means a loop.
• Be careful to loop only the part that repeats, not the whole expression.
• Distinguish between a compulsory first occurrence and later repeated occurrences.

Common Mistakes

• Drawing only variable = variable, which misses the compulsory operator variable part.
• Putting the first right-hand-side variable inside the loop, which changes the grammar.
• Looping the entire right-hand side instead of just operator variable.
• Making the operator optional, even though the description requires one operator in the base expression.

Things to Be Careful About

• The order matters: variable = variable operator variable.
• The loop must return to just before operator, not before =.
• The symbol = is a terminal, so it should appear as a circle in the diagram, while variable and operator are named boxes.
• Make sure the base expression is valid even before the loop repeats.

Background Concept

A valid example must satisfy every rule that applies.

Here there are two layers of rules:

1. the syntax diagram rules for variable
2. an extra validation rule saying the variable must contain at least four characters

From the syntax diagram:

• the first character must be a letter
• later characters may be letter or digit

From the extra condition:

• total length must be 4 or more

Understanding the Question

The question is not asking for the only possible answer. It asks for one example of a variable that passes both checks.

The allowed letters are limited to those shown in the letter diagram:
A, B, C, D, E, F, G, H, J, K

The allowed digits are 0 to 9.

So we need to build a string that:

• starts with one of the allowed letters
• uses only allowed letters or digits afterward
• has at least four characters

Approach

Construct a short valid example of exactly four characters, because that is the smallest length that satisfies the extra rule.

A simple pattern is:

• allowed letter
• allowed letter or digit
• allowed letter or digit
• allowed letter or digit

Step-by-Step Reasoning

Take AB12.

Check it against the syntax diagram:

• first character A is an allowed letter
• second character B is an allowed letter
• third character 1 is a digit
• fourth character 2 is a digit

So every character is allowed in its position.

Now check the extra constraint:

• AB12 has 4 characters

Therefore it is a valid variable.

Many other answers would also work, such as A123, B7C8, or K000, provided the first character is one of the permitted letters and the total length is at least four.

Key Takeaways

• A valid test string must satisfy all constraints, not just the syntax diagram.
• Minimum length conditions are separate from grammatical structure.
• When asked for one example, choose the simplest string that clearly fits the rules.

Common Mistakes

• Giving fewer than four characters, such as A1.
• Starting with a digit, such as 1AB2.
• Using a letter not listed in the diagram, such as I.
• Forgetting that later characters may be digits as well as letters.

Things to Be Careful About

• Use only letters that actually appear in the letter diagram.
• Check the first character separately from the rest.
• Count the characters carefully to make sure there are at least four.

Background Concept

A binary tree stores each item in a node with up to two links: a left pointer and a right pointer. In an ordered binary tree (binary search tree), smaller values are placed to the left and larger values are placed to the right.

To insert a new value:

• start at the root
• compare the new value with the current node
• go left if it is smaller
• go right if it is larger
• stop when you reach a null pointer and place the new node there

Here, 0 represents a null pointer, so every missing child link must be shown as 0.

Understanding the Question

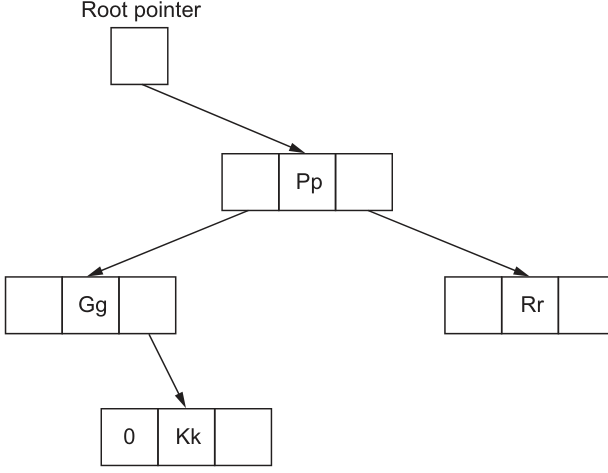

The diagram already contains part of the tree:

• root node Pp
• Gg on the left of Pp
• Rr on the right of Pp
• Kk on the right of Gg

You must add the new strings Aa, Mm, Ss and Xx into this ordered binary tree, then complete every remaining empty pointer with either:

• an arrow to another node, or
• 0 if there is no child there

So this is not just about placing the four new strings. You also need to show all null pointers correctly.

Approach

Treat it exactly like binary search tree insertion:

1. Take one new string at a time.
2. Begin at Pp.
3. Compare alphabetically and move left or right.
4. When a 0 position is reached, insert the new node there.
5. After all insertions, fill every unused left/right pointer with 0.

Step-by-Step Reasoning

Insert Aa:

• Aa < Pp, so go left to Gg
• Aa < Gg, so it becomes the left child of Gg

Insert Mm:

• Mm < Pp, so go left to Gg
• Mm > Gg, so go right to Kk
• Mm > Kk, so it becomes the right child of Kk

Insert Ss:

• Ss > Pp, so go right to Rr
• Ss > Rr, so it becomes the right child of Rr

Insert Xx:

• Xx > Pp, so go right to Rr
• Xx > Rr, so go right to Ss
• Xx > Ss, so it becomes the right child of Ss

Now complete the null pointers:

• Aa has no children, so left = 0, right = 0
• Kk already has left = 0, and right points to Mm
• Mm has no children, so left = 0, right = 0
• Rr has no left child, so left = 0, and right points to Ss
• Ss has no left child, so left = 0, and right points to Xx
• Xx has no children, so left = 0, right = 0

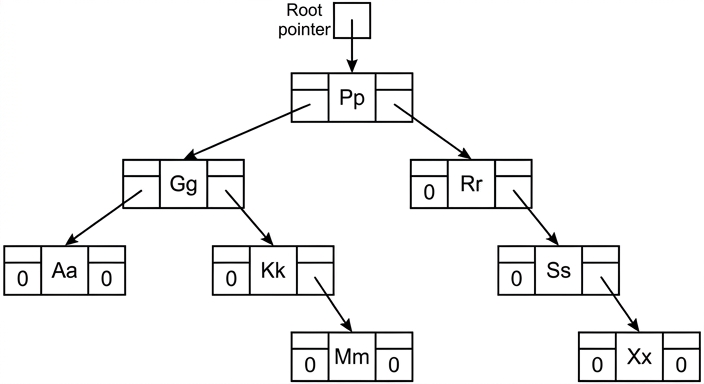

The completed tree is:

Key Takeaways

• In an ordered binary tree, smaller values go left and larger values go right.
• Insertion is done by following comparisons from the root until a null position is found.
• A complete tree diagram must show null pointers as well as actual links.
• Every leaf node has both child pointers set to null.

Common Mistakes

• Putting Ss to the left of Rr. Since Ss is alphabetically greater than Rr, it must go to the right.
• Putting Mm directly under Gg. You must continue comparing with Kk before deciding where Mm goes.
• Forgetting the 0 null pointers. The question explicitly says to include null pointers.
• Changing the existing structure. The given nodes stay where they are; only the new strings are inserted.

Things to Be Careful About

• Always start each insertion from the root, not from where the previous insertion ended.
• Follow the tree one comparison at a time; do not guess the final position.
• Remember that each node has two pointer fields, so both must be considered.
• Keep the root pointer pointing to Pp; the root does not change here.

Background Concept

Recursion is when an algorithm calls itself to solve a problem. A recursive solution usually has two essential parts:

• a base case that stops the recursion
• a recursive case that reduces the problem to a smaller version of the same problem

Recursion is especially useful when the problem has a repeated, self-similar structure. Trees are a classic example because each subtree is itself a smaller tree.

Understanding the Question

This question asks for two things only:

• one feature that makes recursion a good choice
• one application that could use recursion

Because the question mentions a binary tree, a tree-based example is a very natural answer. The feature should describe the kind of problem that recursion suits best.

Approach

Choose a feature that clearly describes when recursion is beneficial. The strongest answer is that the problem can be divided into smaller versions of itself. Then give a standard recursive application such as traversing or searching a binary tree.

Step-by-Step Reasoning

A good recursive problem has the same pattern repeated at smaller scales.

For example, when traversing a binary tree:

• process the current node
• traverse the left subtree
• traverse the right subtree

Each subtree is just another binary tree, so the same algorithm can be used again. The recursion stops when a null pointer is reached, which acts as the base case.

That is why this pair is valid:

• Feature: the problem breaks down into smaller sub-problems of the same form
• Example: traversing or searching a binary tree

Both points directly match what recursion is designed for.

Key Takeaways

• Recursion works well for self-similar problems.
• A valid recursive algorithm must have a base case.
• Hierarchical structures such as trees are common recursive applications.

Common Mistakes

• Giving an example without stating a feature, or vice versa. The question needs both.
• Saying only "it is easier" as the feature. That is too vague unless tied to self-similar sub-problems.
• Giving a non-recursive-style example that does not naturally break into smaller versions of itself.
• Forgetting the base case idea when describing the feature.

Things to Be Careful About

• The question asks for one feature and one example, so keep the answer focused.
• Make sure the feature describes the structure of the problem, not just a personal preference.
• If you choose a tree example, remember that recursion fits because each subtree can be handled in the same way as the whole tree.

Background Concept

In object-oriented programming, a class is a blueprint for creating objects. A class normally shows:

• attributes (the data stored in each object)
• methods (the operations that can be carried out on that object)

A UML class diagram usually has three sections:

1. the class name
2. the attributes with their data types
3. the methods

Methods that assign values are commonly called setter or mutator methods, for example SetName(...).
Methods that return values are commonly called getter or accessor methods, for example GetName().

The data type chosen must match the kind of data stored:

• a patient ID is text, so STRING
• a date of birth is a date, so DATE
• a priority from 1 to 5 is a whole number, so INTEGER

Understanding the Question

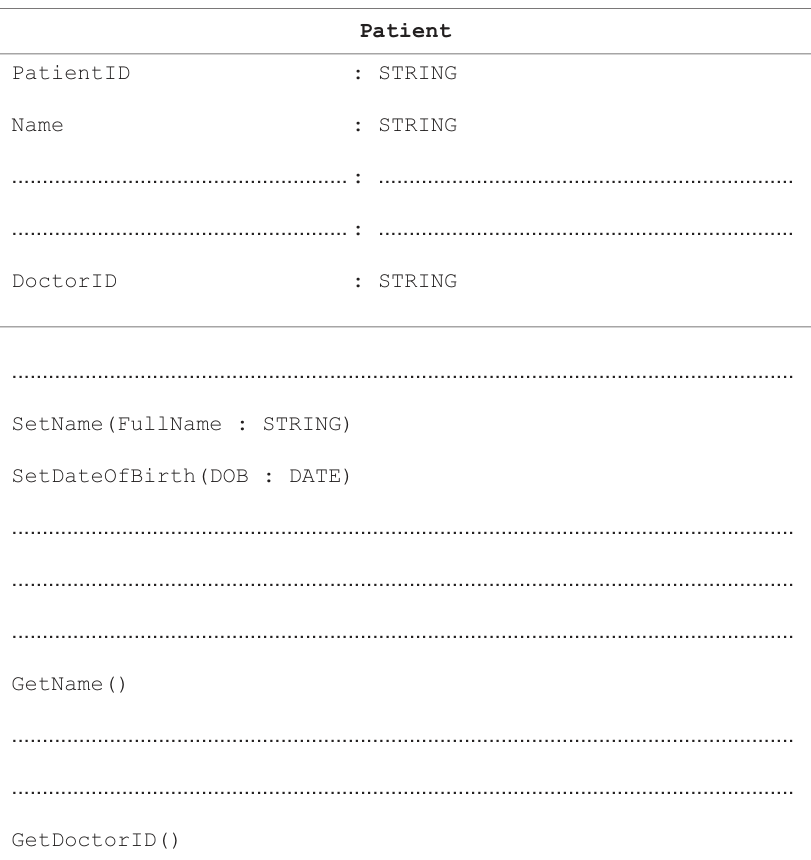

You are given a partial class diagram for a class called Patient.

The diagram already includes:

• PatientID : STRING
• Name : STRING
• DoctorID : STRING
• SetName(FullName : STRING)
• SetDateOfBirth(DOB : DATE)
• GetName()
• GetDoctorID()

The question asks you to complete the missing parts so that the class also includes:

• an attribute for date of birth
• an attribute for priority
• methods to assign patient ID, priority and doctor ID
• methods to return patient ID, date of birth and priority

So you must fill the blank lines with the missing attributes and methods that match the naming pattern already used.

Approach

The easiest approach is:

1. Look at the existing attributes and decide the missing fields.
2. Choose suitable data types.
3. Follow the naming pattern already shown:
   • Set... for assigning values
   • Get... for returning values
4. Keep the method style consistent with the class diagram already given.

Because SetDateOfBirth(DOB : DATE) is already present, the matching attribute should be DateOfBirth : DATE.
Because priority is numeric from 1 to 5, the best type is INTEGER.

Step-by-Step Reasoning

First, complete the attributes section.

The question explicitly asks for:

• date of birth
• priority

So the two missing attributes are:

• DateOfBirth : DATE
• Priority : INTEGER

These fit the information given:

• a date of birth is stored as a date
• a priority on a scale from 1 to 5 is a whole number

Next, complete the methods section.

The question asks for methods to assign:

• patient ID
• priority
• doctor ID

These should therefore be setter methods:

• SetPatientID(...)
• SetPriority(...)
• SetDoctorID(...)

The question also asks for methods to return:

• patient ID
• patient date of birth
• priority

These should therefore be getter methods:

• GetPatientID()
• GetDateOfBirth()
• GetPriority()

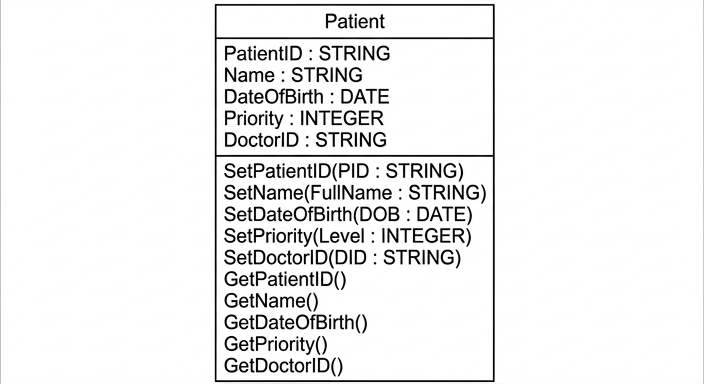

The completed class diagram is therefore:

Notice that the diagram style does not show return types for the getter methods, so you should follow the format already given rather than invent extra notation.

Key Takeaways

• A class diagram shows a class name, its attributes and its methods.
• Attributes need appropriate data types.
• Set... methods assign values to attributes.
• Get... methods return values from attributes.
• In exam questions like this, keep your additions consistent with the naming style already used in the diagram.

Common Mistakes

• Using the wrong data type for priority, such as STRING instead of INTEGER.
• Writing DOB as the attribute name instead of a proper attribute such as DateOfBirth.
• Forgetting that the question asks for both attributes and methods.
• Adding unrelated methods such as a constructor when they were not requested.
• Changing the existing method names instead of only filling the blanks.

Things to Be Careful About

• Follow the exact class name already given: Patient.
• Keep to the existing method naming convention: Set... and Get....
• Use DATE for date of birth, not STRING, unless the question explicitly says otherwise.
• Use a whole-number type for the 1 to 5 priority.
• Do not add extra UML symbols such as visibility markers (+, -) if they are not already shown in the diagram.
