Computer Science 9618/32 — October/November 2024

Background Concept

Packet switching is a method of sending data across a network by breaking a message into small units called packets. Instead of reserving one complete path for the whole communication, the network sends each packet separately.

A packet normally contains:

• the data payload
• a destination address
• a source address
• sequencing information so packets can be put back in order
• sometimes error-checking information

Routers examine the destination address in each packet and decide where to send it next. Because the network is shared, different packets from the same message can take different routes. When all packets reach the destination, they are reordered and reassembled to reconstruct the original message.

Understanding the Question

The question asks for the process of packet switching, not its advantages or disadvantages. So the answer should describe what happens to a message from start to finish:

1. it is split up
2. packets travel through the network
3. they are rebuilt at the end

For 3 marks, the examiner is likely looking for three clear stages of this process.

Approach

A good way to answer is to follow the message chronologically:

• start with the sender
• describe what happens while packets travel
• finish with the receiver

That structure makes sure the answer is complete and avoids drifting into unrelated networking detail.

Step-by-Step Reasoning

First, the sender does not transmit the whole message as one large block. It divides the message into packets. This is the fundamental idea of packet switching.

Next, each packet must contain enough control information for the network to handle it properly. Common examples are the source address, destination address, and a sequence number. The sequence number matters because packets may not arrive in the same order they were sent.

Then, routers on the network read the address information and forward each packet towards its destination. Since packet switching uses the available network paths dynamically, one packet may go by one route and another may go by a different route.

Finally, when the packets arrive at the destination, the receiving device uses the sequence information to place them back in the correct order and reassemble the original message.

That gives the full transmission process expected by the question.

Key Takeaways

• Packet switching sends data as separate packets, not one continuous stream on a fixed path.
• Each packet carries addressing and sequencing information.
• Routers can send packets by different routes.
• The destination device reassembles the packets into the original message.

Common Mistakes

• Describing circuit switching instead: packet switching does not reserve one dedicated path for the whole message.
• Giving only benefits, such as "it is efficient": this question asks how it works, not why it is useful.
• Forgetting reassembly at the destination: this is an important final stage.
• Saying packets always take the same route: they may take different routes depending on network conditions.

Things to Be Careful About

• Use the word "packets", not vague terms like "parts" or "bits of data" on their own.
• Make clear that routers forward packets using address information.
• Mention that packets are reassembled in the correct order, usually using sequence numbers.
• Do not claim that packet switching guarantees in-order arrival during transmission; ordering is handled at the destination.

Background Concept

Packet switching is designed for shared networks. Instead of giving one user exclusive use of a full connection, many users can share the same network resources. This often makes packet switching more efficient than circuit switching, but it also introduces uncertainty because packets are handled independently.

The key trade-off is:

• better use of bandwidth and more flexibility
• less predictable delivery time and order

So benefits usually come from efficiency and resilience, while drawbacks usually come from delay, loss, or reordering.

Understanding the Question

This question specifically asks for:

• two benefits
• two drawbacks

So a complete answer must include exactly both sides. The best response is four short, separate points. Each must clearly be about packet switching as a transmission method.

Approach

A useful strategy is to think in pairs:

• Benefits: why network managers and users like packet switching
• Drawbacks: what problems can happen because packets travel independently

Strong benefit ideas include efficient sharing of bandwidth and rerouting around failure.
Strong drawback ideas include delays, packets arriving out of order, and possible packet loss.

Step-by-Step Reasoning

For the first benefit, packet switching does not need a dedicated path to be kept open for the entire communication. That means bandwidth is shared only when needed, so network resources are used more efficiently.

For the second benefit, because packets are routed independently, the network can adapt. If one route is congested or unavailable, routers can send packets along another route. This makes the system more robust.

For the first drawback, independent routing means packets may experience different delays. Some may wait in queues at routers, and some may take longer routes. As a result, delivery time can be variable.

For the second drawback, packets may not arrive in order, and in some cases some may be lost completely. That means the receiving system must reorder packets and may need missing packets to be resent.

These four points are standard, distinct, and directly answer the question.

Key Takeaways

• Benefits of packet switching are mainly efficient bandwidth use and resilience.
• Drawbacks are mainly unpredictable timing and possible ordering/loss issues.
• Good exam answers separate each benefit and drawback clearly.

Common Mistakes

• Giving four benefits or four drawbacks: the question requires two of each.
• Repeating the same idea twice, for example "faster" and "less delay" as separate points when they mean almost the same thing.
• Giving vague statements like "it is better" without saying why.
• Confusing security issues with transmission-method issues unless the point is directly linked to packet switching.

Things to Be Careful About

• Make each point distinct so it can earn separate credit.
• Avoid overclaiming that packet switching is always faster; congestion can make it slower.
• If mentioning lost packets, make clear that this is a possible drawback of the method in practice, not that every packet is lost.
• If mentioning alternative routes as a benefit, link it to congestion or route failure so the advantage is clear.

Background Concept

File organisation means the way records are arranged within a file. In the syllabus, common organisations are serial, sequential and random.

A serial file stores records in the order they arrive or are entered. New records are usually appended to the end of the file. There is no attempt to keep the file sorted by a key value such as ID, name or date.

This is different from:

• Sequential file organisation, where records are kept in key order.
• Random/direct access organisation, where a record can be accessed via an address or hash calculation.

So the essential idea of serial organisation is: simple storage, insertion at the end, no key ordering.

Understanding the Question

The question asks you to describe serial file organisation as a method of storing data records. That means it wants the defining features of the storage method itself, not an example and not advantages/disadvantages.

For 2 marks, the safest approach is to give two separate points:

1. records are stored one after another in the order they are received
2. records are not sorted into key order

Those two points fully identify serial organisation.

Approach

To answer this kind of definition question:

1. name the arrangement of records
2. add the key distinguishing feature that separates it from other file organisations

Here, the distinguishing feature is that records are kept in arrival/input order rather than sorted order.

Step-by-Step Reasoning

A good answer starts from what happens when a new record is written.

• In a serial file, the first record is written first.
• The next record is placed after it.
• Each further record is added after the previous one.
• This means the file reflects the order in which records were entered.

Now compare that with sorting:

• If the file were organised by a key, such as customer number, the system would place each record in key order.
• But serial files do not do this.
• Therefore, the correct description must say that the records are not sorted by key field.

That is why the full answer is:

• records are stored one after another in the order they are added
• they are not stored in sorted key order

Key Takeaways

• Serial file organisation means records are stored in input/arrival order.
• New records are typically appended to the end.
• A serial file is not sorted by key.
• To define a file organisation clearly, state both the arrangement and what makes it different from the others.

Common Mistakes

• Confusing serial with sequential: sequential files are usually in key order; serial files are not.
• Saying only “records are stored in a file”: this is too vague and does not describe the organisation.
• Giving an example instead of a description: that would answer part (b), not part (a).
• Calling it random access: serial organisation does not describe direct addressing of records.

Things to Be Careful About

• Use the word order carefully: for serial files, it is the order of entry, not sorted order.
• If you mention a key field, make clear that the file is not arranged by it.
• For short definition questions, give separate precise points rather than a vague sentence.
• Do not drift into advantages such as “easy to add records” unless the question asks for them.

Background Concept

Serial file organisation is useful when data is collected over time and simply stored in the order it arrives. Because records are appended one after another, it suits situations where immediate sorting is unnecessary.

Typical uses include:

• transaction files
• log files
• temporary data capture files
• sensor readings collected in time order

Understanding the Question

This part asks for one example of a use of serial file organisation. It does not want a definition here; it wants a practical situation where this storage method is appropriate.

A standard accepted example is a transaction file because transactions are often collected as they occur and stored in arrival order.

Approach

Pick a common real-world file where:

• records are added continuously
• sorting is not essential at the moment of storage
• data is often processed later

A transaction file fits that exactly.

Step-by-Step Reasoning

Think about what a transaction file does:

• it stores events such as sales, payments or bookings
• new transactions happen over time
• each transaction can simply be added to the end of the file
• the file can then be sorted or processed later if needed

That makes a transaction file a suitable example of serial file organisation.

Key Takeaways

• Serial files are often used for data captured in time order.
• A transaction file is a standard example.
• For a one-mark “state one example” question, one clear valid example is enough.

Common Mistakes

• Repeating the definition instead of giving a use.
• Giving more detail than needed and accidentally saying something incorrect.
• Choosing an example that relies on sorted access, which fits sequential rather than serial organisation.

Things to Be Careful About

• Only one example is needed, so keep the answer short.
• Make sure the example genuinely suits unsorted, append-at-end storage.
• If you choose a different example such as a log file, it must still clearly match serial organisation.

Background Concept

A record is a user-defined data type used when one item in a program naturally consists of several smaller pieces of information. Instead of storing each piece separately, a record groups them together as one structured item.

A record is a composite data type because it contains multiple components, usually called fields. Each field stores one attribute of the overall item. A key feature of records is that the fields do not all have to be the same type. For example, one field might be STRING, another INTEGER, and another REAL.

This makes records useful for modelling real-world entities such as a student, employee, customer, or order, where several related values belong together.

Understanding the Question

The question asks you to describe the user-defined data type record. That means you are not writing code here; you are explaining what a record is.

For full marks, the answer needs the important defining points:

• it is user-defined
• it is composite
• it groups related data items / fields
• the fields can be of different data types

A vague answer such as "it stores data" would not be enough.

Approach

For a definition-style question like this, the safest method is to give the essential characteristics in short, precise statements. Think:

1. What kind of type is it?
2. What does it do?
3. What is special about its fields?

That structure produces a complete exam answer without unnecessary detail.

Step-by-Step Reasoning

Start with the classification:

• A record is user-defined, meaning the programmer creates it rather than it being one of the language's simple built-in types.
• It is composite, because it is made from several parts.

Then explain its purpose:

• It is used to store a set of related items together. For example, an order might need an order number, a date, and a price. These belong together as one order.

Then give the important distinguishing feature:

• Each part of the record is a field.
• Those fields can be of different types. That is one reason a record is useful. An order price might be REAL, while an order number might be STRING or INTEGER.

Putting those points together gives a full description.

Key Takeaways

• A record is a user-defined composite type.
• It stores related fields together as one item.
• Its fields can have different data types.
• Records are used to model structured real-world data clearly.

Common Mistakes

• Saying a record is just "a variable". It is not a single simple variable; it is a structured type containing fields.
• Confusing a record with an array. An array usually stores many items of the same type, while a record stores a fixed set of fields that may be different types.
• Forgetting to mention that it is user-defined or composite. Those words are often what earn the marks.
• Saying it stores unrelated values. The values in a record should be logically connected.

Things to Be Careful About

• Use the term field when describing the parts of a record.
• Do not describe how to code the record here; this part asks for a description, not pseudocode.
• Keep the focus on what a record is and why it is useful, rather than giving a long example.

Background Concept

When a programmer needs to store several related values as one structured item, a record is a suitable user-defined type. In pseudocode, a record is usually defined with a TYPE ... ENDTYPE block. Inside that block, each field is declared with its name and data type.

For example, a record for a person might contain fields for name, age, and date of birth. Each of these fields can use a different type, such as STRING, INTEGER, or DATE.

The general pattern is:

TYPE RecordName
   DECLARE FieldName1 : DataType
   DECLARE FieldName2 : DataType
ENDTYPE

That defines the structure of the record. It does not yet store actual data values; it just defines what one record will look like.

Understanding the Question

The question gives four pieces of data that must belong to one Order record:

• account number
• order number
• order price
• order date

You are asked to write pseudocode statements to define this record. So the task is to create the record structure, not to assign values to it and not to declare an array of records.

The key clue is the word define. That means you should write a TYPE Order definition with four field declarations inside it.

Approach

The method is:

1. Start the record definition with TYPE Order.
2. Add one DECLARE statement for each field.
3. Choose sensible data types for each field.
4. End the record definition with ENDTYPE.

For the data types:

• AccountNumber is suitably stored as STRING because identifiers such as account numbers may contain leading zeros and are not usually used in arithmetic.
• OrderNumber is also suitably stored as STRING for the same reason.
• OrderPrice should be REAL because it may contain decimal values.
• OrderDate should be DATE.

Step-by-Step Reasoning

First, write the record name:

TYPE Order

This tells the pseudocode that a new user-defined type called Order is being created.

Next, add the first field:

DECLARE AccountNumber : STRING

This creates a field called AccountNumber. STRING is a sensible choice because account numbers are identifiers, not values that need arithmetic.

Then the second field:

DECLARE OrderNumber : STRING

Again, an order number is normally an identifier, so STRING is appropriate.

Then the price:

DECLARE OrderPrice : REAL

A price may include digits after the decimal point, so REAL is the correct type.

Then the date:

DECLARE OrderDate : DATE

This field stores the date of the order.

Finally, close the definition:

ENDTYPE

That completes the record definition.

The full answer is therefore:

TYPE Order
   DECLARE AccountNumber : STRING
   DECLARE OrderNumber : STRING
   DECLARE OrderPrice : REAL
   DECLARE OrderDate : DATE
ENDTYPE

Key Takeaways

• A record definition in CIE-style pseudocode uses TYPE ... ENDTYPE.
• Each field inside the record is declared separately with DECLARE.
• The field names should match the data being stored.
• Choose data types based on the nature of the data, not just whether it looks numeric.

Common Mistakes

• Writing variable assignments instead of a type definition. The question asks to define the record, not fill it with values.
• Forgetting TYPE or ENDTYPE. Without these, the record structure is incomplete.
• Using one declaration for all fields without clearly naming each field and its type.
• Choosing INTEGER for numbers that are really identifiers, such as account numbers or order numbers.
• Using a real programming language instead of CIE pseudocode.

Things to Be Careful About

• Keep to pseudocode conventions: upper-case keywords and the format DECLARE FieldName : DataType.
• Use the record name exactly as given: Order.
• Include all four fields named in the question.
• Make sure OrderPrice is REAL, since prices commonly need decimal places.
• If a centre or mark scheme allows slightly different sensible types for the identifier fields, the structure and field declarations are still the most important part.

Background Concept

In this floating-point system, the number is split into two parts:

• the mantissa: the significant digits of the number
• the exponent: how far the binary point moves

Here, both parts use two's complement.

For Cambridge-style binary floating-point questions, the mantissa is treated as a signed binary fraction with the binary point immediately after the sign bit. So a positive mantissa such as 010001110111 means:

• sign bit 0 so the value is positive
• mantissa value 0.10001110111

A normalised mantissa has:

• 01... for a positive number
• 10... for a negative number

This ensures the number uses the available bits efficiently.

The exponent is also stored in two's complement. A positive exponent means move the binary point to the right. A negative exponent means move it to the left.

Understanding the Question

You are given:

• a 12-bit mantissa: 010001110111
• a 4-bit exponent: 0111
• both stored in two's complement
• the number is already normalised

The task is to find the denary value of that floating-point number.

So we must:

1. interpret the mantissa correctly as a signed fraction
2. convert the exponent to denary
3. apply the exponent by shifting the binary point
4. convert the final binary number to denary

Approach

The quickest reliable method is:

1. write the mantissa with the binary point after the sign bit
2. decode the exponent from two's complement
3. use the exponent to shift the binary point
4. convert the resulting binary number to decimal

Because the exponent here is positive, the shift will be to the right.

Step-by-Step Reasoning

The mantissa bits are:

010001110111

Since the first bit is 0, the mantissa is positive. With the binary point after the sign bit, this becomes:

0.10001110111

Now decode the exponent:

0111

This is a 4-bit two's complement positive value, so it is simply 7.

That means:

Multiplying by $2^7$ means shifting the binary point 7 places to the right:

0.10001110111 → 1000111.0111

Now convert 1000111.0111 to denary.

Integer part:

• 1000111 = $64 + 4 + 2 + 1 = 71$

Fraction part:

• .0111 = $0.25 + 0.125 + 0.0625 = 0.4375$

So total value:

Therefore the denary value is 71.4375.

Key Takeaways

• In this representation, the mantissa is a signed binary fraction with the binary point after the sign bit.
• Decode the exponent separately using two's complement.
• A positive exponent shifts the binary point right; a negative exponent shifts it left.
• After shifting, convert the binary number to denary in the usual way.

Common Mistakes

• Treating the mantissa as an ordinary 12-bit integer instead of a binary fraction.
• Forgetting that the exponent is in two's complement.
• Moving the binary point the wrong way for a positive exponent.
• Converting only the integer part and ignoring the fractional part .0111.
• Assuming the binary point is at the far right of the mantissa instead of after the sign bit.

Things to Be Careful About

• The 12 mantissa bits already include the sign bit.
• The mantissa is normalised, so for a positive value it should begin 01.
• 0111 in 4-bit two's complement is still +7; do not overcomplicate positive exponents.
• When shifting the point, keep all remaining bits in order so the fraction is not lost.

Background Concept

To store a number in binary floating-point form, you must separate it into:

• a mantissa: the significant binary digits
• an exponent: the power of 2 used to place the binary point correctly

In this question:

• the mantissa has 12 bits total
• the exponent has 4 bits total
• both use two's complement

For a normalised two's complement mantissa:

• positive numbers begin 01
• negative numbers begin 10

That is the binary floating-point equivalent of making sure the number is written in a standard compact form.

A negative mantissa is not written by simply putting a minus sign in front. It must be stored as a proper two's complement bit pattern.

Understanding the Question

You must store -49.1875 in this specific floating-point system.

That means you need to produce:

• a 12-bit mantissa
• a 4-bit exponent
• both in two's complement
• with the mantissa normalised

So the job is not just converting to binary. You must also:

1. normalise the number
2. fit it into the required number of bits
3. encode the negative mantissa correctly in two's complement

Approach

A safe step-by-step method is:

1. convert the denary number to binary
2. ignore the sign for a moment and normalise the positive magnitude
3. choose the exponent from the number of shifts used
4. write the positive mantissa to the required 12-bit width
5. convert that mantissa into two's complement to make it negative
6. encode the exponent in 4-bit two's complement

This avoids a very common mistake: trying to invent the negative floating-point bit pattern directly without first finding the correct normalised magnitude.

Step-by-Step Reasoning

First convert the magnitude $49.1875$ to binary.

1. Convert the integer part

$49$ in binary is:

2. Convert the fractional part

$0.1875$ in binary is:

So:

3. Normalise the binary number

We want the mantissa to be a signed fraction with the binary point after the sign bit.

So:

Why exponent 6?
Because the binary point has moved 6 places left to turn 110001.0011 into 0.1100010011.

4. Fit the positive mantissa into 12 bits

The mantissa must contain:

• 1 sign bit
• 11 fractional bits

The positive normalised mantissa is:

0.1100010011

Pad it with one extra 0 at the end to make 11 fractional bits:

0.11000100110

As 12 bits total, that is:

011000100110

5. Make the mantissa negative using two's complement

Now convert 011000100110 to its negative two's complement form.

Invert the bits:

100111011001

Add 1:

100111011010

So the 12-bit mantissa is:

100111011010

This is correctly normalised for a negative value because it begins with 10.

6. Encode the exponent

The exponent is $+6$.

In 4-bit two's complement, positive 6 is:

0110

7. Final representation

So the floating-point representation of $-49.1875$ is:

• Mantissa: 100111011010
• Exponent: 0110

Key Takeaways

• Convert the denary number to binary first.
• Normalise before worrying about fixed bit widths.
• In this system, the mantissa is a signed fraction, not an integer.
• Negative mantissas must be stored using two's complement.
• Check normalisation at the end: 01 for positive, 10 for negative.

Common Mistakes

• Writing the mantissa as sign-and-magnitude instead of two's complement.
• Forgetting to pad the mantissa to the full 12 bits before taking two's complement.
• Using the wrong exponent because of miscounting the point shift.
• Writing 110001.0011 × 2^0 or 1.100010011 × 2^5, which does not match this mantissa format.
• Encoding the exponent incorrectly, especially if treating 0110 as something other than positive 6.
• Producing a negative mantissa that does not begin 10, so it is not normalised.

Things to Be Careful About

• The mantissa length is 12 bits total, not 12 fractional bits.
• The binary point is understood to be after the sign bit.
• Pad the positive mantissa to the correct width before taking two's complement.
• Do not trim trailing zeros if they are needed to make the full bit length.
• Always recheck that the final mantissa is normalised and the exponent fits in 4-bit two's complement.

Background Concept

The TCP/IP protocol suite is organised into layers. Each layer has a different role, and the Application Layer is the top layer that provides services directly to user applications.

A protocol is a set of rules that defines how data is formatted, transmitted and interpreted. At the Application Layer, different protocols are used for different kinds of user activity. For example:

• HTTP is used for web page transfer.
• FTP is used for file transfer.
• SMTP is used to send email.
• POP3 and IMAP are used to receive or manage email.

So, if a question asks for Application Layer protocols, it wants named examples of these end-user communication rules, not lower-layer protocols such as IP or TCP.

Understanding the Question

This part asks for two protocols used at the Application Layer of TCP/IP, and for each one you must give a short description of what it does.

That means each answer needs two parts:

1. the name of a valid Application Layer protocol
2. a description of its use

Because the question says "two protocols", giving only one protocol with a very detailed description would not be enough. Also, the description must match the named protocol correctly.

Approach

The safest approach is:

1. Choose two well-known Application Layer protocols.
2. For each one, state the main service it provides.
3. Keep the description precise and linked to the protocol's purpose.

Common safe choices are HTTP, FTP, SMTP, POP3 or IMAP. In the solution, HTTP and FTP were chosen because they are standard and easy to describe accurately.

Step-by-Step Reasoning

First, identify protocols that definitely belong to the Application Layer.

• HTTP qualifies because it is the protocol used when a browser requests and receives web pages from a web server.
• FTP qualifies because it is the protocol used to upload or download files between systems.

Then add a clear description for each:

• For HTTP, the key idea is web communication. A browser sends a request and the server returns a web page or other web resource.
• For FTP, the key idea is file transfer. It exists specifically to move files between a client and a server.

These short descriptions are enough because they identify the protocol's function accurately.

Other valid answers could also have been used, for example:

• SMTP — sends email messages between mail servers or from a client to a mail server.
• POP3 — retrieves email from a mail server, usually downloading it to the client.
• IMAP — accesses and manages email while keeping it on the server.

Key Takeaways

• Application Layer protocols provide network services directly to applications used by people.
• You should be able to name standard examples such as HTTP, FTP, SMTP, POP3 and IMAP.
• In exam questions, always pair the protocol name with its correct function.

Common Mistakes

• Naming TCP or IP instead of an Application Layer protocol. These are lower-layer protocols, not Application Layer protocols.
• Giving only the protocol name with no description.
• Mixing up email protocols, for example saying SMTP is for receiving email rather than sending it.
• Writing vague descriptions such as "used on the internet" without saying what service it provides.

Things to Be Careful About

• The description must match the named protocol exactly.
• Choose protocols that are clearly in the syllabus list for the Application Layer.
• If the question asks for two, give two separate protocol-description pairs.
• Keep descriptions focused on purpose, such as web access, file transfer, or email handling.

Background Concept

In a layered network model, each layer has a specific responsibility and communicates with the layer above and the layer below it. The Application Layer is the highest layer in the TCP/IP protocol suite.

Its job is not to deal with the electrical signal or the routing of packets. Instead, it provides the services that application software needs in order to communicate over a network. This is the layer that supports activities such as:

• viewing web pages
• sending and receiving email
• transferring files
• sharing data between applications

The Application Layer relies on protocols such as HTTP, FTP, SMTP, POP3 and IMAP. These protocols define the rules for communication for a particular service.

Understanding the Question

This question asks for both the purpose and the function of the Application Layer.

• Purpose means why the layer exists.
• Function means what it actually does.

So the answer needs more than just "it is used for applications". It should explain that the layer provides network services to user programs, uses application protocols, and passes data into the rest of the TCP/IP stack for transmission.

Approach

A good structure is:

1. state that it is the interface between applications and the network
2. explain that it provides services to user programs such as web, email and file transfer
3. explain that it uses protocols and passes data to the Transport Layer

This gives a complete answer covering both purpose and function.

Step-by-Step Reasoning

The first important point is the interface role.

When a user opens a browser or email program, that software does not directly manage packets or routing. Instead, it uses the Application Layer. So this layer acts as the point where application software accesses network communication.

The second important point is service provision.

Different applications need different network services:

• a browser needs to request and receive web pages
• an email client needs to send or retrieve messages
• a file transfer program needs to upload or download files

The Application Layer supports these by providing suitable protocols.

The third important point is protocol rules and data handling.

The Application Layer uses protocols such as:

• HTTP for web resources
• SMTP for sending email
• FTP for file transfer

These protocols define how requests and responses are structured, so both ends understand the communication.

Finally, once the application data has been prepared according to the correct protocol, it is passed down to the Transport Layer so that the lower layers can handle delivery across the network.

So a complete explanation is that the Application Layer lets user applications access network services, applies the correct application protocol, and hands the data to lower layers for transmission.

Key Takeaways

• The Application Layer is the top layer of TCP/IP.
• It provides network services directly to user applications.
• It uses protocols such as HTTP, FTP and SMTP.
• It passes prepared data to the Transport Layer for onward transmission.

Common Mistakes

• Saying the Application Layer is responsible for routing packets. Routing is not its main role.
• Confusing the Application Layer with the physical transmission of data.
• Naming protocols without explaining the layer's actual purpose.
• Giving only examples of applications, but not explaining that protocols define the communication rules.

Things to Be Careful About

• Mention both applications and protocols in the answer.
• Make clear that this layer is the user-facing layer of the TCP/IP suite.
• Do not confuse the Application Layer with lower-layer tasks such as addressing, routing or signal transmission.
• If asked about TCP/IP specifically, keep the answer in terms of layered communication and protocol-based services.

Background Concept

A sum-of-products (SOP) expression is built by adding together product terms, also called minterms. For a truth table, each row where the output is 1 contributes one minterm.

To write a minterm:

• if an input is 0, write that variable complemented
• if an input is 1, write that variable uncomplemented
• AND the four inputs together for that row

Then OR all those minterms together.

For example, the row A=0, B=1, C=0, D=1 gives the minterm $\overline{A}B\overline{C}D$.

Understanding the Question

This part asks for the Boolean expression that matches the truth table exactly, written as a sum-of-products. At this stage, the question is not asking for simplification. It wants the full canonical SOP directly from the rows where the output $X$ equals 1.

The given truth table has four inputs, so each product term must contain all four variables: $A$, $B$, $C$ and $D$.

Approach

The method is:

1. Scan the truth table and pick out every row where $X=1$.
2. Convert each of those rows into a minterm.
3. Join the minterms with plus signs to make the SOP.

Because this is a direct conversion from a truth table, there is no need to guess a pattern first. Just systematically translate the 1 rows.

Step-by-Step Reasoning

From the table, $X=1$ for these input combinations:

• 0001
• 0010
• 0101
• 0110
• 1001
• 1010
• 1101
• 1110

Now convert each one.

• 0001 gives $\overline{A}\,\overline{B}\,\overline{C}D$
• 0010 gives $\overline{A}\,\overline{B}C\overline{D}$
• 0101 gives $\overline{A}B\overline{C}D$
• 0110 gives $\overline{A}BC\overline{D}$
• 1001 gives $A\overline{B}\,\overline{C}D$
• 1010 gives $A\overline{B}C\overline{D}$
• 1101 gives $AB\overline{C}D$
• 1110 gives $ABC\overline{D}$

OR them together:

That is the canonical sum-of-products for the table.

Key Takeaways

• Canonical SOP comes from the rows where the output is 1.
• Each minterm must include every input variable.
• A 0 in the row means the variable is complemented; a 1 means it is not.
• Do not simplify unless the question asks you to.

Common Mistakes

• Using rows where $X=0$ instead of rows where $X=1$.
• Complementing the wrong variables, for example writing $A$ when the row has A=0.
• Missing one of the eight valid rows.
• Giving a simplified expression here instead of the full SOP when the question specifically asks for the expression corresponding to the truth table.

Things to Be Careful About

• Every term here must have all four variables because this is a canonical SOP.
• Keep the variable order consistent as $A$, $B$, $C$, $D$.
• Use plus for OR and adjacency for AND.
• Check carefully that each minterm matches one and only one row of the truth table.

Background Concept

A Karnaugh map (K-map) is a grid used to organise Boolean outputs so that adjacent cells differ by only one input bit. For four variables, the map has 16 cells.

The row and column labels must be in Gray-code order, not ordinary binary counting order. Gray code changes only one bit at a time, so the correct order is:

• 00, 01, 11, 10

That ordering is what makes adjacency work properly for later simplification.

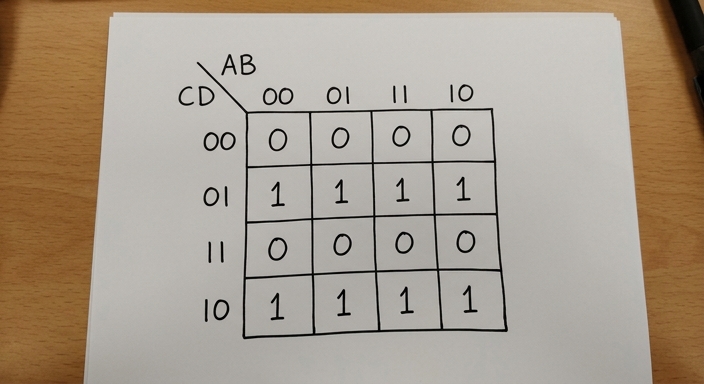

Understanding the Question

This part is not asking for simplification yet. It only asks you to complete the K-map using the truth table values.

The diagram shows:

• columns labelled AB in the order 00, 01, 11, 10
• rows labelled CD in the order 00, 01, 11, 10

You must place each output value $X$ into the cell matching its AB column and CD row.

Approach

The safest method is to work by row labels of the K-map:

1. Take a fixed CD row, such as 00.
2. Read the truth-table outputs for all four AB combinations.
3. Fill those four cells.
4. Repeat for the remaining CD rows.

Because the truth table here shows the same pattern for all values of A and B, the map will form complete horizontal rows of 1s and 0s.

Step-by-Step Reasoning

The K-map rows are labelled by CD.

Row CD = 00

Check the truth table entries where C=0 and D=0.
For all AB combinations, the output is 0.
So the first row is:

• 0 0 0 0

Row CD = 01

Check the truth table entries where C=0 and D=1.
For all AB combinations, the output is 1.
So the second row is:

• 1 1 1 1

Row CD = 11

Check the truth table entries where C=1 and D=1.
For all AB combinations, the output is 0.
So the third row is:

• 0 0 0 0

Row CD = 10

Check the truth table entries where C=1 and D=0.
For all AB combinations, the output is 1.
So the fourth row is:

• 1 1 1 1

That gives the completed map shown in the answer.

Key Takeaways

• A 4-variable K-map uses Gray-code order: 00, 01, 11, 10.
• Fill the K-map from the truth table before trying to simplify.
• Matching row and column labels correctly is essential for later loop formation.

Common Mistakes

• Using binary order 00, 01, 10, 11 instead of Gray-code order.
• Swapping the variables, for example treating rows as AB and columns as CD.
• Copying the truth table into the grid in straight counting order instead of matching each cell label.

Things to Be Careful About

• Read the map headers carefully: here AB are across the top and CD are down the side.
• The bottom row is 10, not 11 again.
• Even if a whole row looks identical, still verify it from the truth table rather than assuming the pattern.

Background Concept

In a K-map, loops are drawn around adjacent 1s to simplify a sum-of-products expression. Valid groups must:

• contain $1, 2, 4, 8, \ldots$ cells
• be rectangular
• contain only 1s
• be as large as possible

A larger group removes more variables from the final expression. Adjacency is based on Gray-code ordering, and the left and right edges wrap around, as do the top and bottom edges.

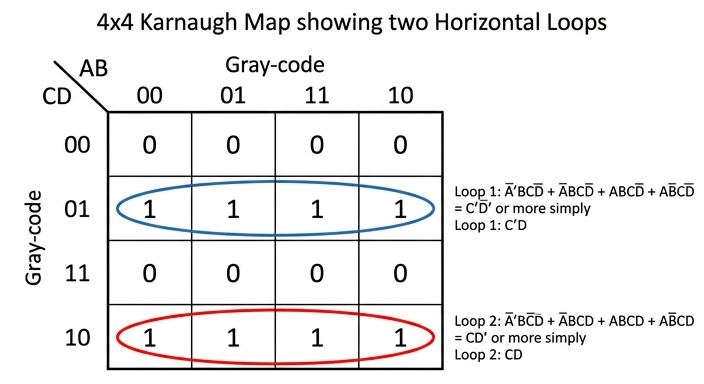

Understanding the Question

This part asks you to draw loops that produce an optimal sum-of-products. That means you should use the fewest and largest valid groups.

From the completed K-map, there are two full rows of 1s:

• row CD = 01
• row CD = 10

The task is to loop them in the best way.

Approach

Look for the largest rectangular groups first.

Each of those rows contains four adjacent 1s across all columns, so each row can form one group of 4. That is already optimal for each row.

You cannot combine the two rows into a single group of 8, because 01 and 10 are not adjacent row labels in Gray-code order.

Step-by-Step Reasoning

The completed K-map is:

• row 00: all 0
• row 01: all 1
• row 11: all 0
• row 10: all 1

First loop

Take all four 1s in row CD = 01.
This forms one horizontal group of 4.

Second loop

Take all four 1s in row CD = 10.
This forms another horizontal group of 4.

Why not one loop of 8?
Because the rows 01 and 10 are not adjacent in Gray-code sequence. The row order is 00, 01, 11, 10, so:

• 01 is adjacent to 00 and 11
• 10 is adjacent to 11 and 00

So those two rows must stay as separate groups.

That is why the optimal answer has exactly two loops, each covering a whole row of four 1s.

Key Takeaways

• Always try to make loops as large as possible.
• Adjacency in a K-map depends on Gray-code order, not visual similarity alone.
• A full row of four 1s should be grouped as one loop of 4, not split into smaller pairs.

Common Mistakes

• Drawing several small pairs instead of one large group of 4.
• Trying to combine the 01 row and the 10 row into a group of 8 even though they are not adjacent.
• Including any 0 cells inside a loop.

Things to Be Careful About

• Remember the wraparound rule, but use it only where the Gray-code labels are actually adjacent.
• A valid loop must be rectangular and contain a power-of-two number of cells.
• Since the question asks for an optimal SOP, avoid unnecessary extra loops.

Background Concept

After forming loops in a K-map, you write one product term per loop.

To get the term for a loop:

• keep only the variables that stay constant throughout that loop
• if a variable is always 0, write it complemented
• if a variable is always 1, write it uncomplemented
• ignore any variable that changes within the loop

This is why K-maps simplify Boolean expressions: changing variables disappear.

Understanding the Question

This part uses the loops from part (c) and asks for the simplified sum-of-products expression.

There are two loops:

• the entire row where CD = 01
• the entire row where CD = 10

Because each loop stretches across all four AB columns, both A and B change and therefore will not appear in the simplified terms.

Approach

Read each loop separately.

1. For each loop, identify which variables stay fixed.
2. Write one product term from those fixed values.
3. OR the two terms together.

Since these are whole-row groups, only C and D remain relevant.

Step-by-Step Reasoning

Loop on row CD = 01

Across this whole row:

• C = 0 always, so write $\overline{C}$
• D = 1 always, so write $D$
• A changes across the columns, so omit it
• B changes across the columns, so omit it

So this loop gives:

Loop on row CD = 10

Across this whole row:

• C = 1 always, so write $C$
• D = 0 always, so write $\overline{D}$
• A changes, so omit it
• B changes, so omit it

So this loop gives:

Now OR the two terms:

That is the simplified SOP expression.

Key Takeaways

• One loop produces one product term.
• Variables that change inside a loop are removed.
• Whole-row groups in a 4-variable K-map often eliminate the column variables entirely.
• The final answer must still be written as a sum-of-products when the question asks for SOP.

Common Mistakes

• Including $A$ or $B$ in the final expression even though they vary across the loop.
• Reversing complements, for example writing $CD$ instead of $C\overline{D}$ for row 10.
• Writing only one term and forgetting the second loop.
• Writing XOR notation instead of SOP form when the question explicitly asks for sum-of-products.

Things to Be Careful About

• Read the row label in the correct variable order: CD, not DC.
• 01 means $\overline{C}D$, not $C\overline{D}$.
• Even though the expression is equivalent to XOR, the required form here is $\overline{C}D + C\overline{D}$.

Background Concept

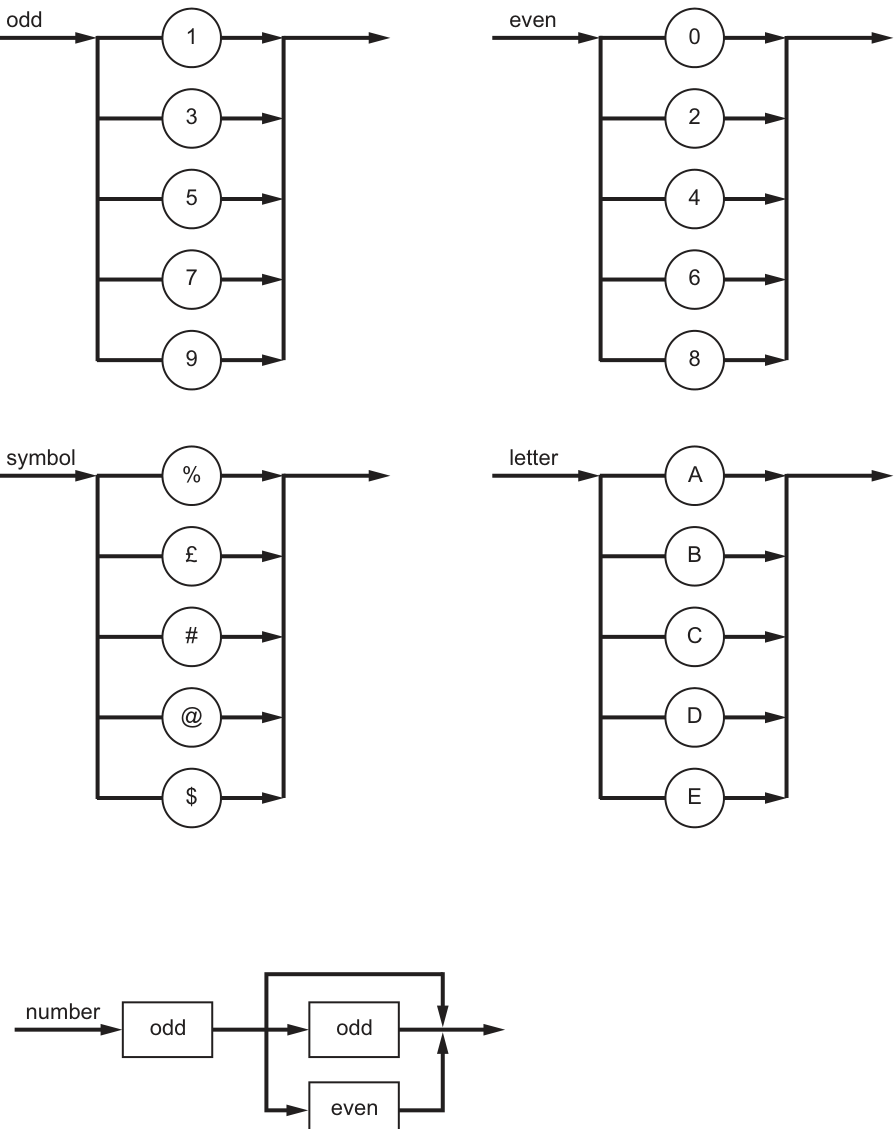

A syntax diagram shows the valid structure of a string. You follow the arrow from left to right. If there is a choice, you may take one valid path. A string is valid only if:

• every symbol matches the rule at each stage, and
• the whole string is used up exactly when the diagram finishes.

Here, the named rules are:

• odd = one of 1, 3, 5, 7, 9
• even = one of 0, 2, 4, 6, 8
• number = an odd followed by either an odd or an even

So number must be exactly 2 digits long, and its first digit must be odd.

Understanding the Question

You are given two values, 21 and 123, and asked why each is invalid according to the syntax diagrams.

The important diagram is number. It says:

1. the first digit must match odd
2. the second digit must match either odd or even
3. then the rule ends

So the question is not asking you to invent a new rule. It is asking you to test each given value against the existing number rule and state the exact reason it fails.

Approach

For each value:

1. check the first digit against odd
2. if that passes, check the second digit against odd or even
3. make sure there are no extra digits left over

This gives a specific reason rather than just saying "it is invalid".

Step-by-Step Reasoning

For 21:

• The first digit is 2.
• The rule says the first digit must be odd.
• 2 is not in the odd set 1, 3, 5, 7, 9.
• So it fails immediately.

Therefore the correct reason is: the first digit must be odd.

For 123:

• The first digit is 1, which is valid for odd.
• The second digit is 2, which is valid for even.
• At this point the number rule has finished, because it allows exactly two digits.
• But there is still a third digit, 3, left over.
• That means the whole string does not fit the diagram.

Therefore the correct reason is: number must contain exactly 2 digits.

Key Takeaways

• A syntax diagram must match the entire string, not just the beginning.
• If extra characters remain after the diagram ends, the string is invalid.
• In this question, number means exactly two digits starting with an odd digit.

Common Mistakes

• Saying 21 is invalid because it is "an even number". The issue is not the value of the whole number; it is that the first digit is not from the odd rule.
• Saying 123 is invalid because the last digit is odd. That is not the problem. The problem is that there is a third digit at all.
• Forgetting that a syntax rule must consume the whole string.

Things to Be Careful About

• Read odd and even as named grammar rules, not as comments about the whole number.
• Do not stop checking once the start of the string matches; you must also check the length.
• Use a precise reason tied to the diagram, such as "first digit must be odd" or "must contain exactly 2 digits".

Background Concept

Backus-Naur Form (BNF) is a way of writing grammar rules in text form.

Important BNF ideas:

• a non-terminal is written in angle brackets, for example <number>
• ::= means "is defined as"
• | means "or"
• writing symbols next to each other means they occur in sequence
• literal terminal symbols such as % or @ are written directly, often in quotes

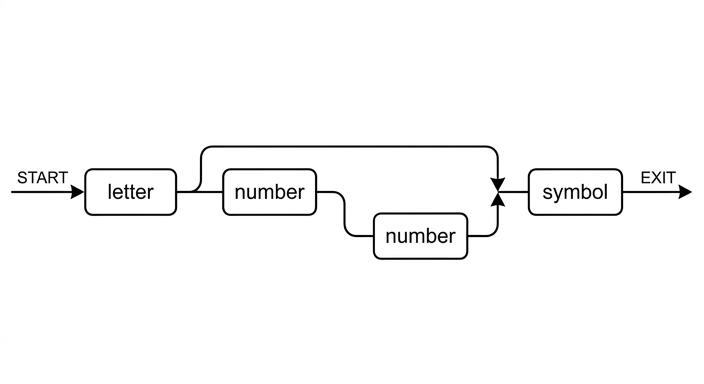

A syntax diagram and a BNF rule describe the same grammar, just in different forms.

Understanding the Question

You need to convert two of the given syntax diagrams into BNF:

• symbol
• number

From the diagrams:

• symbol is a choice of %, £, #, @, $
• number starts with odd, then has a choice of odd or even

So you are translating choice into |, and sequence into items written one after another.

Approach

For each rule:

1. identify whether the diagram shows sequence, choice, or both
2. write the non-terminal name on the left of ::=
3. on the right, use BNF alternatives with |
4. keep the structure faithful to the diagram

For number, because the branch happens after the first odd, the clean BNF is to write two full alternatives.

Step-by-Step Reasoning

For <symbol>:

• The diagram shows five possible terminals.
• In BNF, that becomes one production with five alternatives.

So:

<symbol> ::= "%" | "£" | "#" | "@" | "$"

For <number>:

• The first item is always <odd>.
• Then there is a choice between <odd> and <even>.
• In BNF, the simplest standard form is to expand that into two alternatives.

So:

<number> ::= <odd><odd> | <odd><even>

This matches the syntax diagram exactly: two digits, first odd, second odd or even.

Key Takeaways

• Syntax-diagram branches become | in BNF.
• Boxes followed one after another become concatenation in BNF.
• When a choice happens after a fixed prefix, it is often clearest to write separate alternatives.

Common Mistakes

• Writing only one possibility for <number>, such as <odd><even>, and forgetting <odd><odd>.
• Writing <number> ::= <odd> | <even>, which would mean one digit only, not two.
• Using terminal symbols where the diagram uses named rules, for example replacing <odd> with a random digit without following the given structure.

Things to Be Careful About

• Keep the non-terminal names exactly as given: <symbol>, <number>, <odd>, <even>.
• Do not forget that number has two components in sequence.
• Use | only for alternatives, not for sequence.

Background Concept

The kernel is the core part of the Operating System that stays in memory and manages the hardware and system resources. One of its key jobs is interrupt handling.

An interrupt is a signal that tells the processor that something needs attention immediately or very soon. Interrupts can come from hardware, such as a keyboard press or disk completion, or from software.

When an interrupt happens, the CPU cannot just forget what it was doing. The current process must be paused safely. This usually means saving the current context, such as the program counter, register values and other state information. The Operating System can then run code to deal with the event. That code is the interrupt service routine, often called an ISR. After the interrupt has been handled, the system either resumes the interrupted process or allows the scheduler to choose another process.

Understanding the Question

This question asks specifically how the kernel acts as an interrupt handler. So the answer is not just "the kernel handles interrupts"; it needs the sequence of what it does.

For 2 marks, the likely credit points are the main stages:

• pause the current activity and save its state
• run the correct routine to handle the interrupt, then continue normal execution

The word "outline" means a concise description is enough. A long explanation of all interrupt types is not needed.

Approach

Use the standard interrupt-handling sequence:

1. an interrupt occurs
2. the kernel gains control
3. the current process state is saved
4. the correct interrupt routine is executed
5. the saved process is restored, or another process is scheduled

For a 2-mark answer, write two clear bullet points covering save state and service/restore.

Step-by-Step Reasoning

When the interrupt occurs, the current program cannot continue uninterrupted because the processor must respond to the new event. The kernel therefore takes control.

First, it stops the currently running process at a safe point and saves its state. This matters because without saving the state, the process would not be able to continue correctly later. The saved state typically includes register contents and the address of the next instruction.

Next, the kernel identifies which interrupt has occurred and runs the appropriate interrupt service routine. That routine might read input, acknowledge a device, move data, or signal that an I/O operation has finished.

After the interrupt has been dealt with, the kernel restores the saved state so the interrupted process can continue as if it had only been paused briefly. In some cases, instead of immediately resuming the same process, the kernel may pass control to the scheduler so that another ready process runs.

Those are the exact ideas the short exam answer needs.

Key Takeaways

• The kernel is responsible for low-level control of the computer.
• Interrupt handling means pausing current execution safely, dealing with the event, then continuing execution.
• Saving and restoring context is essential in Operating System process control.

Common Mistakes

• Saying only "the kernel handles interrupts" without explaining how. That is too vague for full marks.
• Confusing an interrupt with an error. Interrupts are not necessarily faults; they are signals needing attention.
• Forgetting to mention saving the current process state. This is a key part of correct interrupt handling.
• Forgetting what happens after servicing the interrupt. The system must resume or reschedule execution.

Things to Be Careful About

• Keep the answer focused on the kernel, not on general CPU design.
• Use correct terminology such as "save state", "interrupt service routine" and "restore" or "schedule".
• Do not drift into a long explanation of scheduling unless it directly supports the final step after the interrupt is serviced.

Background Concept

In object-oriented programming, a class is the definition used to create objects. It describes two main things:

• the data an object will hold
• the behaviour an object will have

The data held by a class is usually called attributes, fields or properties. These represent the state of an object, such as a name, age, balance or position.

The behaviour is defined by methods. A method is a procedure or function that belongs to the class and operates on that object's data.

So, when we talk about the structure of a class, we normally mean that it contains:

• a class name
• attributes
• methods

Some languages also include constructors and access modifiers such as public and private, but the core exam idea is that a class groups together data and the operations on that data.

Understanding the Question

The question asks you to outline the structure of a class. The word outline means a brief description is enough. You do not need to write code, and you do not need to explain inheritance or polymorphism.

For 3 marks, the examiner is likely looking for the main structural parts of a class, not a long essay. The safest high-value points are:

• a class is a template for objects
• it contains attributes/data items
• it contains methods/operations

Approach

To answer this type of OOP theory question, think of a class as a "container of definition".

Ask yourself:

1. What is a class for?
2. What information does it store?
3. What actions does it define?

That naturally gives the three key marking points:

• purpose: template/blueprint
• state: attributes
• behaviour: methods

Step-by-Step Reasoning

A strong answer starts by stating what a class is.

• A class is not a single usable item by itself in the same way an object is. It is the definition or template from which objects are created.

Then identify the first structural component:

• A class contains attributes (also called data fields or properties).
• These define what data each object created from the class will store.
• For example, if the class were Car, attributes might include registration number, colour and speed.

Then identify the second structural component:

• A class contains methods.
• These define what operations can be carried out by objects of that class.
• For example, methods for Car might increase speed, brake, or display details.

That is enough for a full-mark outline because it covers the essential structure: the class defines both the data and the operations for its objects.

Key Takeaways

• A class is a template used to create objects.
• A class contains attributes to store state.
• A class contains methods to define behaviour.
• In OOP, classes group related data and operations together.

Common Mistakes

• Saying a class is an object. This is wrong because an object is an instance created from a class.
• Describing only attributes and forgetting methods. That gives an incomplete structure.
• Writing vague statements such as "a class contains code" without naming attributes or methods.
• Explaining inheritance, polymorphism or encapsulation instead of the actual structure of the class.

Things to Be Careful About

• Use correct OOP terminology: class, object, attribute, method.
• Do not confuse data stored in the class definition with actual values held by an object.
• If the question asks for structure, focus on the main components, not on language-specific syntax.
• Keep the answer brief because this is an outline question, not a full explanation.

Background Concept

A common source of confusion in OOP is the difference between a class and an object.

A class is the definition. It says what data should exist and what methods should be available. You can think of it as a blueprint.

An object is a real instance created from that class. It is the usable thing in memory, with its own values stored in its attributes.

For example:

• Student could be a class
• one object could represent Aisha
• another object could represent Ben

Both objects come from the same class, so they have the same kind of attributes and methods, but their stored values can be different.

Understanding the Question

The question asks for three differences between a class and an object. That means you must give three distinct contrasts, not three ways of saying the same thing.

The easiest safe contrasts are:

• blueprint/template versus instance
• definition versus actual values/entity
• one class can produce many objects

Because the question says give three, it is best to write them as three separate numbered points.

Approach

To build good comparison points, compare class and object side by side.

Useful comparison categories are:

1. what each one is
2. what each one contains
3. how many there can be

This produces clear, non-overlapping differences and makes it easy for the examiner to award marks.

Step-by-Step Reasoning

First difference:

• A class is the template or blueprint.
• An object is an instance created from that template.

This is the most basic distinction. The class describes; the object exists as a created item.

Second difference:

• A class defines the attributes and methods.
• An object has actual data values stored in those attributes and can use the methods defined by the class.

For example, the class may define an attribute called Name, but an object would store a specific value such as Aisha.

Third difference:

• A single class can be used to create many objects.
• Each object is a separate entity, even if created from the same class.

So if the class is Car, one object could represent a blue car and another object a red car. Same class, different instances.

These are three distinct differences, which is exactly what the question asks for.

Key Takeaways

• A class is the definition; an object is the instance.
• A class specifies attributes and methods.
• An object stores actual values and uses the class's methods.
• Many objects can be created from one class.

Common Mistakes

• Saying "an object is a class" or "a class is an object". They are related, but they are not the same thing.
• Repeating the same idea three times, such as "a class is a blueprint", "a class is a design", and "a class is a template". That may only count as one difference.
• Forgetting to contrast both sides. A valid point should mention both class and object.
• Giving examples only, without stating the actual difference.

Things to Be Careful About

• Make each difference clearly separate from the others.
• Use exact OOP terms such as instance, attribute and method.
• Do not drift into unrelated OOP ideas like inheritance or encapsulation unless they directly help the comparison.
• If you number the answers, ensure each line contains one complete contrast so the examiner can see the three mark points easily.

Background Concept

A binary tree can be stored using linked nodes instead of storing values in one continuous array position after another. In this representation, each node has three fields:

• LeftPtr — points to the left child node
• Data — stores the value in the node
• RightPtr — points to the right child node

If a node does not have a left or right child, that pointer must store a null value. In this question, the null pointer is represented by -1.

Because this is a binary search tree, values smaller than a node are in its left subtree and values larger than a node are in its right subtree. However, for this part, you do not need to search the tree. You only need to copy its structure correctly into linked-node form.

Understanding the Question

The question gives a binary tree with root 25 and asks you to complete a linked-list style diagram where each node is shown as three boxes: left pointer, data, right pointer.

Some of the structure is already started for you:

• RootPtr already points to the node containing 25
• the left pointer from 25 already goes to the node containing 4
• the left pointer from 4 already goes to the node containing 1
• node 1 is already shown as [-1 | 1 | -1]

You must add the missing nodes and pointers so that the whole linked structure matches the original binary tree exactly.

Approach

The best approach is to read the tree one node at a time and decide, for each node:

1. what its left child is
2. what its right child is
3. whether either side is missing, in which case you write -1

Start at the root and work outward:

• root 25
• its children 4 and 36
• then children of those nodes
• then leaf nodes, which have -1 on both sides

Step-by-Step Reasoning

From the given tree:

• 25 is the root.
  • Left child is 4
  • Right child is 36

So the root node must be:

• [ptr to 4 | 25 | ptr to 36]

Next, node 4:

• Left child is 1
• Right child is 16

So node 4 must be:

• [ptr to 1 | 4 | ptr to 16]

Node 1 has no children, so it is a leaf:

• [-1 | 1 | -1]

Node 16:

• Left child is 9
• Right child is missing

So node 16 must be:

• [ptr to 9 | 16 | -1]

Node 9 is a leaf:

• [-1 | 9 | -1]

Now move to the right subtree of 25.

Node 36:

• Left child is missing
• Right child is 64

So node 36 must be:

• [-1 | 36 | ptr to 64]

Node 64:

• Left child is 49
• Right child is missing

So node 64 must be:

• [ptr to 49 | 64 | -1]

Node 49 is a leaf:

• [-1 | 49 | -1]

When these are all connected, the linked list representation exactly matches the binary tree.

Key Takeaways

• A linked binary tree node stores two pointers and one data item.
• Use -1 whenever a child does not exist.
• A leaf node always has both pointers set to null.
• To convert a tree diagram into linked storage, process one node at a time and identify its two children.

Common Mistakes

• Forgetting the right child of 25 is 36.
• Writing 36 with both pointers as -1; it still points right to 64.
• Forgetting that 16 has a left child 9.
• Missing one null pointer on nodes such as 16 or 64 where only one child exists.
• Treating the diagram as a linear linked list rather than a binary tree with two pointers per node.

Things to Be Careful About

• The left pointer must point to the smaller child and the right pointer to the larger child, matching the given tree.
• Do not invent extra nodes or extra links.
• Every absent child must be shown explicitly as -1.
• Keep the arrows correct: each pointer field must connect to the correct child node, not just to a nearby box.

Background Concept

A binary tree can also be stored in a 2D array instead of drawing separate linked nodes. Each row represents one node, and the columns store:

• LeftPtr — the index of the left child row
• Data — the value stored in that node
• RightPtr — the index of the right child row

So instead of a pointer arrow going directly to another box, the pointer stores the row number where that child node is found.

If there is no child, the null pointer value is stored. In this question, the null pointer value is -1.

RootPtr stores the index of the root node. FreePtr stores the index of the first unused row.

Understanding the Question

The question has already fixed the array positions for each data value:

• index 0 stores 25
• index 1 stores 4
• index 2 stores 36
• index 3 stores 1
• index 4 stores 16
• index 5 stores 64
• index 6 stores 9
• index 7 stores 49
• index 8 is unused

You must fill in the pointer columns by converting the tree connections into index numbers.

Approach

Use the tree from part (a), then for each node:

1. find the index where that child value is stored
2. write that index into the correct pointer field
3. write -1 if the child does not exist

At the end, identify:

• RootPtr as the index of the root value 25
• FreePtr as the first unused row, which is 8

Step-by-Step Reasoning

The root node is 25, and 25 is stored at index 0.

So:

• RootPtr = 0

Now fill each row.

Row 0: data 25

From the tree:

• left child of 25 is 4
• right child of 25 is 36

From the table:

• 4 is at index 1
• 36 is at index 2

So row 0 is:

• LeftPtr = 1
• RightPtr = 2

Row 1: data 4

Children of 4 are:

• left child 1
• right child 16

From the table:

• 1 is at index 3
• 16 is at index 4

So row 1 is:

• LeftPtr = 3
• RightPtr = 4

Row 2: data 36

Children of 36 are:

• no left child
• right child 64

From the table:

• 64 is at index 5

So row 2 is:

• LeftPtr = -1
• RightPtr = 5

Row 3: data 1

1 is a leaf node, so:

• LeftPtr = -1
• RightPtr = -1

Row 4: data 16

Children of 16 are:

• left child 9
• no right child

From the table:

• 9 is at index 6

So row 4 is:

• LeftPtr = 6
• RightPtr = -1

Row 5: data 64

Children of 64 are:

• left child 49
• no right child

From the table:

• 49 is at index 7

So row 5 is:

• LeftPtr = 7
• RightPtr = -1

Row 6: data 9

9 is a leaf node, so:

• LeftPtr = -1
• RightPtr = -1

Row 7: data 49

49 is also a leaf node, so:

• LeftPtr = -1
• RightPtr = -1

Free pointer

Rows 0 to 7 are occupied. The next free row is 8.

So:

• FreePtr = 8

Key Takeaways

• In an array-based linked structure, pointers are stored as index values.
• RootPtr gives the index of the root node.
• FreePtr gives the next available unused row.
• Leaf nodes always have both child pointers set to -1.

Common Mistakes

• Writing child data values instead of child index numbers.
• Forgetting that 36 has no left child, so its left pointer must be -1.
• Mixing up left and right pointers for 16 and 64.
• Giving FreePtr as 7 instead of 8; index 7 is already used.

Things to Be Careful About

• The pointer fields must store indices, not arrows and not data values.
• Check each value against the table before writing the pointer.
• Do not change the given data values or their row positions.
• Only row 8 is free, so FreePtr must point there.

Background Concept

Searching a binary search tree is efficient because each comparison tells you which side of the tree to ignore.

For any node in a binary search tree:

• smaller values are in the left subtree
• larger values are in the right subtree
• if the value matches, the search is complete

When the tree is stored as an array of records, each record still behaves like a tree node. The difference is that LeftPtr and RightPtr store array indices rather than direct memory links.

A typical iterative search algorithm therefore:

1. starts at the root
2. compares the current node data with the item being searched for
3. moves left or right depending on the result
4. stops when the item is found or when a null pointer is reached

Understanding the Question

The function SearchList must search the array of records LinkList.

It should:

• return the index of the record if the item is found
• return the null pointer value if the item is not found

The skeleton already includes most of the search:

• if current data is less than Item, move right
• otherwise, another test is needed
• if neither less than nor greater than, the current node must match the item

So the missing pieces are:

• the return type
• the starting pointer
• the comparison for moving left
• the left-pointer assignment

Approach

Because the tree is a binary search tree, use the standard three-way comparison at each node:

• current data < Item → go right
• current data > Item → go left
• otherwise → current data = Item, so return the current index

The search must begin at RootPtr because that is the entry point to the tree.

If the pointer eventually becomes -1, the item is not present, so return NullPtr.

Step-by-Step Reasoning

1. Return type

The function returns either:

• the index of a record, or
• -1 for null

Both are integer values, so the function must be:

• RETURNS INTEGER

2. Start the search at the root

To search a tree, you begin at the root node. The root index is stored in RootPtr.

So the missing assignment is:

• NowPtr ← RootPtr

NowPtr means "the node currently being checked".

3. Move right when the current data is smaller

This part is already given:

IF LinkList[NowPtr].Data < Item THEN
   NowPtr ← LinkList[NowPtr].RightPtr

That is correct because if the target item is larger than the current node, it can only be in the right subtree.

4. Decide when to move left

The ELSE branch means the current data is not less than Item. There are now only two possibilities:

• current data is greater than Item
• current data is equal to Item

If it is greater, the item can only be in the left subtree. So the missing condition is:

• LinkList[NowPtr].Data > Item

5. Follow the left pointer

If that condition is true, move to the left child:

• NowPtr ← LinkList[NowPtr].LeftPtr

6. Otherwise the item has been found

If the current data is neither less than nor greater than Item, it must be equal to Item.

So:

• RETURN NowPtr

7. Stop when a null pointer is reached

The loop continues while NowPtr <> NullPtr.

If the search falls off the tree and reaches -1, the loop ends and the function returns:

• RETURN NullPtr

That correctly signals "not found".

Key Takeaways

• Binary search tree searching uses repeated comparison to choose left or right.
• Start at the root every time.
• In an array-of-records implementation, left and right child links are stored as indices.
• If the pointer becomes null, the item is not in the tree.

Common Mistakes

• Reversing the directions, for example going left when the current data is smaller.
• Returning the data value instead of the index.
• Starting at index 0 directly instead of using RootPtr; in other questions the root may not be at index 0.
• Using = instead of a greater-than comparison in the missing IF, which would stop correct left traversal.

Things to Be Careful About

• The function returns an INTEGER, not a Boolean value.
• NullPtr is -1, so the loop condition must check for NowPtr <> NullPtr.
• The left move uses LeftPtr and the right move uses RightPtr; mixing them up breaks the algorithm.
• Because this is CIE pseudocode, use ← for assignment and keep keywords such as FUNCTION, WHILE, IF, ENDIF in upper case.
