Computer Science 9618/31 — October/November 2024

Background Concept

In this floating-point format, a number is stored as:

• a mantissa (also called significand), and
• an exponent.

The value represented is:

Here, both mantissa and exponent use two's complement.

For Cambridge 9618 floating-point questions, the mantissa is treated as a signed binary fraction with the binary point immediately after the sign bit. So a 10-bit mantissa has:

• 1 sign bit
• 9 fractional bits

A normalised mantissa must begin:

• 01 for a positive number
• 10 for a negative number

This makes the first two bits different, so the value is stored in standard form and the available precision is used efficiently.

Understanding the Question

You are given:

• 10 bits for the mantissa
• 6 bits for the exponent
• two's complement for both

You must convert the denary number +201.125 into this exact floating-point form.

So the task is:

1. convert 201.125 to binary
2. normalise it
3. fit the mantissa into 10 bits
4. store the exponent in 6-bit two's complement

Because the mantissa length is fixed, you must be careful about how many bits can be kept.

Approach

The standard method is:

1. Convert the whole-number part and fractional part separately into binary.
2. Combine them into one binary number.
3. Shift the binary point until the mantissa is normalised.
4. Count how many places the point moved; that gives the exponent.
5. Write the exponent in 6-bit two's complement.
6. Keep only the number of mantissa bits available.

Since the number is positive, the mantissa should start with 01 after normalisation.

Step-by-Step Reasoning

First convert 201 to binary:

Now convert the fractional part .125 to binary:

So:

Now normalise it. In this syllabus format, the binary point is placed immediately after the sign bit, so for a positive value we want:

Why exponent 8? Because the binary point has moved 8 places to the left from 11001001.001 to 0.11001001001.

Now fit this into the 10-bit mantissa field.

The mantissa must contain 10 bits total. Since the number is positive, the sign bit is 0, then we keep the next 9 bits of the fractional part:

• normalised mantissa bits: 0 110010010...
• 10-bit stored mantissa: 0110010010

The remaining bits do not fit, so they are dropped.

Now encode the exponent +8 in 6-bit two's complement. Positive numbers are written as ordinary binary padded with leading zeros:

So the final stored floating-point number is:

• Mantissa: 0110010010
• Exponent: 001000

Key Takeaways

• Convert the denary number to binary before normalising.
• In 9618 floating-point, the mantissa is a signed fraction with the point after the sign bit.
• A normalised positive mantissa begins 01; a normalised negative mantissa begins 10.
• The exponent records how many places the binary point moved.
• If the mantissa is too long, only the bits that fit can be stored.

Common Mistakes

• Writing the number as ordinary scientific notation like 1.1001001001 × 2^7 instead of the syllabus mantissa form with the point after the sign bit. In this course, the mantissa is stored as a signed fraction.
• Forgetting that the mantissa is only 10 bits total, not 10 bits after the sign bit.
• Using sign-magnitude instead of two's complement for the exponent.
• Giving exponent 7 instead of 8 by counting the binary-point shift incorrectly.
• Keeping too many mantissa bits and producing more than 10 bits.

Things to Be Careful About

• Count the mantissa bits exactly: 10 bits means the sign bit is included.
• For positive exponents in two's complement, just write the binary value with leading zeros to the correct width.
• Do not forget the fractional binary part .001 from .125; losing it changes the represented value.
• If extra mantissa bits remain, the stored value may be truncated because the field has fixed length.
• Make sure the stored mantissa is actually normalised: for a positive number, the first two bits must be 01.

Background Concept

To decode a floating-point number in this format, remember that the value is:

The exponent is a signed integer in two's complement.

The mantissa is also in two's complement, but it represents a fraction, not a whole number. With the binary point immediately after the sign bit, the place values are:

• sign bit = -1
• next bit = \frac{1}{2}
• next bit = \frac{1}{4}
• next bit = \frac{1}{8}
• and so on

So for a 10-bit mantissa, the weights are:

If the first bit is 1, the mantissa is negative.

Understanding the Question

You are given the floating-point number directly:

• Mantissa: 1010110011
• Exponent: 000101

You must find the denary value.

That means:

1. decode the exponent as a signed 6-bit integer
2. decode the mantissa as a signed binary fraction
3. multiply the mantissa by $2^{\text{exponent}}$

Approach

There are two valid ways to decode the mantissa:

• use the bit weights directly, or
• take the two's complement to find the magnitude and then apply the negative sign

The cleanest method here is direct bit weights, because the place values are easy to apply.

Step-by-Step Reasoning

First decode the exponent.

Exponent is 000101. Since the first bit is 0, it is positive. So:

So the exponent is +5.

Now decode the mantissa 1010110011.

Because the first bit is 1, it is a negative mantissa. Using the place values:

corresponds to:

Now add them:

Convert to decimals:

So the mantissa value is:

Now multiply by $2^5 = 32$:

Therefore the denary value represented is:

Key Takeaways

• Decode the exponent as an ordinary two's complement integer.
• Decode the mantissa as a two's complement fraction with the point after the sign bit.
• For the mantissa, the sign bit has weight -1, then the fractional weights halve each time.
• The final value is always mantissa multiplied by $2^{\text{exponent}}$.

Common Mistakes

• Treating the mantissa as an integer instead of a fraction. That gives a completely wrong answer.
• Forgetting that the sign bit in a two's complement mantissa has weight -1.
• Reading exponent 000101 as something other than +5.
• Using base 10 place values instead of binary fractional place values.
• Forgetting the final multiplication by $2^5$ after decoding the mantissa.

Things to Be Careful About

• The mantissa and exponent are both two's complement, but they are interpreted differently: one is a fraction, one is an integer.
• When using bit weights, start immediately with -1, 1/2, 1/4, ...; do not place the binary point somewhere else.
• If you use the two's complement method to find magnitude, be careful with the fixed bit length.
• Keep the arithmetic accurate when adding the fractional values.
• A normalised negative mantissa usually starts 10, which this one does, so it is consistent with the format.

Background Concept

Circuit switching is a method of data transmission where a complete end-to-end connection is established before the actual data transfer begins. This connection is often called a dedicated path or circuit.

The important idea is that the route and resources are reserved in advance. That means the devices and links along the path are committed to that one communication for the duration of the session. Because of this, the transmission behaves like a continuous connection rather than lots of separate independent packets.

This is different from packet switching, where data is broken into packets that may travel by different routes and share the network with other traffic.

Understanding the Question

The question asks you to describe circuit switching as a transmission method. So the examiner is looking for how it works, not just a definition in one short phrase.

For full marks, you should mention the key stages or features:

• a path is set up first
• that path is dedicated or reserved
• the same path is used throughout the communication and then released at the end

Those are the core ideas that make circuit switching distinct.

Approach

A good way to answer this kind of question is to think in time order:

1. What happens before data is sent?
2. What is true while data is being sent?
3. What happens when the transmission finishes?

For circuit switching, the answer is:

1. establish a connection
2. keep it reserved and use that one route
3. disconnect it afterwards

That structure naturally gives the description the examiner wants.

Step-by-Step Reasoning

Start with the setup stage. In circuit switching, sender and receiver do not immediately start sending data. First, the network creates a complete route between them.

Next, note the special property of that route: it is dedicated to that communication. In other words, the network resources on that path are reserved. This is why people often describe circuit switching as using a dedicated line or dedicated channel.

Then describe the transmission stage. Since the route is already fixed, all data goes along the same path. It does not need to be independently routed each time like separate packets in packet switching.

Finally, include the end of the session. Once communication is complete, the circuit is terminated or released, so those network resources can be used elsewhere.

That sequence gives a complete description:

• setup first
• reserved path during transmission
• release afterwards

Key Takeaways

• Circuit switching requires an end-to-end connection to be set up before transmission.
• The path is dedicated to one communication session.
• All data uses the same route until the connection is closed.
• Describing networking methods usually means explaining how they operate, not just naming them.

Common Mistakes

• Saying only "a connection is made" without explaining that it is dedicated or reserved. That is too vague.
• Confusing circuit switching with packet switching by saying data is split into packets that may take different routes.
• Forgetting to mention that the connection is established before sending data.
• Forgetting that the circuit is released after the communication ends.

Things to Be Careful About

• Use the word dedicated or reserved to show that the route is not being shared in the same way as packet-switched traffic.
• Do not describe error checking, packet headers, or reassembly unless the question asks for comparison with packet switching.
• Keep the answer focused on the method of transmission itself: setup, reserved route, same route, disconnect at the end.

Background Concept

A benefit of circuit switching usually comes from the fact that the connection is dedicated. Because the path is reserved, the sender does not have to compete with other traffic for that part of the connection in the same way as in packet switching.

A drawback usually comes from the same feature. If the path is reserved, then those network resources cannot be used efficiently by others during that time, even if the connection is temporarily idle.

This is a classic trade-off in networking: predictability versus efficiency.

Understanding the Question

The question asks for exactly one benefit and exactly one drawback of circuit switching.

That means you should not describe circuit switching again in general terms. You must give:

• one good point
• one bad point

A strong answer keeps each point short and specific.

Approach

Think about the effect of a dedicated connection.

From that, derive:

• a positive consequence: guaranteed or predictable transmission
• a negative consequence: inefficient use of resources

This is the clearest and most standard pair of answers.

Step-by-Step Reasoning

For the benefit, start with the fact that the path is reserved. Since other users are not sharing that reserved portion of the route for this communication, the connection has dedicated bandwidth. That makes the data flow steady and predictable. It also means there is no need for packets to arrive out of order and be reassembled, but the simplest credited benefit is the guaranteed or predictable bandwidth.

For the drawback, use the same reserved-path idea. Because the circuit stays allocated for the whole session, it cannot be used by others during that time. If the sender pauses or sends nothing for a while, the capacity is still tied up. That makes circuit switching less efficient.

So the chosen pair is:

• benefit: dedicated bandwidth gives predictable transmission
• drawback: reserved capacity may be wasted when idle

Key Takeaways

• The main strength of circuit switching is predictable, dedicated communication.
• The main weakness is inefficiency, because resources stay reserved.
• Many networking questions test whether you can turn one feature into both an advantage and a disadvantage.

Common Mistakes

• Giving two benefits or two drawbacks instead of one of each.
• Writing vague points such as "it is faster" without explaining why.
• Saying "cheaper" as a benefit, which is usually not accepted for circuit switching.
• Repeating the description of circuit switching instead of evaluating it.

Things to Be Careful About

• Keep each point distinct: one must clearly be positive and one clearly negative.
• Make sure the benefit and drawback relate to circuit switching itself, not to packet switching.
• Since the question says one benefit and one drawback, concise single-sentence answers are best.
• Good accepted wording often includes terms like dedicated bandwidth, predictable transmission, reserved line, or inefficient use of capacity.

Background Concept

Hashing is a technique used mainly with direct or random-access files. Instead of reading records one after another until the correct one is found, the system applies a hash function to a key value from the record, such as an account number or student ID.

The hash function produces a number that is used as the address, index, or storage location for that record. This means the computer can go straight to the likely location of the record rather than performing a serial search.

In file access terms:

• key field: the part of the record used to identify it uniquely
• hash function / hashing algorithm: the rule or calculation applied to the key
• storage location / address: where the record is stored in the file
• direct/random access: jumping straight to a location rather than reading sequentially

Understanding the Question

The question asks what a hashing algorithm means specifically in the context of file access. So the answer must not just say "it is an algorithm using a key". It needs to connect three ideas:

• it takes a key value from the record
• it calculates a storage location or address
• this is used to access the file directly

That final point is important, because the question is about file access, not just about number manipulation.

Approach

A full-mark answer should define hashing by describing its input, its output, and its purpose.

A clear structure is:

1. state that the algorithm uses the key field
2. state that it calculates the address/location
3. state that this supports direct/random access without searching every record

Step-by-Step Reasoning

Suppose a file stores student records, and each student has an ID. A hashing algorithm might take that ID and apply a rule such as a modulus calculation.

For example, if the key were 12345, the hash function might do something like 12345 MOD 100. The result would be 45, so the system would use location 45 as the place to store or look up the record.

That means:

• the input is the record's key
• the processing is the hash calculation
• the output is the storage address

Why is that useful? Because the computer does not need to start at the beginning of the file and check each record one by one. It can jump straight to the calculated position. That is why hashing is associated with random/direct file access.

A strong exam answer therefore says more than "it uses a formula". It must mention what the formula is used for and how it improves access.

Key Takeaways

• Hashing uses a key field to calculate a record's storage location.
• The calculated value is used as an address or index.
• Hashing supports direct/random access, avoiding a full sequential search.

Common Mistakes

• Saying only that hashing "encrypts data". Hashing for file access is not encryption.
• Saying only that it "stores data in a file" without mentioning the key and address.
• Forgetting to mention that hashing is used for direct/random access.
• Confusing hashing with sorting. Sorting arranges records in order; hashing calculates a location.

Things to Be Careful About

• Use the phrase key field or equivalent, because the address is calculated from a record identifier.
• Mention storage location, address, or index explicitly.
• Tie the explanation to file access, not just to a generic mathematical function.
• Do not drift into collision handling here; that belongs to part (b).

Background Concept

When two different records produce the same hash value, a collision occurs. This means both records are trying to use the same storage location.

Because only one record can normally occupy that exact slot, the system needs a collision-resolution method. Two common approaches are:

• overflow area / chaining
• probing / rehashing

These methods allow the file system to keep storing and retrieving records even when the hash function does not give a unique address every time.

Understanding the Question

The question already tells you the problem: more than one record may be assigned the same storage location by the hashing algorithm. It asks for two methods of overcoming this.

So you should name two valid collision-resolution techniques and briefly outline how each works. Since this is only 2 marks, the answer should be short and direct.

Approach

The best strategy is to give two clearly different methods:

1. a method where colliding records are kept in extra linked storage
2. a method where the system searches for or computes another free location

This shows the examiner you know more than one standard solution.

Step-by-Step Reasoning

A collision means something like this:

• record A has key that hashes to location 25
• record B has a different key but also hashes to location 25

Now both cannot simply be placed in the same single slot, so we need a workaround.

Method 1: Overflow area / chaining

With this method, the original slot still points to the records that belong there, but extra colliding records are placed somewhere else, often in an overflow area.

This may be implemented by linking the records together, so the main location holds one record and a pointer to the next colliding record.

The idea is:

• keep the original hashed location
• store additional collided records in extra space
• link them so they can still be found from the original location

This is often called chaining.

Method 2: Probing / rehashing

Instead of using an overflow list, the system looks for another empty slot.

This can be done by:

• checking the next location, then the next, and so on (linear probing)
• using another rule to calculate a different location (rehashing or a second hash function)

The idea is:

• if the first hashed slot is full
• search or compute an alternative slot
• store the record in that new location

Both methods solve the collision problem, but in different ways.

Key Takeaways

• A collision happens when two keys hash to the same address.
• Overflow area/chaining stores extra colliding records elsewhere but linked to the original location.
• Probing/rehashing finds a different empty slot for the second record.

Common Mistakes

• Giving only one method when the question asks for two.
• Repeating the same idea twice, such as giving two forms of probing without making them distinct.
• Saying "sort the file" as a solution; sorting does not resolve a hash collision.
• Describing hashing again instead of explaining how to deal with collisions.

Things to Be Careful About

• Use collision-resolution terminology accurately: overflow area, chaining, probing, or rehashing.
• Make sure your second method actually moves or redirects the record to another place.
• Keep the answer brief: this is an outline question, so a clear one-line explanation for each method is enough.
• Do not confuse rehashing with recalculating the entire file structure; here it means using another rule or position to resolve the clash.

Background Concept

A user-defined data type lets the programmer describe data in a way that matches the problem. One example is a set.

A set is a collection of values where:

• all members are of the same underlying type
• the members are unordered
• each member is unique

This means a set is different from an array or list. In an array, order matters and each item has a position such as index 1, 2, 3, and so on. In a set, we care only whether a value is a member of the set, not where it is stored.

For example, the set {'+', '-', '*', '/', '^'} contains five distinct operator symbols. If + were written twice, it would still only count once as a member of the set.

Understanding the Question

This part asks you to describe the user-defined data type set. That means the examiner wants the main defining features, not an example program.

The safest scoring points are the standard properties:

• it stores a collection of items
• the items are all of the same type
• the collection is unordered
• duplicates are not allowed

For 3 marks, three clear properties are enough.

Approach

When a question says "Describe the user-defined data type set", think of the features that make a set different from other structures.

A strong answer should mention:

1. what it stores
2. that order is not important
3. that repeated values are not allowed

These are the core characteristics examiners usually reward.

Step-by-Step Reasoning

Start from the basic idea: a set groups together multiple values.

Next, add the type rule: the values should be from the same type. For example, a set of characters or a set of integers.

Then explain the ordering rule: unlike an array, the values are not kept in a meaningful sequence, so there is no index position to refer to.

Finally, state the uniqueness rule: if a value is already in the set, adding it again does not create a second copy. That is why sets are useful for membership testing and for representing a collection of distinct items.

So the full description becomes:

• collection of same-type values
• unordered
• no duplicates

That directly matches what the question is asking.

Key Takeaways

• A set is a user-defined data type for storing a collection of values.
• Set elements are unordered.
• Set elements are unique.
• Sets are about membership, not position.

Common Mistakes

• Saying a set is "in order" like an array. This is wrong because sets are unordered.
• Forgetting to mention that duplicates are not allowed. This is one of the key defining properties.
• Describing a set as if it uses indexes. That describes an array or list, not a set.
• Giving only an example, such as {1,2,3}, without explaining the actual properties.

Things to Be Careful About

• Use the word unordered explicitly if possible.
• Make it clear that repeated values are not stored twice.
• Do not confuse "same data type" with "same value". Members must be of the same type, but they are usually different values.
• For a short theory question, concise, accurate properties score better than a long vague paragraph.

Background Concept

A user-defined data type can be given a name and then used to declare variables of that type. Here, the required type is a set.

A set declaration normally needs two ideas:

• the base type of the members, for example CHAR
• the fact that the collection is a SET

Because the values here are mathematical operator symbols such as + and *, each item is a single character, so CHAR is appropriate.

Once the type has been named, a variable can be declared using that new type name. After that, the variable can be assigned the set of required values.

Understanding the Question

The question asks for pseudocode statements to:

• declare a set data type called SymbolSet
• use a variable called Operators
• make it hold the set + - * / ^

So there are really three jobs:

1. create the type name SymbolSet
2. declare Operators using that type
3. assign the five operator symbols into the set

Because each operator is one symbol, the members should be treated as characters.

Approach

The simplest complete approach is:

1. define SymbolSet as SET OF CHAR
2. declare Operators : SymbolSet
3. assign the set literal containing the five distinct operators

This matches the wording of the question exactly and shows both the type and the variable.

Step-by-Step Reasoning

First, define the named type:

TYPE SymbolSet = SET OF CHAR

This says that SymbolSet is a set whose members are characters.

Why CHAR? Because +, -, *, /, and ^ are all single symbols, so each one is a single character rather than a word or longer string.

Second, declare the variable:

DECLARE Operators : SymbolSet

This creates Operators as a variable of that set type.

Third, store the required members in the set:

Operators ← {'+', '-', '*', '/', '^'}

This initialises the set with exactly the five operator symbols named in the question.

Notice the important properties:

• the items are enclosed as a set
• each symbol appears once
• the order is not important because it is a set

So the full answer is the three pseudocode statements together.

Key Takeaways

• To use a user-defined type, first give the type a name.
• A set declaration must identify the member type, such as CHAR.
• Then declare variables using that type name.
• Set values should contain distinct members only.

Common Mistakes

• Declaring Operators as an array or string instead of a set. That changes the data structure completely.
• Using STRING instead of CHAR for single-symbol members. Each operator here is one character.
• Forgetting to declare the named type SymbolSet and only declaring the variable. The question specifically asks for the set data type to be declared.
• Writing duplicate symbols in the set. A set should contain unique members.
• Using = for assignment in pseudocode instead of the correct assignment arrow ←.

Things to Be Careful About

• Keep the identifier names exactly as given: SymbolSet and Operators.
• Use pseudocode style, not a real programming language.
• Make sure the variable is declared after the type is defined.
• Since this is a set, the collection is not meant to imply any sequence.
• Even if some pseudocode styles vary slightly in punctuation, the essential marking points are: named set type, correct member type, variable declaration, and the correct five symbols.

Background Concept

A sum-of-products (SOP) expression is built directly from a truth table by looking only at the rows where the output is 1.

Each such row gives one minterm:

• if an input is 0, that variable is complemented
• if an input is 1, that variable is written uncomplemented
• all variables in that row are joined by AND

Then all those minterms are joined by OR.

So for a 4-variable truth table, every minterm must contain exactly four literals: one each of A, B, C and D.

Understanding the Question

You are given the full truth table for inputs A, B, C and D, with output T.

This part does not ask for simplification yet. It asks for the Boolean expression as the sum-of-products, so the task is simply to:

1. find every row where T = 1
2. convert each of those rows into a minterm
3. OR all of them together

Approach

Scan the output column and pick out every row where the output is 1.

For each of those rows:

• write a bar over any variable whose value is 0
• leave any variable whose value is 1 unchanged
• multiply the literals together to make the product term

Finally, add the product terms.

Step-by-Step Reasoning

The rows where T = 1 are:

• A B C D = 0 0 0 1
• A B C D = 0 0 1 1
• A B C D = 1 0 0 1
• A B C D = 1 0 1 1
• A B C D = 1 1 0 1
• A B C D = 1 1 1 1

Now convert each row into a minterm.

For 0 0 0 1:

For 0 0 1 1:

For 1 0 0 1:

For 1 0 1 1:

For 1 1 0 1:

For 1 1 1 1:

Now OR them together:

Key Takeaways

• SOP comes from the rows where the output is 1.
• Each row with output 1 becomes one minterm.
• A 0 in the row means the variable is complemented; a 1 means it is not.
• In a full minterm, every variable must appear exactly once.

Common Mistakes

• Missing one of the rows where T = 1, which loses a product term.
• Complementing the wrong variable, for example writing A instead of \overline{A} when the row contains 0.
• Leaving a variable out of a minterm. In SOP from a truth table, each minterm must contain all four variables here.
• Simplifying too early. This part asks for the unsimplified sum-of-products.

Things to Be Careful About

• Check the output column carefully; only rows with T = 1 are used.
• Keep the variable order consistent as A, B, C, D.
• Use OR between minterms and AND within each minterm.
• Do not mix this up with the simplified answer from the K-map in later parts.

Background Concept

A Karnaugh map (K-map) is a visual way of arranging truth-table outputs so that adjacent cells differ by only one variable. This makes simplification easier.

For a 4-variable K-map:

• one pair of variables labels the columns
• the other pair labels the rows
• the labels must be in Gray-code order, not ordinary binary order

Gray-code order for two bits is:

• 00
• 01
• 11
• 10

This order is essential because neighbouring cells must differ by one bit only.

Understanding the Question

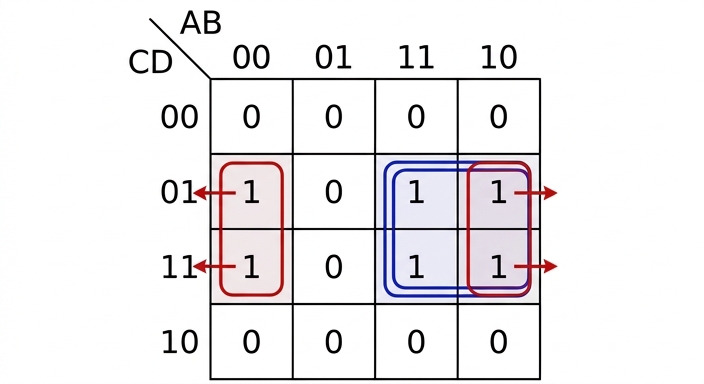

You are given a blank 4-by-4 K-map with:

• columns labelled AB as 00, 01, 11, 10
• rows labelled CD as 00, 01, 11, 10

You must place the output T from the truth table into the correct cell for each input combination.

Approach

Take each truth-table row and match:

• A and B to the column
• C and D to the row

Then place the corresponding value of T in that cell.

A quick way is to fill the map row by row using the given Gray-code row and column headings.

Step-by-Step Reasoning

The K-map columns are:

• AB = 00, 01, 11, 10

The K-map rows are:

• CD = 00, 01, 11, 10

Now fill each row.

For CD = 00:

• AB = 00 gives 0000, so T = 0
• AB = 01 gives 0100, so T = 0
• AB = 11 gives 1100, so T = 0
• AB = 10 gives 1000, so T = 0

So row 00 is:
0 0 0 0

For CD = 01:

• AB = 00 gives 0001, so T = 1
• AB = 01 gives 0101, so T = 0
• AB = 11 gives 1101, so T = 1
• AB = 10 gives 1001, so T = 1

So row 01 is:
1 0 1 1

For CD = 11:

• AB = 00 gives 0011, so T = 1
• AB = 01 gives 0111, so T = 0
• AB = 11 gives 1111, so T = 1
• AB = 10 gives 1011, so T = 1

So row 11 is:
1 0 1 1

For CD = 10:

• AB = 00 gives 0010, so T = 0
• AB = 01 gives 0110, so T = 0
• AB = 11 gives 1110, so T = 0
• AB = 10 gives 1010, so T = 0

So row 10 is:
0 0 0 0

This gives the completed K-map.

Key Takeaways

• A K-map must use Gray-code order.
• Each cell stores the output for one input combination.
• Filling the K-map correctly is the foundation for correct grouping and simplification.

Common Mistakes

• Using binary order 00, 01, 10, 11 instead of Gray-code order 00, 01, 11, 10.
• Swapping rows and columns, for example using CD as columns by mistake.
• Copying a truth-table value into the wrong cell because the variable order was not tracked carefully.

Things to Be Careful About

• Match the exact headings given on the diagram: columns are AB, rows are CD.
• Keep the Gray-code order exactly as printed.
• Check every 1 against the original truth table before moving on to looping.
• A correct K-map in part (b) is needed for the later simplification parts.

Background Concept

In a Karnaugh map, loops are drawn around groups of 1s to simplify a Boolean expression.

The key rules are:

• groups must contain $1, 2, 4, 8, \ldots$ cells
• groups should be as large as possible
• cells in a group must be adjacent horizontally or vertically
• adjacency wraps around the edges of the map
• overlapping groups are allowed if they give a simpler result

A larger group removes more changing variables, so it usually gives a shorter product term.

Understanding the Question

You already have the completed K-map from part (b). This part asks you to draw the best loop or loops to produce an optimal sum-of-products.

That means the groups should be chosen to give the fewest and simplest product terms, not just any valid grouping.

Approach

Look for the largest valid groups of 1s first.

In this K-map, the 1s appear in two middle rows and in columns 00, 11 and 10. Because the first and last columns are adjacent in a K-map, a wrap-around group is possible.

The best simplification comes from two groups of four:

1. one ordinary 2-by-2 block
2. one wrap-around 2-by-2 block across the left and right edges

Step-by-Step Reasoning

The completed K-map with the optimal loops is:

Why these groups are chosen:

1. Group of four in columns 11 and 10, rows 01 and 11

   • this is a normal 2-by-2 block
   • grouping four cells removes two changing variables
   • it is better than making two smaller pairs

2. Wrap-around group of four in columns 00 and 10, rows 01 and 11

   • the first and last columns are adjacent in a K-map
   • this allows a second group of four
   • this loop overlaps with the first group in the 10 column, which is allowed

These two groups are optimal because they cover all the 1s using only groups of four. That gives the shortest sum-of-products form.

Key Takeaways

• Always try to make the largest possible groups.
• K-map edges wrap around, so the first and last rows or columns can be adjacent.
• Overlapping groups are allowed when they help produce a simpler expression.
• Good grouping in the K-map leads directly to fewer literals in the Boolean expression.

Common Mistakes

• Missing the wrap-around adjacency between the leftmost and rightmost columns.
• Drawing pairs instead of a larger group of four, which gives a less simplified answer.
• Grouping diagonally; diagonal cells are not adjacent in a K-map.
• Refusing to overlap groups, even when overlap is needed for the optimal simplification.

Things to Be Careful About

• Groups must contain powers of two only.
• Only group cells containing 1 for a sum-of-products simplification.
• Make sure every 1 is covered by at least one loop.
• Do not include any 0 inside a loop.
• The grouping here is chosen to support the simplified expression needed in part (d).

Background Concept

Segmentation is a memory-management technique in which a program is split into meaningful logical sections called segments. Unlike paging, which uses fixed-size blocks, segmentation uses variable-size blocks. Typical segments include the program code, global data, stack, heap, or procedures.

The key idea is that a program is not treated as one single continuous block. Instead, each logical part can be managed separately. Because segment sizes differ, segmentation matches the natural structure of a program better than paging.

To make this work, the operating system keeps a segment table. For each segment, this table stores where that segment begins in main memory and how large it is. When the processor is given a logical address, that address is usually split into:

• a segment number
• an offset within that segment

The segment number selects the correct table entry, and the offset tells the system how far into that segment to go.

Understanding the Question

This question asks for the process of segmentation, not just a definition. So the answer needs to describe how memory is organised and how an address is used.

The important points are:

• memory/program is split into segments
• segments are variable sized
• segments are logical parts of the program
• they can be stored separately in memory
• a segment table is used
• the final address is found using segment number plus offset

A good answer therefore explains both the structure and the address translation step.

Approach

To answer this kind of question clearly, think in this order:

1. State what segmentation does to the program.
2. State the important property: segments are variable size and based on logical divisions.
3. Explain that segments can be placed separately in memory.
4. Explain how the segment table and offset are used to find the physical address.

That gives a complete process rather than isolated facts.

Step-by-Step Reasoning

First, the program is broken into separate segments. These are not random blocks; they are logical sections such as code, data and stack.

Second, the segments are variable in size. This is an important distinction from paging. One segment might be small and another much larger, depending on what that part of the program needs.

Third, these segments are stored separately in main memory. They do not have to sit next to each other. So the program is logically divided even if its physical storage in RAM is not one continuous area.

Fourth, the operating system stores details of each segment in a segment table. The most important values are:

• the base address, which is where the segment starts in physical memory
• the length or limit, which is how big the segment is

Finally, when the CPU wants to access an item, it uses a logical address made of two parts:

• the segment number
• the offset within that segment

The segment number is used to look up the correct table entry. The offset is then added to the base address to find the actual memory location. The limit is also useful for checking that the offset does not go beyond the size of the segment.

So the full process is: split program into logical variable-size segments, store them separately, keep their details in a segment table, then translate segment number plus offset into a physical address.

Key Takeaways

• Segmentation divides a program into logical parts.
• Segments are variable size, unlike pages.
• A segment table stores where each segment is and how large it is.
• Address translation uses segment number plus offset.

Common Mistakes

• Saying segments are fixed size. That describes paging, not segmentation.
• Describing pages instead of logical program sections such as code and data.
• Forgetting the segment table. Without it, the address translation process is incomplete.
• Saying the whole program must be stored contiguously. In segmentation, different segments can be stored in different memory areas.

Things to Be Careful About

• Use the word variable-sized for segments if comparing with paging.
• Make it clear that segmentation is based on logical divisions of a program, not equal-sized blocks.
• If you mention addresses, refer to segment number and offset, not just one address value.
• Do not confuse segmentation with virtual memory generally; segmentation is one specific memory-management method.

Background Concept

Disk thrashing is a serious performance problem in virtual-memory systems. Virtual memory allows programs to use more memory than is physically available in RAM by moving pages or segments between main memory and disk storage.

Disk access is much slower than RAM access. So if the operating system has to keep moving memory contents between disk and RAM too often, the CPU spends a lot of time waiting. Instead of running programs efficiently, the system becomes busy with memory transfers.

This repeated transfer activity is called thrashing.

Understanding the Question

The question asks what is meant by disk thrashing. That means you should explain:

• what is happening
• why it happens
• what effect it has

A strong answer is not just "too much swapping". It should also mention that the system is spending most of its time doing that swapping because there is not enough main memory available, and that this causes very poor performance.

Approach

Use a simple cause-process-effect structure:

1. Define the process: frequent swapping of pages or segments between RAM and disk.
2. Give the cause: insufficient RAM or too many active processes.
3. Give the effect: little real execution and major slowdown.

This directly matches the marks usually available for this kind of explanation.

Step-by-Step Reasoning

In a virtual-memory system, not all of a program has to stay in RAM all the time. Some parts can be kept on disk and loaded when needed.

This works well until memory pressure becomes too high. For example, if:

• there is too little RAM
• too many programs are running at once
• the active parts of programs cannot all fit in memory

then the operating system repeatedly removes one page or segment from RAM and loads another from disk.

If this swapping becomes excessive, the system spends most of its time handling these transfers rather than executing instructions. That is disk thrashing.

The result is a dramatic drop in performance. Programs respond slowly because disk operations are far slower than memory access. So even though the CPU is available, the overall system feels stalled because it is constantly waiting for data to be brought in from disk.

Key Takeaways

• Disk thrashing is excessive swapping between RAM and disk.
• It happens when main memory is insufficient for the workload.
• It causes severe slowdown because disk access is much slower than RAM access.

Common Mistakes

• Describing ordinary swapping as thrashing. Thrashing means the swapping is excessive and dominates system activity.
• Forgetting to mention the cause, such as lack of RAM or too many processes.
• Forgetting to mention the effect on performance.
• Saying the CPU is processing faster during thrashing. In reality, useful processing is reduced.

Things to Be Careful About

• Use wording like most of its time or excessive time swapping, because that captures the severity.
• Mention pages or segments, since either may be moved depending on the memory-management method.
• Do not confuse thrashing with fragmentation; fragmentation is about memory layout, while thrashing is about repeated disk-memory transfers.
• Keep the explanation tied to virtual memory and performance, not just "the disk is busy".

Background Concept

In object-oriented programming, attributes store the data belonging to an object. A common design rule is to make attributes PRIVATE. This is part of encapsulation.

Encapsulation means:

• the data inside an object is hidden from outside code
• access to that data is controlled through the class's methods
• the class can protect its own data from invalid or accidental changes.

If attributes were public, any part of the program could change them directly. That makes it harder to control correctness. For example, an object might be given an invalid telephone number or its registration date might be changed inappropriately.

Understanding the Question

The question asks for one reason why the attributes in the Pet class would be declared as PRIVATE.

So this is not asking how to write code. It is asking for the OOP principle behind using private attributes. The strongest answer is about data hiding / encapsulation.

Approach

For a one-mark theory question like this, the best approach is:

1. identify the key OOP idea being tested
2. state it directly
3. link it to the effect on the attributes.

A concise full-mark answer is that private attributes stop other parts of the program accessing or changing the data directly.

Step-by-Step Reasoning

• The word PRIVATE in OOP points to visibility or access control.
• Private members are only accessible from within the class itself.
• Therefore outside code cannot directly read or overwrite those attributes.
• This is called encapsulation or data hiding.
• Since the question asks for one reason, stating that it prevents direct external access is enough.

A good exam answer therefore is:

• the attributes are private so they are hidden from outside the class and can only be accessed through methods.

Key Takeaways

• PRIVATE attributes support encapsulation.
• Encapsulation protects object data from direct outside access.
• Exam answers should link PRIVATE with data hiding or controlled access.

Common Mistakes

• Saying only "for security" with no OOP context. That is too vague.
• Talking about inheritance instead of encapsulation. These are different OOP ideas.
• Saying private means the data cannot be accessed at all. It can still be accessed by methods inside the class.

Things to Be Careful About

• The question asks for one reason, so one clear point is enough.
• Use the correct OOP terminology: encapsulation or data hiding.
• Make sure your reason is specifically about restricting direct access to attributes, not a general statement about classes.

Background Concept

A class diagram shows the design of a class in object-oriented programming. It usually has three sections:

1. Class name
2. Attributes
3. Methods

Attributes are the pieces of data stored by each object. Methods are the operations the object can perform.

For this syllabus, you should be comfortable with these common method types:

• constructor: used to create an object and initialise its attributes
• mutator/setter: used to assign or change an attribute
• accessor/getter: used to return the value of an attribute.

A good class design matches the real-world object. Here, each Pet object stores details about one registered pet and its owner.

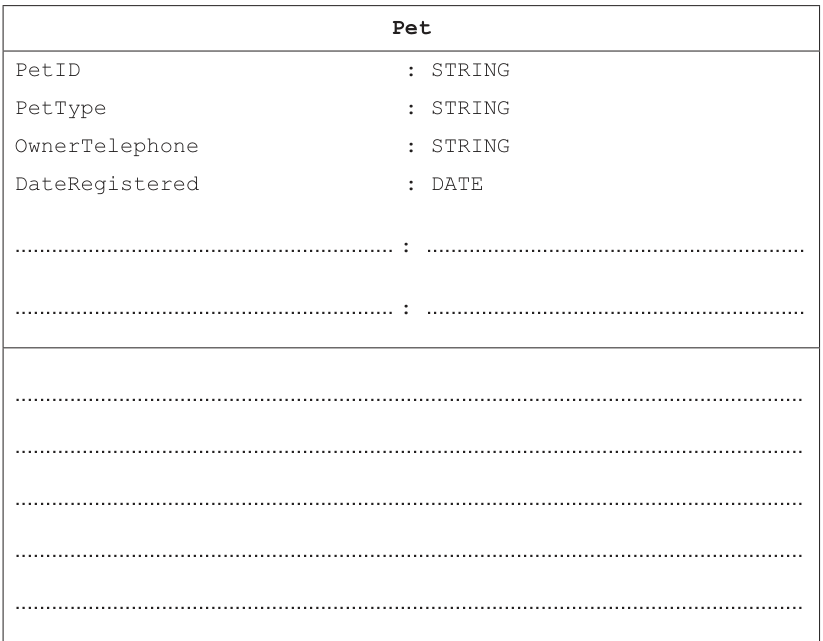

Understanding the Question

The question already gives four attributes for the Pet class:

• PetID : STRING
• PetType : STRING
• OwnerTelephone : STRING
• DateRegistered : DATE

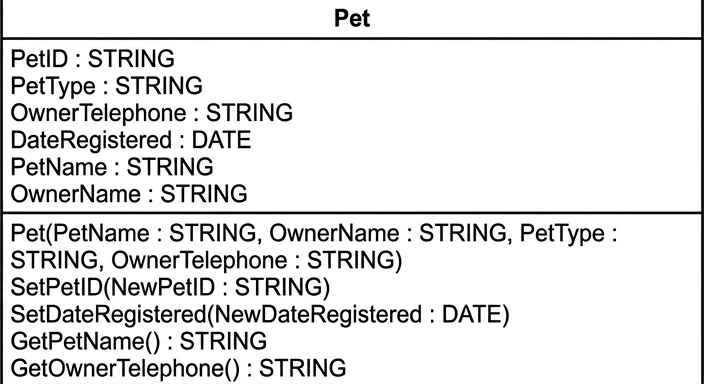

It then asks you to complete the class diagram by adding:

• an attribute for the pet's name
• an attribute for the owner's name
• a method to create the object and set attributes at registration
• a method to assign a pet ID
• a method to assign the registration date
• a method to return the pet name
• a method to return the owner's telephone number.

So this is a class-design task. You are not writing full program code; you are showing the structure of the class in UML-style form.

Approach

The safest approach is to map each bullet point in the question to one line in the class diagram.

• For the two new pieces of stored data, add two attributes of type STRING.
• For creating the object, add a constructor.
• For assigning values later, add setter methods.
• For returning values, add getter methods with return type STRING.

A sensible naming pattern is:

• attributes: PetName, OwnerName
• setter methods: Set...
• getter methods: Get...

There can be other valid names, but they must clearly perform the required job.

Step-by-Step Reasoning

First, add the two missing attributes.

The pet's name is text, so:

• PetName : STRING

The owner's name is also text, so:

• OwnerName : STRING

Next, add the method to create a Pet object and set attributes at registration.

A constructor normally has the same name as the class. At registration, the known values are likely to be:

• pet name
• owner name
• pet type
• owner telephone.

So a suitable constructor is:

• Pet(PetName : STRING, OwnerName : STRING, PetType : STRING, OwnerTelephone : STRING)

Then add a method to assign a pet ID.

Because this method gives a value to PetID, it is a setter/mutator. It needs a STRING parameter:

• SetPetID(NewPetID : STRING)

Then add a method to assign the date of registration.

This is another setter and needs a DATE parameter:

• SetDateRegistered(NewDateRegistered : DATE)

Now add the accessor to return the pet name.

Because it returns the stored pet name, it needs no parameter and returns STRING:

• GetPetName() : STRING

Finally, add the accessor to return the owner's telephone number:

• GetOwnerTelephone() : STRING

That gives all five required methods and both required extra attributes.

Note that the exact method names may vary between candidates, but they must clearly indicate:

• object creation
• assignment of PetID
• assignment of DateRegistered
• returning the pet name
• returning the owner's telephone number.

Key Takeaways

• A class diagram separates attributes from methods.
• A constructor initialises an object when it is created.
• Setter methods assign or update attribute values.
• Getter methods return attribute values and usually include a return type.
• Choose attribute types that match the data being stored, such as STRING for names and DATE for dates.

Common Mistakes

• Forgetting to add the data types for the two new attributes.
• Writing ordinary prose instead of class-diagram entries.
• Omitting parameters from setter methods such as SetPetID() and SetDateRegistered().
• Forgetting the return type on getter methods.
• Using a getter when the question asked for an assign/set method, or vice versa.
• Including PetID and DateRegistered inside the constructor when the question separately asks for methods to assign them. That may be less well matched to the wording.

Things to Be Careful About

• Use STRING for names and telephone number, and DATE for the registration date.
• Keep attributes in the attributes section and methods in the methods section.
• A constructor usually does not show a return type.
• Getter methods should normally show : STRING here because they return text.
• Since the question says "complete the class diagram", your answer should be diagram-style rather than full code.
• Sensible alternative names are often acceptable, but they must be unambiguous and match the required purpose.

Background Concept

A syntax diagram and BNF are two different ways of describing the same grammar rule.

• A terminal is an actual symbol that appears in the final string, such as +, = or 7.
• A non-terminal is a named rule that can be expanded further, such as <label> or <digit>.
• In BNF, alternatives are written using |.
• If a syntax diagram shows that something can be repeated, BNF often represents that using recursion.

For example, a diagram with several branches means “choose one of these alternatives”, so in BNF we write them separated by |.

Understanding the Question

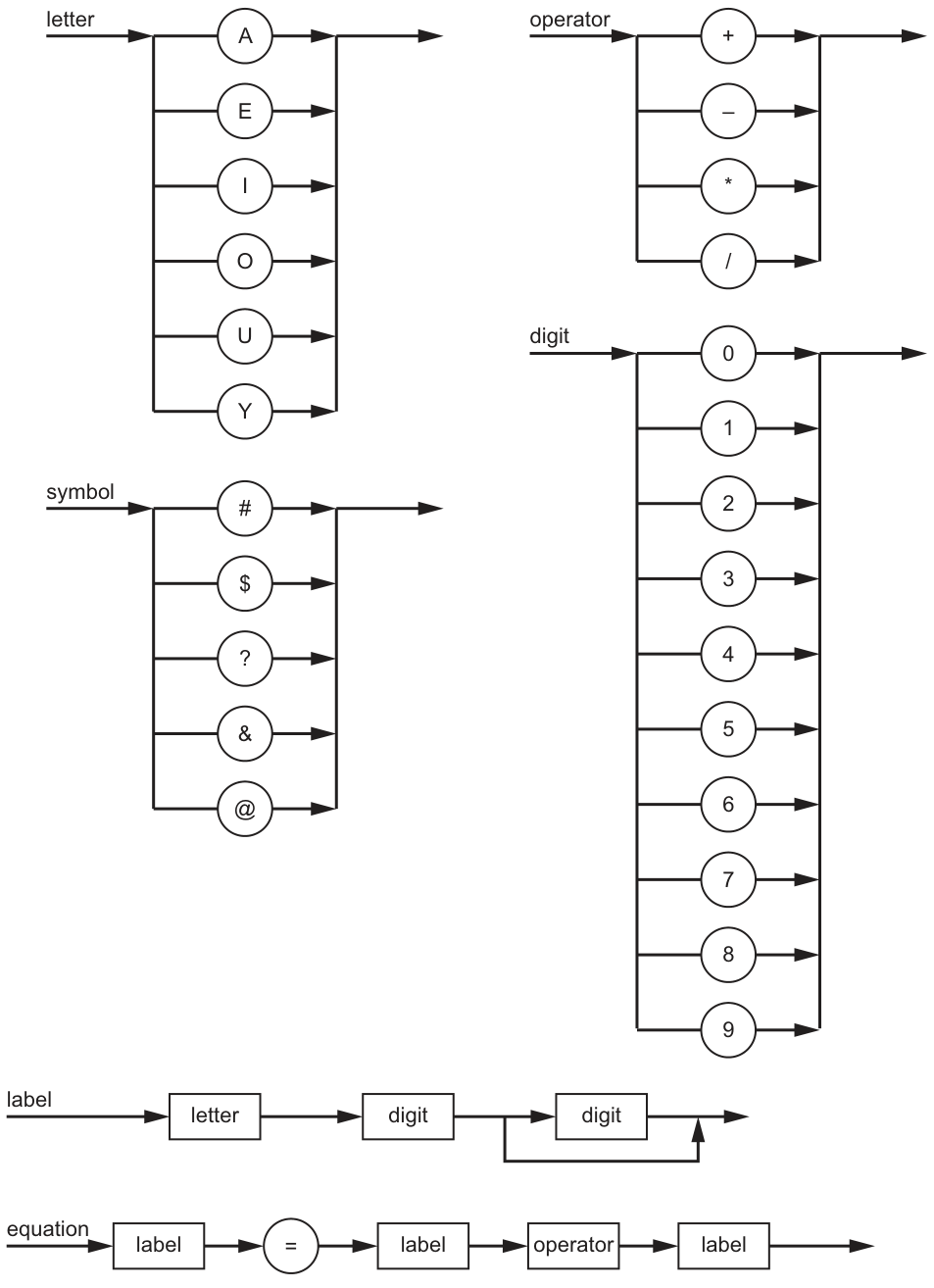

You are given six syntax diagrams in the parent figure, but in this part you only need to write BNF for three of them:

• <operator>
• <label>
• <equation>

The important point is that you must read each diagram carefully:

• operator is just a choice of four symbols.
• label starts with a letter, then digits follow, with the final digit position able to repeat.
• equation is a sequence of existing rules and one literal = sign.

So this is mainly a grammar-translation task: turn branching into |, turn a sequence into symbols written one after another, and turn repetition into recursion.

Approach

Work through each syntax rule one by one.

1. For operator, list the four possible terminals.
2. For label, identify the minimum valid form first, then add a recursive rule to allow extra digits.
3. For equation, copy the sequence exactly as the diagram shows it: label, equals sign, label, operator, label.

This avoids guessing and keeps the BNF matched closely to the diagram.

Step-by-Step Reasoning

1. <operator>

The operator syntax diagram shows four possible choices:

• +
• -
• *
• /

In BNF, a choice becomes alternatives separated by |:

<operator> ::= + | - | * | /

2. <label>

The label syntax diagram begins with:

• one letter
• then one digit
• then another digit

After that, the second digit position can repeat, so the label can continue with more digits.

The shortest possible valid label therefore has:

• one letter
• two digits

So the base case is:

<letter><digit><digit>

To allow more digits, add a recursive alternative that says an existing <label> can be followed by another <digit>:

<label> ::= <letter><digit><digit> | <label><digit>

This generates strings such as:

• A12
• E347
• U9086

3. <equation>

The equation syntax diagram shows this exact sequence:

• <label>
• =
• <label>
• <operator>
• <label>

So the BNF is written directly as:

<equation> ::= <label> = <label><operator><label>

That matches examples like:

• A12=E34+U56
• Y99=O10/A88

Key Takeaways

• A syntax-diagram branch becomes | in BNF.
• A sequence in a diagram becomes a sequence written directly in BNF.
• Repetition in a syntax diagram is commonly represented in BNF using recursion.
• Terminals stay literal; non-terminals stay inside angle brackets.

Common Mistakes

• Leaving out angle brackets for rule names: label is not the same as <label> in BNF notation.
• Treating terminals as non-terminals: = and + are literal symbols, not grammar rule names.
• Missing the recursive part of <label>: that would only allow the minimum form and not longer labels.
• Making <equation> the wrong order: the diagram is exactly <label> = <label><operator><label>, not any other sequence.
• Using commas or words like THEN: BNF uses ::= and |, not programming syntax.

Things to Be Careful About

• Read the parent figure precisely; one small loop or branch changes the grammar.
• Keep the spacing and symbols clear so the examiner can see each terminal and non-terminal.
• Do not invent new grammar rules unless needed; here the required rules can be written directly.
• When using recursion, make sure there is also a valid base case, otherwise the rule could never terminate.

Background Concept

A binary tree can be stored using linked nodes. Each node contains three fields:

• a LeftPtr to the left child
• the data item
• a RightPtr to the right child

If a node does not have a left or right child, that pointer must contain a null value. In this question, the null pointer is written as -1.

So, to convert a tree into a linked representation, you inspect each node and decide:

• what its left child is
• what its right child is
• whether either side is empty

Understanding the Question

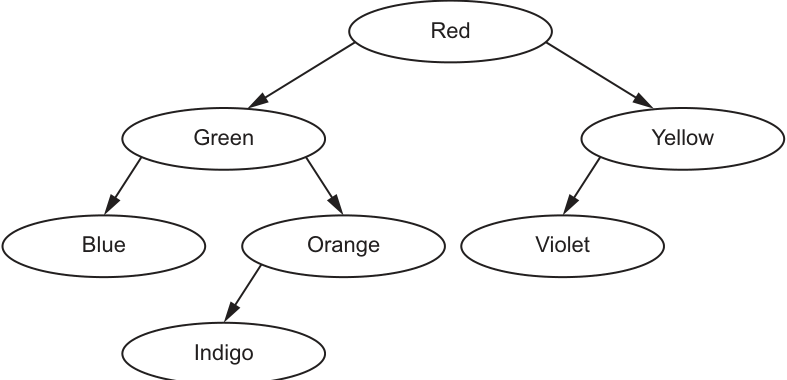

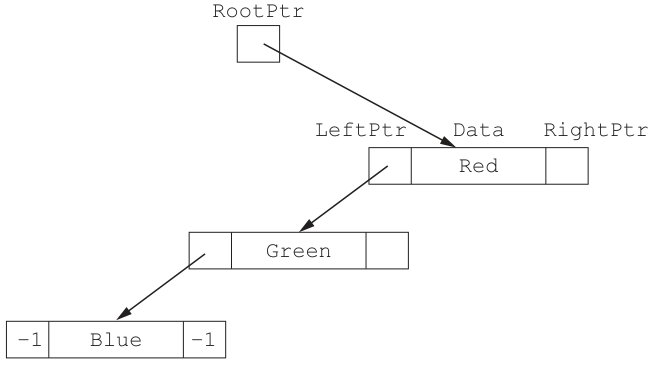

You are given the ordered binary tree with root Red. The partially completed linked-list diagram already shows:

• RootPtr pointing to Red
• Red.LeftPtr pointing to Green
• Green.LeftPtr pointing to Blue
• Blue.LeftPtr = -1 and Blue.RightPtr = -1

You must complete all the missing pointers so that the linked structure exactly matches the tree in Fig. 11.1.

Approach

Start from the tree and examine each node one by one.

For each node:

1. write the left pointer to its left child, if it has one
2. write the right pointer to its right child, if it has one
3. write -1 wherever a child does not exist

This is easier if you read the tree level by level and turn each branch into a pointer.

Step-by-Step Reasoning

From the tree:

• Red has left child Green and right child Yellow
• Green has left child Blue and right child Orange
• Blue has no children, so both pointers are -1
• Orange has a left child Indigo and no right child
• Indigo has no children, so both pointers are -1
• Yellow has a left child Violet and no right child
• Violet has no children, so both pointers are -1

So the missing parts of the linked structure are:

• Red.RightPtr points to Yellow
• Green.RightPtr points to Orange
• Orange.LeftPtr points to Indigo
• Orange.RightPtr = -1
• Yellow.LeftPtr points to Violet
• Yellow.RightPtr = -1
• Indigo.LeftPtr = -1, Indigo.RightPtr = -1
• Violet.LeftPtr = -1, Violet.RightPtr = -1

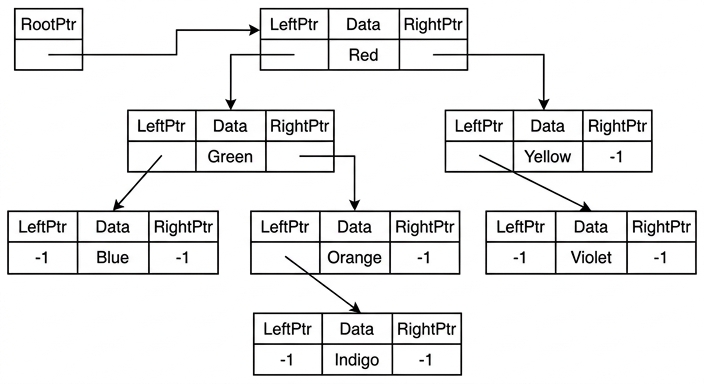

That gives the completed linked-list diagram.

Key Takeaways

• A linked binary tree stores child relationships using pointers.
• -1 is used here as the null pointer for a missing child.
• Every node must be checked separately for both left and right children.

Common Mistakes

• Putting a child on the wrong side, for example making Yellow the left child of Red instead of the right child.
• Forgetting to fill in -1 for missing children.
• Attaching Indigo to the wrong node; it is the left child of Orange, not of Green.
• Assuming every non-leaf node has two children; Orange and Yellow each have only one.

Things to Be Careful About

• Follow the tree exactly; do not reorder nodes just because it is an ordered tree.
• A pointer field must either point to a child node or contain -1.
• RootPtr points to the root node only; it does not point to every top-level branch.
• Make sure leaves such as Blue, Indigo and Violet have both pointer fields set to -1.

Background Concept

A linked structure does not have to use actual memory addresses. In an array of records, each pointer can instead store the index of another record.

For a binary tree stored this way:

• RootPtr stores the index of the root node
• each record stores LeftPtr, Data and RightPtr
• LeftPtr and RightPtr contain the index of the child record
• -1 means there is no child
• FreePtr stores the index of the first unused record

This is sometimes called a static linked structure because the links are represented by array positions rather than true dynamic pointers.

Understanding the Question

The colours have already been placed into array records at fixed indices:

• 0 = Red
• 1 = Green
• 2 = Yellow
• 3 = Blue
• 4 = Orange
• 5 = Indigo
• 6 = Violet
• 7 = unused

You must use the tree structure from part (a) and convert each child relationship into the correct index value.

Approach

Work in two stages:

1. identify which index stores each colour
2. replace every left or right child name with that index

After that:

• RootPtr is the index of the root node Red
• FreePtr is the unused record index

Step-by-Step Reasoning

First map the nodes to indices:

• Red is at index 0
• Green is at index 1
• Yellow is at index 2
• Blue is at index 3
• Orange is at index 4
• Indigo is at index 5
• Violet is at index 6

Now convert the tree links.

Red:

• left child is Green, so LeftPtr = 1
• right child is Yellow, so RightPtr = 2

Green:

• left child is Blue, so LeftPtr = 3
• right child is Orange, so RightPtr = 4

Yellow:

• left child is Violet, so LeftPtr = 6
• no right child, so RightPtr = -1

Blue is a leaf:

• LeftPtr = -1
• RightPtr = -1

Orange:

• left child is Indigo, so LeftPtr = 5
• no right child, so RightPtr = -1

Indigo is a leaf:

• LeftPtr = -1
• RightPtr = -1

Violet is a leaf:

• LeftPtr = -1
• RightPtr = -1

Now the pointer variables:

• the root is Red, at index 0, so RootPtr = 0
• the only unused record is index 7, so FreePtr = 7

Key Takeaways

• In an array implementation, pointers are usually record indices.
• To complete the table, translate each child node into its index.
• RootPtr identifies the root record and FreePtr identifies the next available record.

Common Mistakes

• Writing the child data values instead of the child indices in pointer fields.
• Forgetting that Yellow has no right child, so its RightPtr must be -1.
• Mixing up index 5 (Indigo) and index 6 (Violet).
• Forgetting to set FreePtr to the unused record.

Things to Be Careful About

• Use the given record order exactly; do not invent your own indices.
• Check left and right separately for every node.
• RootPtr is not the data value Red; it is the index 0.
• If a child does not exist, write -1, not a blank, in the pointer field.

Background Concept

An ordered binary tree stores smaller values in the left subtree and larger values in the right subtree. Because of that ordering, searching is efficient:

• if the item is smaller than the current node, go left
• if the item is larger than the current node, go right
• if the item is equal to the current node, the item has been found
• if the pointer becomes -1, the item is not in the tree

This is similar in idea to binary search: each comparison tells you which half of the structure can be ignored.

Understanding the Question

You are given an incomplete function that searches the array-of-records tree BinTree.

The function must:

• start at the root
• move left or right depending on the comparison
• return the index of the matching record if found
• return the null pointer -1 if the item is not found

The missing parts are:

• the return type of the function
• the initial value of NowPtr
• the first comparison
• the statement used when moving to the right child

Approach

Use the standard iterative ordered-binary-tree search pattern:

1. set the current pointer to RootPtr
2. repeat while the current pointer is not null
3. compare the current node's data with Item
4. go left if Item is smaller
5. go right if Item is larger
6. return the current pointer if they are equal
7. if the loop ends, return -1

Step-by-Step Reasoning

The function returns a record index or -1, so the return type must be INTEGER.

The search must begin at the root of the tree, so:

• NowPtr ← RootPtr

The loop condition is already given:

• continue while NowPtr <> -1

Now decide the first comparison.

The inner ELSE already handles:

• BinTree[NowPtr].Data < Item

That means the current node is alphabetically smaller than the item, so the item must be in the right subtree if it exists. Therefore the missing statement there is:

• NowPtr ← BinTree[NowPtr].RightPtr

So the first IF must be the opposite case:

• BinTree[NowPtr].Data > Item

If that is true, the item is smaller than the current node, so move left:

• NowPtr ← BinTree[NowPtr].LeftPtr

If neither greater nor less is true, the two values are equal, so the item has been found and the function returns NowPtr.

If the loop eventually reaches NowPtr = -1, the search has fallen off the tree without finding the item, so the final RETURN NowPtr correctly returns -1.

Key Takeaways

• Ordered binary tree search depends on comparing the target with the current node.
• Smaller values go left; larger values go right.
• A null pointer means the search path has ended and the item is absent.
• Returning the current index is appropriate when the tree is stored in an array of records.

Common Mistakes

• Reversing the comparison and moving left when the item is larger.
• Starting the search at index 0 automatically instead of using RootPtr.
• Returning the data value instead of the record index.
• Forgetting that -1 is the null pointer used to signal "not found".

Things to Be Careful About

• Keep the comparison direction consistent with an ordered binary tree.
• The existing inner test is BinTree[NowPtr].Data < Item, so the missing outer test must be the greater-than case.
• Use NowPtr ← BinTree[NowPtr].RightPtr when moving right, not LeftPtr.
• The function returns an INTEGER, because it returns an index or -1.
