Computer Science 9618/33 — May/June 2024

Background Concept

In this floating-point system, the number is stored as two separate signed binary values:

• a mantissa: the significant digits of the number
• an exponent: how far the binary point moves

Here:

• the mantissa uses 10 bits
• the exponent uses 6 bits
• both use two's complement

For Cambridge-style floating point, the mantissa is a signed binary fraction, so the binary point is taken to be immediately after the sign bit. That means a positive mantissa such as 0100111100 is read as 0.100111100.

The exponent is an ordinary signed integer in two's complement. A positive exponent means move the binary point to the right. A negative exponent means move it to the left.

A normalised mantissa has no unnecessary leading repeated sign bits:

• positive normalised mantissas begin 01...
• negative normalised mantissas begin 10...

Understanding the Question

You are given one complete floating-point value split into:

• mantissa: 0100111100
• exponent: 001001

The question asks for the denary value of this stored number, and it says to show working. So we must:

1. decode the mantissa correctly as a signed binary fraction
2. decode the exponent correctly as a two's complement integer
3. apply the exponent to the mantissa
4. convert the final binary value to denary

Approach

The quickest reliable method is:

1. Put the binary point in the mantissa after the first bit.
2. Convert the exponent from two's complement to denary.
3. Shift the binary point by that many places.
4. Convert the resulting binary number to denary.

Because the exponent here starts with 0, it is positive, so it can be read directly.

Step-by-Step Reasoning

The 10-bit mantissa is:

0100111100

Because the binary point is after the sign bit, this becomes:

0.100111100

This is already normalised because it starts 01.

Now decode the 6-bit exponent:

001001

The first bit is 0, so this is a positive two's complement value. Therefore:

001001 = 9

So the number stored is:

0.100111100 × 2^9

Multiplying by 2^9 means moving the binary point 9 places to the right:

0.100111100 -> 100111100.0

Now convert 100111100 to denary:

• 1 × 2^8 = 256
• 1 × 2^5 = 32
• 1 × 2^4 = 16
• 1 × 2^3 = 8
• 1 × 2^2 = 4

Total:

256 + 32 + 16 + 8 + 4 = 316

So the denary value is 316.

Key Takeaways

• In this syllabus, the mantissa is treated as a signed binary fraction.
• The exponent is a signed integer in two's complement.
• A positive exponent shifts the binary point right; a negative exponent shifts it left.
• For a normalised mantissa, positive numbers start 01 and negative numbers start 10.

Common Mistakes

• Treating the mantissa as an integer instead of a fraction. The point must be after the sign bit.
• Forgetting that the exponent is also in two's complement.
• Moving the binary point the wrong direction for a positive exponent.
• Converting the mantissa to denary first but then applying the exponent incorrectly.
• Ignoring normalisation and reading the stored bits in the wrong format.

Things to Be Careful About

• Count the mantissa bits exactly: with 10 bits, there is 1 sign bit and 9 fractional bits.
• Do not put the binary point at the far right; in this format it is after the first bit.
• Check the sign of the exponent from its first bit before converting it.
• When shifting by 9 places, move the point 9 positions, not 8 or 10.
• Keep binary and denary steps separate so you do not lose marks for working.

Background Concept

To store a real number in floating-point form, we split it into:

• a mantissa: the signed significant part
• an exponent: the signed power of 2

In this question, the mantissa is 10 bits and the exponent is 6 bits, both in two's complement.

For the mantissa, the binary point is immediately after the sign bit. So a 10-bit mantissa represents a value in the range approximately -1 to just under +1.

A floating-point number is normalised when the mantissa has no redundant sign bits at the start:

• positive normalised mantissa starts 01
• negative normalised mantissa starts 10

This ensures the stored bits use the available precision efficiently.

Understanding the Question

You must represent -102.75 in this floating-point system.

That means you need to:

1. convert 102.75 to binary
2. write it in normalised form
3. fit the mantissa into 10 bits
4. make the mantissa negative using two's complement
5. store the exponent in 6-bit two's complement

Because the value is negative, the exponent does not become negative automatically. The exponent depends only on how far the point moves during normalisation.

Approach

A safe method is:

1. Convert the magnitude 102.75 to binary.
2. Normalise it first as a positive value.
3. Write the positive mantissa in 10 bits.
4. Take the two's complement of that mantissa to make it negative.
5. Convert the exponent to 6-bit two's complement.

This avoids mistakes that often happen when students try to normalise the negative bit pattern directly.

Step-by-Step Reasoning

First convert 102.75 to binary.

1. Convert the integer part

102 in binary is:

64 + 32 + 4 + 2

So:

102 = 1100110

2. Convert the fractional part

0.75 in binary is:

• 0.75 × 2 = 1.5 -> first bit 1
• 0.5 × 2 = 1.0 -> second bit 1

So:

0.75 = .11

Therefore:

102.75 = 1100110.11

3. Normalise the positive value

We need the mantissa to be a signed fraction, so move the binary point left until the value is between 0.5 and 1 for a positive number:

1100110.11 = 0.110011011 × 2^7

Check this:

• the mantissa 0.110011011 is between 0.5 and 1
• it starts 01, so it is normalised
• the point moved 7 places, so exponent = 7

4. Fit the positive mantissa into 10 bits

The mantissa must have 10 bits total, including the sign bit.

0.110011011 as a 10-bit mantissa is:

0110011011

That is 1 sign bit plus 9 fractional bits.

5. Make the mantissa negative

Now take the two's complement of 0110011011:

Invert:

1001100100

Add 1:

1001100101

So the negative mantissa is:

1001100101

This is normalised because it begins 10.

6. Convert the exponent

The exponent is 7.

In 6-bit two's complement, positive 7 is simply:

000111

Final representation

So the floating-point representation of -102.75 is:

• Mantissa: 1001100101
• Exponent: 000111

Key Takeaways

• Convert the denary number to binary before normalising.
• Normalisation for this format means the mantissa is a signed fraction.
• Positive normalised mantissas start 01; negative ones start 10.
• To store a negative mantissa, take the two's complement of the positive mantissa bit pattern.
• The exponent records how many places the binary point moved, not the sign of the original number.

Common Mistakes

• Using the wrong binary for 102.75, especially forgetting .75 = .11.
• Writing the mantissa as 1100110.11 instead of as a signed fraction.
• Using the wrong exponent because the point movement is miscounted.
• Making the exponent negative because the number is negative. That is incorrect here.
• Forgetting to convert the negative mantissa into two's complement.
• Giving a mantissa that is not normalised, such as one beginning 11 for a negative number.

Things to Be Careful About

• The mantissa length is exactly 10 bits, so do not add extra trailing bits.
• Here the binary value terminates exactly, so no rounding is needed.
• Count the exponent from the original binary point to the normalised point carefully: it is 7.
• When taking two's complement, invert all 10 mantissa bits and then add 1.
• Check the final negative mantissa starts 10; that confirms normalisation in this format.

Background Concept

A protocol suite is a set of related communication protocols organised into layers. Each layer has a specific job and provides services to the layer above it. In the TCP/IP model, the four layers are:

• Application
• Transport
• Internet
• Link

The idea of layering is important because it breaks communication into manageable parts. For example, the Application layer deals with services such as web or email, while lower layers deal with delivery and the physical network.

Understanding the Question

This part gives the four layer names but not in the correct order. You must place them in the correct order in the vertical stack shown in the diagram.

The key point is that the layers must be arranged from highest level to lowest level. In a stack diagram, that normally means top to bottom.

Approach

Recall the standard TCP/IP order:

1. Application
2. Transport
3. Internet
4. Link

Then write them into the boxes from top to bottom in that sequence.

Step-by-Step Reasoning

The TCP/IP layers are not interchangeable, so the order matters.

• The Application layer is the top layer because it is closest to the user and to application software such as browsers and email clients.
• The Transport layer sits below it because it manages end-to-end communication between applications.
• The Internet layer is below the Transport layer because it handles addressing and routing across networks.
• The Link layer is the lowest of these four because it deals with the local network connection and access to the physical network.

So the completed stack, from top box to bottom box, is:

• Application
• Transport
• Internet
• Link

Key Takeaways

• Learn the standard TCP/IP layer order exactly.
• In a stack diagram, think from top layer down to lower-level network handling.
• The TCP/IP four-layer model is different from the seven-layer OSI model, so do not mix them.

Common Mistakes

• Reversing the order and writing from bottom to top.
• Confusing the Internet layer with the Application layer because of the word "Internet".
• Mixing in OSI layer names such as Session, Presentation, or Network, which are not part of the four-layer TCP/IP model named here.

Things to Be Careful About

• Use exactly the four names given in the question.
• Do not rename Link as "Data Link" unless the question specifically uses that term.
• Make sure the order is top to bottom, not just a list in random order.

Background Concept

The Transport layer in the TCP/IP suite is responsible for communication between applications running on different devices. It sits below the Application layer and above the Internet layer.

Its main jobs include:

• end-to-end communication between applications
• dividing data into smaller units for transmission
• reassembling the data at the destination
• supporting reliable transfer, depending on the protocol used
• using port numbers so data reaches the correct application

A common example is TCP, which belongs to the Transport layer and provides reliable delivery.

Understanding the Question

This question asks for the function of the Transport layer. That means you should explain what it does, not just where it is in the stack.

For 2 marks, two clear functions are usually enough. Strong answers mention both:

• end-to-end delivery between applications
• splitting and reassembling data, often with reliability or error checking

Approach

Think about what happens after an application wants to send data:

1. The Application layer creates the data.
2. The Transport layer prepares it for transmission.
3. Lower layers move it across the network.
4. The Transport layer at the other end rebuilds it for the receiving application.

So the best answer focuses on the Transport layer as the manager of application-to-application delivery.

Step-by-Step Reasoning

A good 2-mark description can be built from two points.

First point:

• The Transport layer provides end-to-end communication. This means it manages the transfer from the sending application on one computer to the receiving application on another computer.

Second point:

• It breaks data into smaller pieces (commonly called segments) before sending.
• At the destination, it reassembles those pieces into the original message.

A further useful detail is reliability:

• The Transport layer can include checks, acknowledgements, or sequencing so data arrives correctly and in the right order.

That is why the concise full-mark answer says it provides end-to-end delivery and splits/reassembles data with checks for reliable delivery.

Key Takeaways

• The Transport layer is about application-to-application communication.
• It prepares data for transmission by splitting it up.
• It rebuilds data at the destination.
• Reliability is an important Transport-layer function, especially with TCP.

Common Mistakes

• Saying it "routes packets". Routing is mainly the job of the Internet layer, not the Transport layer.
• Saying it "sends web pages" or "handles email". Those are Application-layer services.
• Describing only one vague idea such as "it transports data" without explaining how.

Things to Be Careful About

• Do not confuse end-to-end delivery with path selection through the network.
• If you mention packets, segments, or reassembly, make sure the description still clearly refers to the Transport layer's role.
• For a short-answer question, two precise functions score better than one long but unclear paragraph.

Background Concept

The Application layer is the top layer of the TCP/IP protocol suite. It provides protocols that application software uses directly. These protocols define the rules for particular services such as web browsing, file transfer, or email.

Examples include:

• HTTP for web pages
• FTP for file transfer
• SMTP for sending email
• POP3 or IMAP for receiving email
• BitTorrent for peer-to-peer file sharing

Understanding the Question

The question asks for one protocol associated with the Application layer and an outline of it. So you must do two things:

1. name a valid Application-layer protocol
2. say what it is used for

Just naming the protocol is not enough for a complete answer if the question says "outline".

Approach

Choose a familiar Application-layer protocol, then give its function in one sentence. A safe choice is HTTP because it is very well known and easy to explain.

Step-by-Step Reasoning

A complete response needs both the protocol name and its purpose.

Chosen protocol:

• HTTP

What it does:

• HTTP is used when a web browser requests web content from a web server.
• The server then sends back the webpage or other web resources.

So a clear answer is:

• HTTP — used to transfer web pages or web content between a web server and a web browser.

Other answers could also have been valid, such as:

• FTP — used to transfer files
• SMTP — used to send email
• IMAP/POP3 — used to retrieve email

Key Takeaways

• Application-layer protocols provide specific user-level services.
• To "outline" a protocol, always say what it is used for.
• Learn a few standard examples and their purposes.

Common Mistakes

• Giving a protocol from the wrong layer, such as IP or TCP.
• Naming a valid protocol but not explaining its purpose.
• Giving a general phrase like "used on the internet" without saying the specific service.

Things to Be Careful About

• Make sure the protocol you choose is actually in the Application layer.
• Keep the function specific: web pages, email sending, file transfer, and so on.
• One protocol is enough, but it must be correctly described.

Background Concept

A data type tells us what kind of data is being stored and, usually, what operations are valid on that data. In this topic, the key distinction is between data that is treated as one single value and data that is built from several pieces.

A non-composite data type is an atomic type. It stores one value as a single item. Typical examples are INTEGER, REAL, BOOLEAN or CHAR. Even if the value itself may contain several digits or characters when displayed, the program still treats it as one item of that type.

A composite data type is formed by combining multiple data items into one larger structure. The whole structure is one variable, but inside it are several component parts. Common examples are arrays, records, lists and classes. Some composite types contain many items of the same type, such as an array. Others can contain fields of different types, such as a record.

Understanding the Question

This part asks for the meaning of both terms: non-composite and composite data types. So the answer must do more than just name examples. It needs to explain the difference.

The important idea is:

• non-composite = one single item
• composite = several items grouped together

Because this is a 3-mark explanation question, a full answer should usually include:

• what a non-composite type is
• what a composite type is
• an extra clarifying point or example

Approach

The best approach is to define each term directly and contrast them.

Start by describing a non-composite type as a single value that is not divided into meaningful subparts. Then describe a composite type as a structure containing multiple components. Finally, strengthen the explanation by adding an example such as a record or array.

Step-by-Step Reasoning

First, identify what the examiner wants: the distinction between the two categories.

For non-composite:

• “Non-composite” means not made up from smaller component fields.
• So the type stores one value only.
• Examples like INTEGER or BOOLEAN help show this.

For composite:

• “Composite” means composed from parts.
• So the type contains multiple data items under one overall structure.
• A record is a very good example because it groups different fields such as a name, number and date.
• An array is also valid, because it groups many values together, usually of the same type.

To earn full credit, the wording must show the contrast clearly. Saying only “composite has many values” is a bit weak unless you also make clear that they are grouped into one structure. Saying only “non-composite is simple” is also weak unless you explain that it stores a single item.

That is why the solution states:

• non-composite holds a single item/value
• composite is made up of a number of items grouped together
• those items may be of the same or different types

Key Takeaways

• A non-composite type stores one value as a single item.
• A composite type groups several data items into one structure.
• Records and arrays are standard examples of composite types.
• In exam answers, always define the idea, not just list examples.

Common Mistakes

• Saying a non-composite type is “small” instead of saying it stores one value. Size is not the real distinction.
• Saying a composite type is “more complicated” without explaining that it contains multiple components.
• Giving only examples with no definition.
• Saying composite types must contain different data types. That is not always true: arrays are composite and usually contain items of the same type.

Things to Be Careful About

• Use the word “single” or “one” for non-composite.
• Use the idea of “grouped together” or “made up of several items” for composite.
• If you include examples, make sure they actually fit: INTEGER is non-composite; record and array are composite.
• Do not confuse a long string of characters with a composite type unless the syllabus context specifically treats it that way; in exam theory, the safer distinction is atomic built-in types versus structured grouped types.

Background Concept

A record is a composite user-defined data type. It is used when one real-world object needs several pieces of related information to be stored together. Each piece of information is stored in a field.

For example, a football club is not described by one value. It has a team name, a joining date, a telephone number, a manager, and numerical values such as membership count and league position. A record lets all of these be grouped under one type name.

In CIE pseudocode, a user-defined type is normally declared using TYPE ... ENDTYPE. Inside that block, each field is declared with a name and a data type.

Choosing field types matters:

• names are usually STRING
• counts and positions are usually INTEGER
• dates may be stored as DATE if that type is allowed in the pseudocode context
• telephone numbers are usually safest as STRING, because they may contain leading zeroes and are not used for arithmetic

Understanding the Question

The question asks for pseudocode statements to declare the record data type FootballClub.

That means you are not being asked to declare one variable called FootballClub. You are being asked to define a type template named FootballClub that could later be used to create variables of that type.

The record must include fields for:

• name of team
• date joined league
• main telephone number
• manager name
• number of members
• current league position

So the answer needs:

• TYPE FootballClub
• one field for each bullet point
• suitable data types for each field
• ENDTYPE

Approach

The correct method is:

1. Start a user-defined type with TYPE FootballClub.
2. Add one DECLARE line per required field.
3. Assign a sensible type to each field.
4. Close the declaration with ENDTYPE.

This is a record-style declaration, not an array declaration and not a class definition. Since this is Paper 3 style pseudocode, the answer should use CIE pseudocode conventions, not Python, Java or VB.

Step-by-Step Reasoning

Start with the outer structure:

TYPE FootballClub
   ...fields...
ENDTYPE

That tells the examiner you are defining a new composite type called FootballClub.

Now choose fields.

1. Team name

   • This is text.
   • So STRING is appropriate.
   • Example field name: TeamName.

2. Date joined the league

   • This is a date value.
   • DATE is a sensible type here.
   • Example field name: DateJoined.

3. Main telephone number

   • Telephone numbers should usually not be stored as INTEGER.
   • A phone number can begin with 0, and arithmetic is never performed on it.
   • So STRING is the safest choice.
   • Example field name: TelephoneNumber.

4. Manager name

   • This is text, so STRING.
   • Example field name: ManagerName.

5. Number of members

   • This is a whole-number count.
   • So INTEGER is appropriate.
   • Example field name: NumberOfMembers.

6. Current position in the league

   • This is also a whole number.
   • So INTEGER.
   • Example field name: LeaguePosition.

Putting those together gives a complete record declaration.

The exact field names may vary between candidates, but they must clearly correspond to the required items. The important thing is that all six required pieces of data are included and the overall declaration is clearly a record/user-defined type.

Key Takeaways

• A record is used to group related fields about one entity.
• TYPE ... ENDTYPE is the standard way to declare a user-defined composite type in CIE pseudocode.
• Choose field data types carefully based on how the value is used.
• Phone numbers are usually best stored as STRING, not INTEGER.

Common Mistakes

• Declaring six separate variables instead of one record type. That does not answer the question fully.
• Using a real programming language such as Python class syntax instead of pseudocode.
• Omitting TYPE or ENDTYPE.
• Storing the telephone number as INTEGER; this can lose leading zeroes.
• Forgetting one of the required fields, especially current position in the league.

Things to Be Careful About

• This is a type declaration, not an instance declaration.
• Keep pseudocode keywords in upper case: TYPE, DECLARE, ENDTYPE.
• Use the assignment of data types with a colon, for example DECLARE TeamName : STRING.
• Make sure every bullet point from the question appears exactly once as a field.
• Sensible alternatives for field names are acceptable, but they must clearly show the same meaning as the question.

Background Concept

File access method means the way records are retrieved from storage. In sequential access, the file is processed in order, record by record. The system starts at the beginning of the file and moves forward through it.

This is different from random access, where the program can jump straight to a specific record location. With sequential access, if the required record is near the end, the earlier records still have to be passed first.

A record is one complete item of stored data, such as one employee or one student entry. A file is a collection of these records.

Understanding the Question

This part asks only for the sequential method of file access itself, not for the different file organisations. So the answer needs to describe how the access happens:

• records are handled in order
• access begins at the start
• you cannot directly jump to the required record

For 2 marks, the examiner is usually looking for the ordered nature of the access and the fact that earlier records must be processed before later ones.

Approach

A good way to answer is to define the method first, then state its key consequence.

So:

1. Say that records are accessed one after another in sequence.
2. Say that the file is read from the beginning and the required record cannot be reached directly.

That gives a complete exam-style description without unnecessary detail.

Step-by-Step Reasoning

The phrase "sequential method of file access" tells you the important word is sequential.

Sequential means:

• first record, then second record, then third record, and so on
• movement is forward through the file in order

If a program wants record 50, it cannot jump straight to record 50 using this method. It must pass through records 1 to 49 first. Even if those earlier records are not the target, they still come before it in the access path.

So the two core marking points are:

• records are read in order from the start of the file
• direct access to an individual chosen record is not possible

That is exactly what the short solution states.

Key Takeaways

• Sequential access processes file records in order.
• Access starts at the beginning and moves through the file one record at a time.
• To reach a later record, earlier ones must be passed first.
• Sequential access is different from random access, which allows direct jumping.

Common Mistakes

• Confusing sequential access with sequential organisation. Access method is how records are retrieved; organisation is how they are stored.
• Saying records are accessed in key order in every case. That is not always true; it depends on the file organisation.
• Describing random access instead, such as "go straight to the record." That is the opposite of sequential access.
• Giving only one idea, such as "records are in order," without saying that access starts at the beginning or that direct access is not possible.

Things to Be Careful About

• Use the word access correctly: it is about retrieving records, not storing them.
• Do not assume anything about sorted keys in this part; that belongs to the next part about serial and sequential organisation.
• Keep the answer general and concise, because this part is only asking for the method itself.

Background Concept

File organisation and file access are related, but they are not the same thing.

• File organisation describes how records are arranged in the file.
• File access method describes how the records are read.

In this syllabus, two important organisations are:

• Serial organisation: records are stored one after another, usually in the order they were added. They are not necessarily sorted by key.
• Sequential organisation: records are stored in sequence of a key field, such as employee number or account number.

The sequential access method means records are read one at a time from the start and the program moves forward through the file.

Understanding the Question

This part asks how the same access method, sequential access, works when applied to two different types of file organisation.

So the answer must mention both:

• what happens for a serially organised file
• what happens for a sequentially organised file

The key difference is the order of storage:

• in a serial file, there is no key order
• in a sequential file, records are already sorted by key

That difference changes how useful the sequential search is and when it can stop.

Approach

Treat the answer as a comparison.

For serial organisation:

1. State that records are stored in input/addition order, not sorted.
2. Explain that sequential access therefore reads each record in turn until the target is found or the file ends.

For sequential organisation:

1. State that records are stored in key order.
2. Explain that sequential access reads in that sorted order.
3. Because the keys are sorted, once the program passes the target key, it knows the record is not present and can stop.

That gives the contrast the examiner wants.

Step-by-Step Reasoning

First, consider serial organisation.

Suppose records were added in this order of key values: 42, 15, 91, 30. That is not sorted. If we want key 30, sequential access must read:

• 42
• then 15
• then 91
• then 30

If the required record is absent, the search continues until the end of the file. Because the records are not ordered by key, you cannot safely stop early just because you have seen a larger or smaller key.

Now consider sequential organisation.

Suppose the key values are stored as: 15, 30, 42, 91. If we want key 30, sequential access reads:

• 15
• then 30

and stops when it is found.

If we want key 31, the search reads:

• 15
• then 30
• then 42

At that point, because the file is sorted, passing 31 means the record cannot appear later. So the search can stop early.

That is the important advantage of sequential access on a sequentially organised file: the ordering of records makes the search more meaningful and sometimes more efficient.

So the complete explanation is:

• for a serial file, sequential access reads records in the order they were stored until found or end of file
• for a sequential file, sequential access reads records in key order and may stop when the key is found or has been passed

Key Takeaways

• Serial organisation means records are stored in arrival/input order.
• Sequential organisation means records are stored in key order.
• Sequential access always reads one record after another from the start.
• Sequential access is less efficient on a serial file because there is no sorted order to help the search.
• Sequential access on a sequential file can stop once the target key has been passed.

Common Mistakes

• Saying serial and sequential organisation are the same. They are different: serial is unsorted, sequential is key ordered.
• Describing random access instead of sequential access.
• Forgetting to explain one of the two organisations. This question specifically needs both.
• Claiming that a serial file can stop when the key is passed. That only makes sense if the file is sorted.
• Talking only about how the file is stored and not how it is accessed.

Things to Be Careful About

• Use precise wording: serial files are typically stored in the order records are added, not in key order.
• For sequential organisation, mention the key order explicitly, because that is the reason the search can stop early.
• Do not overstate efficiency. Sequential access is still one-by-one reading; the benefit in a sequential file comes from the sorted order, not from direct access.
• If you mention "found or end of file," that fits serial organisation well. If you mention "found or key passed," that fits sequential organisation well.

Background Concept

Reverse Polish Notation (RPN), also called postfix notation, places each operator after its two operands. So instead of writing (5 + 2), RPN writes 5 2 +.

The main advantage of RPN is that brackets are not needed during evaluation, because the order is determined by position. To convert RPN into infix form, a common method is to use a stack of partial expressions:

• when you see an operand, push it
• when you see an operator, pop the most recent two expressions
• combine them as (left operator right)
• push the new combined expression back

The left operand is the one popped second, and the right operand is the one popped first. This matters especially for - and /.

Understanding the Question

You are given the RPN expression 5 2 + 9 3 - / 3 * and asked to rewrite it in normal infix form.

That means you must reconstruct where the brackets go and which operations happen first. Since the question is only asking for infix form, you do not need to calculate a final numeric value.

Approach

Work from left to right through the RPN tokens:

1. turn 5 2 + into one infix subexpression
2. turn 9 3 - into another infix subexpression
3. divide the first subexpression by the second
4. multiply the result by 3

Adding brackets around intermediate results is the safest way to preserve the exact order intended by the RPN expression.

Step-by-Step Reasoning

Start with the tokens:

5 2 + 9 3 - / 3 *

• Read 5: this is an operand, so it stands alone.
• Read 2: also an operand.
• Read +: combine the two most recent operands as (5 + 2).

So far you have one subexpression:

(5 + 2)

Continue:

• Read 9: operand.
• Read 3: operand.
• Read -: combine them as (9 - 3).

Now you have two subexpressions:

• (5 + 2)
• (9 - 3)

Next token is /, so divide the earlier subexpression by the later one:

((5 + 2) / (9 - 3))

Finally read 3, then *, so multiply the existing result by 3:

((5 + 2) / (9 - 3)) * 3

That is the correct infix form.

Key Takeaways

• RPN places operators after operands.
• To convert RPN to infix, combine the two most recent items each time you meet an operator.
• Brackets are useful to preserve the exact order of operations.
• For subtraction and division, operand order must be kept correct.

Common Mistakes

• Reversing the operands for - or /. For example, turning 9 3 - into (3 - 9) is wrong.
• Omitting necessary brackets, which can change the meaning of the expression.
• Treating the final * 3 as if it happened before the division.
• Evaluating the expression numerically instead of rewriting it in infix form.

Things to Be Careful About

• Read strictly from left to right.
• Each operator works on the two most recent complete operands or subexpressions, not just the two most recent numbers.
• Keep compound parts such as (5 + 2) together when later operators are applied.
• Use the order left operand operator right operand, where the left operand is the older item in the stack.

Background Concept

In infix notation, the operator is written between its operands, such as 7 + 3. In Reverse Polish Notation (RPN), the operator is written after its operands, so the same expression becomes 7 3 +.

To convert infix to RPN:

• write operands in the order they are used
• delay writing each operator until after both of its operands have appeared
• use brackets and precedence to decide which subexpression is completed first

Because this expression is fully bracketed, the conversion is simpler: each set of brackets tells you exactly which operation to write first.

Understanding the Question

You are given the infix expression ((7 + 3) - (2 * 8)) / 6 and asked to rewrite it in RPN.

The brackets tell you the exact order:

1. do 7 + 3
2. do 2 * 8
3. subtract the second result from the first
4. divide that result by 6

Approach

Convert each bracketed section into RPN first, then combine them:

• convert (7 + 3)
• convert (2 * 8)
• place - after those two results
• place / after the combined result and 6

This is easier than trying to convert the whole expression in one jump.

Step-by-Step Reasoning

Start with the first bracketed expression:

(7 + 3)

In RPN, this is:

7 3 +

Now the second bracketed expression:

(2 * 8)

In RPN, this is:

2 8 *

Now combine these two results using subtraction:

((7 + 3) - (2 * 8))

becomes:

7 3 + 2 8 * -

Finally divide that result by 6. In RPN, the 6 is written before the /:

7 3 + 2 8 * - 6 /

That is the complete postfix form.

Key Takeaways

• In RPN, an operator comes after both operands.
• Fully bracketed infix expressions are easiest to convert because the order is explicit.
• Build the RPN form one subexpression at a time.
• The final operator for the whole expression appears last.

Common Mistakes

• Writing the operator too early, for example 7 + 3 instead of 7 3 +.
• Forgetting that the subtraction joins the two bracketed results, not just the numbers nearest it.
• Putting / before 6 instead of after it.
• Changing the order of operands in subtraction or division.

Things to Be Careful About

• Keep the original left-to-right operand order.
• Do not lose the structure of the brackets while converting.
• The RPN for the whole numerator must be completed before you attach the final 6 /.
• Since the expression is fully bracketed, follow the brackets rather than relying only on normal precedence rules.

Background Concept

RPN expressions are usually evaluated using a stack.

A stack is a Last In, First Out (LIFO) structure:

• PUSH adds an item to the top
• POP removes the item from the top

For RPN evaluation:

• when you read an operand, push it onto the stack
• when you read an operator, pop the top two values
• apply the operator as left operator right
• push the result back onto the stack

The order of the two popped values is very important:

• for a b -, the calculation is a - b
• for a b /, the calculation is a / b

So if the top of the stack is b and the value below it is a, then b is the right operand and a is the left operand.

Understanding the Question

You are given the RPN expression a b - c d + * e / and the values:

• a = 17
• b = 5
• c = 7
• d = 3
• e = 10

You must do two things:

1. evaluate the expression
2. show how the contents of the stack change as each token is processed

So this is not just a final-answer question. The intermediate stack states are part of what earns the marks.

Approach

First replace each variable with its number:

17 5 - 7 3 + * 10 /

Then process the tokens from left to right. After each push or operation, record the stack contents from bottom to top.

The structure is:

• calculate 17 - 5
• calculate 7 + 3
• multiply those two results
• divide by 10

Step-by-Step Reasoning

Substitute the values:

a b - c d + * e /

becomes:

17 5 - 7 3 + * 10 /

Now evaluate it using a stack.

• Read 17 → push it
  • stack: [17]
• Read 5 → push it
  • stack: [17, 5]
• Read - → pop 5 and 17, calculate 17 - 5 = 12, push 12
  • stack: [12]
• Read 7 → push it
  • stack: [12, 7]
• Read 3 → push it
  • stack: [12, 7, 3]
• Read + → pop 3 and 7, calculate 7 + 3 = 10, push 10
  • stack: [12, 10]
• Read * → pop 10 and 12, calculate 12 * 10 = 120, push 120
  • stack: [120]
• Read 10 → push it
  • stack: [120, 10]
• Read / → pop 10 and 120, calculate 120 / 10 = 12, push 12
  • stack: [12]

Only one value is left on the stack at the end, so that is the final answer.

Final value: 12

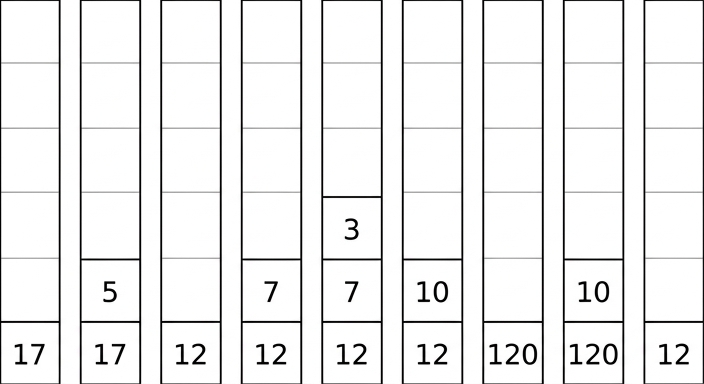

The stack evolution is shown here:

Key Takeaways

• RPN is naturally evaluated with a stack.
• Operands are pushed; operators pop two values, calculate, then push the result.
• The final answer is the single value left on the stack.
• Operand order matters for subtraction and division.

Common Mistakes

• Reversing the operands when applying - or /, for example doing 5 - 17 instead of 17 - 5.
• Forgetting to push the result of an operation back onto the stack.
• Showing only the final answer and not the intermediate stack contents.
• Treating variables like letters instead of substituting their given numeric values first.

Things to Be Careful About

• Read the expression strictly from left to right.
• Record the stack from bottom to top consistently.
• After every operator, the stack gets smaller by one item overall because two values are removed and one result is added.
• Check that exactly one value remains at the end; if more than one value is left, something has gone wrong in the evaluation.

Background Concept

A truth table lists every possible combination of input values and shows the resulting output. For a logic circuit with intermediate signals, you usually work from left to right: first calculate any inverted input, then the outputs of the smaller gates, then the final gate.

A NOT gate flips its input, so if $B = 0$ then $P = 1$, and if $B = 1$ then $P = 0$. An AND gate only gives 1 if all its inputs are 1. An OR gate gives 1 if at least one input is 1. A three-input XOR gate gives 1 when an odd number of its inputs are 1.

Understanding the Question

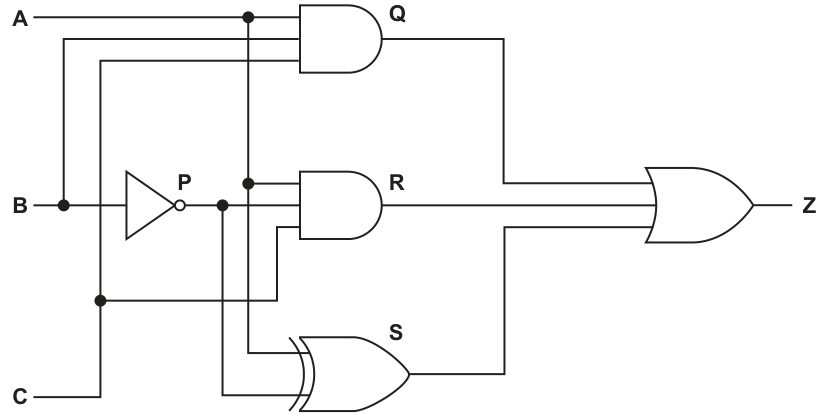

You are given a circuit with inputs $A$, $B$ and $C$, and you must complete the working columns $P$, $Q$, $R$, $S$ and the final output $Z$ for all 8 input combinations.

The important shared information from the diagram is:

• $P$ is the output of the NOT gate on $B$, so $P = \overline{B}$
• $Q$ is the output of the top AND gate, so $Q = A.B.C$
• $R$ is the output of the middle AND gate, so $R = A.\overline{B}.C$
• $S$ is the output of the XOR gate using $A$, $P$ and $C$
• $Z$ is the OR of $Q$, $R$ and $S$

So the task is really a careful dry run of the circuit for each row.

Approach

Start by filling column $P$ because every later part that uses the inverted $B$ depends on it. Then compute $Q$ and $R$ from the AND gates. After that evaluate $S$ using XOR parity. Finally, apply the OR rule to get $Z$.

This order matters because it mirrors the flow of signals through the circuit and reduces mistakes.

Step-by-Step Reasoning

For each row:

1. Find $P = \overline{B}$.
2. Find $Q = A.B.C$. This is 1 only when $A$, $B$ and $C$ are all 1.
3. Find $R = A.\overline{B}.C$. This is 1 only when $A = 1$, $B = 0$ and $C = 1$.
4. Find $S = A \oplus P \oplus C$. Count how many 1s appear among $A$, $P$ and $C$. If the count is odd, $S = 1$; if even, $S = 0$.
5. Find $Z = Q + R + S$. If any of $Q$, $R$ or $S$ is 1, then $Z = 1$.

Example rows:

• For $A=0$, $B=0$, $C=0$: $P=1$, $Q=0$, $R=0$, and $S=0 \oplus 1 \oplus 0 = 1$, so $Z=1$.
• For $A=1$, $B=0$, $C=1$: $P=1$, $Q=0$, $R=1$, and $S=1 \oplus 1 \oplus 1 = 1$, so $Z=1$.
• For $A=1$, $B=1$, $C=1$: $P=0$, $Q=1$, $R=0$, and $S=1 \oplus 0 \oplus 1 = 0$, so $Z=1$.

Working this through for all 8 rows gives the completed table in the solution.

Key Takeaways

• In a circuit truth table, calculate signals in the order they are produced.
• A NOT output often becomes a working column used by later gates.
• A three-input XOR is best handled by checking whether the number of 1s is odd.
• The final OR output is easy once all intermediate columns are correct.

Common Mistakes

• Forgetting to invert $B$ before using it in other gates.
• Treating XOR like OR. XOR is not "at least one 1"; it is "an odd number of 1s".
• Writing $Q$ or $R$ as 1 when only some of the AND inputs are 1. AND needs all inputs to be 1.
• Calculating $Z$ directly from $A$, $B$ and $C$ without first finding $Q$, $R$ and $S$.

Things to Be Careful About

• Keep the rows in the exact order given by the table.
• Use the working columns properly; they are there to prevent errors.
• Do not mix up $B$ and $P$. They are opposites.
• For XOR, check all three inputs to the XOR gate, not just two of them.

Background Concept

A sum-of-products expression is a Boolean expression written as several AND terms added together with OR. Each product term is a combination of literals such as $A$, $\overline{A}$, $B$ or $\overline{B}$.

To convert a circuit into Boolean algebra, write an expression for each gate. AND becomes multiplication or a dot, OR becomes $+$, and NOT becomes an overline. XOR is more awkward because it is not itself a sum-of-products, so if the question asks specifically for sum-of-products, the XOR branch must be expanded.

Understanding the Question

You are not being asked to simplify the expression. You are being asked to write the Boolean expression that matches the circuit, but in sum-of-products form.

From the diagram:

• $P = \overline{B}$
• $Q = A.B.C$
• $R = A.\overline{B}.C$
• $S = A \oplus \overline{B} \oplus C$
• $Z = Q + R + S$

So the main extra step is turning the XOR part into AND terms joined by OR.

Approach

Write the direct expressions for $Q$ and $R$ first. Then expand the three-input XOR into the rows where it outputs 1. A three-input XOR is 1 when there is an odd number of 1s, so its sum-of-products has four terms.

Finally OR the three branches together. If a term appears twice, that is still logically correct.

Step-by-Step Reasoning

The easy branches are:

and

Now expand the XOR branch. For inputs $A$, $P$ and $C$, a three-input XOR is 1 for these cases:

• $\overline{A}.\overline{P}.C$
• $\overline{A}.P.\overline{C}$
• $A.\overline{P}.\overline{C}$
• $A.P.C$

Substitute $P = \overline{B}$, so $\overline{P} = B$:

Now combine all three branches:

so

Notice that $A.\overline{B}.C$ appears twice. That is allowed here because the question asked for the expression corresponding to the circuit as a sum-of-products. Repeating the same product term does not change the logic value.

Key Takeaways

• Convert a circuit one gate at a time.
• Sum-of-products means OR of product terms.
• XOR usually needs expanding if a sum-of-products answer is required.
• Duplicate product terms do not change the logic result.

Common Mistakes

• Leaving XOR written as XOR when the question explicitly asks for sum-of-products.
• Forgetting that $P = \overline{B}$ and writing terms using $P$ instead of replacing it.
• Missing one of the four odd-parity cases for the three-input XOR.
• Simplifying too far when the question only asks for the expression corresponding to the circuit.

Things to Be Careful About

• Keep complements on the correct variables.
• Make sure the final expression is a sum of AND terms, not a mixture of gate symbols and algebra.
• If you use the intermediate signal $P$ while working, replace it with $\overline{B}$ in the final answer.
• Repeated terms are acceptable, but missing a required term is not.

Background Concept

A digital certificate is part of public key infrastructure. In asymmetric encryption, a person or organisation has a public key and a private key. The public key can be shared, but there must be some reliable way for other people to know that the public key really belongs to the claimed owner.

That is the purpose of a digital certificate. It is an electronic document that links an identity to a public key. A trusted third party, called a Certificate Authority (CA), checks the identity of the owner and then issues the certificate. The certificate typically includes the owner's name or organisation, the public key, and other details such as validity dates.

So the key ideas are:

• it is digital, not a paper certificate
• it proves identity
• it binds that identity to a public key
• it is trusted because a CA issues it

Understanding the Question

This part asks for what is meant by a digital certificate. That means you are being asked for a definition, not a full explanation of encryption steps.

To score well, the answer needs the main features of the definition:

• what it is: an electronic document
• what it does: verifies identity / proves ownership of a public key
• why it can be trusted: it is issued by a Certificate Authority

If you only say "it is used for security" or "it contains a key", that is too vague for full marks.

Approach

For a definition question like this, give three precise points:

1. identify the object
2. state its purpose
3. state who issues it or what it contains

That structure matches the likely marking points and avoids unnecessary detail.

Step-by-Step Reasoning

Start with the basic definition:

• A digital certificate is an electronic document or file.

Then state its role:

• Its job is to verify the identity of a person, organisation or server.
• More specifically, it shows that a particular public key belongs to that owner.

Then explain why others trust it:

• A Certificate Authority issues it.
• Because the CA is trusted, users can trust the certificate it creates.

Finally, mention its contents:

• It includes identifying information and the public key.
• Some certificates also include dates and the CA's own signature, but for a short 3-mark answer the identity, CA and public key are the most important points.

Putting those together gives a complete exam definition.

Key Takeaways

• A digital certificate links an identity to a public key.
• It is issued by a trusted Certificate Authority.
• Its purpose is to let others trust that a public key really belongs to the named owner.

Common Mistakes

• Saying it contains the private key. This is wrong because private keys must remain secret and are not distributed in certificates.
• Describing it as just "a password" or "an encryption key". A certificate is not the key itself; it is a document containing the public key and identity details.
• Forgetting the Certificate Authority. Without mentioning the trusted issuer, the definition is incomplete.
• Confusing a digital certificate with a digital signature. A certificate proves identity and public-key ownership; a digital signature is used to verify a message or file.

Things to Be Careful About

• Use the term public key, not private key.
• Make clear that the certificate is issued by a trusted third party, usually called a CA.
• Focus on identity verification, since that is the core purpose.
• For a "describe what is meant by" question, concise accurate points score better than a long general paragraph about internet security.

Background Concept

A digital signature is used to prove that a message or file came from a particular sender and has not been changed. It is created using the sender's private key. The receiver then uses the sender's public key to check the signature.

That creates an important problem: how does the receiver know that the public key really belongs to the claimed sender? If an attacker substituted a fake public key, the receiver could be fooled.

A digital certificate solves that trust problem. It contains the sender's public key and identity details, and it is signed or issued by a trusted Certificate Authority. Because of that, the receiver can trust that the public key is genuine.

Understanding the Question

This part is not asking you to describe every step of how a digital signature is mathematically formed. It is asking for the role of the digital certificate in that process.

The key idea is trust. A digital signature only has value if the public key used to check it is known to belong to the right person. The certificate provides that assurance.

So the answer should explain:

• what the certificate does in relation to the sender's public key
• why that matters when verifying the signature

Approach

The simplest route is:

1. state that a digital signature depends on a public key for checking
2. explain that the certificate proves whose public key it is
3. conclude that this allows the receiver to trust the signature verification

That directly links certificate and signature, which is what the question wants.

Step-by-Step Reasoning

A digital signature is associated with a sender.

• The sender creates the signature using their private key.
• The receiver needs the matching public key to verify it.

But a public key on its own is not enough.

• Anyone could claim "this is my public key".
• If the receiver accepted a false key, the signature check would be meaningless.

The digital certificate provides the missing trust.

• It contains the sender's public key.
• It also contains identity information about the sender.
• It is issued or validated by a trusted CA.

Because of this:

• the receiver can check the certificate
• the receiver can trust that the public key really belongs to the claimed sender
• the receiver can then use that public key to verify the digital signature

So the certificate does not replace the signature. Instead, it supports the signature by authenticating the public key used in the verification process.

Key Takeaways

• A digital signature is checked with a public key.
• A digital certificate proves that this public key belongs to the claimed sender.
• The CA's trust makes the signature verification meaningful.

Common Mistakes

• Saying the certificate creates the signature itself. It does not; the sender's private key is used to create the signature.
• Saying the certificate contains the private key. It should contain the public key, not the private key.
• Explaining only encryption and not mentioning identity or trust. This question is about authentication of the public key.
• Saying the receiver uses the certificate to decrypt the message. That is not the role being tested here.

Things to Be Careful About

• Use verify rather than create if you are describing what the receiver does with the public key.
• Keep the roles clear: private key for creating the signature, public key for checking it.
• Mention the CA, because that is what makes the certificate trustworthy.
• Do not confuse confidentiality with authenticity. Digital signatures and certificates are mainly about proving origin and integrity, not hiding the data.

Background Concept

In declarative programming, knowledge is represented as facts and rules.

• A fact states something that is true, for example feature(sunroof).
• A rule states that something is true if other conditions are true.
• A goal is a query asked against the facts and rules.

Here, the program is using predicates such as:

• feature(...) for things that are car features
• bodystyle(...) for types of car body
• available(feature, bodystyle) for a feature that is available on a body style
• unavailable(feature, bodystyle) for a feature that is not available on a body style

A fact must follow the same predicate structure already used in the existing knowledge base.

Understanding the Question

The question adds a new feature: sliding doors.

It tells you three separate pieces of information:

1. sliding doors is a feature
2. sliding doors is available on a minivan
3. sliding doors is unavailable on a hatchback

So you need three new facts, one for each of those statements, written in the same style as the existing clauses.

Approach

Match each English statement to the correct predicate:

• “is a feature” becomes feature(...)
• “is available on ...” becomes available(..., ...)
• “is unavailable on ...” becomes unavailable(..., ...)

Then substitute the new values:

• feature name: sliding_doors
• body styles: minivan and hatchback

Step-by-Step Reasoning

The first statement is:

• “Sliding doors is a feature”
• This matches the pattern already used by lines such as feature(sunroof).
• So the new fact is feature(sliding_doors).

The second statement is:

• “Sliding doors is available on a minivan”
• This matches facts such as available(sunroof, minivan).
• So the new fact is available(sliding_doors, minivan).

The third statement is:

• “Sliding doors is unavailable on a hatchback”
• This matches facts such as unavailable(extra_seats, hatchback).
• So the new fact is unavailable(sliding_doors, hatchback).

Each clause ends with a full stop, following declarative language fact syntax.

Key Takeaways

• A fact is written by choosing the correct predicate and supplying the correct argument values.
• English statements should be mapped directly to the predicate patterns already present.
• In declarative programming, consistency of predicate names and argument order matters.

Common Mistakes

• Writing sliding_doors(feature). instead of feature(sliding_doors). — the predicate name must come first.
• Reversing the arguments in available(...) or unavailable(...) — the feature comes first, then the body style.
• Forgetting one of the three facts — the question gives three distinct pieces of information.
• Omitting the final full stop on each clause.

Things to Be Careful About

• Use exactly the same predicate names already given: feature, available, unavailable.
• Keep the identifier style consistent with the rest of the program, using underscores in sliding_doors.
• Do not invent extra facts such as bodystyle(minivan). because those already exist in the stem and are not what this part asks for.

Background Concept

A goal in declarative programming is a question asked of the fact base. If a goal contains a variable, the system tries to find values that make the goal true.

For example, with a goal like available(Options, hatchback), the system looks for all facts of the form:

available(something, hatchback)

Each matching fact gives one possible value for Options.

Understanding the Question

You are given the goal:

available(Options, hatchback)

This means:

• find every feature that is available on a hatchback
• put each matching feature into the variable Options

You are not being asked about may_choose_option here, and you are not being asked to use the unavailable facts. You are only matching against the existing available(...) facts.

Approach

Scan the list of available(...) clauses and keep only those whose second argument is hatchback.

Then read off the first argument from each of those clauses. That first argument becomes the value of Options.

Step-by-Step Reasoning

The available(...) facts in the question are:

• available(sunroof, hatchback).
• available(sunroof, minivan).
• available(reversing_camera, hatchback).
• available(extra_seats, minivan).
• available(reversing_camera, saloon).

Now compare each one with the goal available(Options, hatchback):

1. available(sunroof, hatchback).

   • second argument matches hatchback
   • so Options = sunroof

2. available(sunroof, minivan).

   • second argument is minivan, so it does not match

3. available(reversing_camera, hatchback).

   • second argument matches hatchback
   • so Options = reversing_camera

4. available(extra_seats, minivan).

   • does not match

5. available(reversing_camera, saloon).

   • does not match

So there are two returned values.

Key Takeaways

• A goal with a variable returns every value that makes the predicate true.
• Matching is done by comparing the fixed arguments and extracting the variable argument.
• The order of the arguments matters when reading declarative facts.

Common Mistakes

• Giving only one answer when two facts match the goal.
• Looking at unavailable(...) facts instead of only available(...) facts.
• Reversing the meaning of the arguments and trying to return a body style instead of a feature.

Things to Be Careful About

• The query is against available, not may_choose_option.
• Return the feature names exactly as written in the facts: sunroof and reversing_camera.
• If multiple facts match, all valid bindings should be recognised.

Background Concept

A rule in declarative programming defines when a new statement can be considered true.

A typical rule has:

• a head: the fact you want to conclude
• a body: the conditions that must be true

So a rule has the general meaning:

• head is true if body is true

In this question, the body uses three logical tests:

1. F must be a valid feature
2. B must be a valid body style
3. F must not be unavailable for B

The word not is important because it introduces negation.

Understanding the Question

The question tells you the exact meaning of the rule in words:

“F may be available for B if F is a feature and B is a body style and F is not unavailable for that body style.”

So you must translate that English sentence directly into a formal declarative rule for may_choose_option(F, B).

The clue is that the question already gives the rule head:

may_choose_option(F, B)

and the keyword IF, so you only need to supply the conditions after it.

Approach

Take each phrase in the English description and convert it to the predicate already used in the knowledge base:

• “F is a feature” becomes feature(F)
• “B is a body style” becomes bodystyle(B)
• “F is not unavailable for that body style” becomes NOT unavailable(F, B)

Then join them using AND because the wording says all three conditions must be true.

Step-by-Step Reasoning

The head of the rule is already given:

may_choose_option(F, B)

Now translate the first condition:

• “if F is a feature”
• write this as feature(F)

Translate the second condition:

• “and B is a body style”
• write this as bodystyle(B)

Translate the third condition:

• “and F is not unavailable for that body style”
• the existing predicate is unavailable(feature, bodystyle)
• using the same arguments gives unavailable(F, B)
• because the wording says “not unavailable”, apply negation:
• NOT unavailable(F, B)

Now combine the three conditions with AND:

may_choose_option(F, B)
IF feature(F)
AND bodystyle(B)
AND NOT unavailable(F, B)

This rule means that any valid feature may be chosen for any valid body style unless there is a specific fact saying it is unavailable for that body style.

Key Takeaways

• A rule is built by translating the English condition into predicates and logical operators.
• The head states what is concluded; the body states what must be true.
• Negation is often used to exclude disallowed cases.

Common Mistakes

• Writing available(F, B) instead of NOT unavailable(F, B) — that changes the meaning of the rule.
• Leaving out feature(F) or bodystyle(B) — the rule then does not fully match the wording given.
• Writing the arguments in the wrong order, such as unavailable(B, F).
• Using true Prolog symbols like :- or \+ when the question has clearly set up the rule using IF, AND and NOT notation.

Things to Be Careful About

• Follow the notation style used in the question, not a different Prolog dialect.
• Keep the variables exactly as given: F and B.
• The logic is about not being unavailable, which is broader than explicitly being listed as available.
• Make sure all three conditions are included, because each one contributes to the rule's meaning.

Background Concept

A binary search does not look through every item one by one. Instead, it repeatedly checks the middle item and then discards half of the remaining data. That only works if the data is already arranged in order, because the algorithm must be able to decide whether the item being searched for would be to the left or to the right of the middle item.

If the array is not sorted, comparing with the middle item tells you nothing useful about where the target could be, so binary search would fail.

Understanding the Question

This part asks for one condition that must be true before an array can be searched using binary search. The key clue is the phrase "for a binary search". That tells you the question is not asking how binary search works, only what must already be true about the data.

Approach

Recall the fundamental rule for binary search: it requires ordered data. A one-mark answer should be short and direct.

Step-by-Step Reasoning

Binary search works by:

1. Looking at the middle item.
2. Comparing the target with that middle item.
3. Deciding whether to continue in the lower half or upper half.

That decision is only valid if smaller items are on one side and larger items are on the other side. Therefore, the array must be sorted.

Key Takeaways

• Binary search has a precondition: ordered data.
• Without sorting, binary search cannot correctly eliminate half the array each step.

Common Mistakes

• Saying "the array must be full" - this is not required.
• Saying "the array must contain unique items" - duplicates may make position handling more awkward, but uniqueness is not the core condition.
• Describing the algorithm instead of stating the condition - this can waste time in a one-mark question.

Things to Be Careful About

• Use the word sorted or ordered explicitly.
• Do not say "searched from the middle" as your condition; that is a method, not a requirement.
• Keep the answer brief, because the mark is for the key condition only.

Background Concept

A binary search is a search algorithm for a sorted 1D array. Instead of checking each item in turn, it repeatedly checks the middle item of the current search range.

The main idea is:

• Keep a lower bound and an upper bound for the part of the array still being searched.
• Find the middle item using integer division.
• If the target matches the middle item, the search is complete.
• If the target is greater, search the upper half.
• If the target is smaller, search the lower half.
• Stop when the item is found or when there is no valid search range left.

In this pseudocode, the variables TopOfList and EndOfList mark the current section of the array still being considered. The Boolean variables Found and NotInList control when the loop should stop.

Understanding the Question

You are given an almost-complete binary search algorithm for a sorted array Names containing 100000 strings. The question asks you to fill the missing lines.

The given code already sets:

• TopOfList ← 1
• EndOfList ← 100000
• input of the string to search for
• calculation of the midpoint
• output after the loop

So the missing pieces must complete the normal binary search logic:

1. initialise the Found flag
2. write the loop condition
3. compare the target with the current array item
4. mark when the item is definitely not present
5. move the lower bound upward when the target is greater

Approach

The easiest way to complete this is to think about the standard binary-search pattern.

Before the loop:

• Found must start as FALSE because we have not found anything yet.
• NotInList must also start as FALSE because we have not yet proved the item is absent.

The loop continues while both conditions are still false.

Inside the loop:

• Compare ToFind with Names[CurrentItem].
• If equal, set Found ← TRUE.
• Otherwise, if the bounds have crossed or collapsed so no more search is possible, set NotInList ← TRUE.
• Otherwise, decide whether to move the lower bound up or the upper bound down.

Step-by-Step Reasoning

The first missing line is:

Found ← FALSE

This is necessary because the program later tests Found in the WHILE condition and again in the final IF. It must therefore be initialised before use.

The next missing part is the loop condition:

WHILE Found = FALSE AND NotInList = FALSE

This means continue searching only while:

• the item has not been found, and
• the program has not yet concluded that the item is absent.

If either becomes true, the loop stops.

Inside the loop, the midpoint is already given:

CurrentItem ← (TopOfList + EndOfList) DIV 2

DIV is important because array indices are integers, so the midpoint must also be an integer index.

The next missing comparison is:

IF ToFind = Names[CurrentItem] THEN

This is the equality test. If the target exactly matches the middle item, the search is successful, so:

Found ← TRUE

is already provided.

If the target does not match, the code checks:

IF TopOfList >= EndOfList THEN

This means there is no longer a useful search range left. At that point, the search must stop with failure, so the missing line is:

NotInList ← TRUE

If there is still a valid range left, the algorithm decides which half to search next.

The question already gives:

IF ToFind > Names[CurrentItem] THEN

If the target is alphabetically after the current middle name, it must lie in the upper half, so the lower bound moves up to one place after the midpoint:

TopOfList ← CurrentItem + 1

The + 1 is essential. If you wrote only TopOfList ← CurrentItem, the midpoint could be checked again and the search might not progress.

Otherwise, the target is smaller, so the upper bound moves down:

EndOfList ← CurrentItem - 1

which was already supplied.

At the end, the program outputs either the position if Found = TRUE, or the message that the item is not in the array.

Key Takeaways

• Binary search needs lower and upper bounds that shrink each iteration.
• The midpoint is calculated with integer division.
• After comparing with the middle item, only one half of the array remains possible.
• Flags such as Found and NotInList are a common way to control loop termination.

Common Mistakes

• Forgetting to initialise Found - this leaves the loop condition undefined.
• Using OR instead of AND in the WHILE condition - that can keep the loop running when it should stop.
• Writing ToFind > CurrentItem instead of ToFind > Names[CurrentItem] - the comparison must be with the array value, not the index.
• Setting TopOfList ← CurrentItem instead of TopOfList ← CurrentItem + 1 - this can cause an infinite loop.
• Setting EndOfList ← CurrentItem instead of EndOfList ← CurrentItem - 1 - same problem: the same midpoint may be checked again.
• Writing Found = FALSE as an assignment - in CIE pseudocode, assignment must use the arrow ←.

Things to Be Careful About

• Use the exact identifier names given: TopOfList, EndOfList, CurrentItem, ToFind, Found, NotInList.
• Keep DIV, not real-number division.
• Remember the array is indexed from 1 to 100000, not from 0.
• The array stores STRING values, so comparisons such as > are alphabetical string comparisons.
• The stopping condition TopOfList >= EndOfList is part of this given algorithm structure, so your missing line there must be the failure flag, not a different redesign of the algorithm.

Background Concept

Big O notation describes how the running time of an algorithm grows as the amount of input data, usually written as n, becomes larger. It does not give an exact time in seconds; instead, it shows the general pattern of growth.

For binary search, the key observation is that each comparison removes half of the remaining items from consideration. That gives logarithmic growth, written as $O(\log n)$.

For example:

• 1 comparison can distinguish between 2 possibilities
• 2 comparisons can distinguish between about 4 possibilities
• 3 comparisons can distinguish between about 8 possibilities
• 10 comparisons can distinguish between about 1024 possibilities

So even when the array becomes much larger, the number of extra comparisons rises slowly.

Understanding the Question

This part asks you to describe how the performance of binary search changes as the number of data items increases, and it specifically says to refer to Big O notation. That means the answer must include both:

• the notation $O(\log n)$, and
• a plain-language description of what that means for larger arrays.

Approach

State the Big O class first, then explain why. The reason is that binary search repeatedly halves the search space. Linking the halving process to logarithmic growth is the key mark-winning idea.

Step-by-Step Reasoning

Suppose there are n items.

After one comparison, about n / 2 items remain.
After two comparisons, about n / 4 remain.
After three comparisons, about n / 8 remain.

Continuing this pattern, after k comparisons the remaining items are about:

The search finishes when this becomes about 1 item, so:

which means:

Therefore:

That is why the performance is written as $O(\log n)$.

In plain language, if the array size doubles, binary search does not take twice as long. It usually needs only about one extra comparison. That is why binary search is much faster than linear search for large sorted arrays.

Key Takeaways

• Binary search halves the remaining search area each step.
• Halving repeatedly leads to logarithmic time complexity.
• The Big O for binary search is $O(\log n)$.
• Logarithmic growth is very efficient for large datasets.

Common Mistakes

• Writing $O(n)$ - that is the usual complexity of linear search, not binary search.
• Saying "fast" without giving Big O notation - the question explicitly asks for it.
• Saying it gets faster as n increases - it does not get faster; it gets slower, but only slowly.
• Confusing Big O with exact comparison counts - Big O describes the growth pattern, not the exact number for one specific n.

Things to Be Careful About

• Include the word logarithmic or explain that the list is halved each time.
• Write $O(\log n)$ correctly; do not write just "log" without the Big O.
• Avoid claiming constant time $O(1)$, because the number of comparisons still depends on n, even though it grows slowly.
• The efficient performance only applies when binary search is valid to use, which means the data must be sorted.

Background Concept

RISC stands for Reduced Instruction Set Computer. A RISC processor is designed around a smaller set of simple instructions that can be executed very quickly, often in a single clock cycle. The idea is that simpler instructions make the processor easier to pipeline and can improve overall performance.

Typical RISC features include:

• a small, simple instruction set
• fixed-length instructions
• few addressing modes
• many general-purpose registers
• a load/store design, where only load and store instructions access main memory directly

These are contrasted with CISC processors, which usually have a larger and more complex instruction set.

Understanding the Question

The question only asks you to state two features of RISC processors. That means no long explanation is needed. You just need two correct characteristics that are commonly associated with RISC design.

Because it says state, the answer should be short and factual.

Approach

Recall the standard textbook features of RISC and choose any two clear ones. The safest approach is to use very widely accepted features rather than something more debatable.

Good choices are:

• small/simple instruction set
• fixed-length instructions
• few addressing modes
• large number of registers

Step-by-Step Reasoning

To answer this, think: what makes a processor "reduced instruction set"?

1. The processor does not try to provide a huge number of complex instructions.
2. Instead, it uses simple instructions.
3. RISC processors also commonly use fixed-length instructions, which makes instruction decoding easier and helps pipelining.

So two valid features are:

• small, simple instruction set
• fixed-length instructions

Other answers might also be accepted if they are genuine RISC features.

Key Takeaways

• RISC processors are based on simplicity of instructions.
• Fixed instruction formats are a common RISC characteristic.
• In short-answer questions, choose the most standard features.

Common Mistakes

• Giving features of processors in general rather than RISC specifically.
• Describing performance outcomes, such as "faster", without stating the architectural feature that causes it.
• Giving two versions of the same idea, for example "simple instructions" and "reduced instruction set", which may be treated as one point.

Things to Be Careful About

• The question asks for two features, so make sure they are distinct.
• Keep the answer brief; do not waste time on long comparisons with CISC.
• Use architecture features, not vague claims such as "better" or "more efficient".

Background Concept

An interrupt is a signal that causes the processor to temporarily stop its normal program so that it can deal with some urgent event. Examples include input/output completion, hardware signals, or error conditions.

Interrupt handling is the sequence the processor follows when such a signal occurs. The main idea is:

1. pause normal execution safely
2. save enough information to return later
3. run a special routine called an interrupt service routine (ISR)
4. restore the saved state
5. resume the original program

This basic process applies to both RISC and CISC processors.

Understanding the Question

The question asks you to outline the process of interrupt handling. That means you are expected to give the main steps in the correct order, not just define what an interrupt is.

The wording "as it could be applied to RISC or CISC processors" tells you the answer should be generic, not tied to one architecture.

Approach

Use the standard interrupt lifecycle:

• finish the current instruction or reach a safe point
• save the current context
• jump to the ISR
• service the interrupt
• restore context and continue

This gives a logical sequence and covers the usual marking points.

Step-by-Step Reasoning

When an interrupt occurs, the processor does not usually abandon the current instruction halfway through. Instead, it reaches a safe point, commonly after the current instruction completes.

Then it must preserve the state of the interrupted program. This typically includes:

• the address of the next instruction, held in the program counter
• status or flag registers
• sometimes other register contents

Saving this information matters because the processor must be able to continue later exactly where it left off.

After saving the context, the processor transfers control to the interrupt service routine. The ISR is a small program written to deal with that particular interrupt.

The ISR runs and handles the event. For example, it may read data from a device or acknowledge a hardware request.

When the ISR finishes, the saved register values and next instruction address are restored. The processor then resumes the interrupted program as though execution had only been temporarily paused.

That is why a good exam answer lists the sequence in order rather than giving isolated facts.

Key Takeaways

• Interrupt handling is about temporarily suspending one task and then returning safely.
• The crucial idea is saving and restoring the processor state.
• The ISR is the special routine that deals with the interrupt event.

Common Mistakes

• Saying the processor immediately stops in the middle of an instruction. Normally it completes the current instruction first or reaches a safe state.
• Forgetting to mention that the current context must be saved.
• Forgetting that execution returns to the original program after the ISR finishes.
• Describing polling instead of interrupt handling.

Things to Be Careful About

• Use the correct order: save state before executing the ISR.
• Mention resuming the original program; otherwise the process is incomplete.
• Do not get lost in unnecessary detail such as naming specific registers unless it helps the sequence.
• Since this is an outline question, keep the steps clear and concise.

Background Concept

Pipelining is a technique used by many RISC processors to improve throughput. Instead of waiting for one instruction to pass through all stages before starting the next, the processor overlaps instruction stages. For example, while one instruction is being executed, another may be decoded and another fetched.

This works especially well in RISC systems because instructions are often simple and of fixed length, making the stages regular.

Interrupt handling becomes more complicated in a pipelined processor because the processor is no longer dealing with only one instruction at a time. Several instructions may already be partly processed when the interrupt arrives.

Understanding the Question

The question is not asking you to define pipelining on its own. It asks how pipelining affects interrupt handling in a RISC processor.

So the key is to connect these two facts:

• pipelining means multiple instructions are active at once
• an interrupt needs the processor to switch to an ISR safely

You must explain what happens to the instructions already inside the pipeline and why that creates extra work or delay.

Approach

A strong approach is to explain three linked ideas:

1. several instructions are in flight at once in the pipeline
2. an interrupt creates a problem because some of those instructions are only partly processed
3. the processor must clear or manage the pipeline, then refill it afterward, causing overhead

That gives a full explanation for the effect.

Step-by-Step Reasoning

In a non-pipelined processor, interrupt handling is simpler because normally only one instruction is being dealt with at a time. The processor can finish it, save the state, and branch to the ISR.

In a pipelined RISC processor, the situation is different. At the moment an interrupt occurs:

• one instruction may be in execution
• another may be in decode
• another may be in fetch

So several instructions are at different stages simultaneously.

This creates a problem: the processor must decide what to do with the instructions already in the pipeline. It cannot just ignore them, because some may be partly completed.

A common response is to let the current instruction reach a safe completion point, then flush the remaining instructions from the pipeline. Flushing means discarding instructions that have been fetched or decoded but should not continue before the interrupt is serviced.

The interrupt service routine then runs.

After the ISR finishes, the processor resumes the original program. But the pipeline is now empty or partly emptied, so it must be filled again with the next instructions. During this refill period, throughput drops, so interrupt handling causes a performance penalty.

So the overall effect of pipelining is:

• interrupts are more complex to manage
• some in-progress work may be wasted
• there is a delay while the pipeline is flushed and then refilled

Key Takeaways

• Pipelining improves throughput by overlapping instruction stages.
• Interrupts are harder in pipelined processors because multiple instructions may be active at once.
• Flushing and refilling the pipeline adds delay and can reduce performance.

Common Mistakes

• Saying pipelining has no effect on interrupt handling.
• Explaining pipelining only in general terms without mentioning interrupts.
• Forgetting that partly processed instructions may need to be discarded.
• Saying the processor always completes every instruction in the pipeline before the ISR; often the pipeline is flushed to remove later instructions.

Things to Be Careful About

• Link the answer specifically to RISC pipelining, not just to interrupts in general.
• Make it clear that the issue is multiple instructions being in different stages at once.
• Mention both the immediate effect on the pipeline and the later need to refill it.
• Avoid overcomplicating the answer with stage names if the basic idea is already clear.
