Computer Science 9618/31 — May/June 2024

Background Concept

Floating-point representation stores a real number in two parts:

• a mantissa (sometimes called the significand), which holds the significant digits
• an exponent, which tells us the power of 2 to multiply by

In this question:

• the mantissa uses 10 bits
• the exponent uses 6 bits
• both are stored in two's complement

For Cambridge International questions of this type, the mantissa is treated as a binary fraction with the binary point immediately after the sign bit. So a 10-bit mantissa such as 0100111100 means:

• sign bit 0 so the mantissa is positive
• value 0.100111100₂

A normalised two's complement mantissa has its first two bits different:

• positive normalised numbers begin 01...
• negative normalised numbers begin 10...

Once the mantissa and exponent are known, the real value is:

Understanding the Question

You are given one floating-point number already stored in this system:

• mantissa: 0100111100
• exponent: 001001

The task is to convert that stored bit pattern into an ordinary denary value and show the working. That means:

1. decode the exponent from 6-bit two's complement
2. decode the mantissa as a binary fraction
3. multiply the mantissa by $2^{\text{exponent}}$

Approach

Because both fields are already given, this is a direct decode question.

• The exponent is positive because its first bit is 0, so it can be read normally.
• The mantissa is also positive because its sign bit is 0.
• Convert the mantissa fraction by adding the place values of the 1 bits.
• Then apply the exponent.

This is the standard way to handle any floating-point denary conversion question in this syllabus.

Step-by-Step Reasoning

First decode the exponent.

The 6-bit exponent is 001001.

Because the leading bit is 0, it is a positive two's complement number, so its value is simply:

So the exponent is $9$.

Now decode the mantissa.

The 10-bit mantissa is 0100111100.

The binary point is placed after the sign bit, so this means:

Now convert that binary fraction to denary by adding the values of the 1 bits:

• $1 \times \frac{1}{2}$
• $0 \times \frac{1}{4}$
• $0 \times \frac{1}{8}$
• $1 \times \frac{1}{16}$
• $1 \times \frac{1}{32}$
• $1 \times \frac{1}{64}$
• $1 \times \frac{1}{128}$
• $0 \times \frac{1}{256}$
• $0 \times \frac{1}{512}$

So:

Now apply the exponent:

So the denary value represented is:

Key Takeaways

• In these questions, the mantissa is a binary fraction with the binary point immediately after the sign bit.
• A positive two's complement exponent can be read directly as ordinary binary.
• Floating-point value is always found using:

• For normalised two's complement mantissas, positive values begin 01 and negative values begin 10.

Common Mistakes

• Treating the mantissa as an ordinary integer instead of a fraction. That gives a completely wrong answer.
• Putting the binary point in the wrong place. In this format it goes after the sign bit, not at the end.
• Forgetting that the exponent is in two's complement.
• Reading 0100111100 as 0.0100111100₂ instead of 0.100111100₂.
• Multiplying by the exponent itself instead of by $2^{\text{exponent}}$.

Things to Be Careful About

• Count the mantissa bits carefully: after the sign bit, each place is a negative power of 2.
• Make sure you use the exact field sizes given: 10 bits for mantissa, 6 bits for exponent.
• If the exponent had started with 1, you would need to decode it as a negative two's complement number rather than ordinary binary.
• Write enough working to show both the mantissa value and the exponent value, because the question specifically asks for working.

Background Concept

To store a denary real number in floating-point form, we usually do four things:

1. convert the number to binary
2. normalise it
3. fit the mantissa into the given mantissa field
4. encode the exponent in the given exponent field

In this question the system uses:

• a 10-bit mantissa
• a 6-bit exponent
• two's complement for both

For this syllabus, the mantissa is a signed binary fraction with the binary point immediately after the sign bit.

Examples:

• 0110000000 means $0.110000000_2$
• 1001100101 is a negative two's complement fraction

A normalised two's complement mantissa must begin:

• 01 for positive values
• 10 for negative values

That rule matters, because the question specifically asks for the normalised floating-point form.

Understanding the Question

You must store the denary value −102.75 in this floating-point system.

So you need to produce two bit patterns:

• the 10-bit mantissa
• the 6-bit exponent

The value is negative, so you should expect:

• a negative mantissa in two's complement
• a positive exponent, because a number as large as 102.75 must be shifted to become a fraction between −1 and 1

The key clue is the word normalised. That tells you not to use just any mantissa/exponent pair; you must shift the number so the mantissa begins with the correct leading bits for a normalised two's complement value.

Approach

A reliable method is:

1. Convert $102.75$ to binary.
2. Write it in normalised form as a binary fraction times a power of 2.
3. Create the positive normalised mantissa first.
4. Convert that mantissa to its 10-bit two's complement negative version.
5. Encode the exponent in 6-bit two's complement.

Doing the positive form first is much safer than trying to guess the negative bit pattern directly.

Step-by-Step Reasoning

First convert $102.75$ to binary.

1. Convert the integer part

$102$ in binary is:

2. Convert the fractional part

$0.75$ in binary is:

So:

Because the number is negative:

3. Normalise the value

Now write the magnitude as a fraction with the binary point after the sign bit position.

Why exponent $7$? Because the binary point has been moved 7 places left.

So the positive normalised mantissa is:

This already fits exactly into 10 bits total:

• 1 sign bit
• 9 fractional bits

So the 10-bit positive mantissa is:

0110011011

4. Make the mantissa negative using two's complement

The number to be stored is negative, so now convert the 10-bit positive mantissa to a 10-bit negative two's complement mantissa.

Start with:

0110011011

Invert all bits:

1001100100

Add 1:

1001100101

So the required mantissa is:

1001100101

This is also normalised, because it begins 10, which is the correct pattern for a negative normalised two's complement mantissa.

5. Encode the exponent

The exponent is $7$.

In 6-bit two's complement, a positive 7 is just ordinary binary with leading zeros:

000111

So the exponent is:

000111

Final representation

• Mantissa: 1001100101
• Exponent: 000111

That is the normalised floating-point representation of $-102.75$ in this system.

Key Takeaways

• Convert the denary number to binary before trying to store it.
• Normalise by shifting so the mantissa is a fraction with the binary point after the sign bit.
• For two's complement normalised mantissas:
  • positive starts 01
  • negative starts 10
• A negative mantissa is usually easiest to get by taking the positive mantissa and applying invert and add 1.
• Always check the exact bit lengths required by the question.

Common Mistakes

• Forgetting to convert the fractional part .75 into binary .11.
• Using an unnormalised mantissa, for example storing too much of the value in the mantissa and too little in the exponent.
• Writing the negative mantissa as sign-and-magnitude instead of two's complement.
• Taking two's complement of the whole number 1100110.11 directly instead of first forming the correctly sized 10-bit mantissa.
• Using the wrong exponent because of counting the binary-point shifts incorrectly.
• Forgetting that the exponent also has a fixed width of 6 bits.

Things to Be Careful About

• The mantissa must be exactly 10 bits, not 9 or 11.
• The exponent must be exactly 6 bits.
• When normalising in this syllabus, the binary point is understood to be immediately after the sign bit of the mantissa.
• If the positive normalised mantissa had needed more than 9 fractional bits, you would have had to round or truncate to fit; here it fits exactly, so no rounding issue arises.
• After producing a negative mantissa, check that it still looks normalised by beginning 10.

Background Concept

A protocol suite is a set of related communication protocols organised into layers. In the TCP/IP model, each layer has a different responsibility, and each layer uses the services of the layer below it.

The four layers in the TCP/IP protocol suite are usually ordered from top to bottom as:

1. Application
2. Transport
3. Internet
4. Link

The top layer is closest to the user and application software. The bottom layer is closest to the physical network hardware and actual transmission of data.

Layering is useful because it breaks communication into manageable parts. Each layer can be designed separately, and a change in one layer does not require the whole system to be redesigned.

Understanding the Question

The question gives the four TCP/IP layer names, but not in the correct order. The diagram is a vertical stack of four boxes, so you must place the layers in the standard order from top to bottom.

Because it says "complete the diagram to show the correct order", this is not asking for functions or examples of protocols yet. It is only testing whether you know the correct sequence of the layers in the TCP/IP model.

Approach

Recall the TCP/IP stack in descending order:

• Application
• Transport
• Internet
• Link

Then place them into the four boxes from the top box down to the bottom box.

Step-by-Step Reasoning

The four given layer names are:

• Transport
• Application
• Link
• Internet

We now arrange them in the standard TCP/IP order.

• Application is at the top because it provides services to user applications such as web browsing and email.
• Transport comes below Application because it manages end-to-end delivery between applications.
• Internet comes below Transport because it handles addressing and routing across networks.
• Link is at the bottom because it deals with the local network connection and transmission over the hardware.

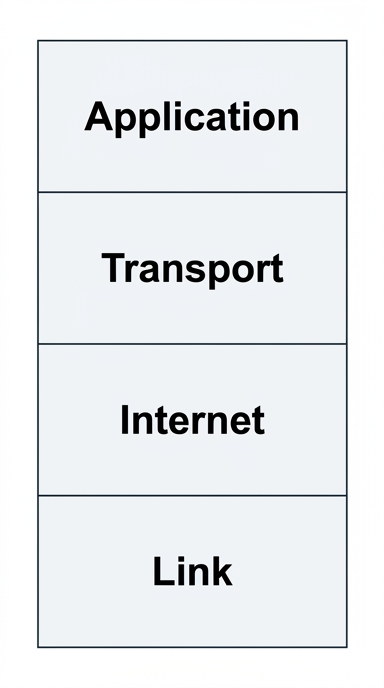

So the finished stack from top to bottom is:

• Application
• Transport
• Internet
• Link

Key Takeaways

• The TCP/IP model has four layers.
• The correct order from top to bottom is Application, Transport, Internet, Link.
• In layered models, higher layers depend on services provided by lower layers.

Common Mistakes

• Reversing the order and writing the layers from bottom to top.
• Confusing the Internet layer with the Application layer because of the word "Internet".
• Mixing TCP/IP with the OSI model and trying to include extra layers such as Session or Presentation.

Things to Be Careful About

• The question asks for the order, not the function of each layer.
• Use the exact layer names given in the question.
• If using a vertical stack, read it carefully: unless stated otherwise, the expected convention is top to bottom from highest layer to lowest layer.

Background Concept

The Transport layer in TCP/IP sits below the Application layer and above the Internet layer. Its job is to provide communication between application processes running on different devices.

This is often called end-to-end communication. That means it is not just sending data from one network to another; it is making sure the correct application on one device can communicate with the correct application on another device.

Typical Transport-layer responsibilities include:

• breaking data into smaller units such as segments
• reassembling those units at the destination
• supporting reliable delivery in protocols such as TCP
• using port numbers to identify the correct application process

Not every exam answer needs all of those points. For a short 2-mark answer, two accurate functions are usually enough.

Understanding the Question

The question asks for the function of the Transport layer, not its position in the stack and not the name of a protocol. So the focus should be on what this layer does.

A strong answer should mention the idea of communication between applications and one extra detail such as segmentation, reassembly or reliability.

Approach

To answer, think of the Transport layer as the part of the TCP/IP model that manages communication from one application to another.

A concise full-mark answer can be built from two points:

1. it provides end-to-end communication between applications
2. it handles the data during transfer, such as splitting and reassembling it, and supporting reliable delivery

Step-by-Step Reasoning

First, identify what kind of communication this layer manages.

The Application layer deals with services like web and email, but the Transport layer sits underneath and supports those services by moving data between the correct programs on the two devices. That is why "end-to-end communication between applications" is a key phrase.

Second, explain one of the mechanisms it uses.

Large data is usually not sent as one huge block. The Transport layer breaks data into smaller pieces so that they can be transmitted more efficiently. At the receiving end, these pieces are put back together. That is the segmentation and reassembly role.

In many cases, especially with TCP, this layer also helps ensure reliable delivery by checking whether data arrives correctly and in the right order. For a 2-mark answer, mentioning reliability is acceptable when paired with the main role.

So the answer is correctly expressed as:

• it provides end-to-end communication between applications
• it splits data into segments and reassembles it at the destination, with checks for reliable delivery

Key Takeaways

• The Transport layer supports application-to-application communication.
• It commonly performs segmentation and reassembly.
• It may also support reliability and correct delivery.

Common Mistakes

• Describing the Internet layer instead, for example talking only about routing.
• Giving the name of a protocol such as TCP without explaining its function.
• Saying only "it transports data". That is too vague on its own for a good descriptive answer.

Things to Be Careful About

• Use the term end-to-end rather than just "network to network".
• Do not confuse the Transport layer with the Link layer, which is concerned with local network transmission.
• For a short answer, choose two precise points rather than listing many vague statements.

Background Concept

The Application layer is the top layer of the TCP/IP protocol suite. It provides protocols that allow software applications to communicate over a network.

Examples of Application-layer protocols include:

• HTTP for web pages
• FTP for file transfer
• SMTP for sending email
• POP3 or IMAP for receiving email
• BitTorrent for peer-to-peer file sharing

When a question asks for one protocol associated with the Application layer, you must give both the protocol name and what it does.

Understanding the Question

This question says "Outline one protocol that is associated with the Application layer." That means you should:

1. name one valid Application-layer protocol
2. briefly describe its purpose

Just writing the protocol name may not be enough for full marks, because "outline" usually requires at least a short explanation.

Approach

Choose any standard Application-layer protocol from the syllabus, then state its role in one sentence.

A very safe choice is HTTP, because it is widely known and easy to describe accurately: it is used to transfer web pages and related resources between browsers and web servers.

Step-by-Step Reasoning

First, choose a correct protocol.

Valid examples include HTTP, FTP, SMTP, POP3, IMAP or BitTorrent. Since only one is needed, we pick HTTP.

Next, explain its purpose.

HTTP stands for HyperText Transfer Protocol. It is used when a browser requests a web page from a server and the server sends the page back. More generally, it transfers web pages and web resources between the browser and the web server.

That gives a complete answer:

• HTTP
• used to transfer web pages and other web resources between a web server and a web browser

Key Takeaways

• The Application layer contains protocols used directly by user applications.
• A protocol name alone is often not enough; include its function.
• HTTP is a standard example used for web communication.

Common Mistakes

• Naming a protocol from the wrong layer, such as IP or TCP.
• Giving only the expanded form of the acronym without saying what it does.
• Confusing sending email and receiving email protocols, for example mixing SMTP with POP3 or IMAP.

Things to Be Careful About

• Make sure the protocol is definitely an Application-layer protocol.
• Keep the function specific: for HTTP, mention web pages/resources and browser/server.
• If you choose a different valid protocol, its purpose must match exactly, for example SMTP for sending email, POP3/IMAP for receiving email, FTP for file transfer.

Background Concept

A data type tells the computer what kind of value is being stored and how it should be handled. In this topic, the important distinction is between values that are simple and values that are built from several parts.

A non-composite data type is a single, indivisible value from the programmer's point of view. Typical examples are INTEGER, REAL, CHAR and BOOLEAN. Even if the computer stores the value internally in bits, the program treats it as one item.

A composite data type is a structure formed from multiple items. These items are grouped together because they belong to the same real-world entity or because they need to be processed as one structure. Examples include records, arrays and classes. A record is especially important here because it can hold several different fields, and those fields may have different data types.

Understanding the Question

The question asks for the meaning of both terms: non-composite and composite. So a full answer must define each one and make the difference clear.

A strong answer should not just say "simple" and "complex". It should explain that non-composite means one single value, while composite means several component parts grouped together. Including an example helps make the distinction precise.

Approach

The best approach is:

1. Define non-composite.
2. Define composite.
3. Add a clear contrast or example.

Because this is a 3-mark explain question, you should aim for three distinct marking points rather than one vague sentence.

Step-by-Step Reasoning

First, identify what non-composite means. The key idea is that the data item is treated as one value. For example, an INTEGER contains one number, and a CHAR contains one character. You do not refer to internal named parts of that item.

Second, identify what composite means. The key idea is that the data item is built from multiple components. For example, a record for a student could contain a name, date of birth and mark. Those are separate fields, but together they describe one student.

Third, make the contrast explicit. Examiners usually reward the difference itself: one value versus several grouped values. If you also mention that composite fields may be of different types, that strengthens the explanation because records commonly mix STRING, INTEGER, DATE, and so on.

So the answer earns credit by covering:

• single value for non-composite
• several grouped items for composite
• example or note that composite fields can be different data types

Key Takeaways

• A non-composite type stores one value.
• A composite type groups several values into one structure.
• Records are a common example of composite data types because they model real-world entities with multiple fields.

Common Mistakes

• Saying a composite type is just a "large" data type. Size is not the point; structure is.
• Forgetting to define one of the two terms. The question asks for both.
• Giving only examples without explaining the difference.
• Confusing composite with array only. Arrays are composite, but records are the more relevant example here because their fields can be different types.

Things to Be Careful About

• Use the phrase "single value" or "cannot be divided into smaller parts" for non-composite.
• Use the phrase "made up of several fields/items" for composite.
• If you give an example, make sure it matches the definition. For example, INTEGER is non-composite, while a record is composite.

Background Concept

A record is a composite user-defined data type. It is used when one real-world thing needs several pieces of related data stored together. Each piece of data is stored in a field, and each field has its own data type.

This is useful because many real entities are not described by one value alone. A football club, for example, has a name, a date, a phone number, a manager, a member count and a league position. Storing these together in one record makes the program more organised and meaningful.

When designing a record, you choose:

• the name of the record type
• the field names
• the most suitable data type for each field

Typical choices include:

• STRING for text
• INTEGER for whole numbers
• DATE for dates, where the pseudocode or language supports it

Telephone numbers are usually stored as STRING, not INTEGER, because they are identifiers rather than values used in arithmetic, and they may contain leading zeroes.

Understanding the Question

The question asks you to declare the record data type FootballClub. That means you are not declaring one individual variable; you are defining the structure itself.

The structure must include fields for:

• team name
• date joined the league
• main telephone number
• manager name
• number of members
• current league position

So the task is to write pseudocode that defines a record called FootballClub and lists all of those fields with appropriate data types.

Approach

The method is:

1. Start the user-defined type with TYPE FootballClub.
2. Add one DECLARE line for each field.
3. Choose an appropriate type for each field.
4. Finish with ENDTYPE.

The key design decision is field types:

• names are STRING
• member count and league position are INTEGER
• telephone number is best as STRING
• date joined is best as DATE if supported

Step-by-Step Reasoning

Start with the record name:

TYPE FootballClub

This tells the examiner you are defining a new composite type called FootballClub.

Now add the team name field:

DECLARE TeamName : STRING

A club name is text, so STRING is appropriate.

Next, the date joined:

DECLARE DateJoined : DATE

A date field should be stored as DATE if that type is available in the pseudocode being used. It represents a date more accurately than plain text.

Then the main telephone number:

DECLARE MainTelephoneNumber : STRING

This is an important design point. A telephone number may begin with 0, and no arithmetic is normally performed on it, so STRING is safer than INTEGER.

Then the manager's name:

DECLARE ManagerName : STRING

Again, a name is text.

Then the number of members:

DECLARE NumberOfMembers : INTEGER

This is a count, so it should be a whole number.

Then the current position in the league:

DECLARE CurrentPosition : INTEGER

League position is also a whole-number ranking.

Finally, close the type definition:

ENDTYPE

That completes the record declaration. The finished record now defines a reusable structure for storing one football club's data.

Key Takeaways

• A record is used to group related fields about one entity.
• Each field should have a sensible data type based on what the value represents.
• STRING is often the correct choice for phone numbers and names.
• TYPE ... ENDTYPE is the standard way to define a user-defined composite type in CIE-style pseudocode.

Common Mistakes

• Using INTEGER for the telephone number. This can lose leading zeroes and treats the number as arithmetic data.
• Forgetting one of the required fields.
• Declaring a single variable instead of defining the type itself.
• Omitting ENDTYPE.
• Using vague field names such as Data1 or FieldA instead of meaningful names.

Things to Be Careful About

• Keep to CIE pseudocode style: TYPE, DECLARE, and ENDTYPE in upper case.
• Use the assignment arrow only for executable statements; declarations use DECLARE Name : TYPE.
• Make sure count values such as members and position are INTEGER.
• If an exam board or mark scheme allows STRING for the date, that may still gain credit, but DATE is the best match when available.
• The question asks for the record data type itself, not an array of clubs and not an instance of one club.

Background Concept

A file access method is the way records are retrieved from a file. In sequential access, the computer processes records in sequence, beginning at the first record and then moving to the next, then the next, and so on.

This means there is no direct jump to an arbitrary record. If the required record is near the end, the earlier records must still be read first. Sequential access is therefore simple, and it is especially suitable when records are being processed in order, such as producing reports or scanning an entire file.

Understanding the Question

This part asks only for a description of the sequential method of file access. It is not yet asking about different file organisations such as serial or sequential organisation in detail; that comes in part (b).

So the answer needs the general idea:

• access starts at the beginning
• records are read one by one in order
• the process continues until the needed record is found, or until the end of the file is reached

Approach

For a short "describe" question like this, the best approach is to give the essential characteristics of the method rather than examples or comparisons.

The key points to include are:

1. start at the first record
2. read records in sequence
3. stop when the target is found or when there are no more records

Those points are enough for full credit in a concise definition-style answer.

Step-by-Step Reasoning

The phrase sequential method of file access tells you that the records are accessed in a sequence.

So:

1. The file pointer begins at the start of the file.
2. The first record is read.
3. If it is not the required record, the next record is read.
4. This continues record by record.
5. The search stops either when the correct record is found or when the end of file is reached.

A strong exam answer does not need to discuss sorting, keys, or file organisation here unless the question asks for it. Those ideas belong more naturally in part (b).

Key Takeaways

• Sequential access means reading records in order.
• Access begins at the start of the file.
• You continue until the record is found or EOF is reached.
• It does not mean jumping directly to a record location.

Common Mistakes

• Saying it is the same as random access. It is not; random access allows direct access to a chosen record location.
• Describing file organisation instead of file access. Organisation is how records are stored; access is how they are read.
• Forgetting to mention that records are read from the beginning and one after another.

Things to Be Careful About

• Use the word access correctly: this question is about the method of retrieval, not the storage structure.
• Do not overcomplicate a 2-mark definition. A brief, precise description is better than a long vague explanation.
• If you mention searching, make clear that records are checked sequentially, not by direct address.

Background Concept

There are two related ideas here:

1. File organisation: how records are stored in the file
2. File access method: how records are read or searched

A file with serial organisation stores records in the order they were added. They are not arranged by key field.

A file with sequential organisation stores records in key order. For example, records may be sorted by customer ID or employee number.

The sequential access method can be used with both, because in both cases the file is read record by record. However, the effect is different because one file is unordered and the other is ordered.

Understanding the Question

This question is asking you to connect the access method from part (a) to two different storage organisations.

You must explain:

• what happens when sequential access is used on a serial file
• what happens when sequential access is used on a sequentially organised file

The important clue is that the question says applied to files with serial organisation and to files with sequential organisation. So it is not enough to define the terms separately; you must explain how the same access method behaves in each case.

Approach

A good approach is to compare the two cases directly.

For serial organisation:

• the records are not ordered by key
• therefore the only safe method is to check each record in turn
• the required record could be anywhere

For sequential organisation:

• the records are stored in key order
• sequential access still reads one record after another
• but because the keys are ordered, once you pass the target key you know it cannot appear later

That final point is the main advantage you should mention.

Step-by-Step Reasoning

Start with serial organisation.

In a serial file, records are stored in arrival order or insertion order, not sorted by key. Suppose you want the record with key 50. If the records are unordered, key 50 could be at the start, middle, end, or might not exist at all.

So with sequential access:

1. read the first record
2. compare its key with the target
3. if it does not match, read the next record
4. continue until a match is found or the end of file is reached

Because the file is unordered, you usually cannot stop early just because a record's key is larger than the target; a later record could still contain the required key.

Now consider sequential organisation.

Here the records are already arranged in ascending or descending order of a key field. Suppose again that you want key 50, and the keys are in ascending order.

With sequential access:

1. start at the first record
2. read records in order
3. compare each key with the required key
4. if the key matches, the record has been found
5. if the current key becomes greater than 50, the search can stop

Why can it stop? Because all later records will have even larger keys, so the required record cannot appear after that point.

This is the important difference:

• serial organisation: sequential access may require checking the whole file
• sequential organisation: sequential access may stop earlier because the sorted order gives useful information

If the file is used for batch processing or report generation, sequential organisation also works well because the records are already in a useful order.

Key Takeaways

• Serial organisation means unordered storage; sequential access must check records one by one from the start.
• Sequential organisation means sorted-by-key storage; sequential access still reads in order, but the ordering helps the search.
• In a sequentially organised file, the search can stop when the target key has been passed.
• File organisation affects the efficiency of sequential access.

Common Mistakes

• Saying serial and sequential organisation are the same. They are not; serial is unordered, sequential is ordered by key.
• Forgetting that the question is about how sequential access is applied. A definition of serial and sequential on their own is not enough.
• Claiming that a serial file search can stop when the key has been passed. That is wrong because the records are not ordered.
• Confusing sequential organisation with sequential access. One is storage order; the other is the access method.

Things to Be Careful About

• Use the phrase key order when explaining sequential organisation; that is usually the crucial marking point.
• Make it clear that both file types can be read sequentially, but the consequences differ.
• Do not imply direct access or random access here; this question is specifically about reading records in sequence.
• If you discuss stopping conditions, be precise: in a sequentially organised file you can stop when the current key has passed the required key, not merely when it is different.

Background Concept

Reverse Polish Notation (RPN) writes each operator after its operands. For example, infix 5 + 2 becomes RPN 5 2 +. A big advantage of RPN is that it does not need brackets during evaluation, because the order is determined by position. To convert RPN back to infix, we usually imagine a stack of partial expressions: push operands, and when an operator appears, take the most recent two expressions, combine them with the operator, and put the new expression back.

Understanding the Question

You are given the RPN expression 5 2 + 9 3 - / 3 * and must rewrite it in normal infix form. The key requirement is to preserve the correct order of calculation, so brackets are needed around grouped subexpressions.

Approach

Read the expression from left to right.

• When you see a number, treat it as an operand and store it.
• When you see an operator, combine the two most recent stored items.
• Put the new combined expression back and continue.

Because / and * are applied to results of earlier calculations, brackets are important to show exactly what is being divided and multiplied.

Step-by-Step Reasoning

Start with the tokens in order:

5 2 + 9 3 - / 3 *

1. Read 5 and 2.
   • These are operands.
2. Read +.
   • Combine the previous two operands: (5 + 2).
3. Read 9 and 3.
   • These are another pair of operands.
4. Read -.
   • Combine them as (9 - 3).
5. Read /.
   • Divide the earlier result by the later result:
   • ((5 + 2) / (9 - 3))
6. Read 3.
   • This is the next operand.
7. Read *.
   • Multiply the previous whole result by 3:
   • ((5 + 2) / (9 - 3)) * 3

That is the completed infix expression.

Key Takeaways

• RPN places operators after operands.
• Converting RPN to infix is easiest by combining the most recent two expressions each time an operator appears.
• For infix answers, add brackets where needed to preserve the original order.
• Operand order matters, especially for - and /.

Common Mistakes

• Reversing the operands, for example writing (2 + 5) is harmless here, but reversing subtraction or division would change the meaning.
• Writing (9 - 3) / (5 + 2) instead of ((5 + 2) / (9 - 3)).
• Omitting brackets, which can make the order ambiguous.
• Forgetting the final * 3 and stopping too early.

Things to Be Careful About

• When an operator appears in RPN, it applies to the two most recent items.
• The older of those two items becomes the left operand, and the newer becomes the right operand.
• Extra brackets are usually acceptable if the meaning stays correct.
• Check that only one full expression remains at the end.

Background Concept

In infix notation, the operator is written between operands, such as 7 + 3. In RPN, the operator comes after its operands, so the same calculation becomes 7 3 +. For a larger infix expression, each smaller subexpression is converted first, then the outer operator is placed after the converted left and right parts.

Understanding the Question

You are given the infix expression ((7 + 3) - (2 * 8)) / 6 and need to write it in RPN. The brackets already show the exact order of evaluation, so the task is mainly to translate each bracketed part into postfix form.

Approach

Work from the inside out:

• Convert each bracketed calculation first.
• For a form like (A + B), write A B +.
• For a form like (A - B), write A B -.
• For a form like (A / B), write A B /.

Because the expression is fully bracketed, you do not need to guess precedence; the brackets tell you the structure directly.

Step-by-Step Reasoning

Start with the expression:

((7 + 3) - (2 * 8)) / 6

1. Convert (7 + 3):
   • RPN: 7 3 +
2. Convert (2 * 8):
   • RPN: 2 8 *
3. Now convert ((7 + 3) - (2 * 8)):
   • Put the left RPN first, then the right RPN, then -
   • 7 3 + 2 8 * -
4. Finally divide by 6:
   • Put the current RPN, then 6, then /
   • 7 3 + 2 8 * - 6 /

So the final RPN expression is 7 3 + 2 8 * - 6 /.

Key Takeaways

• To convert infix to RPN, write each operator after its two operands.
• Fully bracketed expressions are easiest because the structure is explicit.
• Build the answer from inner subexpressions to the outermost one.

Common Mistakes

• Putting the operator in the middle, which keeps it as infix instead of RPN.
• Reversing operands for subtraction or division.
• Writing / 6 too early instead of after the entire numerator has been converted.
• Forgetting that the whole numerator ((7 + 3) - (2 * 8)) must be complete before the final / is written.

Things to Be Careful About

• Keep the left operand's RPN before the right operand's RPN.
• Only place an operator after both of its operands have appeared.
• For subtraction and division, order is critical.
• Since the expression is already bracketed, follow the brackets exactly rather than relying only on operator precedence rules.

Background Concept

RPN expressions are evaluated using a stack. A stack is a last-in, first-out structure.

The evaluation rule is:

• If the next item is an operand, push it onto the stack.
• If the next item is an operator, pop the top two values, apply the operator, then push the result.

The order of popping matters:

• First popped value = right operand
• Second popped value = left operand

So for a b -, the result is a - b, not b - a.

Understanding the Question

You must evaluate a b - c d + * e / using the values a = 17, b = 5, c = 7, d = 3, e = 10. The question also asks you to show the changing contents of the stack at each step, so this is not just about the final value. You need a full trace of how the stack changes as each token is processed.

Approach

First substitute the values:

17 5 - 7 3 + * 10 /

Then process the expression from left to right.

• Push each number.
• When an operator appears, pop the top two values.
• Calculate the result in the correct order.
• Push the result back.
• Record the stack after every token.

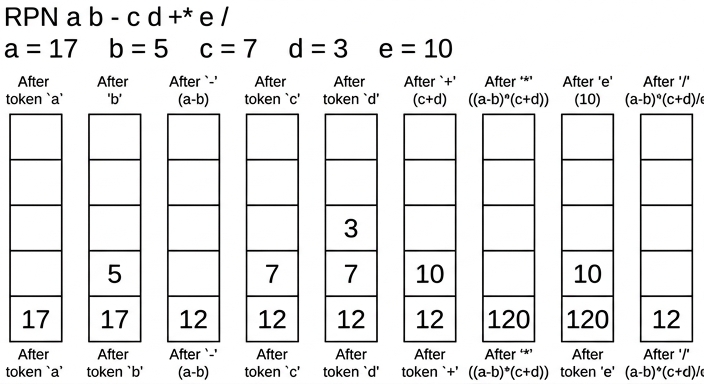

A visual stack sequence is the clearest way to show this.

Step-by-Step Reasoning

After substitution, the tokens are:

17, 5, -, 7, 3, +, *, 10, /

The changing stack contents are:

The final stack has one value left, so the value of the whole expression is 12.

Key Takeaways

• RPN evaluation is naturally done with a stack.
• Operands are pushed; operators pop two values and push one result.
• For subtraction and division, pop order matters.
• When the whole expression is finished, one final value should remain on the stack.

Common Mistakes

• Doing subtraction or division in the wrong order, for example using 5 - 17 instead of 17 - 5.
• Forgetting to push the intermediate result back onto the stack.
• Skipping stack states, even though the question asks for the changing contents.
• Leaving more than one value on the stack at the end and still treating the evaluation as finished.

Things to Be Careful About

• Always read the RPN expression from left to right.
• The first value popped is the right operand.
• Replace the variables with their numeric values before tracing if that makes the stack easier to follow.
• Make sure each stack snapshot matches exactly one processed token.
• The final answer is only valid if one value remains on the stack after the last operator.

Background Concept

A truth table shows the output of a logic circuit for every possible combination of its inputs. Here there are three inputs, A, B and C, so there are $2^3 = 8$ rows.

For each gate:

• NOT inverts its input: 0 becomes 1, 1 becomes 0.
• AND gives 1 only if both inputs are 1.
• OR gives 1 if at least one input is 1.
• XOR gives 1 only when its two inputs are different.

A good way to complete a logic-circuit truth table is to work through the circuit from left to right, filling the intermediate columns first, then the final output.

Understanding the Question

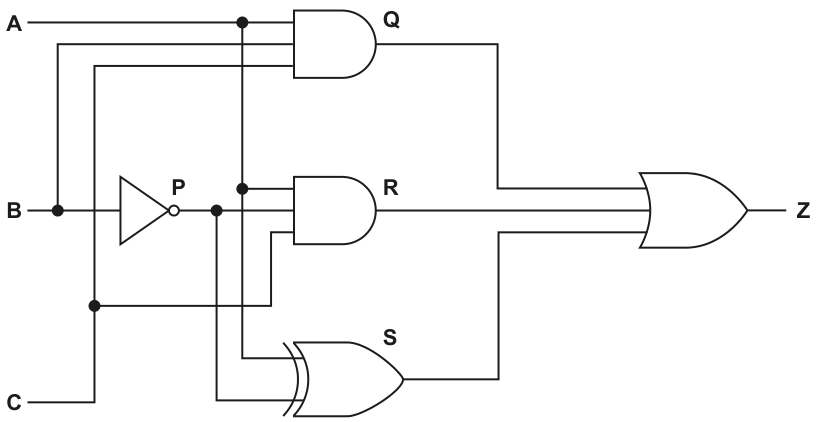

You are given a circuit with intermediate points labelled P, Q, R and S, and you must complete every missing value in the truth table, including the working columns.

From the circuit:

• P is the output of the NOT gate on B
• Q is the output of an AND gate
• R is the output of another AND gate
• S is the output of an XOR gate
• Z is the OR of Q, R and S

So the question is testing whether you can follow signals through a circuit and evaluate each stage correctly.

Approach

The safest strategy is:

1. Write expressions for each intermediate point.
2. For each row of A, B, C, calculate P first.
3. Use P to calculate Q, R and S.
4. Use Q, R and S to calculate Z.

That avoids trying to jump straight to the final answer and reduces mistakes.

Step-by-Step Reasoning

From the circuit:

• $P = \overline{B}$
• $Q = A \cdot B$
• $R = A \cdot \overline{B}$
• $S = C \text{ XOR } \overline{B}$
• $Z = Q + R + S$

Now evaluate each row.

Row 1: A=0, B=0, C=0

• $P = \overline{0} = 1$
• $Q = 0 \cdot 0 = 0$
• $R = 0 \cdot 1 = 0$
• $S = 0 \text{ XOR } 1 = 1$
• $Z = 0 + 0 + 1 = 1$

Row 2: A=0, B=0, C=1

• $P = 1$
• $Q = 0$
• $R = 0$
• $S = 1 \text{ XOR } 1 = 0$
• $Z = 0$

Row 3: A=0, B=1, C=0

• $P = 0$
• $Q = 0 \cdot 1 = 0$
• $R = 0 \cdot 0 = 0$
• $S = 0 \text{ XOR } 0 = 0$
• $Z = 0$

Row 4: A=0, B=1, C=1

• $P = 0$
• $Q = 0$
• $R = 0$
• $S = 1 \text{ XOR } 0 = 1$
• $Z = 1$

Row 5: A=1, B=0, C=0

• $P = 1$
• $Q = 1 \cdot 0 = 0$
• $R = 1 \cdot 1 = 1$
• $S = 0 \text{ XOR } 1 = 1$
• $Z = 1$

Row 6: A=1, B=0, C=1

• $P = 1$
• $Q = 0$
• $R = 1$
• $S = 1 \text{ XOR } 1 = 0$
• $Z = 1$

Row 7: A=1, B=1, C=0

• $P = 0$
• $Q = 1 \cdot 1 = 1$
• $R = 1 \cdot 0 = 0$
• $S = 0 \text{ XOR } 0 = 0$
• $Z = 1$

Row 8: A=1, B=1, C=1

• $P = 0$
• $Q = 1$
• $R = 0$
• $S = 1 \text{ XOR } 0 = 1$
• $Z = 1$

That gives the completed table.

Key Takeaways

• Always calculate intermediate gate outputs before the final output.
• XOR is 1 only when the two inputs are different.
• For three inputs, a complete truth table has eight rows.
• Working left to right through the circuit is the most reliable method.

Common Mistakes

• Treating XOR like OR. XOR is not "one or both"; it is "one but not both".
• Forgetting that P is the inverse of B in every row.
• Using the original B instead of P when calculating R or S.
• Writing Z before calculating Q, R and S correctly.

Things to Be Careful About

• Keep the row order exactly as given in the question.
• Recalculate every intermediate value for every row; do not assume patterns without checking.
• Be precise with NOT: if B=0, then P=1; if B=1, then P=0.
• When OR-ing Q, R and S, the final output is 1 if any one of them is 1.

Background Concept

A sum-of-products expression is a Boolean expression written as:

• several AND terms (products)
• joined together by ORs (sums)

For example, $A \cdot B + \overline{C} \cdot D$ is sum-of-products.

When turning a circuit into Boolean algebra:

• NOT becomes an overline
• AND becomes multiplication or \cdot
• OR becomes +
• XOR must usually be expanded if the question specifically asks for sum-of-products

The standard expansion is:

Understanding the Question

You are not being asked to simplify the expression. You are being asked to write the Boolean expression that matches the circuit, specifically in sum-of-products form.

That means you should:

1. identify the output from each gate,
2. write those as Boolean terms,
3. expand the XOR so the final answer is an OR of AND terms.

Approach

Start with the intermediate points from the circuit:

• P = \overline{B}
• Q = A.B
• R = A.\overline{B}
• S = C \text{ XOR } \overline{B}

Then expand the XOR output S into two product terms. Finally OR together Q, R and S to get Z.

Step-by-Step Reasoning

From the circuit:

• $P = \overline{B}$
• $Q = A \cdot B$
• $R = A \cdot \overline{B}$

For the XOR stage:

Using the XOR expansion rule:

Since $\overline{\overline{B}} = B$:

Now combine the three inputs to the final OR gate:

Substitute each term:

That is already in sum-of-products form.

Key Takeaways

• A logic circuit can be translated gate by gate into Boolean algebra.
• Sum-of-products means OR of product terms.
• XOR usually needs expansion when a sum-of-products answer is required.
• Double negation simplifies: $\overline{\overline{B}} = B$.

Common Mistakes

• Leaving the XOR unexpanded. That would not be full sum-of-products form.
• Writing R as $A \cdot B$ instead of $A \cdot \overline{B}$.
• Forgetting that the NOT gate changes B to $\overline{B}$ before it is used elsewhere.
• Trying to simplify the expression when the question only asks for the expression corresponding to the circuit.

Things to Be Careful About

• Use only the circuit structure given; do not invent extra simplification steps unless asked.
• In XOR expansion, make sure one term uses the first input true and the second false, and the other term uses the first false and the second true.
• Keep the final answer in proper sum-of-products format: each term should be a product, and the products should be joined by +.

Background Concept

A digital certificate is part of public key cryptography. In asymmetric encryption, each user or server has a public key and a private key. The public key can be shared openly, but there is an important problem: how do you know that a public key really belongs to the person or website claiming to own it?

A digital certificate solves this trust problem. It is an electronic document that links an identity to a public key. Typically, it includes details such as the owner name, organisation or website, the owner's public key, and validity information such as dates. Crucially, it is issued and digitally signed by a trusted third party called a certificate authority, or CA.

Because the CA signs the certificate, other people can check that the certificate is genuine and has not been altered.

Understanding the Question

This part asks for the meaning of a digital certificate, so the answer must define it rather than describe how encryption works in general.

To score well, the answer needs the main ideas:

• it is an electronic document,
• it proves or confirms identity,
• it contains the public key,
• and it is validated by a trusted certificate authority.

The question says "describe", so a short definition with a few clear points is better than a one-word answer.

Approach

A good way to answer is to break the definition into three pieces:

1. what it is,
2. what it contains,
3. who makes it trustworthy.

That structure matches the usual mark scheme points for digital certificates.

Step-by-Step Reasoning

First, identify the object itself: a digital certificate is not the key itself, and it is not the signature itself. It is a document or data file.

Second, explain its purpose: it is used to confirm identity. For example, it can show that a website really is the genuine website, or that a message sender really owns a particular public key.

Third, state its contents: one of the most important items inside the certificate is the owner's public key. It also usually contains identifying information such as the owner's name or domain name.

Finally, explain why anyone should trust it: the certificate is issued and digitally signed by a certificate authority. The CA acts as a trusted organisation that verifies identities before issuing certificates.

Putting those ideas together gives a full definition.

Key Takeaways

• A digital certificate links an identity to a public key.
• It is used to establish trust in public key systems.
• Its trust comes from being issued and signed by a certificate authority.

Common Mistakes

• Saying it is "a private key": this is wrong because the certificate normally contains the public key, not the private key.
• Describing only encryption and not the certificate itself: the question is asking what the certificate means, not how asymmetric encryption works generally.
• Forgetting the certificate authority: without mentioning the trusted issuer, the explanation is incomplete.
• Confusing a digital certificate with a digital signature: they are related but different. A certificate proves ownership of a public key; a signature proves a message came from the private key owner and was not altered.

Things to Be Careful About

• Use the term public key correctly.
• Make clear that the certificate proves identity or ownership of the key, not secrecy of the message.
• Do not say the certificate is created by the message sender alone; the trust comes from the CA issuing/signing it.
• For exam answers, concise points are best: identity, public key, trusted CA.

Background Concept

A digital signature is used to prove two important things:

• the message really came from the claimed sender, and
• the message has not been changed.

Typically, the sender creates a hash of the message and encrypts that hash with their private key. That encrypted hash is the digital signature. The recipient then uses the sender's public key to decrypt the signature and compare the result with a newly calculated hash of the received message.

However, this only works if the recipient trusts that the public key really belongs to the sender. That is where the digital certificate is used. The certificate contains the sender's public key and is signed by a trusted certificate authority, so it can be trusted as evidence of key ownership.

Understanding the Question

This question is not asking for the full process of generating a digital signature. It asks specifically for the role of the digital certificate in that process.

So the focus should be on what the certificate contributes:

• it supplies the correct public key,
• and it proves that this public key belongs to the claimed sender.

Those two ideas explain why digital signatures are trustworthy.

Approach

To answer this well, connect the certificate to signature verification.

A simple chain is:

1. the certificate contains the sender's public key,
2. the certificate proves that key belongs to the sender,
3. the recipient can therefore use that trusted public key to verify the signature.

Even though the question says "creating a digital signature", exam mark schemes usually reward the practical role the certificate plays in making the signature usable and trustworthy.

Step-by-Step Reasoning

A sender signs using their private key. On its own, that is not enough for trust, because anyone receiving the message needs the matching public key.

If the recipient simply accepts any public key sent with the message, an attacker could substitute a different key and pretend to be the sender. So the system needs a trusted way to distribute the sender's public key.

The digital certificate does exactly that:

• it contains the sender's public key,
• it identifies the sender,
• and it is signed by a certificate authority.

Because the certificate authority is trusted, the recipient can trust that the public key in the certificate really belongs to the named sender.

The recipient then uses that verified public key to check the digital signature. If the signature verifies correctly, the recipient has confidence that the message came from the genuine sender and was not altered.

So the certificate's role is not to replace the signature. Its role is to make the public key trustworthy, which makes the signature trustworthy too.

Key Takeaways

• A digital signature depends on a trusted public key.
• A digital certificate provides that public key and links it to the sender's identity.
• Without the certificate, signature verification could be vulnerable to impersonation.

Common Mistakes

• Saying the certificate contains the private key: this is wrong; it contains the public key.
• Saying the certificate creates the signature: the signature is created using the sender's private key, not by the certificate itself.
• Ignoring identity: the important role of the certificate is not just storing the key, but proving whose key it is.
• Describing only hashing: hashing is part of digital signatures, but the question here is specifically about the certificate's role.

Things to Be Careful About

• Distinguish clearly between creating the signature and verifying it.
• Use the correct key names: private key for signing, public key for checking.
• Mention trust or authentication of the public key, because that is the key role of the certificate.
• Keep the answer focused on certificates, not a full essay on all of asymmetric encryption.

Background Concept

In declarative programming, knowledge is stored as facts and rules.

• A fact states something that is true.
• A rule states that something is true if some other conditions are true.
• A goal is a query asked against the knowledge base.

Here, the program uses predicates such as:

• feature(...) for features
• bodystyle(...) for body styles
• available(feature, bodystyle) for available combinations
• unavailable(feature, bodystyle) for unavailable combinations

A fact like feature(sunroof). means “sunroof is a feature”. A fact like available(sunroof, hatchback). means “sunroof is available on a hatchback”.

Understanding the Question

You are told three pieces of information about sliding doors:

1. it is a feature
2. it is available on a minivan
3. it is unavailable on a hatchback

The question asks you to write additional clauses to represent these facts in the same style as the existing knowledge base.

So this is not asking for a rule or an explanation. It is asking for three separate declarative facts.

Approach

Match each English statement to the predicate pattern already used in the question:

• “X is a feature” becomes feature(X).
• “X is available on Y” becomes available(X, Y).
• “X is unavailable on Y” becomes unavailable(X, Y).

Then substitute sliding_doors, minivan, and hatchback into those patterns.

Step-by-Step Reasoning

The first statement is:

• “Sliding doors is a feature.”

The existing program represents features using facts such as feature(sunroof). and feature(satnav).
So the matching clause is:

• feature(sliding_doors).

The second statement is:

• “Sliding doors is available on a minivan.”

The existing program represents this using available(feature, bodystyle), for example available(extra_seats, minivan).
So the clause is:

• available(sliding_doors, minivan).

The third statement is:

• “Sliding doors is unavailable on a hatchback.”

The existing program represents this using unavailable(feature, bodystyle), for example unavailable(extra_seats, hatchback).
So the clause is:

• unavailable(sliding_doors, hatchback).

Those three facts fully represent the new information.

Key Takeaways

• Facts in declarative programming directly encode true statements.
• You must choose the predicate that matches the meaning exactly.
• Unary predicates like feature(X) describe one thing; binary predicates like available(X, Y) describe a relationship between two things.

Common Mistakes

• Writing bodystyle(sliding_doors). — this is wrong because sliding doors is a feature, not a body style.
• Reversing the arguments, for example available(minivan, sliding_doors). — the existing clauses use available(feature, bodystyle).
• Forgetting one of the three facts — all three are needed for full marks.
• Using spaces inside an identifier such as sliding doors instead of the atom sliding_doors.

Things to Be Careful About

• Follow the exact predicate names already used: feature, available, unavailable.
• Keep the argument order consistent with the original clauses.
• End each clause with a full stop.
• Use the exact atom names from the question, especially minivan and hatchback.

Background Concept

A declarative query, or goal, asks the system to find values that make a statement true.

For a goal such as available(Options, hatchback), the system tries to match it against all facts of the form:

• available(something, hatchback)

Whenever it finds a match, it binds the variable Options to the value in the first position.

If more than one fact matches, there can be more than one answer.

Understanding the Question

You are given the goal:

• available(Options, hatchback)

You need to look through the facts in the knowledge base and find every clause where the second argument is hatchback and the predicate is available.

The question already shows that for available(Options, saloon), the result is reversing_camera, so you must do the same kind of matching for hatchback.

Approach

Scan only the available(...) facts, not the unavailable(...) ones.

From the given clauses:

• available(sunroof, hatchback).
• available(reversing_camera, hatchback).

Both satisfy the goal, so Options can take both values.

Step-by-Step Reasoning

The goal is:

• available(Options, hatchback)

Check each available fact:

• available(sunroof, hatchback). matches, so Options = sunroof
• available(sunroof, minivan). does not match because the body style is not hatchback
• available(reversing_camera, hatchback). matches, so Options = reversing_camera
• available(extra_seats, minivan). does not match
• available(reversing_camera, saloon). does not match

So there are two valid bindings for Options.

The unavailable(extra_seats, hatchback). fact is not part of the available predicate, so it is irrelevant to this exact query.

Key Takeaways

• A goal is matched against facts with the same predicate name and compatible arguments.
• Variables are bound to values that make the goal true.
• A query can return more than one answer.

Common Mistakes

• Including extra_seats because hatchback appears in unavailable(extra_seats, hatchback) — this is wrong because the goal uses available, not unavailable.
• Giving only one answer — there are two matching facts.
• Looking at all clauses containing hatchback instead of only the available clauses.

Things to Be Careful About

• Keep the predicate name exact: available.
• Notice that the variable is in the first position, so you are finding features, not body styles.
• If multiple facts match, list all valid results.
• The order of answers usually follows the order of matching facts in the knowledge base.

Background Concept

A rule in declarative programming defines when a new statement is true.

It has:

• a head: the statement being defined
• a body: the conditions that must all be true

In plain logic, this means:

• head IF condition1 AND condition2 AND condition3

This question also uses negation. The statement “F is not unavailable for B” means that the knowledge base must not contain a matching unavailable(F, B) fact.

So the rule describes a body style and a feature combination that may be chosen if:

1. F really is a feature
2. B really is a body style
3. F is not marked unavailable for B

Understanding the Question

The question gives the logic in English:

• F may be available for B if F is a feature
• and B is a body style
• and F is not unavailable for that body style

You must translate that directly into a declarative rule called may_choose_option(F, B).

A key clue is that the rule is not asking whether there is already an available(F, B) fact. It asks whether the option may be chosen based on the absence of an unavailable fact.

Approach

Turn each English condition into the predicate already used in the knowledge base:

• “F is a feature” becomes feature(F)
• “B is a body style” becomes bodystyle(B)
• “F is not unavailable for B” becomes NOT unavailable(F, B)

Then join them using logical AND under the head may_choose_option(F, B).

Step-by-Step Reasoning

Start with the rule head:

• may_choose_option(F, B)

This is what will be true when the conditions below it are satisfied.

Now translate the first condition:

• “F is a feature”
• This becomes feature(F)

Translate the second condition:

• “B is a body style”
• This becomes bodystyle(B)

Translate the third condition:

• “F is not unavailable for that body style”
• The existing predicate is unavailable(F, B)
• So the negated condition is NOT unavailable(F, B)

Now combine them with AND:

• feature(F) AND bodystyle(B) AND NOT unavailable(F, B)

Placed into rule form, this gives:

may_choose_option(F, B) IF
   feature(F) AND
   bodystyle(B) AND
   NOT unavailable(F, B)

This means the system can infer that an option may be chosen whenever it is a valid feature, the body style is valid, and there is no explicit fact saying that combination is unavailable.

An important subtle point is that this rule can make may_choose_option true even when there is no available(F, B) fact. It is based on “not unavailable”, not on “explicitly available”.

Key Takeaways

• A declarative rule expresses logic, not step-by-step instructions.
• Each English condition usually maps directly to one predicate.
• Negation is often used to exclude cases rather than to prove a positive fact directly.
• The head of the rule is the new relationship you are defining.

Common Mistakes

• Writing available(F, B) instead of NOT unavailable(F, B) — that changes the meaning of the rule.
• Forgetting either feature(F) or bodystyle(B) — both are part of the stated condition.
• Using OR instead of AND — all three conditions must be true together.
• Negating the wrong predicate, for example NOT feature(F).

Things to Be Careful About

• Use the exact head name: may_choose_option(F, B).
• Keep the variable names consistent as F and B throughout the rule.
• The negated part must apply to the whole predicate unavailable(F, B).
• Read the wording precisely: “may be available” here is defined by the rule the question gives, not by existing available(...) facts alone.

Background Concept

A binary search only works when the data is already in a known sorted order, such as ascending alphabetical order or ascending numerical order. The reason is that binary search repeatedly looks at the middle item and decides whether to continue searching the lower half or the upper half. That decision is only valid if all smaller items are on one side and all larger items are on the other.

If the array is not sorted, comparing with the middle item tells you nothing reliable about where the target might be, so binary search would fail.

Understanding the Question

This question asks for one condition that must be true before a binary search can be used on an array. It is not asking how binary search works, only what must already be true about the array.

The key word is "must". That means a necessary precondition, not just something helpful.

Approach

Recall the fundamental rule for binary search:

• compare with the middle item
• eliminate half the remaining data

That elimination step is only possible if the array is ordered. So the required condition is that the array is sorted.

Step-by-Step Reasoning

Suppose you are searching for Mia in an array of names.

• If the array is sorted alphabetically and the middle item is Liam, then Mia must be to the right of Liam.
• If the middle item is Noah, then Mia must be to the left.

That logic depends completely on the array being in order.

If the names were in random order, seeing Liam in the middle would not tell you whether Mia is left or right, so you could not discard half the array safely.

Therefore the correct condition is that the array is sorted.

Key Takeaways

• Binary search has a compulsory precondition: ordered data.
• The array can be sorted ascending or descending, as long as the program logic matches that order.
• Without sorting, binary search is not valid.

Common Mistakes

• Saying "the array must be full" — binary search does not require that.
• Saying "the array must be one-dimensional" — binary search can be adapted to other structures; that is not the key condition.
• Saying only "the data must be searchable" — that is too vague and does not state the actual condition.

Things to Be Careful About

• Use the word "sorted" or "in order" explicitly.
• Do not confuse binary search with linear search: linear search does not require sorted data.
• If you mention the type of order, make sure it is consistent, for example alphabetical or ascending order.

Background Concept

Binary search is an efficient searching algorithm for a sorted list or array. Instead of checking each item one by one, it repeatedly checks the middle item.

There are three possible outcomes after comparing the target with the middle item:

• they are equal, so the item has been found
• the target is greater, so search continues in the upper half
• the target is smaller, so search continues in the lower half

To make this work, the algorithm keeps two boundaries:

• TopOfList for the first possible position
• EndOfList for the last possible position

On each pass, it calculates the middle position:

DIV is integer division, so the result is a valid array index.

The algorithm also needs control variables here:

• Found becomes TRUE when the item is matched
• NotInList becomes TRUE when there are no positions left to search

Understanding the Question

You are given a mostly complete pseudocode algorithm for searching a 1D array Names of strings using binary search. The question asks you to fill in the missing lines only.

From the skeleton, we can see:

• the array is called Names
• the search range starts from 1 to 100000
• the item to search for is stored in ToFind
• the program already outputs the final result using Found

So the missing lines must do four jobs:

1. initialise Found
2. make the WHILE loop continue only while the item is neither found nor ruled out
3. test whether the current middle item matches the target
4. update either NotInList or TopOfList when appropriate

Approach

The safest approach is to follow the standard binary search pattern exactly.

• Start with both flags set to show that the search has not yet finished.
• Loop while the search is still active.
• Calculate the middle index.
• If the target equals the middle value, set Found to TRUE.
• Otherwise, check whether the search interval has collapsed.
• If it has, set NotInList to TRUE.
• If not, move either the top boundary upward or the end boundary downward.

Because the array contains strings, the comparison ToFind > Names[CurrentItem] means alphabetical comparison.

Step-by-Step Reasoning

The missing line after INPUT ToFind must be:

Found ← FALSE

Why? Because before the search begins, the item has not been found yet.

The next flag is already partly given:

NotInList ← FALSE

So both control variables start as FALSE.

The WHILE condition must keep searching only while both of these are still false:

WHILE Found = FALSE AND NotInList = FALSE

If either one becomes TRUE, the search is finished.

Inside the loop, the program calculates the middle position:

CurrentItem ← (TopOfList + EndOfList) DIV 2

Then it must check whether the middle item is the one being searched for:

IF ToFind = Names[CurrentItem] THEN

If that condition is true, the correct action is:

Found ← TRUE

If it is not equal, the algorithm has to decide whether there is any search space left.

The given test is:

IF TopOfList >= EndOfList THEN

That means there is no valid half left to continue searching, so the missing line is:

NotInList ← TRUE

If there is still a range left, the program compares alphabetically:

IF ToFind > Names[CurrentItem] THEN

If the target is greater than the middle string, the target must be in the upper half. So the lower boundary moves up past the current middle item:

TopOfList ← CurrentItem + 1

Otherwise, the target must be in the lower half, and that final line is already given:

EndOfList ← CurrentItem - 1

That is the complete search logic.

Key Takeaways

• Binary search always works by repeatedly halving the search range.
• You need lower and upper boundaries and a middle index.
• Exact match sets a found flag.
• If the target is larger, move the lower boundary up.
• If the target is smaller, move the upper boundary down.
• A flag such as NotInList is useful to stop the loop cleanly when the item is absent.

Common Mistakes

• Forgetting to initialise Found to FALSE before the loop.
• Writing WHILE Found = FALSE OR NotInList = FALSE, which is wrong because the loop would continue even after one stopping condition becomes true.
• Using CurrentItem / 2 instead of (TopOfList + EndOfList) DIV 2.
• Writing TopOfList ← CurrentItem instead of TopOfList ← CurrentItem + 1, which can cause the same middle item to be checked repeatedly.
• Writing EndOfList ← CurrentItem instead of EndOfList ← CurrentItem - 1, which causes the same problem.
• Using a real programming language syntax instead of CIE pseudocode.

Things to Be Careful About

• Use the assignment arrow ←, not =.
• Use DIV, not ordinary division, because the index must be an integer.
• Keep the variable names exactly as given: TopOfList, EndOfList, CurrentItem, ToFind, Found, NotInList.
• The array is indexed from 1 to 100000, so the bounds are inclusive.
• Because these are strings, > means alphabetical order, so the array must already be sorted alphabetically for the search to work.

Background Concept

Big O notation describes how the running time of an algorithm grows as the amount of data, usually written as $n$, increases. It does not usually count exact seconds; instead, it shows the pattern of growth.

For searching:

• linear search is $O(n)$ because, in the worst case, it may check every item
• binary search is $O(\log n)$ because it cuts the remaining search space in half each time

The base of the logarithm is usually not written in Big O notation, so we simply write $O(\log n)$.

Understanding the Question

The question asks you to describe the performance of binary search as the number of data items increases, and it specifically says to refer to Big O notation. That means the answer must include the notation itself, not just a vague statement like "it is fast".

To get full credit, you need both:

• the correct Big O notation: $O(\log n)$
• an explanation of why: because each step halves the number of remaining items

Approach

State the complexity first, then justify it using the core behaviour of binary search.

A strong concise answer is:

• binary search is $O(\log n)$
• each comparison removes half the remaining values
• so the number of steps rises slowly as $n$ gets larger

Step-by-Step Reasoning

Suppose the array has:

• 16 items: at most about 4 comparisons
• 32 items: at most about 5 comparisons
• 64 items: at most about 6 comparisons

This shows an important pattern: doubling the amount of data does not double the number of comparisons. It usually adds only one extra comparison.

That happens because the search works like this:

1. check the middle item
2. discard half the array
3. check the middle of what remains
4. discard half again

So after each step, the remaining number of possible items becomes smaller very quickly.

That shrinking by repeated halving is exactly why the running time is logarithmic:

This is much more efficient than checking items one by one.

Key Takeaways

• Binary search has time complexity $O(\log n)$.
• Its efficiency comes from halving the search range on each comparison.
• As the data set grows, the number of extra comparisons grows very slowly.

Common Mistakes

• Writing $O(n)$, which is the complexity of linear search, not binary search.
• Saying only "it is faster" without giving Big O notation.
• Confusing the number of data items with the number of comparisons.
• Thinking that doubling the array size doubles the search time; with binary search it does not.

Things to Be Careful About

• Write the notation exactly as $O(\log n)$.
• Explain the reason for the logarithmic growth: halving the remaining search space.
• Do not claim binary search is always usable; it depends on the data being sorted first.

Background Concept

RISC stands for Reduced Instruction Set Computer. A RISC processor is designed around a smaller set of simple instructions rather than a very large set of complex ones. The idea is that simpler instructions can be decoded and executed more quickly, and this often makes the processor easier to pipeline.

Typical RISC features include:

• a small, simple instruction set
• simple addressing modes
• fixed-format or fixed-length instructions
• many general-purpose registers
• instructions designed to execute quickly, often in one clock cycle

By contrast, CISC processors usually have a larger instruction set with more complex instructions, and some instructions may take several clock cycles.

Understanding the Question

This part asks for two features of RISC processors only. It does not ask for a comparison with CISC, and it does not ask for advantages. So the best response is to state two standard design characteristics of RISC clearly and separately.

Approach

The safest approach is to choose features that are universally recognised in the syllabus. The clearest ones are:

1. small and simple instruction set
2. fixed-length, fast-executing instructions

These are specific enough to gain marks and avoid vague answers such as "faster" on its own.

Step-by-Step Reasoning

A strong answer needs two distinct points.

• First point: RISC uses a reduced set of instructions. That means the processor has fewer instructions to decode and each instruction tends to do a simpler job.
• Second point: RISC instructions are commonly fixed length and are designed so that many can be executed in one clock cycle. Fixed length helps the fetch and decode stages stay regular and efficient.

Either of those statements is a valid feature in its own right. Together they provide two separate marking points.

Key Takeaways

• RISC is recognised by simplicity of instruction design.
• Fixed-format, fast instructions are a core reason RISC processors work well with pipelining.
• In short recall questions, give clear architecture features rather than vague benefits.

Common Mistakes

• Saying only "RISC is faster". That is too vague and not a defining feature by itself.
• Giving CISC features by mistake, such as "large instruction set".
• Repeating the same idea twice, for example "simple instructions" and "small instruction set" without making them clearly distinct enough.

Things to Be Careful About

• The question asks for features, not advantages.
• You need two separate points.
• Make sure the features are specifically about RISC architecture, not about software or general system performance.

Background Concept

An interrupt is a signal that tells the processor that some event needs attention. This event might come from hardware, such as an input device or a timer, or from software. Instead of constantly checking every device, the processor can be interrupted when something important happens.

Interrupt handling is the process the processor follows to pause the current program, deal with the event, and then continue the original program. The code that deals with the interrupt is called an interrupt service routine, often shortened to ISR.

The key idea is context switching at the processor level:

• preserve enough information about the current program
• execute the ISR
• restore the preserved information
• continue as if the interruption had not happened

Understanding the Question

This part asks for the process of interrupt handling and says it could apply to either RISC or CISC processors. That means the answer should be the general interrupt sequence, not differences between the two architectures.

So the examiner is looking for the main stages:

• when the interrupt is recognised
• what gets saved
• where control goes
• how execution resumes afterwards

Approach

The easiest way to answer is to describe the interrupt lifecycle in order.

1. Finish or reach a safe point in the current instruction.
2. Save the processor's current state.
3. Jump to the ISR.
4. Run the ISR.
5. Restore the state and continue the interrupted program.

For a short question, the most creditworthy terms are current instruction, saved state, interrupt service routine, and resume execution.

Step-by-Step Reasoning

Here is the sequence in detail:

1. Interrupt occurs or is detected
   A device or event raises an interrupt request. The processor checks for interrupts, typically at a defined point such as after completing the current instruction.

2. Current execution is paused safely
   The processor should not usually abandon an instruction halfway through. It normally completes the current instruction first, then responds to the interrupt.

3. Processor state is saved
   The processor must remember where it was in the interrupted program. This usually includes the program counter and may include registers and status flags. Without this, the processor would not know how to resume correctly.

4. Control transfers to the ISR
   The processor loads the address of the appropriate interrupt service routine, often using an interrupt vector or stored address, and starts executing that routine.

5. ISR handles the event
   The service routine carries out the required task, such as reading input data, acknowledging hardware, or updating some state.

6. Saved state is restored
   When the ISR is finished, the processor reloads the saved program counter and other saved register values.

7. Original program resumes
   Execution continues from the next instruction of the interrupted program.

For a 3-mark outline, not every tiny detail is needed, but the answer must clearly show save, service, and resume.

Key Takeaways

• Interrupt handling lets the processor respond to events without constant polling.
• The essential pattern is save context, service interrupt, restore context.
• The interrupted program can continue correctly only if the processor state was preserved.

Common Mistakes

• Saying the processor immediately stops in the middle of an instruction. Usually it completes the current instruction first.
• Forgetting to mention that the state must be saved.
• Mentioning the ISR but not explaining how the original program resumes.
• Confusing an interrupt with a normal procedure call. An interrupt is triggered by an event, not by ordinary program flow.

Things to Be Careful About

• Use the term interrupt service routine accurately.
• If you mention saved data, the safest examples are the program counter, registers, and status flags.
• Keep the answer as a process in the correct order, because this question asks to outline what happens.

Background Concept

Pipelining is a processor technique where instruction processing is split into stages such as fetch, decode, execute, and write back. Different instructions can occupy different stages at the same time. For example, while one instruction is being executed, the next may be decoded and another may be fetched.

This is especially associated with RISC processors because their simple, regular instruction formats make pipelining easier and more efficient.

Interrupt handling, however, temporarily changes the normal flow of instructions. That creates a complication in a pipelined processor, because the processor is not dealing with just one instruction at a time. Several instructions may already be part-way through the pipeline.

Understanding the Question

This part is not asking what pipelining is on its own, and it is not asking for the general interrupt process again. It asks specifically how pipelining affects interrupt handling in a RISC processor.

So you need to connect two ideas:

• RISC processors often use pipelining.
• An interrupt disrupts the normal flow of pipelined instructions.

The key issue is that, at the moment of an interrupt, multiple instructions may already be "in flight".

Approach

The best approach is to explain the effect in three linked steps:

1. In pipelining, several instructions are active at once.
2. When an interrupt happens, the processor must deal with those partly processed instructions.
3. This creates overhead because the pipeline may need to be stalled, flushed, and then refilled.

That gives a complete explanation with cause and effect.

Step-by-Step Reasoning

Start with the normal pipelined state.

In a RISC processor, instruction 1 might be executing, instruction 2 decoding, and instruction 3 fetching. So although the processor appears to be following one program, internally several instructions are being processed simultaneously.

Now suppose an interrupt occurs.

The processor cannot simply jump to the interrupt service routine without considering the other instructions already in the pipeline. Some may have:

• completed safely
• partly completed
• not yet affected the machine state

Because of that, the processor must bring the pipeline to a safe state.

This is usually done by one of these actions:

• stalling the pipeline, meaning later stages wait
• flushing the pipeline, meaning partially queued instructions are discarded
• allowing certain instructions already far enough along to complete before servicing the interrupt

The exact implementation can vary, but the important effect is the same: interrupt handling becomes more complicated because more than one instruction is involved.

After the interrupt service routine finishes, normal instruction flow resumes. But the pipeline is no longer full. The processor must fetch and feed new instructions back into the stages. That refill time causes a performance penalty or delay.

So pipelining improves performance in normal execution, but when an interrupt occurs it adds overhead because the pipeline has to be managed carefully.

Key Takeaways

• Pipelining means several instructions are active at once.
• Interrupts are harder to handle in pipelined processors because there may be partially processed instructions.
• The pipeline often has to be stalled or flushed, then refilled afterwards.
• This causes interrupt overhead and a short loss of performance.

Common Mistakes

• Saying pipelining makes interrupts impossible. It does not; it just makes them more complex to handle.
• Repeating the general interrupt sequence without mentioning what happens to instructions already in the pipeline.
• Forgetting the performance cost after the ISR, when the pipeline has to fill again.
• Assuming every instruction in the pipeline is always completed. Some may be discarded depending on the design.

Things to Be Careful About

• The question is specifically about RISC processors, so it is useful to mention that RISC commonly uses pipelining.
• Use terms like stalled, flushed, and refilled correctly.
• Focus on the interaction between pipelining and interrupts, not on unrelated RISC features such as register count or instruction set size.
