Physics 5054/21 — May/June 2023
Cambridge O-Level · Theory · worked solutions for every part, with the mark scheme
Topics Forces · Energy, Work and Power · Practical Electricity · Kinematics · Transfer of Thermal Energy · Momentum · +10 more

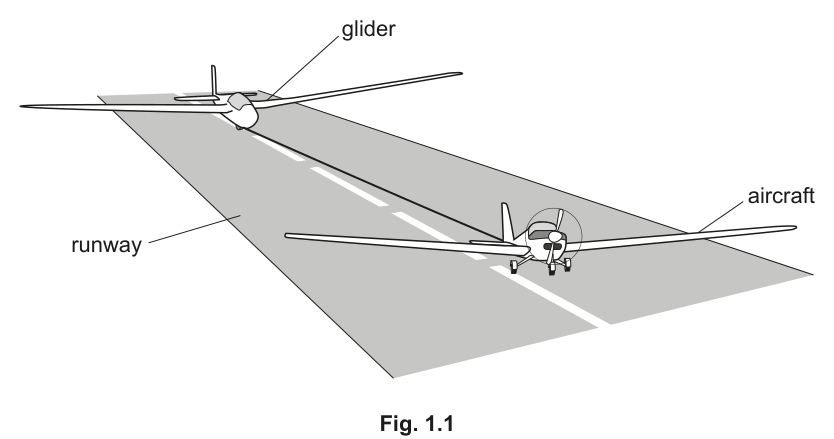

An aircraft pulls a glider along a runway as shown in Fig. 1.1.

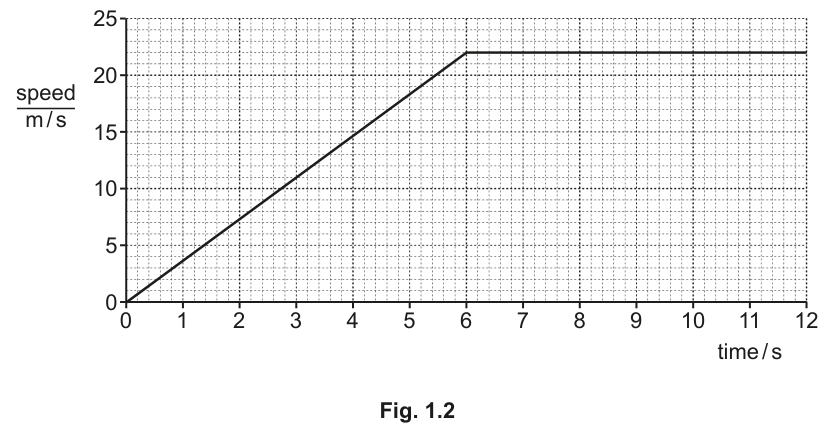

Fig. 1.2 shows the speed of the glider during the first 12 s of the motion.
Describe the motion of the glider in the first 12 s.
In the first 6.0 s of the motion, there is a resultant force of 1800 N on the glider.
Using the increase in speed in the first 6.0 s, calculate the mass of the glider.
mass = ______
Determine the distance travelled by the glider in the first 6.0 s of its motion.
distance = ______
The glider has no engine and stays in the air with the use of convection currents.
State what is meant by a 'convection current'.
Suggest how the convection current that supports the glider is formed.
The rest of this paper
10 more questions- Q2Momentum · Energy, Work and Power7M
- Q3Electric Circuits · Practical Electricity6M
- Q4Pressure · Forces8M
- Q5Kinetic Particle Model of Matter · Thermal Properties of Matter7M
- Q6Lenses and Dispersion6M
- Q7General Properties of Waves7M
- Q8Energy, Work and Power · Practical Electricity8M
- Q9Electromagnetic Induction and Transformers · Magnetic Effect of a Current and the d.c. Motor7M
- Q10Radioactivity8M
- Q11Earth and the Solar System7M
