In this experiment, you will investigate the extension of a spring.

You are provided with

a spring,
a length of string,
a stand, boss and rod,
a 30 cm ruler with a mm scale,
a mass holder.

(a)

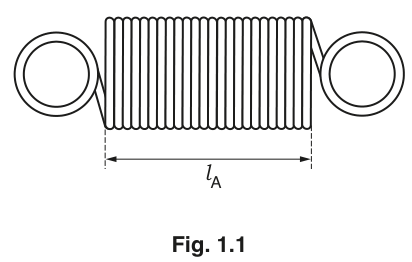

On the spring provided measure the unstretched length $l_A$ of the coiled part of the spring, as shown in Fig. 1.1.

Fig. 1.1

$l_A$ = ______

(b)

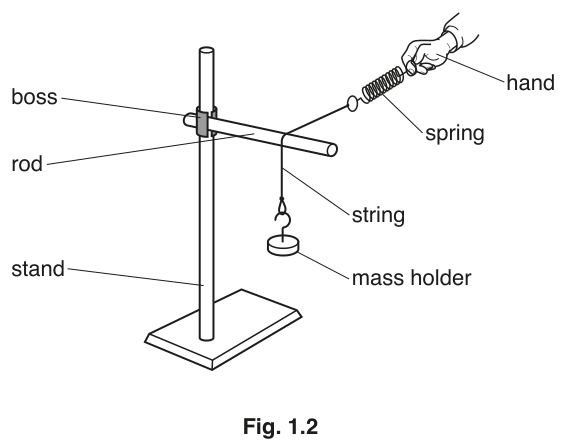

Hold the free end of the spring in one hand and place the string over the rod, as shown in Fig. 1.2.

Fig. 1.2

(i)

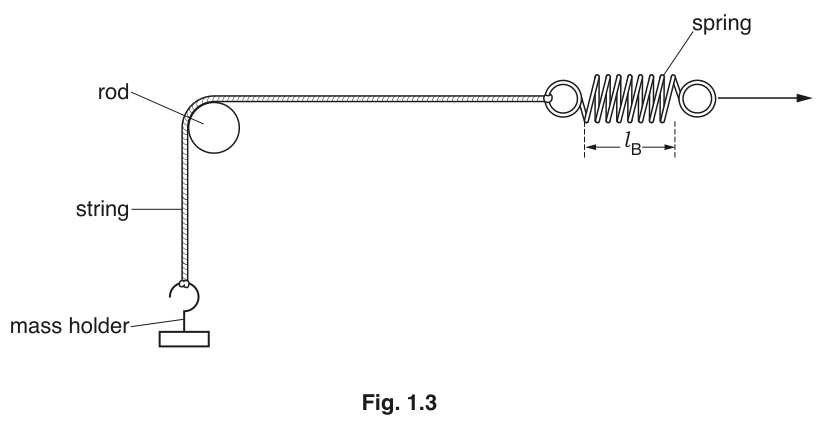

Hold the free end of the spring so that the string is horizontal, as shown in Fig. 1.3.

Fig. 1.3

The string is in contact with one quarter of the circumference of the rod.

Slowly pull the spring horizontally to the right until the mass holder starts to move upwards.

Measure the stretched length $l_B$ of the spring at the instant that the mass holder starts to move.

$l_B$ = ______

(ii)

Continue the experiment.

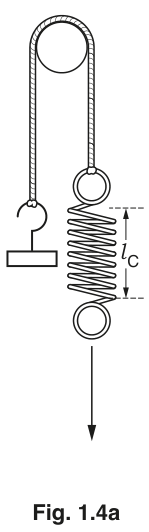

(1) Measure the stretched length, $l_C$ , of the spring at the instant that the mass holder starts to move when the spring is pulled vertically downwards, as shown in Fig. 1.4a. The string is in contact with half of the circumference of the rod.

Fig. 1.4a

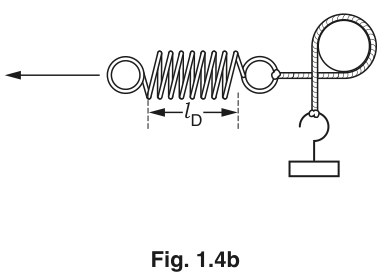

(2) Measure the stretched length, $l_D$ , of the spring at the instant that the mass holder starts to move when the spring is pulled horizontally to the left, as shown in Fig. 1.4b. The string is in contact with three quarters of the circumference of the rod.

Fig. 1.4b

$l_C$ = ______
$l_D$ = ______

(c)

Write a conclusion for this investigation and suggest why the lengths $l_B$ , $l_C$ , and $l_D$ are different.

conclusion ______

suggestion ______
