Physics 5054/32 — October/November 2014

Cambridge O-Level · Practical Test · worked solutions for every part, with the mark scheme

4
questions
30
marks
120
minutes

Topics Observations and Measurements · Analysis, Conclusions and Evaluation · Experimental Contexts · Use of Techniques, Apparatus and Materials

Q15MObservations and MeasurementsExperimental ContextsAnalysis, Conclusions and EvaluationFree sample

In this experiment, you will determine the density of the material of a length of wire.

You are provided with

  • a length of wire,
  • a metre rule,
  • a 30 cm ruler,
  • four pieces of adhesive tape,
  • a wooden rod.
(a)

Using two pieces of adhesive tape, stick the wire to the bench and ensure that it is straight. Measure the length LL of the wire.

LL = ______

1M
(b)

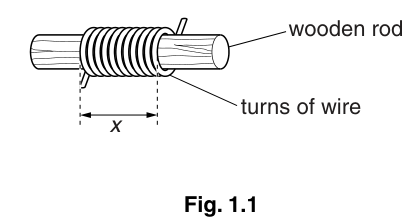

Carefully wind the wire around the wooden rod, ensuring that the turns of wire are as close as possible. This is shown in Fig. 1.1. You may use adhesive tape to fix the ends of the wire to prevent the turns unwinding.

(i) Count the number NN of turns of wire on the rod.

NN = ______

(ii) Measure the length xx of the coil as shown in Fig. 1.1.

xx = ______

(iii) Calculate the diameter dd of the wire using d=xNd = \frac{x}{N}.

dd = ______

2M
(c)

Remove the coil of wire from the rod.

(i) Using the top-pan balance, measure the mass mm of the coil of wire.

mm = ______

(ii) Calculate the density ρ\rho of the material of the wire using the equation

ρ=4mπd2L\rho = \frac{4m}{\pi d^2 L}

ρ\rho = ______

2M

The rest of this paper

3 more questions
  • Q2Observations and Measurements · Experimental Contexts · Use of Techniques, Apparatus and Materials · Analysis, Conclusions and Evaluation5M
  • Q3Observations and Measurements · Use of Techniques, Apparatus and Materials · Analysis, Conclusions and Evaluation5M
  • Q4Experimental Contexts · Observations and Measurements · Analysis, Conclusions and Evaluation15M
