Forces of $3\,\text{N}$ and $4\,\text{N}$ act as shown in the diagram. Which diagram shows the resultant $R$ of these two forces? Options

Physics 5054/12 — May/June 2013

Cambridge O-Level · Multiple Choice · answer key with instant marking and worked solutions

questions

marks

minutes

Topics Forces · Energy, Work and Power · Physical Quantities and Measurement · Kinematics · Kinetic Particle Model of Matter · Thermal Properties of Matter · +15 more

Tap an option under each question to check it — your score builds as you go.

Q11MPhysical Quantities and MeasurementForcesFree sample

Forces of $3\,\text{N}$ and $4\,\text{N}$ act as shown in the diagram.

Fig. 1

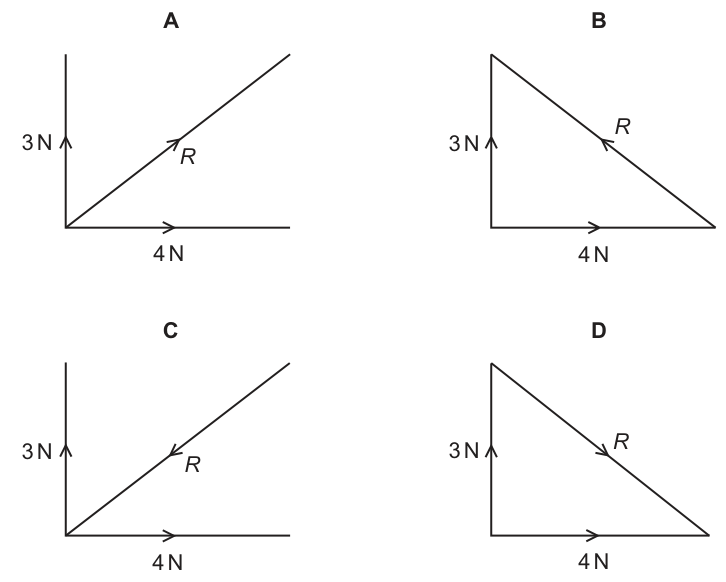

Which diagram shows the resultant $R$ of these two forces?

Options
