Forces of $3\text{ N}$ and $4\text{ N}$ act as shown in the diagram. Which diagram shows the resultant $R$ of these two forces? Options

Physics 5054/11 — May/June 2013

Cambridge O-Level · Multiple Choice · answer key with instant marking and worked solutions

questions

marks

minutes

Topics Forces · Energy, Work and Power · Sound · Current, Voltage and Resistance · Physical Quantities and Measurement · Kinetic Particle Model of Matter · +19 more

Tap an option under each question to check it — your score builds as you go.

Q11MPhysical Quantities and MeasurementForcesFree sample

Forces of $3\text{ N}$ and $4\text{ N}$ act as shown in the diagram.

Fig. 1

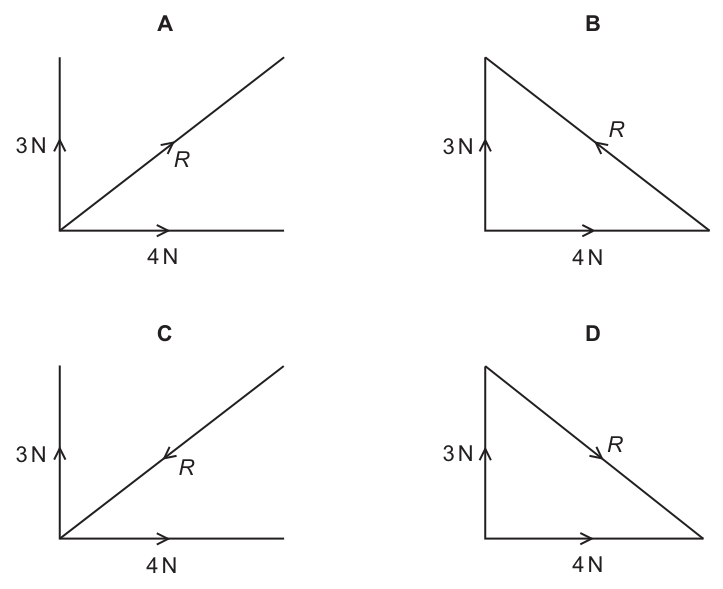

Which diagram shows the resultant $R$ of these two forces?

Options
