Mathematics (Syllabus D) 4024/21 — May/June 2023

Cambridge O-Level · Calculator · worked solutions for every part, with the mark scheme

questions

100

marks

150

minutes

Topics Algebra and Graphs · Number · Geometry · Mensuration · Statistics · Probability · +3 more

Q1MensurationAlgebra and GraphsFree sample

Fig. 1

A cuboid has dimensions $x\,\text{cm}$ , $(5 - x)\,\text{cm}$ and $15\,\text{cm}$ .

(a)

Show that the equation for the volume of the cuboid, $y\,\text{cm}^3$ , is $y = 75x - 15x^2$ .

(b)

Complete the table of values for $y = 75x - 15x^2$ .

$x$	1	1.5	2	2.5	3	3.5	4
$y$	60	78.75	90		90	78.75	60

(c)

Draw the graph of $y = 75x - 15x^2$ for $1 \leq x \leq 4$ .

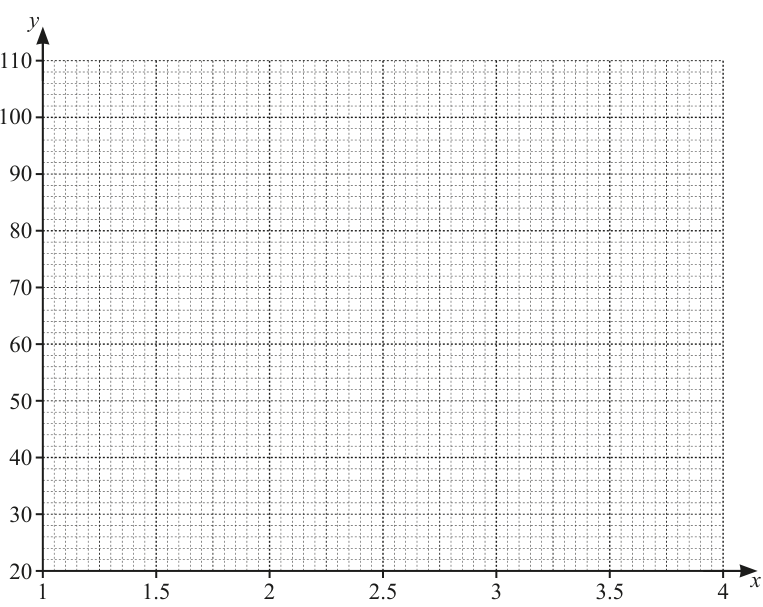

Fig. 2

(d)

[Volume of pyramid = $\frac{1}{3} \times \text{base area} \times \text{height}$ ]

Fig. 3

The diagram shows a pyramid with a square base of side length $9\,\text{cm}$ .
The pyramid has height $x\,\text{cm}$ and volume $y\,\text{cm}^3$ .

(i)

Show that the equation for the volume of the pyramid is $y = 27x$ .

(ii)

By drawing a suitable straight line on the grid on page 2, find the height of the pyramid when the pyramid and the cuboid have the same volume.

______ $\text{cm}$
